Modern vehicles rely on electronic control units for almost everything. Engine timing, fuel injection, transmission control, airbag systems, ABS, body electronics, battery management, and communication networks all depend on circuit boards working correctly.

When an ECU fails, the problem is not always obvious. A vehicle may refuse to start, display several warning lights, lose communication with a scan tool, or develop an intermittent fault that disappears as quickly as it appears. Replacing the entire control unit is often expensive, and in many cases, the ECU can be repaired.

The difficult part is finding the damaged component.

That is where a proper board-level testing tool can make a major difference. The FADOS XI Advanced VI Analyzer is designed to help technicians examine electronic components and circuit paths without relying only on visual inspection or guesswork. It combines VI curve analysis with advanced testing features aimed at PCB fault detection, ECU repair, and electronic troubleshooting.

For automotive repair specialists, this type of equipment can turn a frustrating diagnostic job into a much more organized process.

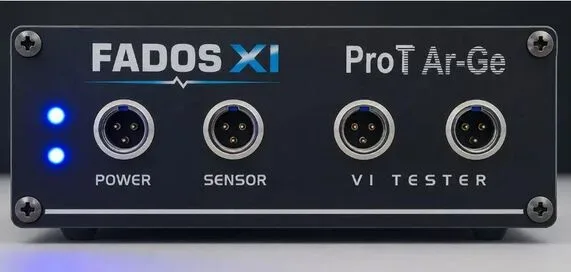

What Is the FADOS XI Advanced VI Analyzer?

The FADOS XI is an advanced electronic testing instrument used to compare the electrical behavior of components and circuits. Its main function is based on VI curve analysis, which means the device observes the relationship between voltage and current at a test point.

Every electronic component creates a particular curve or pattern. A healthy diode, resistor, capacitor, transistor, or integrated circuit normally produces a recognizable response. When a component is damaged, shorted, open, or affected by another fault on the board, the curve can change.

By comparing a suspicious circuit with a known-good circuit or a reference pattern, a technician can narrow down the location of the problem.

This is especially useful when:

• The ECU has no visible damage
• The fault is caused by a small surface-mounted component
• The circuit board is densely populated
• A vehicle has an intermittent electrical issue
• The original diagnostic code does not identify the failed component
• Replacing the ECU is not financially practical

Instead of testing every component randomly, the technician can focus on areas where the electrical signature looks abnormal.

Why ECU Repair Requires More Than a Scan Tool

A diagnostic scanner is essential for modern vehicle work, but it has limits. A scan tool can read fault codes, display live data, activate components, and communicate with control modules. It usually cannot tell you which resistor, capacitor, driver circuit, or power supply component has failed inside the ECU.

For example, a scanner may show:

• No communication with the engine ECU
• Injector circuit faults
• Internal control module errors
• Sensor reference voltage problems
• CAN bus communication faults
• Power supply or processor-related codes

These codes are useful clues, but they do not always reveal the actual board-level cause.

A damaged voltage regulator, failed protection diode, shorted capacitor, cracked solder joint, or faulty driver transistor may create several unrelated-looking symptoms. The technician needs to move from vehicle-level diagnosis to circuit-level testing.

That is where the FADOS XI can support the repair process. It allows the board to be examined directly, helping technicians identify unusual electrical behavior before removing multiple components or replacing expensive parts unnecessarily.

How VI Curve Analysis Helps Find Faults

VI curve testing is valuable because it provides a visual representation of circuit behavior. Instead of relying only on resistance measurements, the technician can observe the shape of the electrical response.

A simple resistance test may show that two points are connected, but it may not reveal whether a semiconductor is behaving correctly. A VI curve can provide more information about polarity, conduction, leakage, and the interaction between components connected to the same circuit.

A practical testing process may include:

1. Disconnecting power from the ECU
2. Identifying the circuit or component linked to the vehicle fault
3. Connecting the analyzer probes to the selected test points
4. Observing the curve displayed by the instrument
5. Comparing the result with a healthy board or reference reading
6. Isolating the suspect component or circuit section
7. Confirming the fault before replacing or repairing the part

The comparison step is particularly important. A reading that looks unusual on its own may become much clearer when placed next to the same circuit on a working module.

This approach can save time when working on control units with limited documentation or complex multi-layer circuit boards.

Dual-Channel Testing for Faster Comparisons

One of the useful features of the FADOS XI is its dual-channel testing capability. With two channels, a technician can compare two points, two components, or two boards more efficiently.

This can be helpful when:

• Comparing a faulty ECU with a working ECU
• Testing matching circuits on the same board
• Checking two sides of a component network
• Looking for differences between similar channels
• Comparing input and output sections of a control circuit

In automotive electronics repair, comparison is often more reliable than trying to interpret a single measurement. Many ECU circuits are designed in repeated or mirrored sections. If one channel behaves differently from another, that difference can point toward the failed area.

Dual-channel testing may also reduce repeated probe changes, making the workflow more practical during long repair sessions.

3D Frequency Scanning for Complex PCB Problems

Modern automotive circuit boards contain high-speed processors, communication circuits, switching power supplies, sensor interfaces, and densely packed surface-mount components. Some faults do not stand out during a basic continuity or resistance check.

The FADOS XI includes a 3D frequency scan feature intended to provide a broader view of circuit behavior across frequency ranges. This can help identify changes that may not be obvious from a single test condition.

Frequency-based analysis can be useful when investigating:

• Power supply instability
• Communication circuit problems
• Filter and protection networks
• Capacitor-related faults
• High-frequency signal paths
• Short circuits affecting sensitive components
• Differences between a good and damaged board

The visual 3D presentation can make it easier to spot an unusual response pattern. Rather than looking at one isolated value, the technician can examine how the circuit behaves as the test conditions change.

This does not replace proper circuit knowledge, wiring diagrams, or component-level confirmation. It adds another layer of information to the diagnostic process.

Non-Contact Short-Circuit Detection

Short circuits are among the most common and time-consuming problems in ECU repair. A shorted capacitor or damaged semiconductor can pull down an entire power rail, causing the control unit to stop working.

Finding the exact location is not always easy. Several components may be connected to the same supply line, and the board may show no visible signs of heat damage.

Non-contact short-circuit detection can help locate suspicious areas without requiring the technician to physically touch every component with a probe. This can be especially helpful on:

• Multi-layer PCBs
• Small surface-mounted components
• Power supply sections
• Communication modules
• Boards with limited test access
• Circuits where the short is difficult to isolate

A technician should still confirm the result using standard electrical tests and careful component isolation. However, a faster way to narrow down the search area can make a significant difference when the board contains hundreds or thousands of components.

Useful Applications in Automotive Electronics Repair

The FADOS XI can be used across several areas of automotive electronics work.

Engine Control Units

Engine ECUs often include injector drivers, ignition circuits, sensor supply lines, processor sections, and communication interfaces. A fault in any of these areas can cause starting problems, misfires, loss of communication, or poor engine performance.

VI curve testing can help compare driver and power supply circuits before replacing expensive components.

Transmission Control Modules

Transmission control units manage solenoids, speed sensors, pressure control systems, and communication with other modules. Faults may appear as shifting problems or communication errors.

Testing can help identify abnormal component behavior in solenoid driver and power regulation circuits.

ABS and Airbag Modules

Safety-related modules must be treated carefully, but board-level testing can support diagnosis when a module has communication issues or internal circuit faults. Proper safety procedures and manufacturer guidelines should always be followed.

Body Control Modules

Body control modules operate lighting, locking systems, windows, wipers, and other convenience functions. Water damage, voltage spikes, and component failure can create multiple symptoms at once.

A structured board comparison may help separate a power problem from a damaged output circuit.

Electric and Hybrid Vehicle Electronics

Electric and hybrid vehicles contain additional control systems for battery management, charging, inverter operation, and high-voltage safety. These systems require specialized training and strict isolation procedures.

The analyzer may be useful for low-voltage PCB sections, but it should never be treated as a substitute for high-voltage safety equipment or manufacturer-approved procedures.

Advantages for Professional Repair Workshops

A reliable testing process can improve more than technical accuracy. It can also make a repair business more efficient.

Less Guesswork

Technicians can make decisions based on measured circuit behavior rather than replacing parts one by one.

Faster Fault Localization

A visual curve comparison or scan may point toward a suspicious section sooner than traditional manual testing alone.

Better Repair Decisions

Before ordering an expensive ECU, the workshop can investigate whether the original module is repairable.

Improved Customer Value

Repairing an existing control unit may cost less than replacing and programming a new one. It can also reduce waiting time when replacement parts are difficult to source.

More Consistent Workflows

A repeatable testing method helps technicians document findings and build reference libraries for common ECU models.

Over time, a workshop can create its own collection of known-good signatures. That information becomes a valuable technical resource for future repairs.

FADOS XI Compared With Traditional Multimeter Testing

A multimeter remains one of the most important tools in any electronics workshop. It is excellent for checking voltage, resistance, continuity, current, and diode behavior.

However, a multimeter generally provides a single measurement at a time. The FADOS XI offers a more visual approach by displaying the electrical response of a circuit and allowing comparisons between test points.

The two tools are not competitors. They work best together.

A practical workflow might look like this:

• Use the scan tool to identify the vehicle system involved
• Use wiring diagrams to locate the relevant ECU pins and circuit sections
• Use a multimeter to check power, ground, and basic continuity
• Use the VI analyzer to compare component or circuit signatures
• Use frequency scanning to investigate more complex behavior
• Confirm the suspected component with focused testing
• Complete the repair and retest the ECU

This combination gives the technician both broad vehicle-level information and detailed board-level evidence.

Tips for Getting Better Results

The quality of the result depends on the testing process as much as the instrument itself.

Start With the Vehicle Symptoms

Do not begin probing randomly. Record the original fault codes, symptoms, communication status, and operating conditions.

Check Power and Ground First

A control unit may appear defective when the real problem is a blown fuse, damaged wiring, poor ground, or unstable supply voltage.

Use a Known-Good Reference

When possible, compare the faulty board with an identical working unit. A reference makes unusual readings much easier to understand.

Keep the Board Clean

Moisture, flux residue, dirt, and corrosion can influence measurements. Clean the board carefully using suitable electronics cleaning methods.

Disconnect Power Before Testing

VI analysis is normally performed with the board unpowered. Applying external power incorrectly can damage the module or the test equipment.

Document Every Finding

Take notes, save screenshots, and record test points. Good documentation prevents repeated work and helps build a useful repair database.

Confirm Before Replacing

A strange curve does not automatically mean the component itself is defective. In-circuit components can influence one another. Remove or isolate the suspect part when necessary before making a final decision.

Is the FADOS XI Right for Your Workshop?

The FADOS XI Advanced VI Analyzer is best suited to technicians and repair businesses that work regularly with automotive control units, electronic modules, and PCB fault finding.

It may be a good fit for:

• ECU repair specialists
• Automotive electronics workshops
• Vehicle diagnostic technicians
• Remanufacturing companies
• Technical training centers
• Engineers working with embedded automotive systems
• Repairers who want to expand into board-level diagnostics

It is not a magic replacement for experience. The best results come from combining the analyzer with circuit knowledge, technical documentation, soldering skills, and a careful diagnostic routine.

For workshops that already handle ECU repairs, however, a dedicated VI analyzer can become a valuable part of the bench-testing setup.
