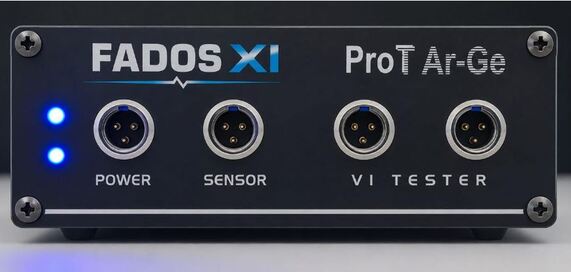

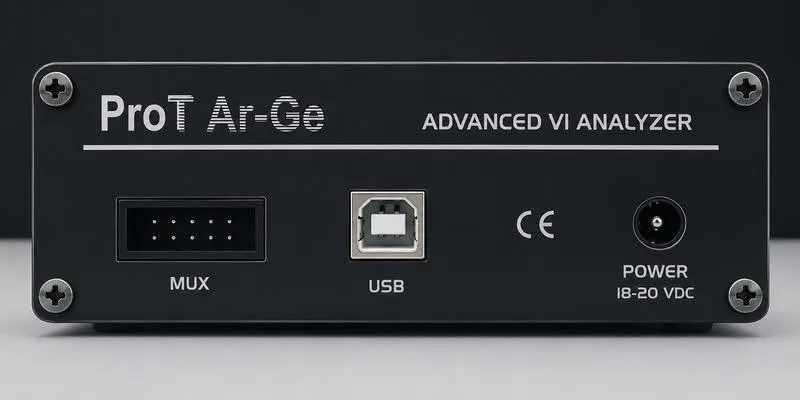

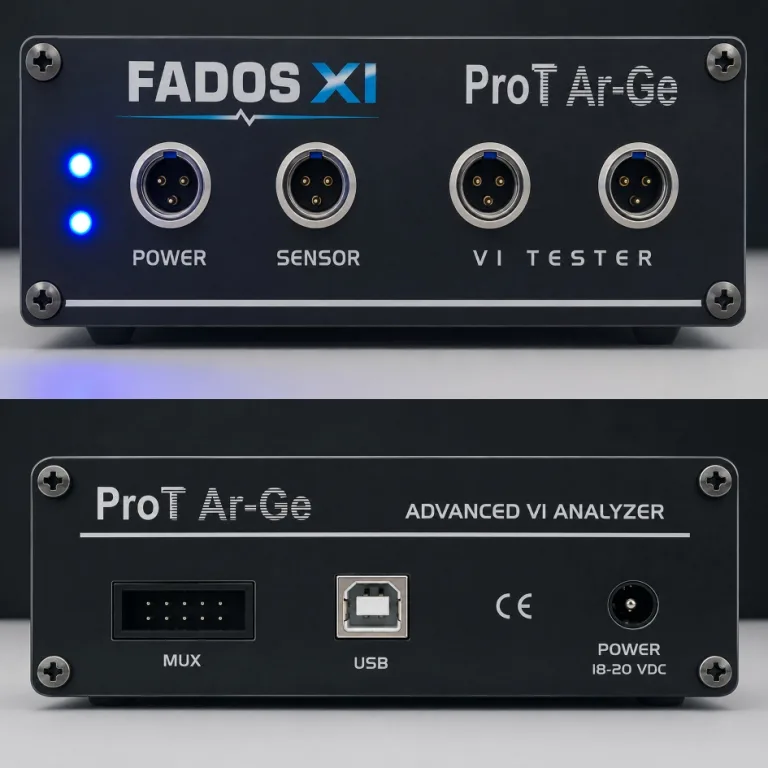

FADOS XI Advanced VI Analyzer
Multi-Functional Circuit Board Tester

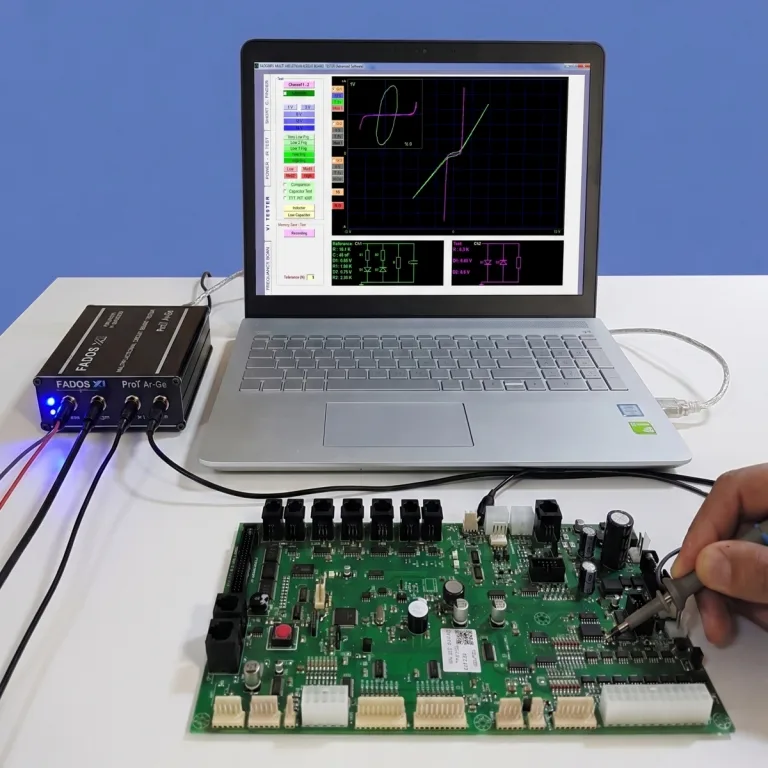

FADOS XI Advanced VI Analyzer is a professional electronic diagnostic tool that combines VI testing, non-contact short circuit detection, and 3D frequency scanning.
It automatically identifies components, measures RLC values, and generates circuit diagrams for fast fault analysis. The device also includes memory comparison, IR temperature sensing, adjustable DC power supply, and built-in oscilloscope functions for advanced repair work.
Main Features of FADOS XI Advanced VI Analyzer:
- Dual-channel VI testing

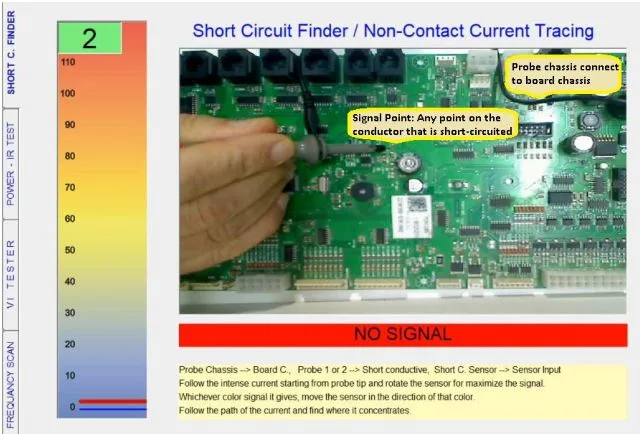

- Non-contact short circuit detection (sensor + software)

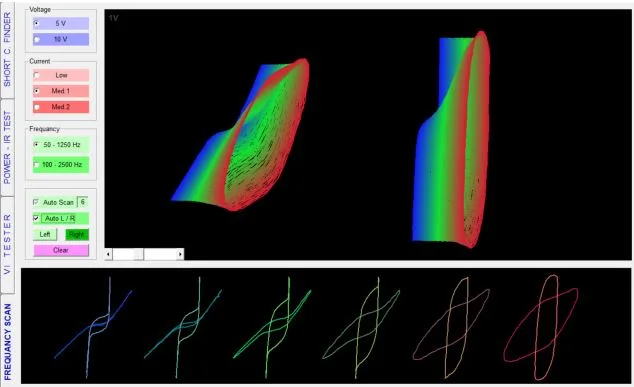

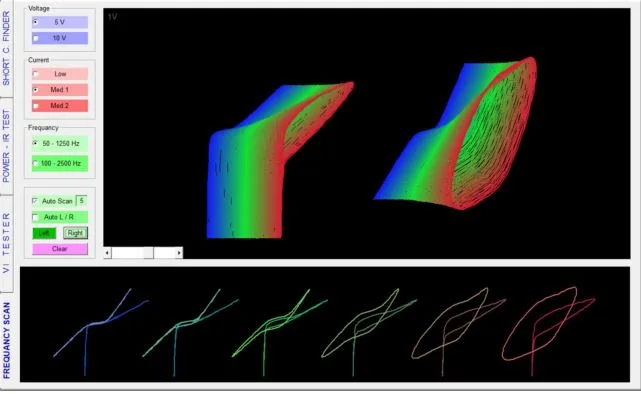

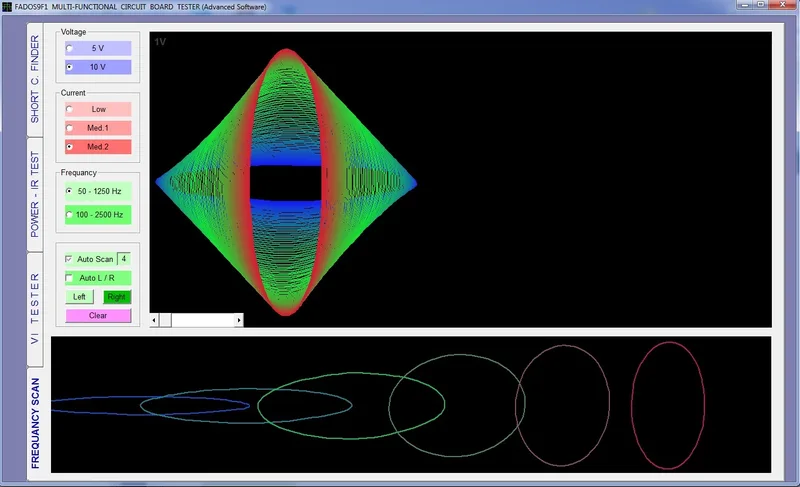

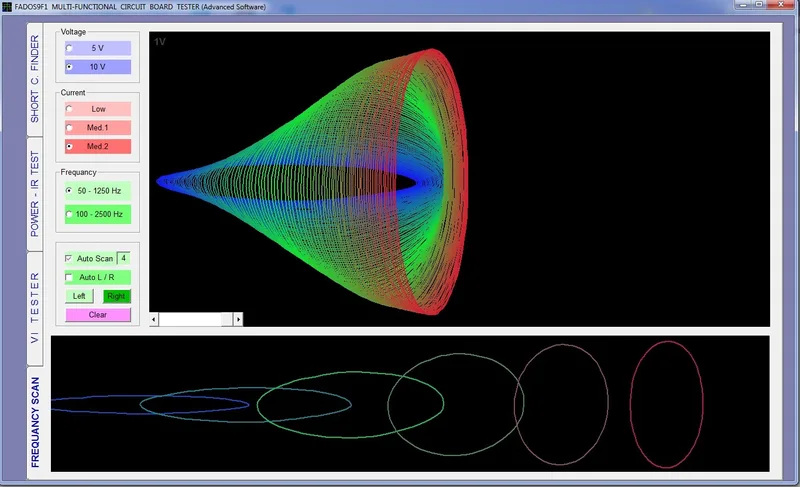

- 100–2500 Hz frequency scan with 3D VI graph
- Automatic equivalent circuit diagram
- Multi-component measurement (R, L, C, D)
- Automatic identification of components (Transistor, FET, IGBT, Triac, Thyristor, etc.)

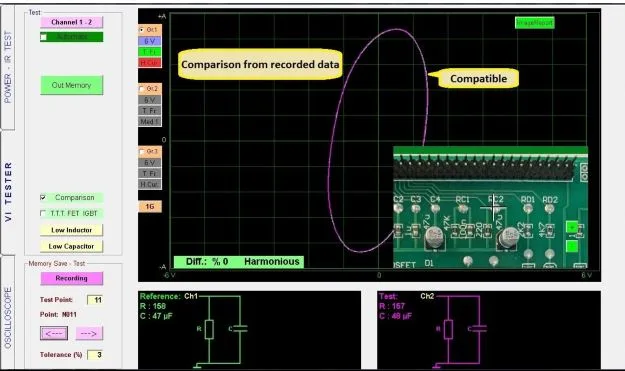

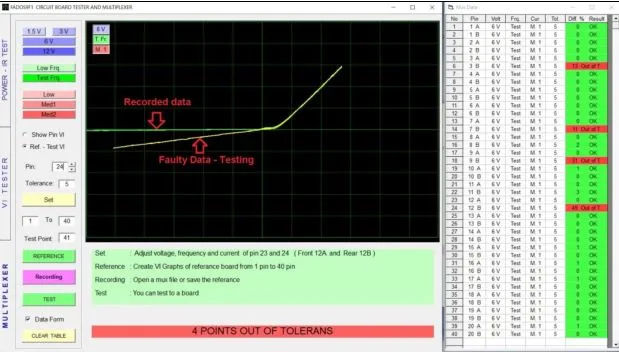

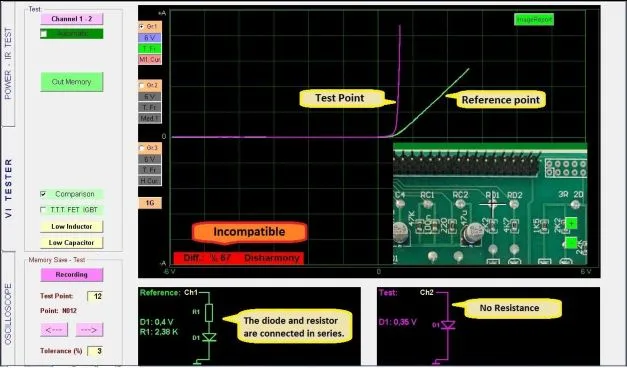

- Memory recording and comparison
- Adjustable DC power supply (16V / 1.5A) with power test graph

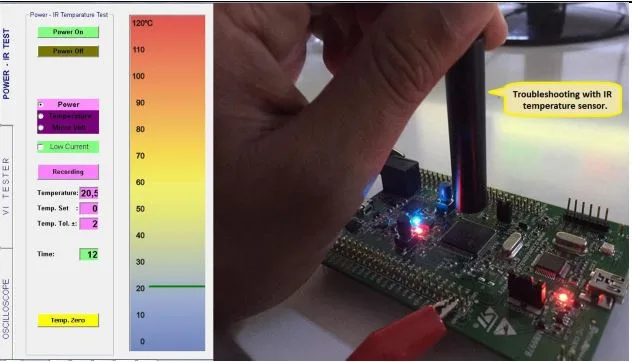

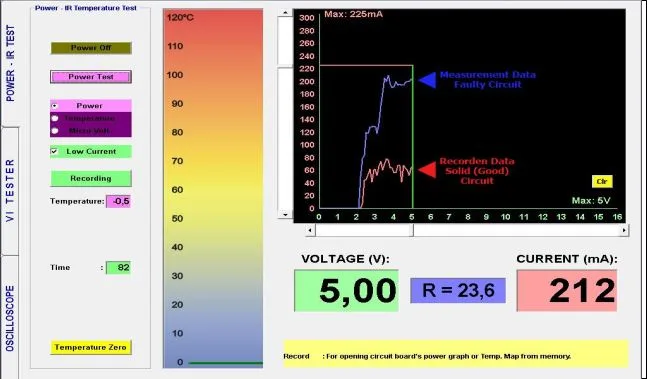

- IR temperature measurement
- Automatic voltage, current, and frequency step selection
- Automatic 1V VI display
- 3G scan with 3 display modes and comparison
- Fault reporting in Excel and JPG formats
- Extra functions: oscilloscope and signal outputs (square wave / analog)

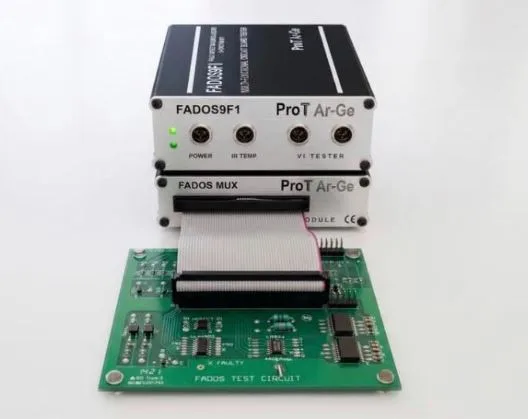

FADOS9F1 & FADOS XI Advanced
Package Contents:
- 1 × FADOS9F1 device
- Software
- 1 × IR temperature probe
- Non-contact short circuit detection sensor (Advanced model only)
- 2 × oscilloscope probes
- 1 × USB cable
- 1 × DC cable
- 1 × power adapter
- 1 × FADOS9F1 handbag
- Short circuit detection sensor (for FADOS XI Advanced VI Analyzer)
