The ZF 6HP19 is one of the most widely used six-speed automatic transmissions fitted to BMW vehicles. It is known for smooth shifts, strong performance and good reliability when serviced correctly.

Although many BMW service schedules describe the gearbox as “maintenance-free,” that does not mean the transmission fluid lasts forever. Automatic transmission fluid becomes contaminated and loses its performance over time. Heat, driving style, towing and high mileage can all accelerate the aging process.

A fresh oil change can help restore smoother gear changes, reduce shift hesitation and protect the internal components of the transmission. It will not repair a mechanically damaged gearbox, but regular maintenance can help prevent small problems from becoming expensive failures.

This guide explains the correct procedure for servicing the ZF 6HP19, including fluid recommendations, filter pan replacement, torque settings and the correct oil-level check.

Important: This guide is for information only. Always confirm the exact transmission, fluid specification, tightening torques and filling procedure for your individual vehicle before starting work.

Which BMW Models Use the ZF 6HP19?

The ZF 6HP19, also known as the GA6HP19Z in some BMW applications, was installed in a wide range of BMW models.

Common applications include:

• BMW 1 Series E87, E82 and E88
• BMW 3 Series E90 and E91
• BMW 5 Series E60 and E61
• BMW 7 Series E65 and E66
• BMW Z4 E85
• BMW X3 E83
• BMW X5 E70
• BMW X6 E71

The exact gearbox can vary according to the engine, model year, drivetrain and market. Before ordering parts, check the transmission identification and compare the original oil pan, connector arrangement and filter design.

Why Change the ZF 6HP19 Transmission Fluid?

Transmission fluid does several jobs at once. It lubricates gears and bearings, transfers hydraulic pressure, controls clutch operation and helps remove heat from the gearbox.

As the vehicle accumulates mileage, the fluid can become darker and contaminated with:

• Clutch material
• Fine metal particles
• Carbon deposits
• Sealing material
• Moisture from condensation
• Oxidized oil residue

The image of new oil beside used oil often tells the story immediately. New fluid is usually clear and bright, while old fluid may look dark, cloudy or heavily discolored.

Old fluid can contribute to:

• Harsh gear changes
• Delayed engagement when selecting Drive or Reverse
• Flare between gears
• Shuddering under light acceleration
• Increased transmission slip
• Noisy operation
• Accelerated clutch and valve-body wear

Changing the fluid cannot guarantee that every shifting problem will disappear. However, using the correct fluid and setting the level accurately gives the transmission the best possible foundation.

How Often Should the Oil Be Changed?

ZF has historically described many automatic transmissions as filled for life under normal operating conditions. However, ZF also notes that service life depends heavily on operating temperature, vehicle use and load. Its current product information recommends an oil change at up to approximately 150,000 km, with shorter intervals possible under high-temperature or high-load conditions. (ZF)

For an older BMW with a ZF 6HP19, many owners and transmission specialists choose a more conservative interval:

• Normal driving: approximately 100,000–150,000 km
• Sporty driving or frequent high speeds: approximately 80,000–100,000 km
• Frequent towing or heavy loads: service earlier
• Unknown service history: inspect and service as soon as practical
• Time-based interval: around 8 years is a sensible maintenance point for many older vehicles

The important point is simple: do not wait until the transmission starts slipping or banging into gear.

Correct Transmission Fluid for the ZF 6HP19

The ZF 6HP19 requires a specific low-viscosity automatic transmission fluid. The most direct recommendation is:

• ZF LifeguardFluid 6

ZF lists LifeguardFluid 6 for several 6HP applications, including the 6HP19/X family. Using the wrong automatic transmission fluid can cause poor shift quality and, in serious cases, transmission damage. (ZF)

Depending on the market and vehicle specification, suitable approved alternatives may include products such as:

• BMW-approved ATF for the specific transmission
• Liqui Moly Top Tec ATF 1800, where the manufacturer confirms compatibility
• Ravenol fluid carrying the correct ZF 6HP19/LifeguardFluid 6 application

Always check the current product data sheet and approval information before purchasing. A bottle that merely says “suitable for automatic transmissions” is not enough.

Do not add additives

BMW and ZF procedures do not call for transmission additives or extra cleaning chemicals. ZF specifically warns that additional additives or cleaning agents can alter the chemical composition of the transmission fluid. (ZF)

Use only the specified ATF. The gearbox does not need a magic potion; it needs the right fluid, a clean installation and the correct level.

Parts and Tools Required

For a standard ZF 6HP19 service, prepare the following:

Replacement parts

• New transmission oil pan with integrated filter
• New oil-pan gasket
• New filter O-ring, if supplied separately
• New drain and filler plugs, where required
• At least 6 litres of approved transmission fluid

ZF oil-change kits for the 6HP19 commonly include an oil pan with an integrated filter and six litres of LifeguardFluid 6. (ZF)

Tools and supplies

• Vehicle lift or workshop pit
• Fluid transfer pump
• 8 mm Allen key for the filler plug
• 10 mm Allen key for the drain plug
• T40 Torx bit for the oil-pan bolts
• Torque wrench
• Drain pan
• Brake cleaner or suitable degreaser
• Lint-free cloths
• Diagnostic scanner capable of reading transmission temperature
• Safety glasses and suitable gloves

The vehicle must be level during the filling procedure. A jack and axle stands are not a good substitute unless the car can be supported safely and kept perfectly level.

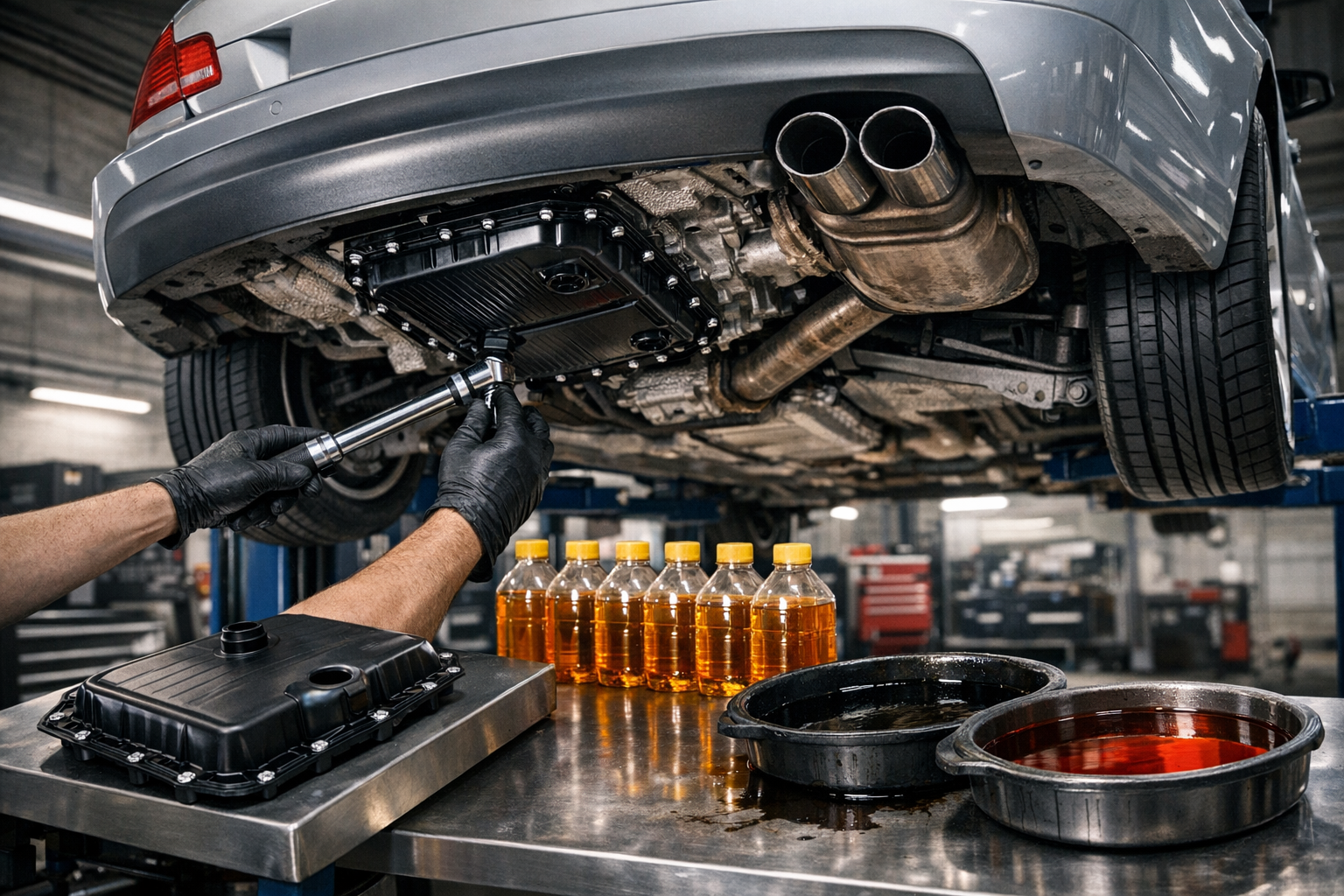

ZF 6HP19 Oil Change Procedure

1. Warm the transmission

Drive the vehicle for a short distance so the old fluid becomes warm and flows more easily. Do not begin work with a dangerously hot transmission.

Park the vehicle on a lift or over a suitable workshop pit. Make sure the car is stable and level before going underneath.

Clean the outside of the transmission pan, especially around the filler plug. Automatic transmissions are extremely sensitive to dirt, so take a few extra minutes here.

2. Remove the filler plug first

Before draining the oil, loosen the filler plug using the correct 8 mm Allen key.

This step matters. If the filler plug is seized and the oil has already been drained, the vehicle cannot be refilled easily.

The filler plug is generally located on the side of the transmission, above the oil pan. Exact access can vary depending on the BMW model and exhaust layout.

3. Drain the old fluid

Place a suitable drain pan underneath the transmission.

Remove the drain plug with the correct 10 mm Allen key and allow the fluid to drain completely. Approximately four litres may come out initially, although the exact amount depends on the transmission temperature and how long the gearbox is allowed to drain.

Next, remove the transmission oil-pan bolts using a T40 Torx bit. Support the pan as the last bolts are removed because additional fluid will remain inside it.

A further litre or more may drain when the pan is removed. Allow the transmission to drip until the flow slows to a minimum.

Do not be surprised if the old oil looks very dark. Colour alone does not diagnose the condition of a gearbox, but heavy contamination, strong burnt odour or large metal debris deserves closer inspection.

4. Inspect the old oil pan

Examine the bottom of the pan and any magnets inside it.

A light coating of fine grey material on the magnets is common on a used automatic transmission. Large metal fragments, sharp particles or heavy clutch debris may indicate internal wear.

If the vehicle already has severe slipping, major delays when selecting gears or repeated transmission faults, an oil change should not be treated as a complete repair. A specialist inspection may be necessary.

5. Clean the transmission mounting surface

Clean the sealing surface on the transmission carefully. Remove old gasket material without scratching the metal.

The area must be completely clean and free from oil, dirt and pieces of the old gasket. Use lint-free cloths and suitable brake cleaner.

Never allow cleaning debris to fall into the open transmission.

6. Install the new oil pan and filter

Fit the new gasket to the replacement oil pan. Lightly moisten the gasket with fresh transmission fluid if recommended by the kit manufacturer.

Make sure the new filter O-ring is properly seated. On the ZF 6HP19, the filter is integrated into the oil pan, so replacing only the fluid without replacing the filter is not the complete service.

Position the new pan carefully and install the bolts by hand. This helps prevent cross-threading.

Tighten the oil-pan bolts evenly in a criss-cross pattern. The commonly specified torque is approximately:

• Oil-pan bolts: 10 Nm

Always verify the exact torque for the parts and vehicle being serviced.

Install and tighten the drain plug. A commonly used specification is:

• Drain plug: 35 Nm

Avoid overtightening. Aluminium transmission housings do not appreciate enthusiasm from a long breaker bar.

Filling the ZF 6HP19 Correctly

The oil-level procedure is the most important part of the entire service.

The 6HP19 does not use a traditional dipstick. The level is checked through the filler opening while the engine is running and the transmission is at a controlled temperature.

1. Begin with the engine switched off

Keep the vehicle level.

With the engine off and the selector in Park, pump approved transmission fluid into the filler opening until fluid begins to run out.

Usually, around four litres may be added at this stage, but never rely on a fixed quantity alone. The final level is determined by the overflow procedure.

2. Start the engine

Start the engine and allow it to idle.

Continue pumping in fresh ATF until it begins to overflow from the filler hole. This is much easier and safer with two people: one person monitors the fluid pump while the other operates the vehicle and watches the transmission temperature.

Keep your foot firmly on the brake.

3. Move through the gears

With the engine idling, move the selector through the transmission positions. Select Reverse and Drive, then move through the available gears according to the correct ZF service procedure.

Hold each position for several seconds before moving to the next. This allows fluid to circulate through the valve body, clutch circuits and torque converter.

ZF’s published procedure specifies selecting positions and gears while the engine idles, with the exact sequence depending on the transmission variant. (ZF)

Do not rev the engine aggressively and never place the vehicle in gear without applying the brake.

4. Set the final fluid level by temperature

The transmission temperature must be monitored with suitable diagnostic equipment.

ZF’s 6HP procedure calls for checking the level when the fluid is approximately 30°C to 35°C, with the transmission temperature not exceeding the specified maximum during the process. ZF’s instructions also describe allowing the temperature to reach around 40°C while only a few drops leave the filler opening. (ZF)

The correct process is:

1. Engine idling
2. Vehicle level
3. Selector in Park
4. Transmission temperature monitored
5. Add fluid until it flows from the filler opening
6. Allow the temperature to reach the specified range
7. Wait until the flow reduces to a light trickle or occasional drops
8. Install the filler plug

A low fluid level can cause poor lubrication, delayed engagement and clutch damage. An overfilled gearbox can also create problems, including foaming and unstable hydraulic pressure.

Install the filler plug and tighten it to the correct specification. A commonly referenced value is:

• Filler plug: 30 Nm

Confirm the exact torque for your particular application before final tightening.

Should Transmission Adaptations Be Reset?

This is an area where unnecessary resets can create confusion.

A fluid change does not automatically mean that transmission adaptations should be erased. The gearbox has learned pressure and clutch-fill values based on its wear condition.

Resetting those values without carrying out the correct repair or relearn procedure may lead to poor shifting until the transmission adapts again.

Adaptations should generally only be reset when the mechatronics unit, valve body or other internal transmission components have been repaired or overhauled, and the correct diagnostic procedure is available.

After the service, scan the vehicle for transmission faults and check that the fluid temperature and level are correct. Do not reset learned values simply because new oil has been installed.

After the Oil Change

Once the filler plug is secure, clean any spilled fluid from the transmission and underbody.

Take the vehicle for a gentle road test. Allow the gearbox to shift through all gears without hard acceleration. Pay attention to:

• Engagement into Drive and Reverse
• Shift quality
• Any flare or hesitation
• Transmission warning messages
• Fluid leaks around the pan and plugs

After the test drive, inspect the transmission again for leaks. If the fluid level needs to be checked again, repeat the temperature-controlled procedure rather than opening the filler plug while the gearbox is hot and guessing.

Dispose of the old ATF responsibly. Used transmission fluid should never be poured onto the ground or into household drains.

Common Mistakes to Avoid

Avoid these frequent errors during a ZF 6HP19 oil change:

• Draining the fluid before checking that the filler plug can be removed
• Using the wrong automatic transmission fluid
• Adding aftermarket additives
• Reusing a stretched or damaged gasket
• Forgetting the filter O-ring
• Over-tightening the oil-pan bolts
• Filling the transmission with the engine switched off only
• Checking the level without monitoring fluid temperature
• Working with the vehicle tilted
• Allowing dirt to enter the transmission
• Resetting adaptations without a proper repair procedure
• Treating severe internal wear as a simple fluid problem

Precision matters more than speed. A careful oil change is far cheaper than repairing a transmission damaged by contamination or an incorrect fluid level.
