if your check engine light is on solid, the car won’t start, or it’s throwing random codes that keep coming back, I get the panic. A lot of people (and even some shops) jump straight to “the ECU is bad—replace it.”

That move can cost you $800–$2500 for nothing.

I’ve seen hundreds of these boxes come across the bench. Most of the time the ECU itself is fine. The real problem is something feeding it power, ground, or signals. So before you condemn the brain of your car, let’s walk through the actual reasons an ECU can fail—and more importantly, what you should test first.

The Real Reasons an ECU Can Fail

Here are the most common killers I see in the real world:

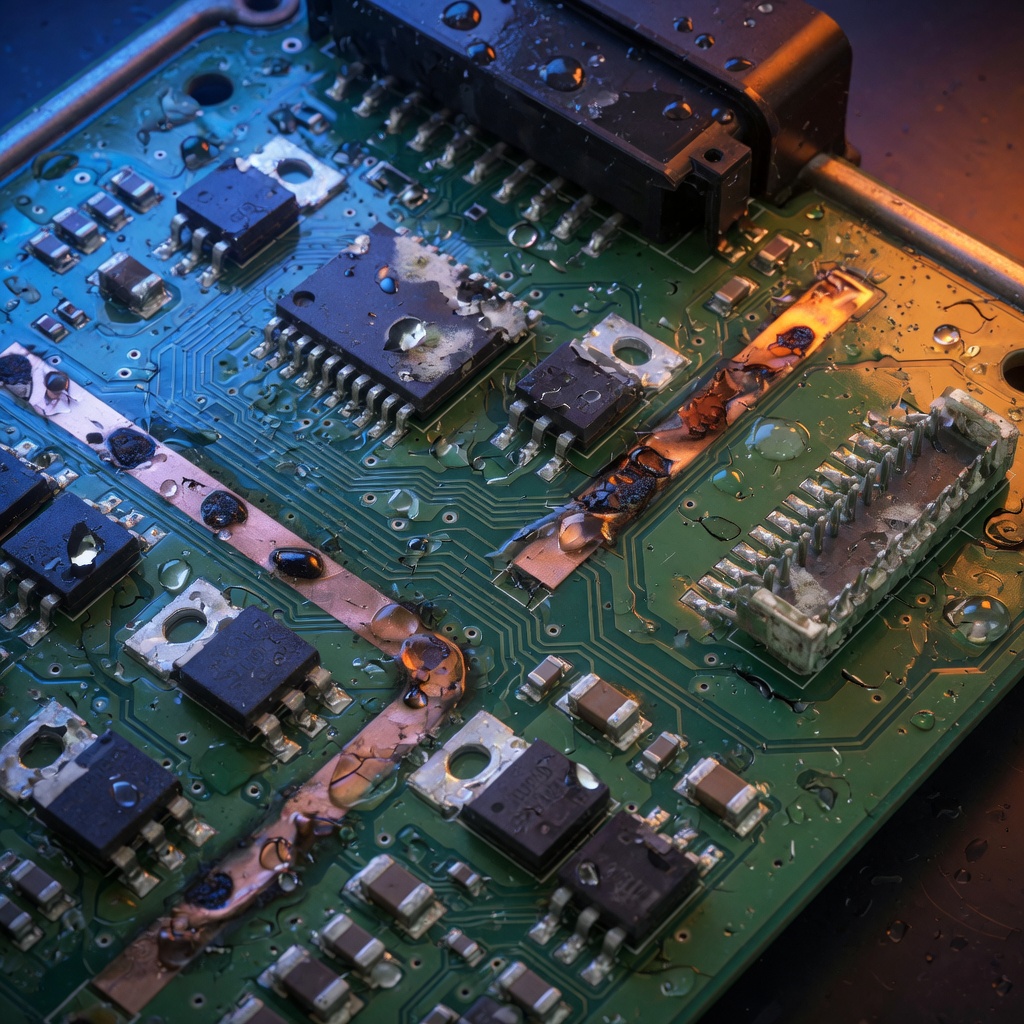

1. Water damage
2. One good puddle, a leaking windshield, or a pressure wash in the wrong spot and water sneaks into the ECU. Corrosion starts fast, especially on the connectors and board.
3. Corrosion
4. Even without a big flood, moisture + road salt + time = green crusty mess on pins and traces. Once it eats the copper, communication dies.
5. Overvoltage
6. Bad alternator, jump-start gone wrong, or a failing voltage regulator that dumps 18+ volts. ECUs hate that. Components fry quietly.
7. Reverse polarity
8. Someone hooked the battery up backwards for even a few seconds. Instant death for many boards.
9. Shorted actuators
10. Injectors, coils, solenoids, or turbo actuators that short to ground pull way too much current through the ECU drivers. Those little MOSFETs don’t stand a chance.
11. Failed voltage regulators
12. The tiny regulators on the board that create 5V and 3.3V for the processor can die from heat or age. Suddenly the whole computer acts crazy or goes dark.
13. Damaged MOSFET drivers
14. These are the power switches that control coils, injectors, and relays. One shorted load and they short or open. Very common failure.
15. Cracked solder joints
16. Heat cycles, vibration, and cheap boards cause microscopic cracks in the solder under big chips or connectors. Intermittent no-starts are classic for this.
17. Broken PCB traces
18. Flexing, impact, or corrosion can crack the thin copper lines on the board. Hard to see without a good light and magnification.
19. CAN-bus communication faults
20. The network wires get damaged, terminated wrong, or shorted. The ECU looks dead because it can’t talk to the rest of the car.
21. Faulty connectors or power supplies
22. Bent pins, pushed-out terminals, corroded grounds, or a weak main relay/fuse. The ECU is screaming for clean power and ground and isn’t getting it.

The Golden Rule: Never Condemn the ECU First

This is the part most people skip—and it costs them.

Before you even think about replacing or sending the ECU out for repair, do these checks:

• Battery voltage (engine off and running)
• Main power feeds at the ECU connector (key on)
• All ground wires (voltage drop test while loaded)
• Main relay and fuses
• Continuity and resistance on critical circuits (injectors, coils, sensors)
• CAN-bus resistance (should be around 60 ohms with both ends connected)
• Visual inspection of the connector pins for corrosion or damage

Only after the external power, ground, wiring, and communication circuits check out clean should you start blaming the ECU itself.

I’ve had customers bring me “dead” ECUs that just needed a cleaned ground or a $12 relay. Others had water damage that looked bad but cleaned up and worked perfectly once the leak was fixed.

Quick Real-World Tips

• If the car got wet recently, pull the ECU and open it (if you’re comfortable) or take it to someone who is. Early corrosion is often fixable.
• Intermittent problems that change with temperature or bumps? Think cracked solder or loose pins.
• After a battery or alternator issue, always check for overvoltage damage.
• Tuning shops: if you’re flashing a lot of ECUs, make sure your power supply is clean and stable. Dirty power kills boards over time.
