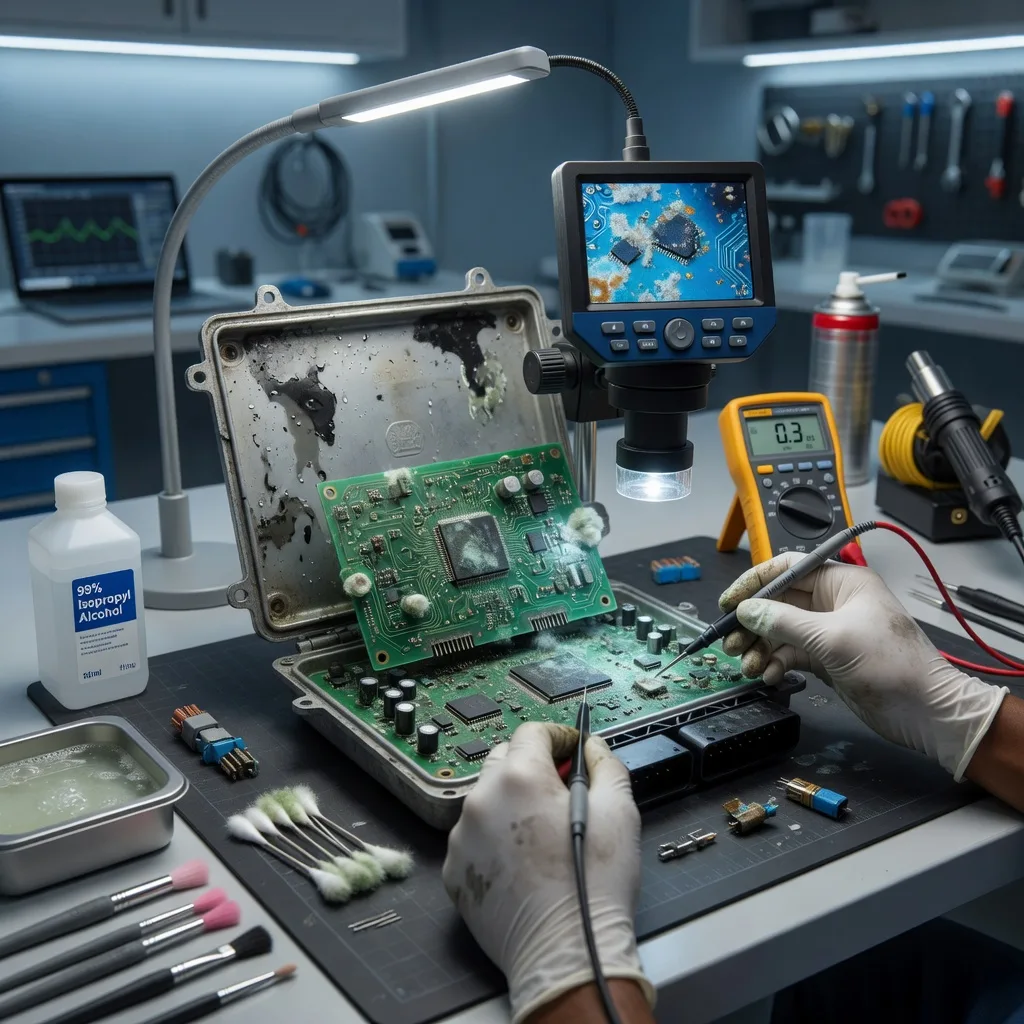

if you’ve ever popped the hood after a flood, deep puddle, or just a nasty leak and found your ECU sitting in a puddle, you know that sinking feeling. Water and electronics do not mix. One minute the car runs fine, the next it’s a no-start with a dead computer. I’ve seen this more times than I care to count — river floods, car washes gone wrong, clogged sunroof drains, even condensation in older boxes.

Good news: a lot of water-damaged ECUs can be saved if you catch them early and follow a proper inspection and testing procedure. This isn’t magic. It’s careful cleaning, visual checks, electrical testing, and smart decisions about what can be repaired versus what needs replacement. I’m walking you through exactly how we do it in the shop in 2026 — friendly, straightforward, no fancy jargon.

We’ll cover safety first, full disassembly inspection, cleaning methods that work, testing at every stage, common failure points, and when to call it quits. Follow this and you’ll either bring the module back or know for sure it’s toast — without wasting time or money.

Why Water Kills ECUs (and Why Some Survive)

ECUs (Engine Control Units, or PCMs, BCMs, etc.) are packed with sensitive circuits, processors, drivers, and tiny components. Water brings two big problems:

• Immediate short circuits that can fry traces or chips
• Longer-term corrosion that eats copper and solder joints over days or weeks

Fresh water is bad. Salt water, flood water with chemicals, or coolant mixed in is way worse. The longer it sits wet, the harder the recovery. Heat from the engine bay speeds up the damage once power is applied.

The key is to act fast: disconnect the battery, remove the ECU, and start the inspection procedure right away. Never just dry it with a hair dryer and plug it back in — that’s how you finish it off.

Safety and Prep Before You Start

Work in a clean, dry, well-lit area. Wear gloves and eye protection. Have these ready:

• Multimeter (good quality, with continuity and diode mode)
• Digital microscope or strong magnifier (10-40x)
• Isopropyl alcohol 99%+ (never the 70% stuff)
• Soft brushes, cotton swabs, plastic tools
• Ultrasonic cleaner (optional but excellent)
• Compressed air (dry, oil-free)
• Flux remover and contact cleaner
• Hot air station or low-temp soldering iron for later repairs
• Donor board or schematic if you go deep
• Camera to document everything

Disconnect the battery negative terminal first. Note all connector positions and take photos. Label everything. Remove the ECU carefully — many are in the engine bay, under carpet, or behind kick panels.

Step 1: External Visual Inspection

Look at the case before opening.

• Any cracks, missing seals, or warped plastic?
• Green or white crust around connectors?
• Water marks, mud, or silt?
• Bent or corroded pins in the plugs?

Check the connector seals and grommets. If the case has a pressure-equalization membrane, see if it’s compromised. Wipe the outside dry and clean. If it’s still wet inside when you shake it gently, water is trapped — open it ASAP.

Step 2: Open the ECU Properly

Most modern ECUs are sealed with silicone, epoxy, or welded plastic. Older ones have screws and gaskets.

• Score any silicone carefully with a plastic pry tool
• Use a hot air gun on low to soften adhesive if needed
• Never force metal screwdrivers into the board
• Work slowly around the edges

Once open, photograph both sides of the board immediately — before and after any cleaning. This is your record for insurance or customer proof.

Step 3: Detailed Internal Inspection (The Heart of the Procedure)

This is where you earn your keep. Go section by section under good light and magnification.

Look for These Red Flags:

• White, green, or blue corrosion on pins, pads, or components
• Dark water stains or tide marks on the PCB
• Burned or discolored areas (shows it was powered while wet)
• Lifted traces or blistered solder mask
• Cloudy or white residue under chips (especially BGA processors)
• Electrolyte leakage from capacitors
• Mud, sand, or organic debris

Pay special attention to:

• Power supply section (big capacitors, voltage regulators)
• Driver chips for injectors, coils, solenoids
• Crystal oscillators and clock circuits
• Connector pin headers
• Any through-hole components

Gently flex the board (very lightly) and watch for cracks. Use the microscope on every IC leg and via.

Step 4: Initial Dry and Debris Removal

• Blow out loose dirt with dry compressed air
• Brush gently with soft anti-static brush
• Do not use water or tap water ever again

If there’s heavy mud, carefully rinse with 99% IPA while the board is supported. Let it drain.

Step 5: Deep Cleaning Procedure

This step saves more ECUs than anything else.

1. Soak the board in 99% isopropyl alcohol for 15-30 minutes (use a glass or stainless tray).
2. Agitate gently or use a soft brush on corroded areas.
3. For stubborn corrosion, a short ultrasonic clean in IPA (5-10 minutes max, low power).
4. Scrub connector pins and tight spots with cotton swabs dipped in IPA.
5. Rinse again with fresh IPA.
6. Blow dry thoroughly with compressed air — get under every chip.
7. Final bake: place the board in a clean oven or food dehydrator at 50-60°C (120-140°F) for 2-4 hours. Some shops use 70°C for 1-2 hours. This drives out trapped moisture.

Never use a heat gun on high or a kitchen oven at cooking temps — you’ll cook the components.

After cleaning and drying, inspect again under the microscope. Corrosion should be gone or greatly reduced. If copper is eaten away, note those spots for repair.

Step 6: Electrical Testing Procedure (Do This in Order)

Now the real diagnostics begin. Power nothing until the board is bone dry.

A. Visual + Continuity Checks (Power Off)

• Continuity on major power and ground traces
• Check for shorts between power and ground (should be high resistance or capacitive kick)
• Diode mode on input protection diodes
• Look for open traces where corrosion was worst

B. Power-Up Testing (Controlled)

Use a current-limited power supply (0-15 V, start at 100-500 mA limit).

• Apply main battery voltage (usually 12 V) to the correct pins
• Monitor current draw — a good ECU at idle is often 50-300 mA depending on the unit. Spikes or >1 A usually means a short
• Check key voltage regulators (3.3 V, 5 V, 1.2 V rails) with the multimeter
• Feel for hot components (carefully)

If current is excessive, power down immediately and hunt the short (thermal camera helps here, or freeze spray).

C. Signal and Functional Testing

• Check crystal oscillator with a scope if you have one (should show clean clock)
• Test communication lines (CAN_H/CAN_L should sit at 2.5 V idle)
• If you have a bench harness or breakout, try basic communication with a scan tool or ECU tester
• For advanced shops: use a full ECU test bench or reflash tool to see if it boots and accepts programming

D. Component-Level Tests

• Capacitors: look for high ESR or shorts
• MOSFETs and drivers: check gate-source and drain-source
• Replace any visibly damaged parts

Document every reading. Compare to a known-good board if possible.

Common Water Damage Failures and Fixes

• Corroded connector pins → clean or replace header
• Eaten ground planes → jumper wires or copper foil repair
• Dead voltage regulator → replace with exact OEM or quality equivalent
• Shorted TVS diodes → remove and replace
• Bad capacitors → swap them
• Processor damage → usually the end (BGA reball rarely worth it on flooded chips)
• Layer delamination inside multilayer boards → often unrepairable

When to Repair vs Replace

Repair if:

• Corrosion is light to moderate
• No burned chips
• Power rails come up clean
• Board passes basic communication

Replace or send to specialist if:

• Heavy green corrosion under big ICs
• Multiple burned areas
• Internal layer damage
• Cost of time exceeds a good used/rebuilt unit

Always quote the customer both options. A quality rebuilt ECU with warranty is often smarter than a heroic 10-hour repair.

Post-Repair Steps

1. Conformal coat the board lightly (especially if it lives in a wet area) with proper electronics coating.
2. Reseal the case with fresh silicone or original-style gasket.
3. Reinstall, reconnect battery, and scan for codes.
4. Clear adaptations and perform any required coding or programming.
5. Road test thoroughly — watch temperatures and load.
6. Advise the customer on prevention: fix the leak source, improve drainage, relocate ECU if possible, add dielectric grease to connectors.

Prevention Tips You Can Share with Customers

• Fix sunroof drains and door seals immediately
• Avoid deep water
• After any water event, disconnect battery and dry everything fast
• Use dielectric grease on connectors
• Consider aftermarket waterproof ECU enclosures for off-road or flood-prone areas

Quick Reference Checklist

• Battery disconnected
• Photos taken
• Case opened carefully
• Full visual + microscope inspection
• IPA clean + ultrasonic if needed
• Complete dry bake
• Continuity and short checks
• Current-limited power-up
• Voltage rail verification
• Communication test
• Component repairs
• Conformal coat + reseal
• Final vehicle test
