Volkswagen fault codes can be frustrating, especially when the car appears to drive normally but the check engine light, EPC warning or diagnostic scanner tells a different story.

Two codes that often create confusion are P1640 and P1479. They do not always point to the same problem, and their exact meaning can depend on the Volkswagen model, engine code, ECU software and diagnostic equipment being used.

That is why replacing parts at random is rarely the best approach. A proper diagnosis should begin with the complete fault description, freeze-frame data, battery voltage, wiring condition and any other stored codes.

In this guide, we explain what Volkswagen P1640 and P1479 can mean, the symptoms they may cause and how a professional workshop can approach the repair.

Important: Volkswagen uses manufacturer-specific fault-code definitions. P1479 is not universally a secondary air injection fault on every Volkswagen model. On several VAG applications, it is associated with a brake vacuum system mechanical malfunction. Always confirm the code using the vehicle’s exact model, engine code and manufacturer-level diagnostic tool.

What Does Volkswagen DTC P1640 Mean?

On Volkswagen vehicles, P1640 is commonly linked to an engine control module fault. Depending on the vehicle and ECU, the description may refer to an internal control module error, incorrect coding or a problem that appears after the ECM has been replaced.

Volkswagen technical information confirms that P1640 may set after ECM replacement when the replacement module has not been coded correctly. In that situation, the ECU may be perfectly healthy, but its coding does not match the vehicle configuration. (NHTSA)

Some vehicles may also show symptoms associated with internal ECU memory, processor or communication problems. Bosch lists P1640 as a control module error and notes that certain failures can be temperature-sensitive, intermittent or connected with no-start conditions. (BOSCH-REPAIR-SERVICE)

Common causes of P1640 include:

Incorrect ECU coding after replacement
Faulty or damaged engine control module
Low battery voltage during programming
Poor power or ground supply
Corroded ECU connectors
CAN-Bus communication problems
Internal EEPROM or processor failure
Incorrect software or incompatible ECU file
Water damage inside the ECU housing
Interrupted programming or remapping session

P1640 should not automatically be treated as proof that the ECU must be replaced. A failed battery, poor ground connection or incorrect coding can create a fault that looks much more serious than it really is.

Symptoms of Volkswagen P1640

The symptoms depend on the cause and the vehicle’s ECU type. Some Volkswagen owners may notice only a warning light, while others may experience serious running problems.

Possible symptoms include:

Check engine light
EPC warning light
Engine cranks but does not start
Intermittent starting problems
Engine stalling
Loss of throttle response
Poor engine performance
Communication failure with the ECU
Multiple warning lights
Faults returning after being cleared

If P1640 appeared immediately after ECU replacement, coding and adaptation should be checked before condemning the module. This is one of the most important diagnostic points for workshops handling Volkswagen ECU work.

What Does Volkswagen DTC P1479 Mean?

The meaning of Volkswagen P1479 depends heavily on the vehicle and diagnostic system.

Many generic code lists describe P1479 as a secondary air injection system fault. However, VAG-specific diagnostic references also identify P1479, sometimes shown as 17887, as a brake vacuum system mechanical malfunction on certain Volkswagen and Audi applications. (AUTOOO)

This difference matters. A workshop that assumes P1479 always means a secondary air injection problem could spend time testing the wrong system.

The correct procedure is to check:

The full text shown by the scan tool
The vehicle model and production year
The engine code
The ECU part number
Whether the scan tool is reading generic OBD-II or manufacturer-specific VAG data

If P1479 refers to the brake vacuum system

Possible causes include:

Split or disconnected vacuum hose
Faulty vacuum pump
Vacuum leak
Blocked hose or check valve
Faulty brake servo
Damaged wiring to the vacuum pump
Weak electrical supply
Mechanical failure inside the pump
Incorrectly installed vacuum pipework

Symptoms may include a hard brake pedal, reduced braking assistance, a vacuum pump that runs too often or warning lights on the dashboard.

A brake vacuum fault should be treated as a safety issue. The vehicle should not be driven normally until the braking system has been inspected and confirmed safe.

P1479 and the Secondary Air Injection System

On some Volkswagen applications and generic scan tools, P1479 may be associated with the secondary air injection system. This system is used mainly during cold starts. It pumps fresh air into the exhaust so the catalytic converter reaches operating temperature more quickly and cold-start emissions are reduced.

Volkswagen’s technical training material explains that the secondary air system supports post-combustion in the exhaust and helps reduce the time needed for catalytic converter warm-up. (VWTS)

The pump normally runs for a short period after a cold start, which means testing must be carried out under the right conditions. MOTOR Magazine notes that many systems operate for roughly 70 to 90 seconds after a cold start. (MOTOR)

Common secondary air injection causes include:

Failed air injection pump
Blown fuse or faulty relay
Cracked air hose
Blocked air passage
Faulty combination valve
Damaged vacuum line
Corroded electrical connector
Faulty pressure sensor
Carbon buildup in the cylinder-head ports
ECU software or monitoring issue

The key point is simple: confirm the code definition before starting repairs.

How to Diagnose Volkswagen P1640 and P1479 Correctly

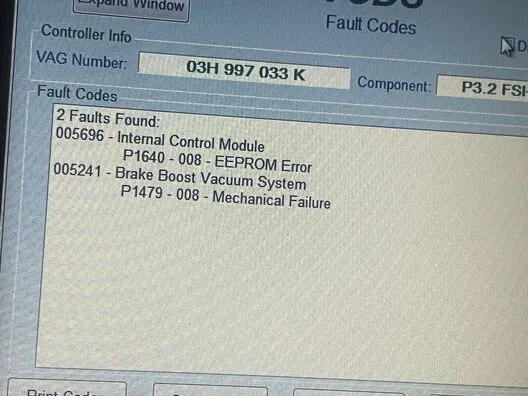

1. Scan the vehicle with proper equipment

A basic OBD scanner may display only a shortened or generic description. Volkswagen vehicles often require a manufacturer-level diagnostic tool to show the full VAG fault number, measuring values, coding information and module status.

Record every stored, pending and intermittent code before clearing anything.

2. Check battery voltage first

Low voltage can cause unusual ECU faults, communication errors and failed programming sessions.

Before carrying out ECU coding or remapping, check:

Battery resting voltage
Charging voltage
Voltage drop during cranking
Main engine and chassis grounds
ECU power supply
Fuse and relay condition

A stable power supply is essential when reading or writing ECU data.

3. Inspect ECU wiring and connectors

Look for:

Green corrosion on terminals
Loose pins
Water or oil contamination
Damaged insulation
Poor previous repairs
Broken ground wires
Evidence of rodent damage
Signs of overheating

A wiring fault can imitate an internal ECU problem. Testing the circuit with a multimeter, voltage-drop test and wiring diagram is more reliable than simply replacing the module.

4. Confirm the exact P1479 definition

This step deserves extra attention. Compare the code with the manufacturer-specific description in the diagnostic software.

If the description refers to the brake vacuum system, inspect the vacuum pump, hoses, check valves and brake servo. If the description identifies the secondary air system, test the air pump, relay, valve, hoses and airflow path.

The same five-character code can lead to very different repair paths depending on the Volkswagen platform.

5. Test components before replacing them

A professional diagnosis should prove the failure.

For an ECU-related P1640 fault, technicians may check:

ECU communication
Power and ground
Internal fault memory
Software version
Coding and adaptations
Immobilizer communication
CAN network activity

For a brake vacuum-related P1479 fault, technicians should check:

Vacuum level
Pump activation
Hose condition
Check-valve operation
Electrical current draw
Brake-assistance performance

For a secondary air injection fault, technicians may test:

Pump operation during a cold start
Relay and fuse supply
Vacuum control
Combination valve operation
Airflow and pressure readings
Hose leaks or restrictions

Can ECU File Services Fix P1640 or P1479?

ECU file services can be useful, but they should be applied for the correct reason.

ECU file services may help when:

The ECU has incorrect coding
Software is corrupted
A replacement ECU needs configuration
The original file must be cloned to another module
A manufacturer software update is required
An approved calibration correction is available

For example, Volkswagen documentation states that P1640 after ECM replacement may require the original ECU coding to be checked and transferred correctly to the replacement module. (NHTSA)

However, ECU programming will not repair:

A split vacuum hose
A failed brake vacuum pump
A seized secondary air pump
A blown fuse
A damaged connector
A blocked air passage
A failed mechanical valve

This is where experience matters. Software should not be used to hide a mechanical or safety-related problem.

A reliable ECU service begins with identifying the ECU part number, software version, engine code and vehicle configuration. The file must be compatible with the exact module—not simply another file from the same model family.

Why Workshops Choose Professional ECU Support

Volkswagen ECU work requires more than loading a file and clearing a fault code. A careful service can help workshops reduce repeat repairs and avoid unnecessary module replacement.

Professional ECU support can provide:

Accurate file identification
Original file backup
ECU cloning assistance
Coding and adaptation support
Software fault correction
Bench and boot-mode solutions
Compatibility checks
Technical guidance during diagnosis
Post-programming verification

A good service provider should also explain what the file is intended to correct. Clear communication is important because customers want to know whether the repair addresses a genuine software problem or simply switches off a warning.

Can You Drive With P1640 or P1479?

It depends on the symptoms.

A vehicle with a stored P1640 and no drivability problems may be able to reach a workshop, but intermittent ECU faults can worsen without warning. Avoid ignoring starting problems, stalling or communication failures.

If P1479 relates to the brake vacuum system, do not treat it as a harmless emissions code. A hard brake pedal or reduced brake assistance requires immediate inspection.

If P1479 refers to the secondary air injection system, the vehicle may still drive normally, but it could fail an emissions inspection and may have an illuminated check engine light.

The safest decision is based on the fault description and the vehicle’s actual behaviour—not the code number alone.
