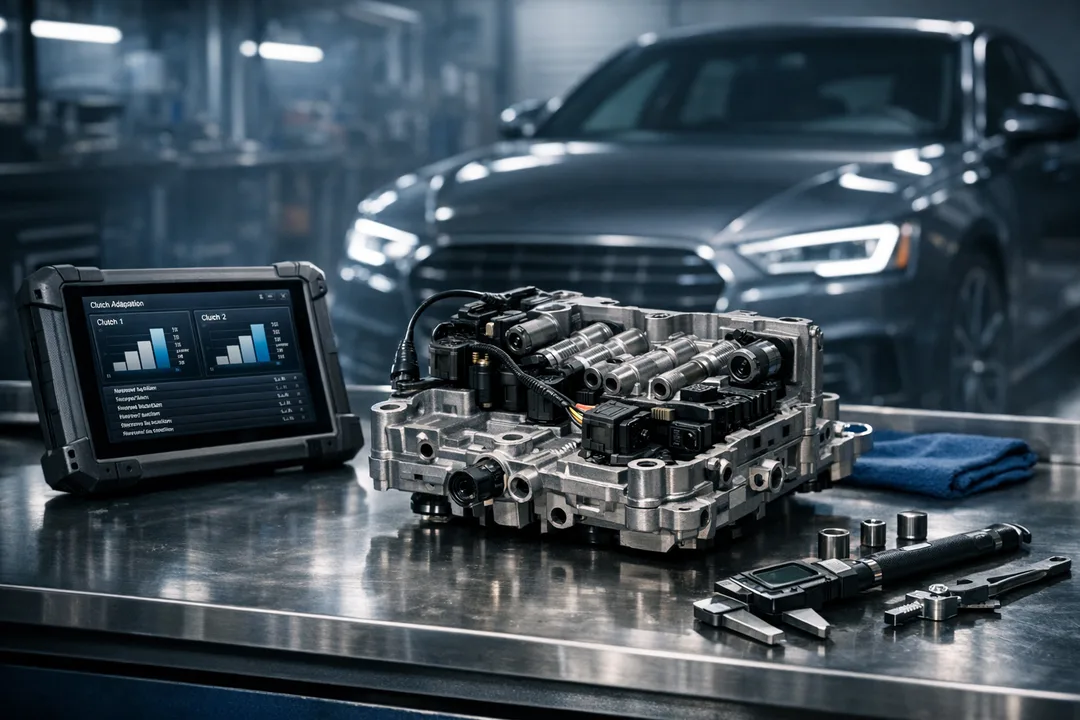

The Volkswagen Audi OAM/DQ200 dual-clutch transmission requires careful adaptation after replacing the valve body, mechatronic unit, or transmission control unit.
Simply installing a replacement control unit and clearing the fault codes is not enough. The transmission must confirm the correct computer model, learn the clutch characteristics, and complete a road test before the vehicle can be considered properly repaired.
Incorrect adaptation may cause:
- Harsh engagement into D or R;
- Delayed vehicle creep;
- No forward or reverse movement;
- Clutch shudder;
- Engine stalling when selecting a gear;
- Flashing gear display;
- Incorrect shift operation;
- Emergency mode activation.
The following procedure is based on common OAM/DQ200 diagnostic practices. Exact steps may vary according to the vehicle model, production year, software version, and diagnostic equipment.
Important: Transmission adaptation should be carried out by a qualified technician using suitable diagnostic equipment. Keep the vehicle on a level surface and follow all workshop safety procedures.
1. Procedure After Replacing the Transmission Control Unit
Confirm the Control Unit Number
Before starting the adaptation process, use a diagnostic scanner to read the original transmission control unit information.
The replacement unit should match the original unit in terms of:
- Hardware number;
- Software version;
- Transmission application;
- Vehicle configuration;
- Coding and communication setup.
If the wrong control unit is installed, the vehicle may experience flashing gear indicators, failed clutch adaptation, harsh shifting, missing manual mode, or a complete loss of drive.
A replacement computer with the same connector is not automatically compatible. The correct part number and software configuration must always be checked.
Clear All Fault Codes
Read the fault memory from the transmission, engine, ABS, and other related control modules.
Clear the stored faults only after checking the condition that caused them. Communication problems, engine-speed signal faults, brake-switch faults, and CAN-bus errors can prevent clutch adaptation from starting.
After clearing the codes, switch off the ignition and allow the vehicle electronics to shut down. Then switch the ignition back on and scan the system again.
If a fault returns immediately, repair that problem before continuing with the adaptation procedure.
2. Check the Engine-Speed and Input-Shaft Data
The transmission control unit and the transmission itself must be correctly matched.
Use the diagnostic scanner to read measuring block or data group 07. The first value is generally engine speed, while the second value is the transmission input-shaft speed.
Carry out the check while driving at more than approximately 40 km/h under light load. When the clutch is fully engaged, the engine speed and input-shaft speed should be almost identical.
A noticeable difference may indicate:
- An incorrect transmission control unit;
- Incorrect software coding;
- The wrong transmission assembly;
- Incorrect input-shaft planetary gear tooth count;
- A clutch that is not fully engaging;
- A faulty input-shaft speed sensor;
- A mechanical transmission problem.
This check should be performed under steady driving conditions. Comparing the two values while accelerating, changing gear, or slipping the clutch can produce misleading results.
3. Clutch Characteristic Self-Adaptation
Before starting clutch adaptation, make sure the following conditions are met:
- The vehicle is parked on a level surface;
- The engine is idling;
- Transmission oil temperature is between approximately 60°C and 90°C;
- The selector is in N;
- The brake pedal is pressed continuously;
- The vehicle remains completely stationary;
- The steering wheel is not moved during the process.
Forward-Clutch Adaptation
For forward clutch adaptation, read data group 10.
Check the second value in the data stream. If it displays “Adaptation Running,” the system is ready to learn.
If it displays “Adaptation Normal,” manual activation may be required:
- Press and release the brake pedal six times;
- On the sixth press, keep the brake pedal held down;
- Watch the data stream until the status changes to “Adaptation Running”;
- Move the selector between N and D;
- Keep the selector in each position for at least three seconds;
- Wait for the engine speed to stabilize before moving the selector again;
- Continue until the display returns to “Adaptation Normal.”
The brake pedal must remain pressed throughout the learning procedure. The vehicle must not move, and the steering wheel should remain still.
Reverse-Clutch Adaptation
Reverse-clutch adaptation is carried out using data group 11.
The procedure is similar:
- Confirm that the oil temperature is within the correct range;
- Select N;
- Press and hold the brake pedal;
- Move the selector between N and R;
- Hold each position for at least three seconds;
- Wait until the engine speed stabilizes;
- Continue until the status changes to “Adaptation Normal.”
Some vehicles may allow a basic learning procedure without a diagnostic scanner. However, a professional scanner makes it easier to confirm the adaptation status and monitor clutch current changes.
4. D-Gear Creep Test and Forward-Clutch Adjustment
After completing self-adaptation, perform a D-gear creep test.
The purpose of this test is to check how smoothly the forward clutch engages when the brake is released.
Symptoms of a Clutch Current Value That Is Too Low
A low forward-clutch matching value may cause:
- Little or no engine load when D is selected;
- Delayed creep after releasing the brake;
- No vehicle movement without accelerator input;
- Sudden clutch engagement when the accelerator is pressed;
- A sharp take-up during launch;
- Vehicle rollback on a small incline;
- Slow engagement into D.
If these symptoms are present, the matching value may need to be increased.
Symptoms of a Clutch Current Value That Is Too High
A high value may cause:
- A strong impact when selecting D;
- Excessive engine load;
- Low or unstable idle speed;
- Engine vibration;
- Engine stalling;
- A noticeable jolt when shifting from D to N or P.
In this situation, reduce the matching value gradually.
Normal D-Gear Operation
A properly adjusted forward clutch normally provides:
- Smooth engagement into D;
- A small and normal engine load;
- Stable idle speed;
- Immediate, controlled creep;
- No significant launch delay;
- Minimal movement shock when selecting N or P.
Adjusting Channel 10
Enter the transmission control unit’s adaptation or channel adjustment function and select channel 10.
The adjustment value commonly starts at 128. The value can be increased, reduced, or entered manually.
As a general reference:
- A change of 10 adjustment units changes the clutch current by approximately 0.01A;
- The actual current should be monitored in data group 10;
- Save the adjustment after making the change.
When the scanner is connected again, the adjustment value may still display 128. This does not necessarily mean that the previous setting was lost. Further changes are normally made from the stored adjustment value.
Channel 00 can be used to clear the learned values and return the clutch current to its factory base setting. After clearing the values, the data stream may once again display “Adaptation Running.”
A Practical Adjustment Method
A useful workshop method is to increase the value by 10 at a time and test D engagement after each adjustment.
When a slight engagement shock appears, reduce the value in steps of 5 until the vehicle engages smoothly without losing normal creep.
Avoid making large changes in one operation. After each adjustment, check:
- D-gear engagement;
- Engine load;
- Idle stability;
- Creep response;
- Launch quality;
- Clutch current in the data stream.
5. R-Gear Creep Test and Reverse-Clutch Adjustment
Reverse-clutch adjustment follows the same basic procedure as D-gear adjustment, but the relevant channel is different.
- Forward clutch: Channel 10;
- Reverse clutch: Channel 11.
When testing R gear, check whether the vehicle engages promptly and moves backward smoothly after releasing the brake.
A low reverse-clutch value may cause delayed reverse engagement or a lack of creep. A high value may cause a harsh engagement, excessive engine load, or engine-speed instability.
Make small adjustments, save the setting, and repeat the reverse creep test after every change.
6. Special OAM/DQ200 Functions
Stall-Test Protection
During a stall test, the control system may reduce engine power after approximately five seconds. The engine may return to idle to protect the clutch and transmission from excessive heat.
Avoid repeating stall tests unnecessarily.
Hill-Hold and Anti-Rollback Control
On some newer vehicles, hill-hold operation is mainly handled by the brake control system. On certain older configurations, the transmission control unit may also participate in the function.
The vehicle’s exact control strategy depends on its model year and equipment level.
Automatic Electronic Parking-Brake Release
Some Audi models require the driver’s seat belt to be fastened before the electronic parking brake will release automatically during take-off.
If the seat belt is not fastened, the parking brake may remain applied even when D is selected.
Emergency Mode
A flashing gear display, no-start condition, and a locked selector may be associated with an F125 fault or a damaged selector-position system.
A commonly used emergency procedure is:
- Switch on the ignition;
- Press the brake pedal at least 10 times;
- Check whether the gear display stops flashing and remains in D;
- Start the engine;
- Drive carefully to a repair facility.
Emergency mode is intended only for moving the vehicle to a safe location or workshop. It is not a permanent repair.
Oil-Temperature Correction Factor
Channel 12 is used for the oil-temperature correction factor. The initial value is commonly 3, with possible settings of 2 or 1.
A lower value generally reduces cold-start hydraulic pressure. This adjustment can affect cold engagement and shift quality, so it should only be changed after evaluating the vehicle’s actual symptoms.
Shift-Up Characteristic
Channel 13 is commonly used to adjust the upshift characteristic.
The initial setting is generally 1. A higher setting, such as 2 or 3, may delay upshifts and keep the engine at a higher speed for longer.
After making a change, carry out a road test and check shift smoothness, engine speed, fuel consumption, and clutch temperature.
Downhill Engine Braking
When the vehicle is travelling downhill and continues to gain speed after the accelerator is released, the transmission may change its ratio if engine speed is below approximately 2,000 rpm.
This increases engine speed and provides additional engine braking. It does not replace the vehicle’s braking system, so the brake pedal must still be used when required.
7. Final Road-Test Checklist
After completing the adaptation procedure, test the vehicle in the following conditions:
- Select D from a stationary position;
- Select R from a stationary position;
- Release the brake and check creep;
- Perform a gentle launch;
- Test moderate acceleration;
- Check S mode;
- Test manual upshifts;
- Test manual downshifts;
- Drive above approximately 40 km/h at a steady speed;
- Shift between D, N, and P after stopping.
During manual upshift testing, engine speed should generally remain above approximately 1,800 rpm, as some vehicles may not complete the shift properly at a lower speed.
After the road test, scan the vehicle again. Confirm that no new fault codes have returned and that the clutch, input-speed, output-speed, and gear-position data are normal.
