Mercedes-Benz vehicles are known for their smooth performance, advanced electronics and refined driving experience. However, like any modern vehicle, they can develop electrical and ignition problems over time. When the engine control module detects an issue with an ignition coil circuit, it may store diagnostic trouble codes such as P2301, P2307, P2310 or P2304.
These codes are closely related. Each one points to a low-voltage condition in the primary control circuit of a specific ignition coil. The letter assigned to the coil changes, but the basic diagnostic approach remains similar.
A vehicle displaying one of these codes may suffer from rough running, poor acceleration, engine misfires, difficult starting or an illuminated check engine light. In some cases, several of these fault codes may appear together, which can indicate a shared wiring, power supply or engine control module problem.
This guide explains what each Mercedes DTC means, what usually causes it and how a professional technician can diagnose the problem without replacing parts unnecessarily.
What Do Mercedes Ignition Coil Codes Mean?
The ignition coil transforms battery voltage into the high voltage required to fire the spark plug. Inside the coil circuit are several important components:
- Battery power supply
- Ground connection
- Ignition coil
- Wiring harness
- Electrical connectors
- Engine control module, often called the ECM or ECU
- Spark plug and ignition system components
The engine control module controls the ignition coil by switching the primary circuit on and off. This creates the magnetic field needed to produce a strong spark.
When the ECM detects that the voltage in the primary control circuit is lower than expected, it may store a DTC. The exact code depends on which ignition coil circuit is affected.
A low-voltage code does not always mean the ignition coil itself has failed. The fault could also be caused by a damaged wire, loose connector, poor ground, corrosion, low battery voltage or an internal ECM driver problem.
That is why proper testing is more reliable than simply changing the coil named in the code.
DTC P2301: Ignition Coil A Primary Control Circuit Low
Mercedes fault code P2301 indicates a low-voltage condition in the primary control circuit for ignition coil A.
Depending on the engine configuration, ignition coil A may refer to the first cylinder or the coil identified by the manufacturer’s wiring diagram. On many engines, technicians commonly begin by checking the coil serving cylinder one, but the exact identification should always be confirmed using Mercedes technical information.
Common symptoms of P2301
A Mercedes with P2301 may show one or more of these symptoms:
- Check engine light
- Engine misfire
- Rough idle
- Hesitation during acceleration
- Reduced engine power
- Difficult starting
- Increased fuel consumption
- Engine vibration
- Emergency running mode
If the misfire is severe, the check engine light may flash. A flashing warning light should be taken seriously because continued driving can damage the catalytic converter.
Common causes of P2301
The most frequent causes include:
- Defective ignition coil A
- Loose or damaged electrical connector
- Broken wire near the coil
- Corrosion inside the connector
- Poor engine ground
- Low system voltage
- Damaged wiring caused by engine heat
- Fault in the ECM ignition driver
- Incorrect previous repair or aftermarket wiring
- A worn spark plug creating excessive ignition demand
The coil should not be replaced automatically. A technician should first check the power supply, ground and control signal.
DTC P2307: Ignition Coil B Primary Control Circuit Low
Fault code P2307 refers to a low-voltage condition in the primary control circuit for ignition coil B.
In a four-cylinder engine, this may relate to another individual coil. On V6 and V8 engines, coil identification can vary depending on the bank and the manufacturer’s circuit layout. Checking the correct wiring diagram is important before testing or replacing components.
Symptoms linked to P2307
Drivers may notice:
- Uneven engine operation
- Loss of power
- Misfire under load
- Poor throttle response
- Rough starting
- Increased exhaust emissions
- Check engine light
- Engine stalling in severe cases
Sometimes the engine runs normally at idle but misfires when accelerating. This often happens when the ignition system is placed under greater load.
Typical causes
P2307 can be caused by:
- Failed ignition coil B
- Poor connection at the coil plug
- Damaged wiring harness
- Wiring rubbed against the engine or mounting brackets
- Water or oil contamination
- Corroded terminals
- Faulty power supply
- Defective ECM output stage
- Weak battery or charging system problem
If several coil codes appear at the same time, it is wise to inspect shared power and ground circuits before testing each coil individually.
DTC P2310: Ignition Coil C Primary Control Circuit Low
Mercedes DTC P2310 indicates a low-voltage condition in the primary control circuit of ignition coil C.
This fault can affect engine smoothness and combustion quality. A vehicle may continue to drive, but the engine may not be operating correctly. Driving for a long period with an active ignition fault can place additional stress on the catalytic converter and engine components.
Possible symptoms
A Mercedes affected by P2310 may experience:
- Engine misfire
- Rough idle
- Poor acceleration
- Reduced performance
- Hard starting
- Fuel smell from the exhaust
- Increased fuel consumption
- Check engine light
- Limp-home operation
A misfire that appears only when the engine is hot may suggest heat-related wiring damage or an ignition coil that fails as its internal temperature rises.
Common causes
The most likely causes include:
- Faulty ignition coil C
- Damaged coil wiring
- Loose connector pins
- Corroded electrical contacts
- Poor ground connection
- Spark plug failure
- Low battery voltage
- Alternator charging issue
- ECM driver failure
A visual inspection is useful, but it may not reveal an intermittent fault. Wires can break internally while still appearing normal from the outside.
DTC P2304: Ignition Coil D Primary Control Circuit Low
Fault code P2304 identifies a low-voltage issue in ignition coil D’s primary control circuit.
As with the other codes, coil D does not necessarily mean the coil is defective. The fault may exist anywhere between the coil and the ECM, including the power supply side of the circuit.
Symptoms of P2304
Typical symptoms may include:
- Misfire on one cylinder
- Rough engine idle
- Engine shaking
- Poor acceleration
- Stalling
- Difficult starting
- Poor fuel economy
- Check engine warning
- Reduced engine power
If the vehicle has multiple ignition coil codes, the root cause may be a common electrical problem rather than four separate failed ignition coils.
Common causes
P2304 may result from:
- Defective ignition coil D
- Open or shorted wire
- Damaged wiring insulation
- Loose connector
- Burned or pushed-back terminal
- Poor engine ground
- Battery or alternator fault
- Incorrect coil installation
- ECM internal failure
Replacing the ECM should be considered only after the coil, wiring, power supply and ground circuits have been properly tested.
Why Several Ignition Coil Codes May Appear Together
When codes such as P2301, P2307, P2310 and P2304 appear together, it is important not to assume that every ignition coil has failed at the same time.
Multiple coil codes may point to a shared issue, such as:
- Blown ignition system fuse
- Weak battery
- Charging system problem
- Shared coil power supply fault
- Damaged engine harness
- Poor grounding point
- Water entering the electrical connectors
- ECM power or ground problem
- Internal ECU driver failure
A common power feed may supply several ignition coils. If that feed is interrupted or voltage is too low, the ECM can register faults on multiple circuits.
This is why fault-code reading is only the beginning of the repair process. The code identifies the area of concern, but it does not always identify the failed part.
How to Diagnose Mercedes P2301, P2307, P2310 and P2304
A reliable diagnosis should be completed in a logical order.
1. Check the battery and charging voltage
Low system voltage can create misleading electrical fault codes. Before testing ignition coils, inspect the battery condition and charging system.
A technician should check:
- Battery voltage with the engine off
- Voltage during cranking
- Alternator output with the engine running
- Voltage stability under electrical load
A weak battery or failing alternator can affect the entire ignition system.

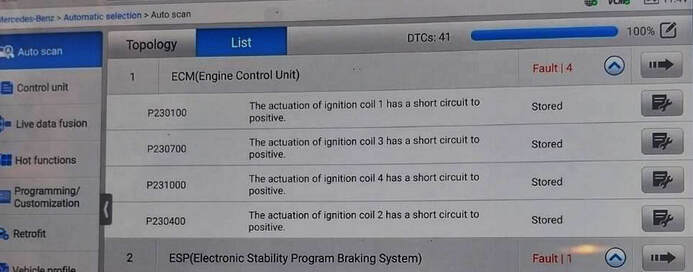

2. Read all stored and pending codes
Use a suitable Mercedes-compatible diagnostic scanner. Record all current, stored and pending codes before clearing anything.
Also check whether the vehicle has:
- Cylinder-specific misfire codes
- Low-voltage codes
- Communication faults
- ECU power supply codes
- Camshaft or crankshaft sensor faults
Additional codes may reveal the real cause.
3. Inspect the ignition coil and connector
Remove the affected coil connector and check for:
- Bent terminals
- Loose pins
- Corrosion
- Oil contamination
- Water intrusion
- Broken locking tabs
- Signs of overheating
The connector should fit securely. A loose terminal can create an intermittent fault that is difficult to find.
4. Inspect the wiring harness
Follow the wiring from the ignition coil toward the main harness and ECM. Look for areas where the wires may be:
- Rubbing against metal
- Touching hot engine components
- Stretched or pulled tight
- Cracked from age
- Damaged by rodents
- Contaminated with oil
- Previously repaired poorly
A wiggle test may help locate an intermittent open circuit, but it must be performed carefully while monitoring the circuit.
5. Test coil power and ground
The ignition coil needs a stable power supply and a reliable control circuit. Test the voltage at the connector using the correct wiring information.
Do not rely only on a basic voltage check. A circuit may show voltage with no load but fail when the coil is connected. Voltage-drop testing can provide a clearer picture of the circuit’s condition.
6. Compare the affected coil with another coil
If the coil design and engine layout allow it, a technician may swap the suspected coil with another cylinder. After clearing the codes, the vehicle can be retested.
If the fault moves to the other cylinder, the coil is likely defective. If the code remains on the same circuit, the problem is more likely related to wiring, power, ground or the ECM.
This test should be performed carefully and only when the coils are compatible.
7. Inspect the spark plug
A worn or damaged spark plug can cause a coil to work harder than normal. Check for:
- Excessive electrode wear
- Incorrect gap
- Cracks in the ceramic
- Fuel fouling
- Oil fouling
- Carbon tracking
A spark plug problem may not directly create a primary circuit low code, but it can contribute to misfire complaints and should not be ignored.
8. Test the ECM control circuit
If the ignition coil, wiring, power supply and ground all test correctly, the ECM control circuit may require further testing.
This may include:
- Checking continuity between the coil and ECM
- Testing for shorts to ground
- Testing for shorts to power
- Measuring the control signal with suitable equipment
- Checking ECM connectors for corrosion
- Confirming proper ECU power and ground
ECM testing should be carried out by a technician familiar with automotive electronics. Incorrect probing can damage sensitive control units.
Can These Mercedes Fault Codes Be Fixed by Clearing the ECU?
Clearing the codes may turn off the warning light temporarily, but it does not repair the underlying problem.
If the fault is still present, the code will return after the vehicle completes its self-checks. In some cases, the engine may run normally for a short time before the warning light comes back.
A proper repair must address the cause, such as:
- Replacing a failed ignition coil
- Repairing the wiring harness
- Cleaning or replacing a damaged connector
- Repairing a ground connection
- Fixing a battery or alternator problem
- Correcting an ECM software or hardware issue
The correct goal is not simply to erase the fault code. The goal is to restore a stable ignition circuit and confirm that the fault does not return.
How ECU File Services Can Help
At Electronic Repair Egypt, ECU file services can support workshops and technicians dealing with Mercedes ignition control faults.
When testing confirms that the ECM has a software-related problem, an incorrect calibration or an internal control issue, a suitable ECU file solution may be required. The correct file must match the vehicle’s ECU hardware, software version, engine type and vehicle configuration.
Professional ECU file services may help with:
- Correcting software-related control issues
- Restoring the original calibration
- Removing fault codes only when technically appropriate
- Supporting ECU replacement and cloning
- Matching a replacement control unit
- Correcting immobilizer-related programming issues
- Improving workshop turnaround time
However, an ECU file should never be used to hide an active wiring or ignition coil fault. If the physical circuit is damaged, software changes will not provide a dependable repair.
The best results come from combining accurate electrical diagnosis with a correctly prepared ECU solution.
Benefits for Automotive Workshops
Ignition system problems can take time to diagnose, especially when the fault is intermittent. A professional ECU support service can help workshops reduce unnecessary parts replacement and improve repair accuracy.
Key benefits include:
More accurate repairs
A tailored ECU solution can be prepared according to the vehicle’s exact ECU and software details.
Faster turnaround
Efficient file support can help reduce vehicle downtime, allowing workshops to complete approved repairs more quickly.
Better customer confidence
Clear testing, documented findings and a reliable repair process help customers understand what has been repaired and why.
Improved vehicle performance
When the ignition system and ECU are operating correctly, the engine can deliver smoother idle quality, stronger acceleration and more consistent fuel control.
Reduced repeat repairs
Correct diagnosis helps prevent the common cycle of replacing coils, plugs and wiring without resolving the actual problem.
Is It Safe to Drive With These Codes?
Driving with a minor ignition fault for a short distance may be possible, but it is not recommended to ignore the problem.
Stop driving and arrange professional assistance if:
- The check engine light is flashing
- The engine is shaking heavily
- The vehicle has very little power
- The engine is stalling
- There is a strong fuel smell
- The exhaust becomes unusually hot
- The vehicle enters limp mode
A continuing misfire can send unburned fuel into the exhaust system and damage the catalytic converter. In severe cases, it may also affect engine reliability and fuel economy.
