The Mercedes-Benz E220 W213 is known for its smooth diesel performance, comfortable driving experience and excellent long-distance ability. However, like any modern vehicle, it relies on a large number of sensors, control modules and electronic systems. When one of these systems detects an abnormal reading, the engine control unit stores a diagnostic trouble code, commonly called a DTC.

A DTC does not always identify one failed part with complete certainty. Instead, it points technicians toward a system or circuit that needs further testing. This is important because replacing parts without proper diagnosis can become expensive very quickly.

The Mercedes E220 W213 may display symptoms such as reduced power, hesitation, rough idle, poor fuel economy or an illuminated check engine light. These problems can be connected to turbocharger control, throttle position, intake manifold operation or oxygen sensor readings.

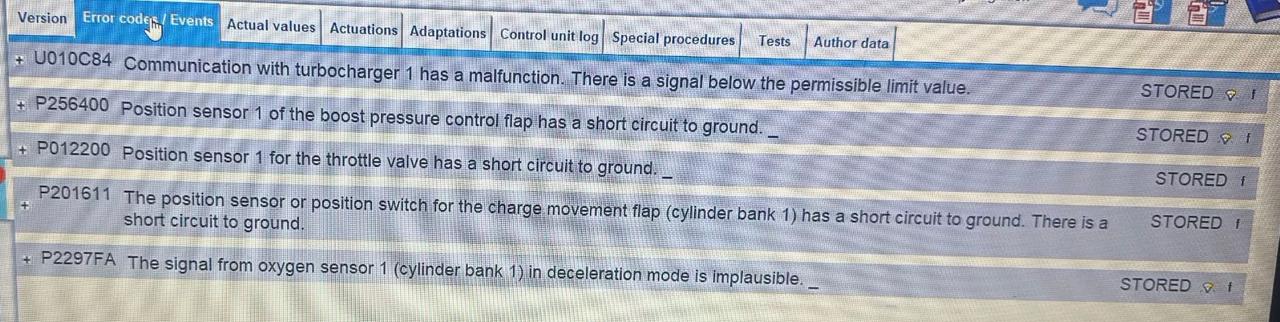

This guide explains five DTCs that may appear on the E220 W213:

• U010C84
• P256400
• P012200
• P201611
• P2297FA

The correct repair depends on the vehicle’s engine version, mileage, service history and the other fault codes stored at the same time.

What Does DTC U010C84 Mean?

Lost communication with the turbocharger or supercharger control module

The fault code U010C84 indicates that the engine control unit has lost communication with the turbocharger control module. On the E220 W213, the turbocharger system depends on electronic communication between the ECU, turbo actuator and related sensors.

When communication is interrupted, the ECU may not be able to control turbocharger boost accurately. The vehicle can then enter a reduced-power or limp-home mode to protect the engine and emissions system.

Common symptoms

Drivers may notice:

• Reduced engine power
• Slow acceleration
• Turbocharger response becoming inconsistent
• Check engine light
• Limp mode
• Poor performance under load
• Delayed or irregular boost delivery

Sometimes the vehicle may drive normally after switching the ignition off and on again. That does not mean the problem has disappeared. An intermittent communication fault often returns when the wiring moves, the engine warms up or the turbocharger actuator is placed under load.

Possible causes

The most common causes include:

• Damaged turbocharger wiring
• Loose or corroded electrical connectors
• Water or oil contamination in a connector
• A faulty turbocharger actuator
• Internal failure of the turbo control module
• Poor battery voltage
• ECU software or communication problems
• Damage caused by heat near the turbocharger

Low system voltage should not be overlooked. A weak battery, poor ground connection or charging fault can create communication codes that appear to be related to a control module.

Recommended diagnostic approach

A technician should first inspect the wiring and connectors around the turbocharger. The wiring should be checked for melted insulation, chafing, broken conductors and signs of oil contamination.

Battery voltage and alternator output should also be tested. After that, the turbocharger actuator may need an activation test or calibration procedure using a suitable Mercedes diagnostic system.

Replacing the actuator or turbocharger before testing the circuit is rarely the best first step. If the wiring is damaged, a new actuator will not solve the issue.

What Does DTC P256400 Mean?

Turbocharger boost control position sensor range or performance fault

P256400 points toward a problem with the turbocharger boost control position sensor. This sensor reports the position of the turbo actuator to the ECU. The control unit compares the requested actuator position with the actual position and stores the code when the readings do not match.

This fault can affect turbocharger boost pressure and may cause the engine to feel flat, especially when accelerating from low engine speed.

Common symptoms

Typical symptoms include:

• Noticeable power loss
• Turbo lag
• Engine hesitation
• Reduced acceleration
• Limp-home mode
• Check engine light
• Uneven power delivery
• Increased fuel consumption in some cases

The car may feel fine during gentle driving but lose power during motorway acceleration, hill climbs or overtaking.

Possible causes

Potential causes include:

• Worn or sticking turbo actuator
• Faulty boost position sensor
• Vacuum leak, depending on the turbocharger system fitted
• Damaged actuator wiring
• Carbon or soot affecting turbocharger movement
• Boost hose leaks
• Incorrect actuator calibration
• Turbocharger mechanical wear

A boost control sensor fault does not automatically mean the turbocharger itself must be replaced. The actuator, wiring, hoses and mechanical movement of the turbo need to be checked separately.

How the problem should be checked

A proper inspection should compare commanded turbo position with actual turbo position. A diagnostic scanner can often display this data while the engine is running or during an actuator test.

The turbocharger linkage should be inspected for stiffness or restricted movement. Boost hoses and intercooler connections should also be checked for splits, loose clamps and oily residue around a leak.

If the actuator is replaced, calibration may be required. Fitting a new component without carrying out the correct adaptation procedure can leave the fault active.

ECU tuning should never be used to hide a turbocharger fault. A software calibration may improve performance after the mechanical system is healthy, but it cannot repair a damaged actuator, leaking hose or faulty sensor.

What Does DTC P012200 Mean?

Throttle position sensor circuit low

The P012200 code indicates that the throttle position sensor is reporting a voltage lower than expected. On a modern diesel engine, the throttle valve is not used in exactly the same way as on a petrol engine. It can still support air management, exhaust gas recirculation operation and smooth engine shutdown.

If the ECU receives an incorrect throttle position signal, it may struggle to control airflow correctly.

Common symptoms

The driver may experience:

• Poor throttle response
• Engine hesitation
• Rough running
• Stalling
• Difficult starting
• Reduced power
• Check engine light
• Uneven engine shutdown

The fault may be permanent or intermittent. An intermittent problem is often caused by a poor connector, damaged wiring or moisture entering the sensor circuit.

Possible causes

Possible causes include:

• Defective throttle position sensor
• Faulty throttle body
• Short circuit to ground
• Damaged wiring
• Loose electrical connector
• Poor engine ground
• Low battery voltage
• ECU software issue

Before replacing the throttle body, the sensor reference voltage, ground and signal wire should be tested. A scan tool can also show whether the throttle angle changes smoothly as the system operates.

Repair advice

The first step is a visual inspection of the connector and wiring. Look for bent pins, corrosion, broken wires and oil contamination.

If the wiring is sound, the throttle body may need to be tested or replaced. Some vehicles require an adaptation or relearn procedure after installation. Skipping this step can leave the vehicle with poor throttle operation or a returning fault code.

An ECU update may be appropriate when Mercedes has released software to correct a known control issue. However, software work should follow electrical and mechanical testing rather than replace it.

What Does DTC P201611 Mean?

Intake manifold runner position sensor intermittent

P201611 is related to inconsistent readings from the intake manifold runner position sensor. The intake manifold runners help manage airflow through the engine. Their movement can influence low-speed response, emissions performance and combustion efficiency.

When the sensor signal becomes intermittent, the ECU cannot reliably confirm the position of the intake runners.

Common symptoms

This fault may cause:

• Rough idle
• Poor fuel economy
• Reduced engine response
• Hesitation
• Engine warning light
• Uneven running
• Increased emissions
• Occasional limp mode

The problem may be more noticeable when the engine is cold or when the vehicle is operating at low speed.

Possible causes

Common causes include:

• Carbon buildup in the intake manifold
• A worn intake runner mechanism
• Faulty position sensor
• Loose linkage
• Damaged wiring
• Poor connector contact
• Intake manifold actuator failure
• Excessive oil contamination

Diesel engines can gradually build up carbon and soot in the intake system, particularly when the vehicle is used mainly for short journeys. Exhaust gas recirculation operation, driving style and service condition can all influence buildup.

Correct repair procedure

A technician should inspect the intake runner linkage and confirm that it moves freely. The sensor signal should be monitored while the runners are commanded through their operating range.

If carbon buildup is restricting movement, the intake manifold may need to be cleaned. If the sensor or actuator is faulty, replacement may be necessary.

Simply clearing the code will not fix the cause. The fault will usually return once the ECU performs another self-test.

ECU calibration can help optimize air management only after the intake system is clean and operating correctly. Remapping a restricted or damaged intake system may make diagnosis more difficult and can increase stress on related components.

What Does DTC P2297FA Mean?

Oxygen sensor out of range during deceleration

The P2297FA code indicates that the oxygen sensor is reporting an unexpected reading during deceleration. The ECU monitors exhaust oxygen levels to assess combustion and air-fuel control.

Although oxygen sensor faults are often associated with the sensor itself, the real cause can also be an exhaust leak, an air leak or an incorrect fuel mixture.

Common symptoms

Possible symptoms include:

• Check engine light
• Increased fuel consumption
• Uneven deceleration
• Poor engine response
• Slight hesitation
• Increased emissions
• Rough running in some conditions

The vehicle may feel almost normal while driving, which can make this fault easy to ignore. However, continued operation with an incorrect mixture can affect emissions components and fuel economy.

Possible causes

The main causes may include:

• Failing oxygen sensor
• Exhaust leak before the sensor
• Air entering through a damaged exhaust joint
• Fuel injector problem
• Intake air leak
• Incorrect fuel mixture
• Wiring or connector fault
• ECU calibration issue

An exhaust leak near the oxygen sensor is particularly important. Outside air can enter the exhaust stream and make the sensor report a leaner condition than the engine is actually producing.

Recommended checks

The exhaust system should be inspected for cracks, damaged seals and leaking joints. The oxygen sensor wiring should also be checked for heat damage, especially where it passes close to the exhaust.

Live data from the sensor can help determine whether the signal is responding correctly. Fuel pressure, injector operation and intake air measurements may also need to be checked.

Replacing the oxygen sensor without checking for exhaust leaks may result in the same code returning shortly afterwards.

Can ECU Remapping Fix These Mercedes E220 Fault Codes?

ECU remapping is sometimes mentioned as a solution for DTCs, but it is important to separate software faults from mechanical faults.

An ECU update or calibration correction may help when:

• The vehicle has outdated software
• A known communication issue exists
• Sensor values are being interpreted incorrectly
• Adaptation values need to be reset
• A professional calibration is being installed after repairs

However, ECU tuning will not repair:

• Broken wiring
• A leaking boost hose
• A faulty actuator
• Carbon-blocked intake runners
• A damaged oxygen sensor
• A failing throttle body
• A weak battery or poor ground

A reliable tuning specialist should diagnose the original fault before changing the ECU file. Increasing boost or altering fuel settings while a turbocharger or sensor fault is active can create additional problems.

Why You Should Not Clear the Codes and Keep Driving

Clearing DTCs can switch off the warning light temporarily, but it does not repair the fault. The ECU will continue monitoring the system and may store the code again after a short drive.

Ignoring these faults can lead to:

• More severe power loss
• Poor fuel economy
• Higher emissions
• Turbocharger stress
• Damage to emissions components
• Failed emissions testing
• More expensive repairs

If the vehicle enters limp mode, avoid hard acceleration and heavy towing until the cause has been diagnosed.

Best Diagnostic Process for the E220 W213

A sensible diagnostic process should include:

1. Scan all control modules, not only the engine ECU.
2. Record freeze-frame data before clearing any codes.
3. Check battery voltage and charging performance.
4. Inspect wiring, connectors and engine grounds.
5. Review live sensor data.
6. Test turbocharger and intake actuators.
7. Check boost hoses and exhaust joints for leaks.
8. Inspect for carbon buildup where relevant.
9. Carry out repairs using quality components.
10. Perform adaptations and road-test the vehicle.

The presence of several related codes can provide an important clue. For example, turbo communication and boost position faults appearing together may point toward wiring, voltage or actuator problems rather than two unrelated
