Let me tell you about the job that taught me this lesson the hard way.

A customer rolled in with a car that would randomly cut out at motorway speed. No codes worth mentioning. Another shop had already opened the ECU, spotted a couple of dull-looking joints, reflowed them, and sent the car on its way. Two weeks later, same fault. By the time it reached my bench, the owner had spent real money on a repair that was never the problem.

The actual fault? A corroded ground strap behind the battery box. Four minutes with a multimeter would have found it.

That’s the whole point of this post. Soldering is the easy part. Knowing whether you should be soldering at all is the skill. So before you heat up the iron, walk through these twelve checks. Every single one of them exists because somebody, somewhere, skipped it and paid for it.

Why ECU Solder Joints Crack in the First Place

Quick bit of context, because understanding why helps you spot where.

An ECU lives a brutal life. It gets heat-cycled thousands of times, shaken by engine vibration, and occasionally hit with voltage it was never designed to see. Solder joints on the PCB crack due to repeated thermal cycling, particularly in ECUs mounted near the engine. Underhood temperature cycles eventually cause solder joint failures.

The classic tell? Intermittent failures — the ECU passes every static bench test but fails under heat or vibration. Those faults often point to cracked solder joints or failing capacitors inside the unit.

But here’s the trap: almost everything that looks like an ECU fault isn’t one. The most common diagnostic mistake is suspecting the ECU first. Battery, poor grounds, wiring faults, and sensor contamination are all more frequent causes of ECU-like symptoms — and checking those first saves you the cost and time of unnecessary ECU work.

That’s why this checklist starts nowhere near the circuit board.

✅ The 12-Point ECU Solder Joint Repair Verification Checklist

Print it. Tape it above the bench. Tick it off in order.

[] 1. Battery and charging voltage are correct

Start here. Always. A tired battery or a lazy alternator will throw symptoms that look exactly like a dead module — hard starts, random resets, phantom codes across five systems at once.

You want a rested battery sitting healthy, and charging voltage stable under load with the headlights, blower, and rear demister on. Most automotive ECUs need supply within the manufacturer’s specified range, typically around 11.5V to 14.5V during operation.

Ripple matters too. Scope the alternator output. A failing diode pack pumping AC ripple into the system upsets modules in ways no scan tool will ever spell out for you.

[] 2. ECU fuses have been tested under load

A fuse can look perfect and still be useless. Cracked elements, corroded blades, and tired fuse box contacts all pass a visual inspection and fail the moment current flows.

Don’t eyeball it. Don’t buzz it out with the circuit dead. Test voltage drop across the fuse with the circuit live and loaded. More than a couple of tenths of a volt across a fuse and you’ve found something worth fixing — for free, in ten seconds, without opening anything.

[] 3. Power and ground voltage drop are acceptable

This is the check that catches the most “ECU faults” that aren’t.

Backprobe at the connector and measure voltage drop on every feed and every ground while the circuit is loaded. Ground side is where the money is. Corroded eyelets, painted-over chassis points, and green-crusted strap ends are everywhere on cars past the ten-year mark.

There’s a documented case that says it all: opening an ECU revealed a corroded, broken internal ground conductor serving as the oxygen sensor shield ground. With that shield open, the sensor signal picked up interference from other electrical loads — re-soldering the ground restored it and the fault disappeared entirely.

One bad ground. Wild symptoms. No hardware failure at all.

[] 4. Connectors are clean and undamaged

Pull the ECU connectors and actually look at them. Under light. With magnification if you’ve got it.

You’re hunting for spread terminals, green corrosion, pushed-back pins, oil or coolant creeping down the harness, and heat-discolored housings. A spread female terminal makes intermittent contact under vibration and mimics a cracked joint perfectly.

Check terminal tension with a matching male pin. If it drops in without resistance, that circuit is your fault — not the board.

[] 5. Wiring continuity has been confirmed

Now follow the wire. Use a multimeter in continuity mode to test for broken conductors and open circuits, focusing on critical paths — an infinite resistance reading indicates a break.

Two extras that catch the sneaky ones:

• Wiggle test while measuring. Broken strands under intact insulation only show up when the harness moves.
• Check for shorts to power and ground, not just opens. A chafed wire against the body can take out a driver circuit and then destroy the replacement too if you don’t find it.

Chafed wires touching metal near the alternator, ignition coils, or injectors are a genuinely common cause of module damage.

[] 6. CAN or other network faults have been checked

If the module isn’t talking, don’t assume it’s dead. Check the network before you condemn the box.

Measure resistance across CAN High and CAN Low with everything asleep — you should see roughly 60 ohms from the two terminating resistors in parallel. Around 120 ohms means one terminator is missing or a section of the bus is open. Near zero means a short.

Then scope it. A clean CAN waveform tells you more in five seconds than an hour of guessing. Also check whether other modules are dropping off the bus — one noisy neighbour can take down the whole conversation.

[] 7. External causes have been eliminated

This is the sanity check before you commit.

Sensors, actuators, mechanical condition, fuel pressure, compression, aftermarket accessories wired in badly, and previous “repairs” done by somebody with a roll of insulating tape and confidence.

A fault code pointing to the ECU does not mean the ECU is the cause. It means the ECU logged an anomaly — and the source could be a faulty sensor, a broken ground wire, or a short circuit anywhere in the system.

Freeze frame data is your friend here. Note the conditions when the fault stored — temperature, RPM, and load give you context, and a fault stored at cold start with low voltage points to a power supply or sensor issue rather than ECU hardware failure.

[] 8. The PCB has been inspected under magnification

Only now do you open the box. ESD strap on, battery disconnected, and photograph everything before it comes apart.

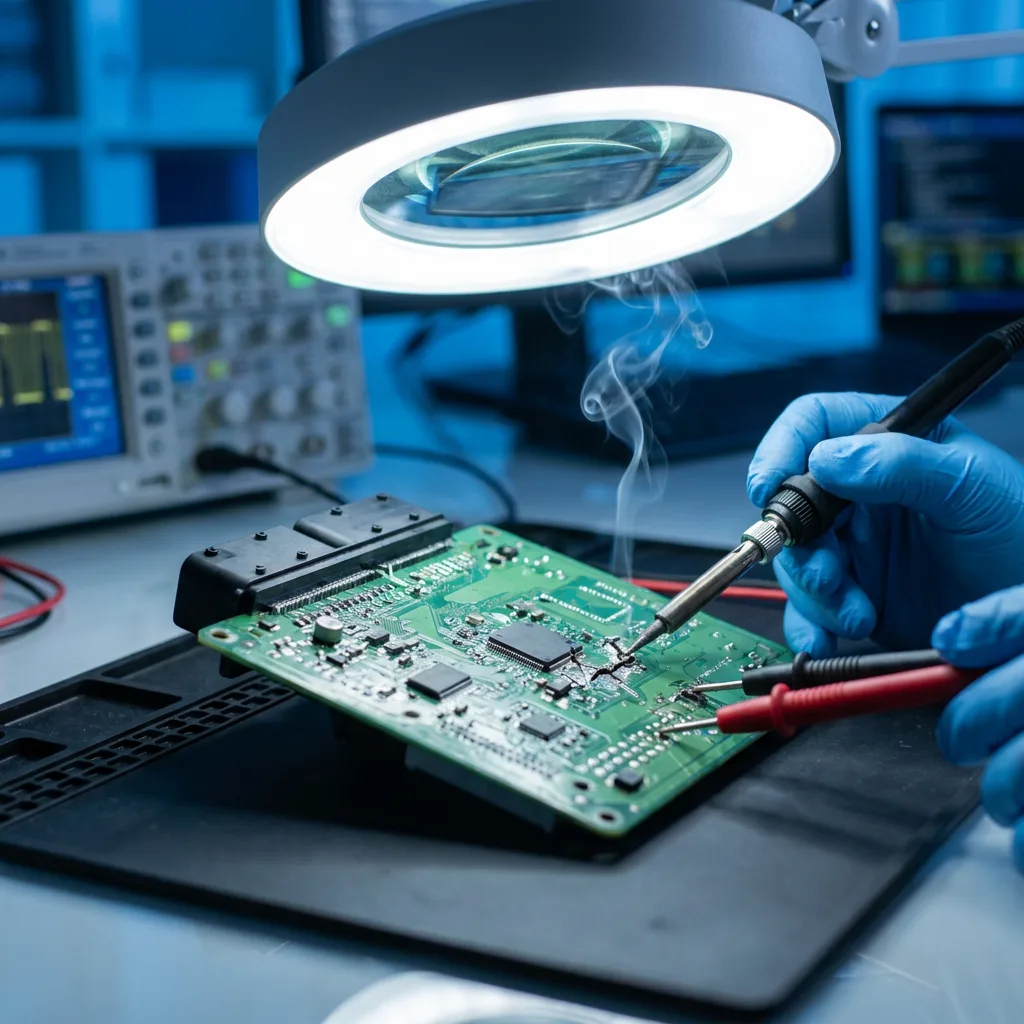

Good lighting is essential — a magnifying lamp reveals hairline cracks in solder joints that are invisible to the naked eye. Look for corrosion, burnt components, and cracked joints, paying close attention to areas near connectors and heat sinks, which are prone to damage.

Where to focus your search:

• Connector pins — highest mechanical stress on the whole board
• Large electrolytic capacitors and their leads
• Relay and inductor legs
• Power transistors, drivers, and voltage regulators
• Anything heavy enough to swing on its solder under vibration

What a bad joint actually looks like: dull, grainy, or cracked, which indicates cold solder or contamination, plus that telltale dark ring around a pin where the joint has separated from the pad.

Angle the board under the light. Cracks catch the light at one angle and vanish at another.

[] 9. Damaged components have been tested

A cracked joint rarely arrives alone. Whatever cooked that joint may well have cooked the part sitting on it.

Test individual components — capacitors, resistors, and diodes — for proper function. Bulging or vented capacitors, discoloured resistors, and cracked ceramics all get replaced, not reflowed. Boards exposed to moisture may show corrosion causing broken or bridged component leads, and components should be inspected and repaired or replaced individually.

If corrosion is present, clean it properly: isopropyl alcohol at 90% or higher with a soft brush, dried thoroughly with compressed air, then a protective coating to prevent it coming back. Avoid water, bleach, or ammonia-based cleaners — they corrode solder joints.

[] 10. The repaired joint has been cleaned and inspected

Do the repair properly, then check your own work like somebody else did it.

A fine tip in the 0.5mm to 1mm range is essential for densely packed ECU boards, and 25W to 40W gives enough heat without risking damage. Apply flux first for better flow, touch the tip to the joint while feeding solder, and be quick — aim for two to three seconds per joint.

The mistake I see constantly: melting the old solder and calling it done. Remove the old solder, clean the pad, then build a fresh joint. Reflowing contaminated solder gives you a fault that returns in a month.

Then inspect. Verify uniform wetting, correct fillet shape, no voids or bridges, and no excess solder that could cause shorts or mechanical stress. Clean off the flux residue, because leftover flux traps moisture and creates leakage paths across fine-pitch pins.

[] 11. The ECU has passed bench or vehicle testing

Never seal the case on an untested board.

Bench testing involves pinout diagrams, voltage and resistance checks at terminals, and input/output signal verification without vehicle installation — it’s the gold standard for accurate diagnosis. Testing on a simulated vehicle bench confirms proper communication, injector and spark outputs, and sensor readings before the unit gets sealed up.

And because the original fault was probably heat or vibration related, test it the way it failed. Gentle heat with a hot air gun on low. Light tapping around the repair area with an insulated probe while watching live data. If it’s going to misbehave, make it misbehave on your bench, not on the customer’s commute.

[] 12. The original fault has been verified as resolved

The final one, and the one most often skipped in a busy shop.

Go back to the original complaint. Not the code — the complaint. Clear the codes, drive the car under the exact conditions the customer described, and confirm nothing returns. Test the vehicle including engine start, acceleration, and other key functions, then use a diagnostic scanner to confirm no error codes have come back.

Check readiness monitors have completed. Then, if you can, get the car back a week later for a quick recheck. That five-minute follow-up is what turns a repair into a reputation.

The Repair-or-Replace Call

Once the diagnosis is solid, the decision usually makes itself.

Repair is the better choice for minor issues — loose solder, damaged connectors, or faulty capacitors are far more affordable to fix than replacing the whole board, especially with rare or expensive units that are hard to source. Industry experience suggests up to 70% of condemned units are actually repairable.

There’s a security bonus too. Because a repaired original module retains the car’s security data, most vehicles need no additional immobiliser programming afterwards.

And if you’re tempted by a cheap used unit from a breaker: a second-hand ECU brings its own history of thermal stress, voltage events, and wear, while a properly remanufactured unit gives you a known, tested baseline.

One serious warning before you go poking at anything modern: always back up existing software or calibration data first, because losing a calibration file means the module may need reprogramming from scratch. There are real cases of someone reflowing a dry joint successfully, then attempting a software update without a backup — and ending up with a bricked ECU that cost more to recover than a professional repair would have cost in the first place.

FAQ

Can a cracked ECU solder joint really cause intermittent stalling? Absolutely. It’s one of the classic signatures. The unit passes static bench tests but fails under heat or vibration, which points straight at cracked joints or failing capacitors.

How do I know if it’s the ECU or the wiring? Voltage drop testing on power and ground, plus a wiggle test on the harness. Battery, poor grounds, wiring faults, and sensor contamination cause ECU-like symptoms far more often than the ECU itself.

Is reflowing enough, or should the joint be fully redone? Fully redone. Remove the old solder, clean the pad, apply fresh flux, and build a new joint. Reflowing contaminated solder is a temporary fix at best.

Do I need to reprogram after a solder repair? Usually not, since the original chip and its data stay in place — but back up your calibration before you start, every single time.

What temperature should I solder at? Hot enough to make the joint fast, cool enough to protect the board. Two to three seconds per joint is the target — dwelling longer risks lifting pads and cooking nearby components.
