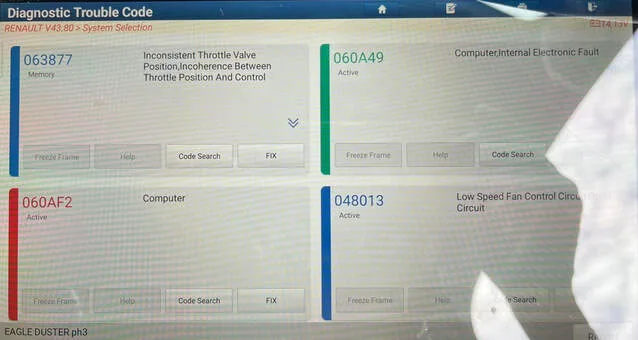

When a Renault Duster begins losing power, stalling or showing an engine warning light, the first step is usually a diagnostic scan. Some Duster models fitted with the Renault EMS3125 engine control unit may report fault codes such as 063877, 060A49 and 060AF2.

These codes can look serious, especially when they appear together. In some cases, the problem is connected to the throttle system. In others, the ECU may have an internal software, memory or processor fault. However, replacing the ECU immediately is not always the best answer.

A proper diagnosis should first confirm whether the fault is caused by the throttle body, wiring, voltage supply, connectors, calibration or the ECU itself.

The Renault engine control unit manages important engine functions by receiving information from sensors and controlling components such as the throttle actuator, injectors and ignition system. Renault technical information describes the ECU as the central control unit for engine management, while the throttle position sensor and actuator work together as part of the electronic throttle system. RenaultDusterenginemanagementinformation

DTC 063877: Inconsistent Throttle Valve Position

Fault code 063877, sometimes shown as P063877, refers to an inconsistent throttle valve position. In simple terms, the ECU is asking the throttle valve to move to a specific position, but the feedback signal does not match the expected result.

The electronic throttle system uses a motor and position feedback sensors. When the driver presses the accelerator, the ECU calculates the requested engine torque and adjusts the throttle opening. It then checks the actual throttle position. If the requested and actual positions do not agree, the ECU stores a fault code.

Common symptoms include:

• Slow or delayed throttle response
• Poor engine performance
• Uneven acceleration
• Engine warning light
• Reduced-power or limp-home mode
• Rough idle in some cases
• Difficulty maintaining a steady engine speed

A similar description for Renault fault code P063877 identifies the problem as an inconsistent throttle valve position. P063877throttlevalvefaultreference

Possible Causes of 063877

This fault does not automatically prove that the ECU is damaged. Several other problems can create the same code:

1. Dirty throttle body
2. Carbon deposits can restrict the throttle plate and prevent smooth movement.
3. Faulty throttle actuator
4. The small electric motor inside the throttle body may become weak or intermittent.
5. Damaged throttle position sensor
6. The feedback signal may contain dropouts or readings that do not change smoothly.
7. Wiring or connector damage
8. Moisture, corrosion, loose pins or damaged wiring can interrupt the throttle signal.
9. Low battery voltage
10. A weak battery or charging fault can cause incorrect ECU readings and actuator errors.
11. Throttle adaptation problem
12. After replacing or servicing a throttle body, the ECU may need a throttle limit or position relearn procedure.

A professional scan should check live throttle data rather than relying on the stored code alone. The technician should compare the commanded throttle angle with the actual position while slowly pressing the accelerator.

DTC 060A49: Internal Control Module Fault

Code 060A49 is generally associated with an internal control module fault. Depending on the diagnostic equipment and software version, the description may refer to an internal memory, processing or ECU communication issue.

Possible symptoms include:

• Random engine shutdown
• Intermittent no-start condition
• Limp mode
• Engine warning light
• Loss of communication with the ECU
• Fault codes that return immediately after clearing
• Unstable engine operation

This type of code deserves careful testing because the ECU is not always the original cause. A poor power supply, weak ground connection or water damage can make a healthy ECU appear faulty.

What Should Be Checked First?

Before considering ECU repair, a technician should inspect:

• Battery voltage with the engine off and running
• Alternator charging voltage
• ECU power supply
• ECU ground points
• Main engine harness
• ECU connector pins
• Signs of water or oil contamination
• Communication between the scan tool and other vehicle modules

A battery that drops heavily during cranking can create several misleading fault codes. The same can happen when an engine ground strap is damaged or corroded.

If the power and ground circuits are correct and the fault returns immediately, the ECU becomes a more likely suspect.

DTC 060AF2: Internal Processor Error

Fault code 060AF2 points to a serious internal ECU processing error. The ECU may be unable to complete an internal calculation, access a memory area or correctly process information from the engine sensors.

Drivers may notice:

• Sudden power loss
• Engine stalling
• Unresponsive acceleration
• Difficulty starting
• Limp mode
• Multiple unrelated fault codes
• A warning light that returns after clearing

When 060AF2 appears together with 060A49, the problem may be more than a simple sensor fault. It can indicate an internal ECU issue, but testing is still important before any programming or replacement work begins.

The scan tool may also show whether the code is current, stored or intermittent. A current fault that returns immediately is usually more significant than an old stored code caused by a previous low-voltage event.

Why These Three Fault Codes May Appear Together

The throttle system and ECU work closely together. A problem inside the ECU can affect throttle control, while a damaged throttle body can create secondary control-module codes.

For example, a failing throttle actuator may cause the ECU to detect a position mismatch. Repeated attempts to control the throttle can then trigger additional internal or torque-management errors.

The reverse is also possible. If the ECU has corrupted calibration data or an internal processing fault, it may send incorrect commands to the throttle body. This can result in a throttle position code even when the mechanical throttle body is in good condition.

That is why replacing the throttle body without testing the ECU can waste money. The same applies to replacing the ECU when the real problem is a damaged connector or low battery voltage.

Recommended Diagnostic Procedure

A reliable repair should follow a clear process.

Step 1: Perform a complete vehicle scan

Do not scan only the engine ECU. Check the entire vehicle for communication, voltage and network-related codes. Record the freeze-frame data before clearing anything.

Step 2: Check the battery and charging system

Measure battery voltage before starting, during cranking and with the engine running. An unstable charging system can cause electronic control faults.

Step 3: Inspect the throttle body

Check for excessive carbon deposits, physical damage, sticking movement and signs of water contamination. The wiring plug should fit tightly, with no bent or pushed-back terminals.

Step 4: Compare live data

Use a suitable Renault diagnostic tool to compare:

• Accelerator pedal position
• Desired throttle position
• Actual throttle position
• Throttle motor command
• ECU supply voltage
• Engine speed
• Engine load

The values should change smoothly. Sudden jumps, flat spots or readings that disagree with one another can help identify the faulty component.

Step 5: Carry out throttle adaptation

If the throttle body has been cleaned, replaced or disconnected, the ECU may require an adaptation or relearn procedure. Some Renault diagnostic systems include a function for programming throttle limits. Renaultdiagnosticfunctionreference

Step 6: Test the ECU

If the wiring, power supply, throttle body and adaptation procedure are all correct, the ECU should be tested on the bench by an experienced automotive electronics specialist.

Can ECU File Repair Fix These Faults?

In some cases, ECU file repair or software correction can resolve internal calibration or memory-related problems. This may be a practical alternative to replacing the entire ECU, especially when the original unit is physically undamaged.

A professional ECU service may involve:

• Reading the original ECU file
• Checking software and calibration data
• Correcting corrupted areas
• Restoring suitable configuration data
• Verifying checksum integrity
• Writing the repaired file back to the ECU
• Testing the unit before refitting it

However, file programming is not a universal solution. If the throttle motor is worn, the wiring is damaged or the ECU has a failed electronic component, software work alone may not solve the problem.

A trustworthy service should never promise that every 063877, 060A49 or 060AF2 fault can be permanently removed without testing the vehicle. The correct repair depends on the root cause.

ECU Repair or ECU Replacement?

ECU repair may be the better option when:

• The original ECU communicates with diagnostic equipment
• The casing and circuit board are not badly damaged
• Internal software or memory errors are suspected
• The vehicle has repeated internal processor codes
• A replacement ECU would require immobiliser coding
• You want to keep the original vehicle configuration

ECU replacement may be necessary when:

• The circuit board has severe water damage
• The processor or memory chip has failed physically
• The ECU has extensive corrosion
• Communication cannot be restored
• Testing confirms permanent hardware failure

The final decision should be based on proper testing, not only on the fault-code description.

Is It Safe to Drive With These Codes?

It depends on the symptoms. If the Duster has reduced power, stalls in traffic, shows an engine failure warning or has an unresponsive accelerator, avoid unnecessary driving.

Renault’s owner information advises stopping safely and seeking professional assistance when a serious engine-failure warning appears. RenaultDusterwarningmessages

A vehicle that suddenly loses throttle response can be dangerous, particularly when joining a motorway, overtaking or driving uphill.
