I’ve watched more ECUs die from the wrong repair than from the original fault.

Someone gets a no-start, pulls the module, spots a dull-looking solder joint on a driver pin, hits it with an iron for two seconds, and calls it fixed. The car runs. Everybody’s happy. Three weeks later it’s back on the lift with the same fault, except now the pad is lifted, the trace is torn, and what was a twenty-minute job is a two-hour reconstruction.

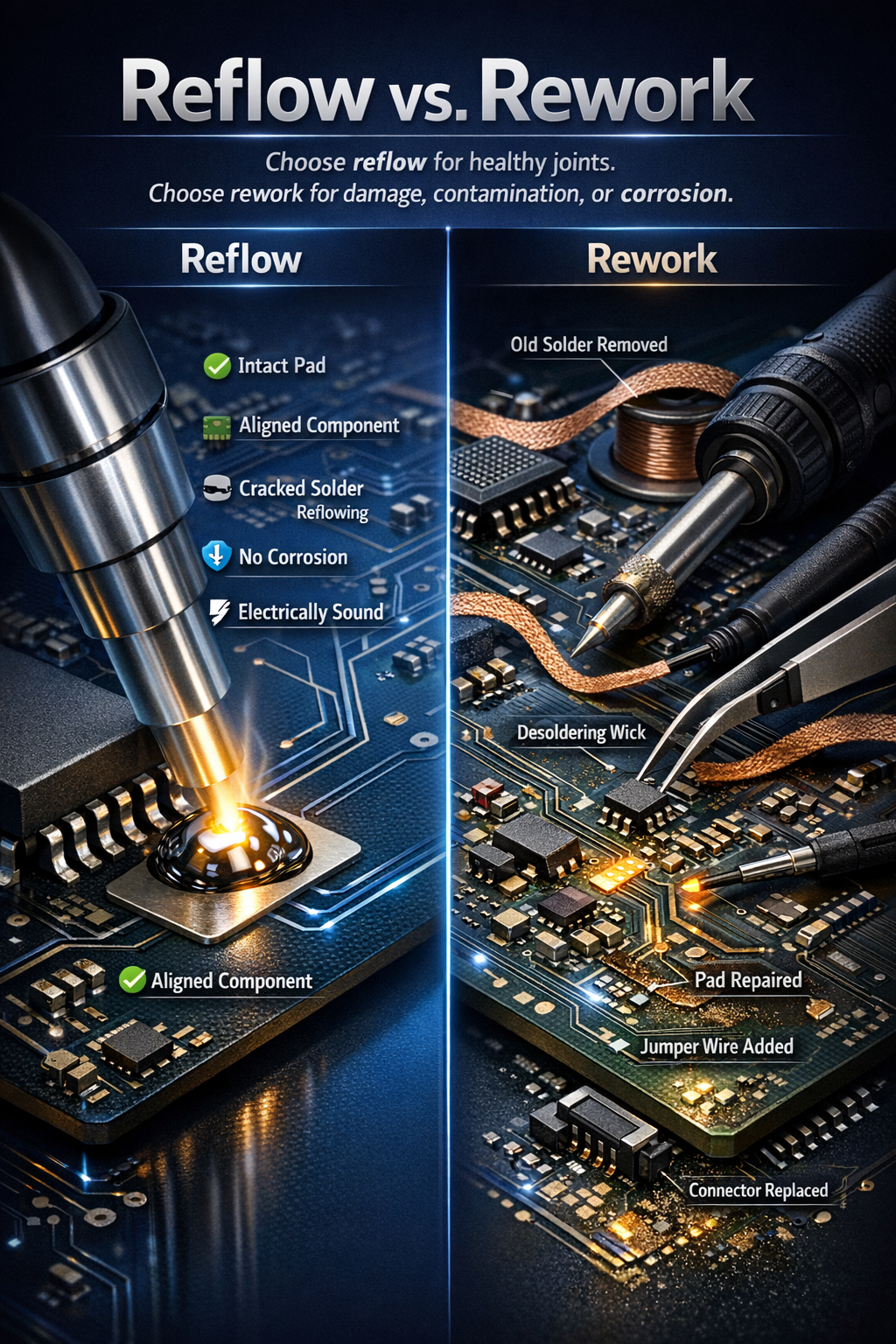

That’s the whole reason this article exists. Reflow and rework are not the same thing, they’re not interchangeable, and choosing between them is a diagnostic decision — not a preference.

Let’s get you making that call correctly.

What Reflow Actually Means

Reflow is simple in definition: you reheat an existing solder connection until it melts, and it re-bonds as it cools.

You’re not adding a new component. You’re not removing anything. You’re taking solder that is already there, already the right alloy, already wetted to the pad and the lead, and giving it a second chance to form a proper metallurgical bond.

That’s it. It’s a reset, not a rebuild.

And when it’s the right call, it is beautiful — fast, low-risk, minimal heat exposure to the board, no chance of damaging neighbouring components. On a fatigue-cracked joint on a heavy relay pin or a connector leg, a clean reflow with fresh flux can restore a module to full function in under a minute.

When Reflow Is the Right Move

Reflow works when everything around the joint is still healthy. Specifically:

The pad is intact. No lifting, no dark ring around the edge, no separation from the laminate. If you can see the pad sitting flat and bonded to the board, you have a foundation to work with.

The component is correctly positioned. No tombstoning, no drift, no shifted lead. The part is where the designer put it and it hasn’t moved.

The solder joint is only cracked. This is the classic case — a hairline fracture from thermal cycling or vibration. Under magnification you’ll see a fine ring or line through the fillet. The metal is all still there, it’s just no longer continuous.

There is no corrosion. No green, no white crust, no dull grey powdery bloom. Corrosion is contamination, and contamination doesn’t reflow — it just gets baked in.

The component is electrically healthy. The part itself tests good. You’re fixing the connection, not the silicon.

Hit all five of those and reflow is not just acceptable, it’s the smarter choice. Less heat, less risk, less time.

What Rework Actually Means

Rework is the bigger operation. You’re not reheating what’s there — you’re removing, replacing, or rebuilding part of the assembly.

Depending on what you’re facing, rework can involve:

• Removing old solder — wicking or vacuum-desoldering the existing joint down to bare pad
• Replacing the component — the part itself has failed and has to come off
• Repairing a pad — the copper landing has lifted or burned away and needs to be re-bonded or replaced
• Rebuilding a trace — a conductor has cracked, corroded through, or been physically cut
• Adding a jumper — bridging a break with wire when the original path can’t be restored
• Replacing a connector — the connector body, pins, or shell are damaged
• Correcting corrosion damage — neutralising, cleaning, and reconstructing what the corrosion ate

Every one of those is a rebuild step. You’re changing the physical state of the board, not just reheating it.

When You Must Rework

Rework becomes the correct approach the moment you find:

Contamination. Flux residue, coolant, oil, road salt, brake fluid — anything that’s soaked into or under the joint. Heat alone won’t remove it. Reflowing over contamination traps it inside the new joint and you’ve now built the failure in permanently.

Corrosion. Corrosion is metal that has chemically changed. Copper oxide and copper chloride don’t behave like copper. You cannot reflow them back into a conductor. They have to be removed, neutralised, and the missing material replaced.

Burned material. Carbonised laminate, scorched solder mask, charred resin — burnt FR4 becomes electrically conductive. That’s not cosmetic damage, that’s a live leakage path. It has to be cut out, cleaned back to clean board, and rebuilt.

Mechanical damage. Cracked pads, torn traces, bent or broken leads, cracked component bodies, connector housings with snapped locking tabs. Physical damage needs physical repair.

Notice the pattern: reflow fixes fatigue, rework fixes damage.

That single sentence is the whole decision tree.

The Real Cost of Getting It Wrong

Here’s what I see most often in automotive work, and why it matters more here than in most electronics.

Vehicle ECUs, TCMs, BCMs and ABS modules live a brutal life. Engine bay heat cycling. Constant vibration. Moisture ingress through failed connector seals. Twenty-amp switching loads on high-current drivers. The failure modes are almost never clean.

So a technician finds a bad joint on an injector driver. It looks cracked. He reflows it. Except the crack wasn’t fatigue — it was corrosion working its way in from a leaking connector boot. The reflow melted solder over corroded copper, made a joint that looked mirror-perfect, and lasted six weeks.

Second failure comes back worse. The corrosion had six more weeks to advance under a sealed cap where it stayed wet. Now the pad is gone.

The reverse mistake is just as expensive. Someone sees a dull joint, assumes the worst, desolders a 100-pin QFP microcontroller, and cooks the surrounding board doing it. The original fault was a cracked joint on pin 44 that a ten-second reflow would have solved.

Diagnose the joint before you touch it with heat. Magnification first. Ten-times minimum, thirty-times is better. Good light from an angle so you can see fillet geometry and surface texture. Clean the area with isopropyl and a brush so you’re looking at metal, not residue.

A Quick Bench Checklist

Before you decide, run these:

1. Look at colour. Bright and shiny with a clean concave fillet is healthy. Dull grey can mean fatigue. Green, white, or powdery means corrosion — rework.
2. Look at the pad edge. Any dark halo, any gap between pad and board, any lift — rework.
3. Look at the laminate. Brown or black discolouration around a joint means it’s been running hot. Check the component’s load rating and thermal path before you rebuild.
4. Poke it. Gently, with a wooden or plastic probe. A joint that moves independently of the pad is cracked through.
5. Test the component. Diode-check the part before you commit. If the driver is shorted, reflowing its joint is pointless.
6. Ask why it failed. A cracked joint on a heavy inductor is vibration. A cracked joint on a small SMD resistor beside a hot driver is thermal. Corrosion means water got in somewhere — and if you don’t find the entry point, your repair is on a timer.

That last one separates a parts-changer from a technician.

Technique Notes That Actually Matter

Always add fresh flux. Old solder’s flux burned off years ago. Reflowing without new flux gives you an oxidised, grainy joint that looks worse than what you started with.

Consider adding a little fresh solder to a reflow. Not always necessary, but on a fatigue-cracked joint the alloy has often segregated. Adding a small amount of fresh 63/37 or SAC alloy restores good grain structure.

Match your alloy. Mixing leaded and lead-free carelessly gives you a weak, brittle joint. Know what the board was built with.

Control your heat. Get in, wet the joint, get out. Prolonged heat lifts pads and degrades laminate — which turns your reflow job into a rework job in real time.

Clean afterward. Especially on automotive boards heading back into a humid engine bay. Residual active flux plus moisture equals the corrosion you just spent an hour fixing.

Re-seal and re-coat. If the board was conformal coated, recoat your repair. If it wasn’t, and the fault was moisture-related, seriously consider coating it now.
