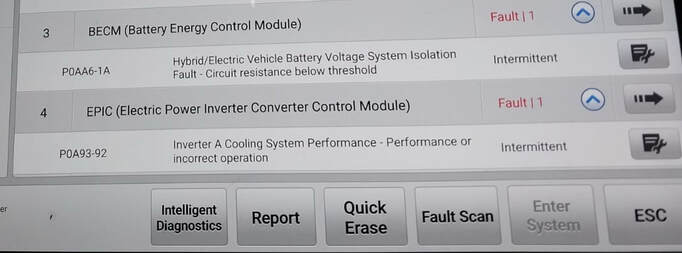

Hybrid warning lights on a Range Rover Sport L460 should never be ignored. When fault codes P0AA6-1A and P0A93-92 appear together, the problem is often connected to the high-voltage battery system, the Battery Energy Control Module, or the electric power inverter and its cooling circuit.

These faults can affect hybrid performance, trigger warning messages, and sometimes force the vehicle to run only on its petrol engine. In more serious cases, the vehicle may refuse to enter hybrid mode or limit power to protect its electrical components.

The good news is that these codes do not always mean the entire hybrid battery or inverter must be replaced. Correct diagnosis is essential before any expensive parts are ordered.

What Does DTC P0AA6-1A Mean?

The diagnostic trouble code P0AA6-1A is generally linked to an electrical insulation or voltage leakage problem within the high-voltage hybrid system.

The Battery Energy Control Module, commonly called the BECM, monitors the hybrid battery and checks that the high-voltage system remains safely isolated from the vehicle body and other low-voltage circuits.

If the BECM detects abnormal insulation resistance, it may store P0AA6-1A and place the hybrid system into a restricted operating mode.

Possible causes include:

• Damaged high-voltage wiring
• Moisture inside a battery or electrical connector
• Poor insulation resistance
• A fault inside the hybrid battery pack
• Damaged battery cells or internal busbars
• Corrosion around high-voltage connections
• A failing BECM
• Incorrect previous repairs
• Wiring damage caused by impact, heat, or water ingress

It is important to understand that P0AA6-1A is a system-level fault. The code identifies a problem with high-voltage isolation, but it does not automatically identify the exact failed component.

That is why replacing the BECM immediately is not always the right solution.

What Does DTC P0A93-92 Mean?

The fault code P0A93-92 points to a problem with the Electric Power Inverter Control Module, or EPIC.

The inverter is a major part of the hybrid drivetrain. It converts the battery’s direct current into the alternating current required by the electric motor. It also manages electrical power flow between the battery, inverter, and motor.

The inverter operates under heavy electrical and thermal loads. For that reason, it relies on a dedicated cooling system to control its temperature.

A common cause of P0A93-92 is insufficient cooling. This may happen because of:

• Low coolant level
• Air trapped inside the cooling circuit
• A weak or failed electric coolant pump
• Restricted coolant flow
• Damaged hoses
• A blocked heat exchanger
• Faulty temperature sensors
• Electrical problems at the EPIC module
• Internal inverter overheating
• A software or communication issue

When the inverter temperature rises beyond its safe operating range, the vehicle may reduce electric assistance or disable hybrid operation entirely.

Common Symptoms of Both Fault Codes

A Range Rover Sport L460 affected by these codes may show one or more of the following symptoms:

• Hybrid system warning message
• Check engine light
• Reduced electric power
• Petrol-only driving
• Reduced acceleration
• Limited performance mode
• Hybrid battery warning
• Cooling fan running more often than normal
• Inverter or electrical component overheating
• Difficulty starting the hybrid system
• Intermittent warning lights
• Warning messages that disappear and return later

Some vehicles may continue to drive normally for a short period. That does not mean the fault is harmless. High-voltage electrical faults can become more severe if the vehicle continues operating with poor insulation or inadequate inverter cooling.

Can You Continue Driving With P0AA6-1A or P0A93-92?

Short-distance driving may be possible in some cases, especially when the vehicle has switched safely to petrol-only operation. However, continued use is not recommended until the fault has been properly diagnosed.

The vehicle may suddenly reduce power, disable hybrid assistance, or enter a protection mode. If an inverter cooling fault is present, continued driving may also create additional heat and damage.

For safety reasons, high-voltage hybrid repairs should only be carried out by trained technicians using the correct personal protective equipment and insulated tools. The hybrid battery system can contain dangerous voltage even when the engine is switched off.

How These Fault Codes Should Be Diagnosed

A proper repair begins with a complete diagnostic process rather than simply clearing the codes.

1. Full Vehicle Scan

The first step is to scan all vehicle control modules using suitable manufacturer-level diagnostic equipment.

The BECM, EPIC, engine control module, transmission module, and body control systems should all be checked. Additional stored or pending codes may help identify whether the issue is electrical, thermal, mechanical, or communication-related.

Freeze-frame data should also be reviewed. This can show the conditions present when the fault was recorded, including battery voltage, inverter temperature, coolant status, and operating mode.

2. Inspect the Hybrid Cooling System

For P0A93-92, the inverter cooling system should be inspected carefully.

The technician may check:

• Coolant level and condition
• Coolant pump operation
• Flow through the circuit
• Air pockets
• Leaks around hoses and connectors
• Temperature sensor readings
• Heat exchanger performance
• Wiring and electrical supply to the pump

A coolant flush or correct bleeding procedure may be enough to restore normal operation if the problem is caused by restricted flow or trapped air.

If the pump is weak or not operating, it may need to be replaced. Continuing to use the vehicle with poor inverter cooling can lead to internal damage.

3. Test High-Voltage Insulation Resistance

For P0AA6-1A, insulation resistance testing is one of the most important parts of the diagnosis.

The high-voltage system must be checked in sections to locate where leakage is occurring. Depending on the test results, the technician may inspect:

• Battery pack connections
• High-voltage cables
• Inverter connections
• Electric motor wiring
• Battery housing
• Electrical connectors
• Moisture or contamination
• Signs of physical damage

The purpose is to identify whether the insulation problem is inside the battery, within the wiring, or at another high-voltage component.

4. Check the BECM and Related Wiring

The BECM should be checked for correct power supply, ground connections, communication, and software operation.

Loose pins, corrosion, damaged wiring, or water ingress can create faults that appear to be module failures. In some cases, the module may require recalibration or software programming after a repair.

Replacing the BECM without checking the surrounding system can result in the same code returning.

5. Clear Codes and Complete a Road Test

After the repair, the stored faults should be cleared using appropriate diagnostic equipment. The vehicle should then be tested under different conditions, including:

• Engine starting
• Hybrid mode activation
• Electric acceleration
• Battery charging
• Regenerative braking
• Normal road driving
• Operation at working temperature

A successful repair should be confirmed by a second full scan. The technician should also check that no new BECM, EPIC, battery, or communication faults have appeared.

Repair Options for P0AA6-1A

The correct repair depends on the source of the insulation fault.

Possible solutions include:

• Repairing damaged high-voltage wiring
• Replacing a faulty connector
• Removing moisture or contamination
• Repairing battery pack connections
• Replacing damaged battery components
• Replacing internal battery parts where appropriate
• Reprogramming or recalibrating the BECM
• Replacing the BECM when internal failure is confirmed
• Replacing the hybrid battery only when testing proves it is necessary

A specialist workshop should provide clear test results before recommending a complete hybrid battery replacement. In many cases, the fault can be traced to a smaller component or wiring issue.

Repair Options for P0A93-92

P0A93-92 is often connected to the inverter cooling system, so the repair may be less extensive than expected.

Common repairs include:

• Correcting the coolant level
• Removing air from the cooling circuit
• Flushing restricted coolant passages
• Replacing the electric coolant pump
• Repairing damaged hoses
• Replacing a temperature sensor
• Repairing electrical wiring
• Checking EPIC module power and ground
• Programming or recalibrating the module
• Replacing the EPIC inverter when internal failure is confirmed

The cooling circuit must be tested after repair. Simply topping up coolant may not solve the problem if the pump is weak or the system contains trapped air.

Why Accurate Diagnosis Matters

Hybrid Range Rover repairs can become expensive when parts are replaced without proper testing. The BECM, inverter, battery pack, wiring, and cooling system all work together, and a fault in one area can cause symptoms in another.

For example, an inverter cooling problem may create overheating warnings, while a high-voltage insulation fault may disable hybrid operation. If both codes are stored, each system should be tested separately before deciding on the repair.

Accurate diagnosis helps to:

• Prevent unnecessary parts replacement
• Reduce repair costs
• Protect the hybrid battery
• Avoid repeat warning lights
• Restore electric performance
• Improve long-term reliability
• Confirm the vehicle is safe to use

Specialist Range Rover Sport L460 Hybrid Repairs

At our workshop, we focus on hybrid system diagnostics and electronic repairs for Range Rover vehicles. Our technicians use specialist equipment to investigate BECM, EPIC, battery, inverter, and high-voltage wiring faults.

Our repair process includes:

• Complete system scanning
• High-voltage safety checks
• Insulation resistance testing
• BECM diagnosis
• EPIC inverter testing
• Cooling system inspection
• Wiring and connector checks
• Software and programming support
• Post-repair road testing

The goal is simple: find the real cause of the fault and repair it properly, rather than replacing expensive parts based on guesswork.
