A Range Rover with a completely blank instrument cluster can be worrying. One moment everything works normally; the next, the dashboard display disappears, warning lights are missing and the vehicle may feel impossible to drive with confidence.

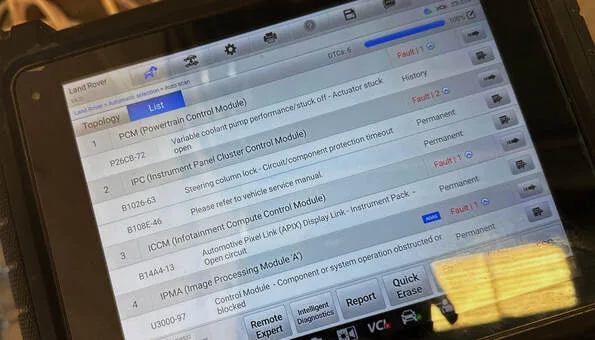

The problem becomes even more confusing when a diagnostic scan shows several fault codes at the same time:

• B1026-72
• B108E-63
• B14A4-13
• U3000-97

These codes can appear on different Range Rover models and model years, including vehicles fitted with electronic instrument clusters and complex networked control modules. While the exact description can vary depending on the vehicle’s year and diagnostic equipment, this particular group of codes usually points towards a fault in the instrument cluster, its power supply or the communication network connected to it.

The good news is that the fault can usually be diagnosed logically. Replacing random parts is rarely the best approach.

What Do These Range Rover Fault Codes Mean?

B1026-72: Instrument Cluster Communication or Internal Fault

The code B1026-72 is commonly associated with a problem involving the instrument cluster’s internal operation, communication or power supply.

In practical terms, the cluster may not be receiving the correct voltage, may have lost communication with another control module or may have developed an internal electronic fault.

Possible causes include:

• Low battery voltage
• Damaged wiring
• Poor electrical connections
• A failing instrument cluster circuit board
• Communication failure between the cluster and the vehicle network

A weak battery can sometimes trigger this type of code, especially if the vehicle has recently been jump-started or left unused for a long period. However, if the dashboard remains completely dead after the battery and power supply have been checked, an internal cluster fault becomes more likely.

B108E-63: Internal Instrument Cluster Failure

The code B108E-63 often indicates an internal fault within the cluster or one of its electronic circuits.

Modern Range Rover instrument clusters are not simple gauge panels. They contain processors, memory chips, voltage regulators, communication circuits and display components. If one of these parts fails, the complete cluster may stop working.

This fault can be linked to:

• Failed internal components
• Damaged circuit-board tracks
• A faulty voltage regulator
• Cracked or weak solder joints
• Internal memory or processor problems
• Heat-related electronic damage

A cluster with this type of failure may work intermittently before going completely blank. Some drivers notice flickering, delayed startup, missing warning messages or random resets before the display finally stops operating.

B14A4-13: Electrical Circuit Malfunction

The B14A4-13 code generally suggests an electrical circuit problem. This may involve wiring, connectors, internal board circuits or a signal that is outside the expected range.

The cause is not always inside the cluster itself. A damaged connector, loose terminal or wiring fault can create symptoms that look exactly like a failed dashboard module.

Important areas to inspect include:

• The cluster connector
• Ground points behind the dashboard
• Fuse-box connections
• Wiring near the steering column
• Signs of water ingress
• Bent, pushed-back or corroded connector pins

Electrical faults can be difficult to find visually. A wire may look fine but have an internal break, increased resistance or a poor crimp.

U3000-97: Control Module or Internal Electronic Fault

U3000-97 is a general control-module fault code. It is often seen when a vehicle module detects an internal problem or cannot operate correctly.

When U3000-97 appears alongside several body and cluster-related codes, it can point towards a defective instrument cluster module. It may also appear when the module has suffered from unstable voltage or communication problems.

This code should not automatically be treated as proof that the main ECU needs replacing. In many cases, the ECU is not the real problem. A faulty cluster, poor ground or damaged power supply can cause communication faults throughout the vehicle.

Why Does the Range Rover Instrument Cluster Go Blank?

There are several possible reasons for a dead dashboard. The most common causes are listed below.

1. Internal Cluster Hardware Failure

Electronic components inside the cluster can fail with age. Heat, vibration and repeated temperature changes place stress on the circuit board.

Typical failed parts may include:

• Voltage regulators
• Capacitors
• Microprocessors
• Memory chips
• Display control circuits
• Internal power-supply components

If the cluster has no display, no warning lights and no response at all, an internal hardware failure is a strong possibility.

2. Battery or Charging-System Problems

Range Rover vehicles rely heavily on stable voltage. A battery that is weak, discharged or nearing the end of its life can cause several electronic modules to report faults.

Before condemning the cluster, check:

• Battery condition
• Battery voltage with the engine off
• Charging voltage with the engine running
• Battery terminals
• Main vehicle grounds
• The intelligent battery sensor, where fitted

A battery can show an acceptable voltage at rest and still fail under load. For that reason, a proper battery test is more useful than checking voltage alone.

3. Blown Fuse or Failed Power Feed

A blown fuse is simple to repair, but it is important to find out why the fuse failed. Replacing it without checking the circuit could result in another failure or further damage.

Check the fuses that supply:

• The instrument cluster
• The body control module
• The ignition circuit
• The infotainment or gateway module
• Relevant CAN network components

Fuse layouts vary by model and year, so use the correct wiring diagram or vehicle-specific technical information.

4. Poor Ground Connection

A weak ground can create strange electrical symptoms. The cluster may shut down, restart or communicate intermittently with other modules.

Ground points can suffer from:

• Corrosion
• Loose bolts
• Water contamination
• Paint or dirt between contact surfaces
• Heat damage
• Previous repair work

A ground connection may look secure but still have excessive resistance. Testing voltage drop while the circuit is operating is more reliable than simply looking at the connection.

5. Damaged Wiring or Connector Pins

The instrument cluster communicates with other vehicle modules through wiring and communication networks. A loose connector pin or damaged wire may interrupt both power and communication.

Look for:

• Moisture inside connectors
• Green or white corrosion
• Loose terminals
• Signs of overheating
• Previous dashboard removal
• Aftermarket accessories connected incorrectly
• Wiring trapped behind trim panels

Extra care is needed around dashboard wiring because many vehicles have airbag systems nearby. Disconnecting the battery and following the correct safety procedure is essential before working around these areas.

6. Moisture or Water Ingress

Water damage is a common cause of electronic faults in modern vehicles. Moisture may enter through the windscreen area, sunroof drains, door seals or dashboard vents.

Signs of water damage include:

• Damp carpets
• Musty smells
• Corrosion on connectors
• Multiple unrelated electrical faults
• A cluster that works after drying but fails again later
• White or green deposits on circuit boards

If water caused the failure, repairing or replacing the cluster alone may not solve the problem. The leak must also be found and repaired.

How to Diagnose the Fault Properly

A reliable diagnosis should begin with the basics before moving to expensive module repairs.

Step 1: Check the Battery

Test the battery using a proper battery tester. If the battery is weak, charge or replace it before clearing codes and carrying out further diagnostics.

Do not assume a new battery has solved the problem until the vehicle has been scanned again and the cluster has been tested.

Step 2: Inspect Fuses and Power Feeds

Check the relevant fuses with a test light or multimeter. Do not rely only on visual inspection because a small break in a fuse can be difficult to see.

The cluster should be tested for:

• Permanent battery power
• Ignition-switched power
• Ground supply
• Correct voltage under load

Step 3: Check the Cluster Connector

Inspect the connector carefully. Look for bent terminals, corrosion, loose pins and signs of overheating.

Never force a connector into place. A damaged terminal can be pushed backwards during installation and fail to make proper contact.

Step 4: Test Communication

A professional diagnostic tool can check whether the instrument cluster is communicating with the vehicle network.

If the scanner cannot communicate with the cluster at all, the next step is usually to confirm power, ground and network wiring. If power and ground are correct but communication is missing, the cluster may have an internal fault.

Step 5: Scan All Vehicle Modules

Do not scan only the dashboard module. Scan the entire vehicle and record every stored and current fault.

This helps identify whether the cluster is the only affected module or whether there is a wider communication problem involving:

• The body control module
• Gateway module
• Engine control module
• Central junction box
• Infotainment system
• Security or immobiliser system

The order in which the codes appeared can also be useful. A low-voltage code may have been the original fault, while the other codes were generated as a result.

Can the Instrument Cluster Be Repaired?

In many cases, yes. A specialist electronic repair company may be able to repair the original cluster instead of replacing it.

Professional cluster repair may include:

• Circuit-board testing
• Replacement of failed components
• Repair of damaged solder joints
• Replacement of voltage regulators
• Memory and processor checks
• Connector repair
• Display testing
• Full bench testing before return

Repairing the original unit can have advantages because the module may already be matched to the vehicle. A replacement cluster may need coding, configuration or security-related programming before it operates correctly.

Does a Replacement Cluster Need Programming?

Often, yes. Range Rover instrument clusters can contain vehicle-specific information, configuration data and security details.

A replacement unit may require:

• Vehicle configuration
• Software programming
• Module coding
• Mileage configuration
• Security pairing
• Calibration of warning systems

Installing a used cluster without checking compatibility can create additional faults. It may also display incorrect mileage or fail to communicate with other control modules.

For this reason, the correct part number and software version should be confirmed before buying a replacement.

Is It Safe to Drive With No Instrument Cluster?

Driving without a working instrument cluster is not recommended.

You may not be able to see:

• Vehicle speed
• Engine temperature
• Fuel level
• Oil-pressure warnings
• Brake-system warnings
• Airbag warnings
• Charging-system alerts

Even if the engine starts and the vehicle moves normally, important safety information is missing. The safest option is to arrange diagnosis and repair before using the vehicle for regular driving.

If the cluster goes blank while driving, pull over safely and check for other symptoms such as overheating, loss of charging, unusual electrical smells or warning lights elsewhere in the vehicle.
