The rail pressure sensor is a small component, but it plays a major role in the performance and reliability of a common rail diesel engine. It measures the pressure inside the fuel rail and sends that information to the engine control unit. The control unit then uses the signal to manage fuel pressure and injection quantity.

When this sensor begins to fail, the engine may become difficult to start, lose power, run roughly, or enter limp mode. In some cases, a warning light may appear on the dashboard. In others, the problem may only show up as a stored diagnostic fault code.

Understanding how the rail pressure sensor works makes fault-finding much easier.

What Is a Rail Pressure Sensor?

A rail pressure sensor is an electronic measuring device fitted to the common rail or fuel distributor. Its job is to monitor the actual fuel pressure available to the injectors.

The common rail stores highly pressurised diesel fuel before it is delivered to the injectors. The engine control unit constantly compares the requested fuel pressure with the actual pressure measured by the sensor.

This information helps the control unit adjust:

• Fuel quantity
• Injection timing
• High-pressure pump output
• Fuel pressure regulation
• Engine torque
• Emissions control
• Cold-start performance

Without an accurate pressure signal, the engine control unit cannot properly control the diesel injection system.

Where Is the Sensor Located?

The exact position depends on the engine design.

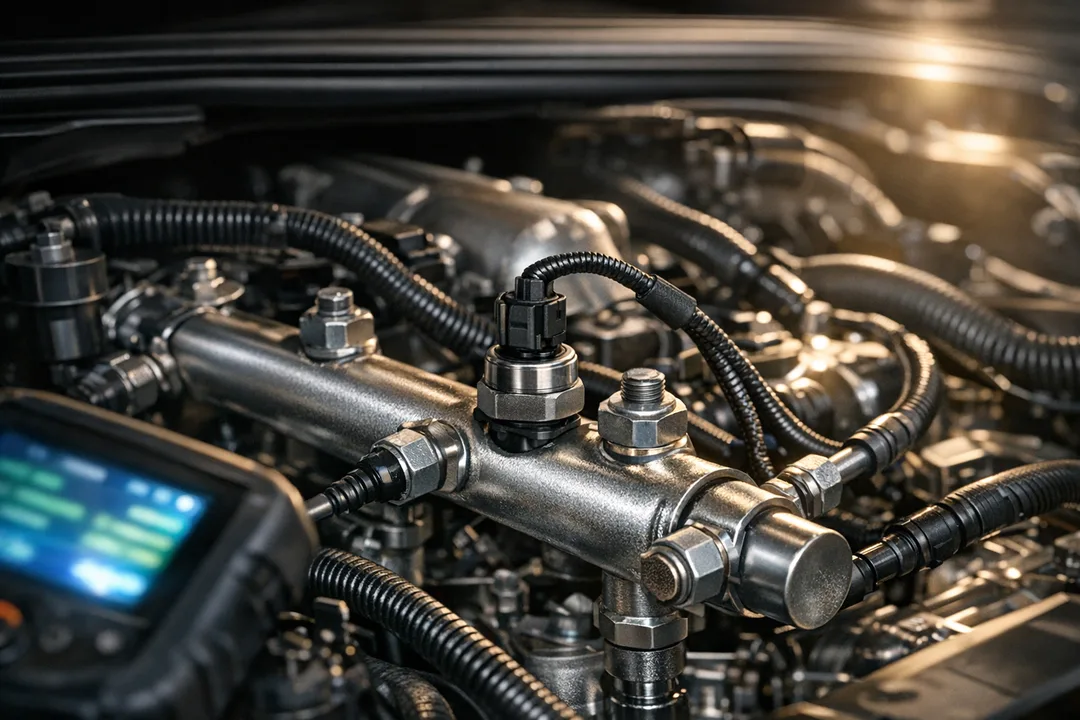

On BMW diesel engines using the M47TU/2 and M57TU/2 systems, the rail pressure sensor is mounted directly on the fuel rail. The fuel rail is the thick metal pipe that supplies fuel to the injectors.

On the M67TU engine, the sensor is installed on the fuel distributor. Although the location is different, the sensor performs the same basic task: measuring fuel pressure and reporting the result to the DDE control unit.

Because the sensor is connected to the high-pressure fuel system, it should never be removed while the engine is running or while the system may still be pressurised. Diesel fuel under high pressure can cause serious injury.

How the Rail Pressure Sensor Works

The DDE control unit supplies the sensor with three main electrical connections:

1. A ground supply
2. A regulated 5-volt supply
3. A signal wire that returns the measured pressure value

The sensor measures the pressure through a small internal bore. As the fuel pressure changes, the sensor produces a corresponding voltage signal. The DDE reads this voltage and calculates the pressure inside the rail.

In simple terms:

• Low fuel pressure creates a lower signal voltage.
• Higher fuel pressure creates a higher signal voltage.
• The DDE uses the signal to control the fuel system.

The sensor does not control the fuel pressure by itself. It only measures pressure. The DDE uses its signal alongside other information from the engine, such as engine speed, throttle position, coolant temperature, air mass, and injection demand.

If the pressure reading does not make sense, the control unit may reduce injection quantity or activate a substitute value.

Common Rail Pressure Sensor Symptoms

A defective sensor can cause several different symptoms. The problem may be electrical, mechanical, or related to the fuel system itself.

Difficult Starting

A diesel engine needs enough rail pressure before the injectors can operate correctly. If the sensor sends an incorrect reading, the DDE may believe the pressure is too low or too high.

This can lead to:

• Long cranking
• Starting only after several attempts
• An engine that starts and immediately stalls
• No-start conditions, especially when warm

A difficult start does not automatically mean the sensor is faulty. A weak high-pressure pump, excessive injector leak-off, restricted fuel filter, or air entering the fuel system can create similar symptoms.

Loss of Engine Power

When the DDE cannot trust the pressure signal, it may limit the fuel injection quantity. The driver may notice poor acceleration or reduced turbocharged performance.

Power loss may be most obvious when:

• Accelerating uphill
• Overtaking
• Driving at higher engine speed
• Pulling a trailer
• Demanding full throttle

The engine may still run, but it will not produce normal power.

Limp-Home Mode

A rail pressure sensor fault can cause the engine control unit to enter a protective operating mode. This is often called limp-home mode.

In this condition, the DDE restricts engine torque to prevent possible damage to the fuel system or engine. The vehicle may feel slow and unresponsive, with limited acceleration.

Switching the ignition off and on may temporarily restore normal operation, but the underlying fault will remain.

Rough Running or Unstable Idle

Incorrect pressure information can affect the amount of fuel injected into each cylinder. The result may be an uneven idle, hesitation, vibration, or a noticeable misfire-like sensation.

On some engines, the problem becomes more obvious when the engine is cold. On others, it appears after the engine reaches operating temperature.

Increased Fuel Consumption

If the sensor signal is inaccurate, the injection system may not operate as efficiently as it should. The engine may use more fuel than usual, particularly during acceleration and regeneration-related operating conditions.

A sudden increase in fuel consumption should always be investigated along with other possible causes, including injector problems, a blocked air filter, boost leaks, EGR faults, or a failing thermostat.

Engine Warning Light

A warning light may appear when the DDE detects a sensor circuit problem or an implausible pressure reading. The fault may be stored even if the warning light later disappears.

For this reason, reading the stored and shadow fault memory is important.

Rail Pressure Sensor Fault Codes

Several fault codes may be associated with the rail pressure sensor circuit and signal.

Fault Code 3F30

This code generally indicates a signal interruption or a short circuit to positive. Possible causes include:

• Broken signal wire
• Loose connector
• Damaged wiring insulation
• Corrosion inside the plug
• Internal sensor failure
• Incorrect supply voltage

Fault Code 3F31

This code indicates a signal short circuit to ground. The signal wire may be touching the engine, wiring loom, or another grounded component.

Check for:

• Chafed wiring
• Water or oil contamination
• Bent connector terminals
• Incorrect repairs
• A sensor internally shorted to ground

Fault Codes 3F40 and 3F41

These codes are related to an impermissible sensor offset when the fuel system is unpressurised. In other words, the DDE sees a pressure signal that does not match the expected value when there should be little or no rail pressure.

Possible causes include:

• Sensor calibration drift
• Internal sensor damage
• Incorrect sensor installation
• Wiring resistance
• A pressure problem that remains after shutdown
• A faulty DDE input circuit

The code alone does not prove that the sensor needs replacing. Testing is still required.

What Happens When the Sensor Fails?

If the rail pressure sensor is defective, the DDE may use a substitute value instead of the live sensor reading. This allows the engine to continue running in some situations, but the system will not operate normally.

The main consequences are:

• Reduced injection quantity
• Limited engine power
• Poor starting
• Rough running
• Increased emissions
• Possible limp-home operation

The substitute value is a safety strategy, not a permanent repair. Continuing to drive with an unresolved fuel pressure fault can place additional strain on the high-pressure pump, injectors, and other fuel system components.

How to Diagnose a Rail Pressure Sensor Fault

Accurate diagnosis should begin with a scan tool capable of communicating with the DDE system.

1. Read the Fault Memory

Record all stored, current, and intermittent faults. Do not erase the codes before saving the information.

Look for related faults involving:

• Rail pressure
• Fuel pressure regulation
• High-pressure pump operation
• Injector control
• Sensor supply voltage
• Engine synchronisation

A rail pressure sensor code may be caused by another fuel system problem.

2. Inspect the Connector

The connector is one of the first things to check. Look for:

• Loose terminals
• Broken locking clips
• Oil contamination
• Water ingress
• Green corrosion
• Damaged seals
• Wires pulled from the connector

A poor connection can create an intermittent fault that is difficult to reproduce.

3. Check the Wiring

Inspect the wiring from the sensor back to the engine harness. Pay special attention to areas where the loom touches:

• The engine
• Fuel pipes
• Brackets
• Heat shields
• Plastic covers
• Other wiring

A wire that is rubbed through may produce a short circuit only when the engine moves under load.

4. Test the 5-Volt Supply

With the ignition switched on, check whether the sensor receives its correct reference voltage. A missing 5-volt supply may indicate a wiring fault or a problem with another sensor sharing the same circuit.

Do not use guesswork. Use the correct wiring diagram and measure the voltage with a suitable digital multimeter.

5. Check the Ground Circuit

A poor ground connection can cause an inaccurate pressure signal. Voltage-drop testing is often more useful than a simple continuity test because a wire may show continuity but fail under load.

6. Compare Live Data

Use diagnostic equipment to compare:

• Requested rail pressure
• Actual rail pressure
• Sensor voltage
• Engine speed
• Starting pressure
• Pressure under acceleration

If the sensor signal remains fixed, jumps suddenly, or does not respond naturally to changes in engine speed and load, the sensor or its circuit may be faulty.

7. Check for Mechanical Fuel Problems

Before replacing the sensor, check the rest of the fuel system. Common causes of low rail pressure include:

• Blocked fuel filter
• Weak low-pressure pump
• Air in the fuel lines
• Excessive injector leak-off
• Failing high-pressure pump
• Faulty pressure regulator
• Contaminated diesel fuel

Replacing the sensor will not solve a mechanical pressure problem.

Should You Replace or Test the Sensor First?

Testing is the better approach whenever possible. A rail pressure sensor is often blamed because it is directly connected to a rail pressure fault code. However, the sensor may simply be reporting a genuine pressure problem.

Replacing parts without testing can become expensive very quickly. A professional diagnosis should confirm:

• The sensor has a stable 5-volt supply.
• The ground circuit is reliable.
• The signal wire is not shorted.
• The sensor reading matches actual system behaviour.
• The fuel pressure system is mechanically healthy.

If the wiring and fuel pressure are correct but the signal remains incorrect, sensor replacement is justified.

Rail Pressure Sensor Replacement Tips

Always follow the correct workshop procedure for the specific engine.

Important precautions include:

• Allow the engine to cool.
• Relieve fuel system pressure correctly.
• Keep dirt away from the open fuel system.
• Use the correct replacement sensor.
• Fit a new sealing washer or seal where required.
• Tighten the sensor to the specified torque.
• Check for leaks before starting the engine.
• Clear the fault memory after repairs.
• Confirm the live pressure data during a road test.

Never work on high-pressure diesel components casually. The fuel system can retain dangerous pressure after the engine has been switched off.

Final Thoughts

The rail pressure sensor is essential for accurate diesel fuel control. It measures pressure inside the common rail and sends a voltage signal to the DDE control unit. When the signal is missing, shorted, or outside the expected range, the DDE may use a substitute value and limit injection quantity.

Fault codes such as 3F30, 3F31, 3F40, and 3F41 can point toward the sensor circuit, but they should always be supported by proper testing. Checking the connector, wiring, voltage supply, ground, live data, and complete fuel system can prevent unnecessary parts replacement.

A careful diagnosis is usually faster and cheaper than guessing. In diesel repair, the smallest sensor can cause the biggest headache—but with the right test procedure, the problem is often straightforward to find.
