Turbocharged engines create power by forcing more air into the combustion chamber. More air allows the engine to burn more fuel, which can increase horsepower and torque. However, compressing air also creates heat. When intake temperatures rise too far, the air becomes less dense and the engine may produce less power.
This is where a performance intercooler, also known as a charge-air cooler or Ladeluftkühler, becomes an important upgrade.

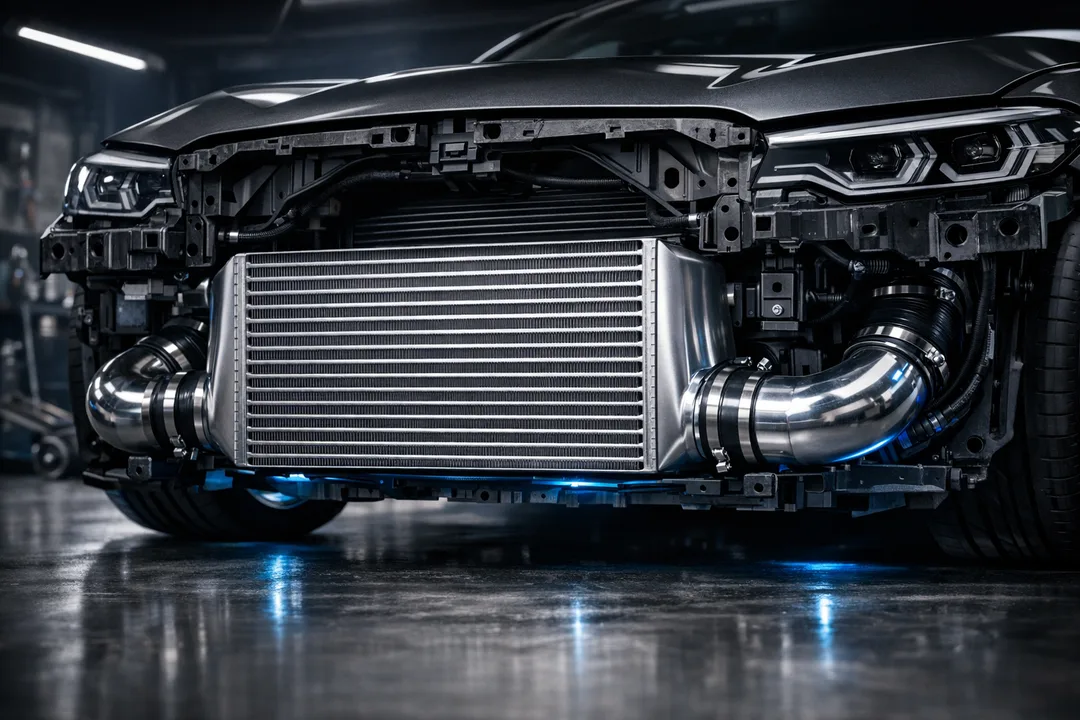

A larger and more efficient intercooler helps cool the compressed air before it enters the engine. The result can be better power consistency, improved throttle response and greater reliability during hard driving, track use or increased boost pressure.
For BMW owners, especially those running software tuning, upgraded turbochargers or modified intake systems, the intercooler is often one of the most useful supporting modifications.
What Does an Intercooler Do?
The intercooler sits between the turbocharger and the engine intake. Its job is simple: cool the hot compressed air produced by the turbocharger.
When air passes through the turbo, it is compressed. Compressed air takes up less space, but the process increases its temperature. Hot intake air is less dense than cool air, meaning it contains fewer oxygen molecules for the same volume.
A well-designed intercooler removes this excess heat as the air passes through its core. Cooler air becomes denser, allowing more oxygen to reach the cylinders.
That can support:
- More consistent horsepower
- Stronger torque delivery
- Better performance in warm weather
- Reduced heat soak
- Improved combustion efficiency
- Lower stress on the turbocharger
- More reliable performance during repeated acceleration
The intercooler does not create power on its own in the same way a turbocharger or ECU remap does. Instead, it helps the engine make better use of the power already available from increased boost and tuning.
Why the Factory Intercooler Can Become a Limitation
Factory intercoolers are designed to balance cost, packaging, emissions, fuel economy and everyday driving. They are usually compact and efficient enough for a standard vehicle under normal conditions.
However, the original unit may become less effective when:
- Boost pressure is increased
- The vehicle receives an ECU remap
- A larger turbocharger is installed
- The car is used on track
- Outdoor temperatures are high
- The vehicle is driven hard for long periods
- The engine produces significantly more power than standard
In some applications, the factory intercooler may cool the charge air adequately during one acceleration run but struggle after repeated pulls. This is commonly known as heat soak.
Once heat builds up in the intercooler and surrounding components, intake temperatures can rise quickly. The engine control system may then reduce ignition timing, fuel delivery or boost pressure to protect the engine. The driver feels this as inconsistent performance.
A larger performance intercooler provides more surface area and greater internal volume. With the right design, it can remove more heat while maintaining efficient airflow through the system.
How Much Power Can a Performance Intercooler Add?
The power increase depends on the complete setup. Important factors include the engine, turbocharger, boost pressure, software calibration, ambient temperature and the efficiency of the original intercooler.
A common technical estimate is that reducing intake temperature by around 10°C may improve performance by approximately 3–6% in certain conditions. This should not be treated as a guaranteed result for every BMW engine, but it explains why temperature control matters so much in turbocharged applications.
A larger intercooler may reduce charge-air temperatures by 40–55°C in demanding conditions, particularly when the original system is undersized or suffering from heat soak. The real-world improvement may appear as:
- Better repeatability between acceleration runs
- Less power loss on hot days
- More stable boost pressure
- Improved performance after sustained driving
- Stronger mid-range torque
- Greater tuning headroom
The most noticeable benefit is often not a dramatic peak horsepower figure. Instead, the car feels more consistent. The first pull and the fifth pull are closer in performance, which is especially valuable for spirited road driving, drag racing and track days.
Intercooler Size Is Not the Only Important Factor
Choosing the biggest intercooler available is not always the best solution. A good performance intercooler must balance cooling capacity, airflow and pressure loss.
Core Design
Bar-and-plate intercoolers are popular in high-performance applications because they can provide excellent heat capacity. Tube-and-fin designs are often lighter and may offer good airflow with less weight.
The best choice depends on the vehicle and intended use. A road car may benefit from a lighter design with quick response, while a high-power track car may need a larger core with greater thermal capacity.
Internal Flow
The internal design should allow air to move evenly through the intercooler. Poor flow distribution can leave parts of the core underused, reducing cooling performance.
Internal turbulators can increase heat transfer, but excessive restriction may increase pressure loss. This is why design quality matters more than size alone.
Pressure Drop
Pressure drop is the difference between the boost pressure entering and leaving the intercooler. A small amount is normal, but excessive pressure loss can make the turbocharger work harder.
An efficient intercooler should provide strong cooling without creating unnecessary restriction. Lower pressure drop can support:
- Faster boost response
- Reduced turbocharger workload
- Better efficiency
- Lower exhaust gas temperatures
- More stable boost control
External Airflow
The intercooler must receive a strong supply of outside air. A large core hidden behind restrictive ducting may perform worse than a slightly smaller core with better airflow.
The front bumper, grilles, radiator pack and ducting all influence cooling performance. Installation quality is just as important as the intercooler itself.
Is a Performance Intercooler Worth It on a Standard BMW?
Yes, in many cases, an upgraded intercooler can be worthwhile even on a standard BMW turbo engine.
The improvement may be less dramatic than on a tuned vehicle, but the benefits can still include improved temperature control and more consistent performance. This is particularly true for BMW models that use a relatively compact factory intercooler or operate in hot climates.
A performance intercooler is especially sensible when planning future modifications. Installing the supporting hardware before an ECU tune can make the vehicle better prepared for increased boost and additional power.
That said, an intercooler should match the engine and power goal. An oversized unit may add unnecessary weight, require bumper modification or increase charge-pipe volume. The correct application-specific kit is usually the better choice.
Signs That Your BMW May Need a Larger Intercooler
A BMW may benefit from a performance intercooler when you notice:
- Power dropping after repeated acceleration
- Slower performance in hot weather
- Higher intake air temperatures after tuning
- Inconsistent boost response
- Reduced performance during track sessions
- A turbocharged engine running increased boost
- A larger turbocharger or hybrid turbo installation
- ECU software requiring improved charge-air cooling
Data logging is the best way to confirm the need. Intake air temperature, boost pressure and ignition timing can reveal whether the factory intercooler is struggling.
Popular BMW Performance Intercooler Applications
Performance intercooler kits are available for many BMW turbocharged platforms, including older E-Series vehicles and newer F-Series and G-Series models.
BMW E46 Diesel
The BMW E46 318d, 320d and 330d are popular tuning platforms. A larger intercooler can help control intake temperatures on tuned diesel engines and support stronger torque delivery.
A suitable example is the Competition Intercooler Kit for BMW E46 318d–330d, listed under article number 200001150.
BMW E90, E91, E92 and E93 Diesel
The BMW 325d and 330d models from the E9x generation can benefit from improved charge-air cooling, particularly after software tuning.
The Performance Intercooler Kit EVO1 for BMW E90–E93 Diesel, article number 200001029, is designed for applications including:
- BMW 325d E90/E91/E92/E93
- BMW 330d E90/E91/E92/E93
- Model years approximately 2005–2013
BMW N47 Diesel Engines
The N47 engine family is used in several BMW models, including the 120d, 123d and 320d. These engines are often modified for additional torque, making temperature control important.
The Competition Intercooler Kit for BMW E-Series N47, article number 200001039, covers selected models such as:
- BMW 120d
- BMW 123d
- BMW 320d
BMW F20 and F30
The BMW F20 1 Series and F30 3 Series are available with a wide range of turbocharged petrol and diesel engines. Depending on the exact engine code and production year, an EVO1 or EVO2 intercooler kit may be suitable.
Relevant products include:
- Competition Intercooler Kit EVO1 BMW F20/F30, article number 200001046
- Competition Intercooler Kit EVO2 BMW F20/F30, article number 200001071
These kits may be available for models including the 114i, 116i, 118i, 120i, 125i, M135i, 116d, 118d, 120d and 125d, along with selected F22, F23, F30, F31 and F34 applications.
BMW M135i, M235i and M2
High-output BMW models such as the M135i, M235i and M2 can generate substantial intake temperatures during repeated hard driving.
A larger intercooler can help maintain stable performance, especially when the car has an ECU tune, upgraded downpipe or other power modifications. Exact fitment should always be checked against the engine code, model year and existing hardware.
BMW F-Series 5, 6 and 7 Series
Larger BMW models equipped with turbocharged petrol and diesel engines can also benefit from improved charge-air cooling.
The Performance Intercooler for BMW F01/F06/F07/F10/F11/F12, article number 200001069, is listed for selected vehicles including:
- BMW 535i
- BMW 520d
- BMW 525d
- BMW 530d
- BMW 535d
- BMW 640i
- BMW 640d
- BMW 730d
- BMW 740i
- BMW 740d
BMW G30, G31 and G32
Newer BMW 5 Series and 6 Series models, including selected 520d through 540d and 620d through 640d applications, may also be supported by upgraded charge-air cooling.
The Competition Intercooler Kit for BMW G30/G31/G32, article number 200001116, is designed for selected diesel applications.
Because BMW fitment can vary by engine code, drivetrain and production date, checking compatibility before ordering is essential.
Installation Tips for a Performance Intercooler
A performance intercooler should be installed carefully. Even a high-quality unit can perform poorly if the system has leaks or poor airflow.
Before installation, inspect:
- Charge pipes
- Silicone couplers
- Clamps
- O-rings
- Mounting brackets
- Boost sensors
- Air ducting
- Front bumper clearance
After installation, pressure-test the charge-air system. A small leak can cause slow spool, inconsistent boost and poor engine performance.
It is also important to confirm that the intercooler does not block too much airflow to the radiator or air-conditioning condenser. A well-designed kit should fit correctly without creating new cooling problems.
Does a Performance Intercooler Require ECU Tuning?
Not always.
A larger intercooler can be installed on a standard vehicle, and the factory ECU will continue to manage the engine. However, the full potential of the upgrade is usually seen when the intercooler is combined with a suitable ECU calibration.
For tuned BMWs, the intercooler provides a safer and more consistent environment for increased boost pressure. The software should still be calibrated for the engine, fuel quality and hardware configuration.
Installing an intercooler does not automatically guarantee a specific horsepower increase. It is a supporting modification that helps the turbo system work more efficiently.
