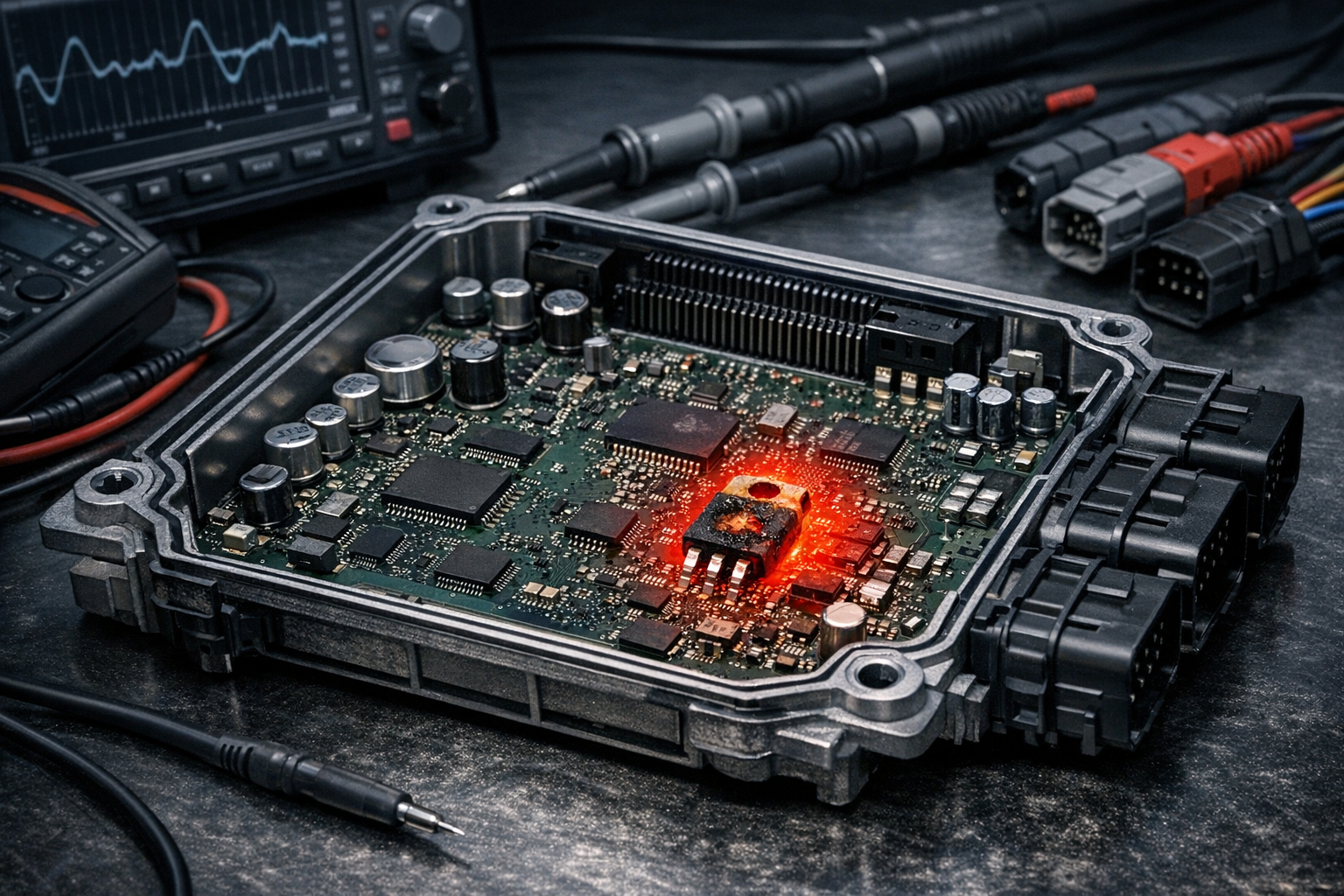

A failed MOSFET inside an automotive ECU can create a surprisingly large problem. The vehicle may refuse to start, lose injector control, develop ignition faults, stop powering a fuel pump, or show several unrelated warning lights at once.

At first glance, the repair can look simple: find the burned transistor, replace it, and put the ECU back in the car. Unfortunately, that approach often leads to the same MOSFET failing again.

The damaged component is frequently only the final victim of a deeper fault. A shorted injector, failed ignition coil, damaged wiring harness, voltage spike, poor grounding, or overheating can all place extreme stress on the ECU’s power transistor.

This guide explains the most common causes of MOSFET failure in automotive ECUs, the symptoms that point toward a failed device, and the testing process that helps prevent repeat damage.

Safety note: ECU repair involves sensitive electronics, vehicle battery power, inductive loads, and sometimes high-voltage ignition circuits. Disconnect the battery before removing an ECU, follow the vehicle’s service information, and avoid working on safety-critical modules unless you have the correct equipment and experience.

What Is a MOSFET Inside an ECU?

A MOSFET is a type of electronic switch. In an automotive ECU, it allows a low-power control signal from the microcontroller to operate a much larger load.

Depending on the ECU design, MOSFETs may control:

• Fuel injectors
• Ignition coils
• Fuel pumps
• Cooling fans
• EGR valves
• Turbocharger actuators
• Solenoids
• Throttle motors
• Relays
• Electric water pumps
• Transmission valves
• Heating elements

Some ECUs use individual MOSFETs as low-side drivers. Others use integrated smart power devices that combine the MOSFET with current monitoring, thermal protection, short-circuit protection, and diagnostic feedback.

Infineon describes automotive smart high-side switches as devices used in ECUs to control loads such as lamps, heaters, pumps, motors, and complete vehicle systems. Many include overload, short-circuit, overtemperature, reverse-battery, and diagnostic functions. (INFINEON)

When the MOSFET fails, it may fail in one of two basic ways:

1. Short circuit: The device remains electrically connected even when it should be off.
2. Open circuit: The device no longer passes current to the load.

A shorted MOSFET is especially common after severe electrical stress. It can leave an injector, solenoid, or motor permanently powered, which may cause further damage if the circuit is not switched off quickly.

Common Causes of MOSFET Failure in Automotive ECUs

1. A Shorted External Load

The most common cause is often outside the ECU.

A faulty injector, ignition coil, solenoid, fuel pump, or actuator can draw far more current than the MOSFET was designed to handle. If the protection circuit does not react quickly enough—or the protection device itself is damaged—the MOSFET can overheat and fail.

For example, an injector with an internal winding short may appear normal at first but draw excessive current whenever it is activated. The ECU driver then operates under severe electrical stress.

Before replacing an ECU MOSFET, test the controlled load and compare its resistance with the manufacturer’s specification. Do not rely only on a visual inspection.

2. Inductive Voltage Spikes

Many automotive loads are inductive. Ignition coils, injectors, relays, motors, and solenoids store energy while current flows through their windings. When the MOSFET switches the current off, that stored energy produces a voltage spike.

The ECU normally controls this energy using flyback diodes, avalanche-rated MOSFETs, clamps, zener devices, or dedicated driver circuitry. If the clamp is missing, damaged, incorrectly selected, or poorly laid out, the voltage can exceed the MOSFET’s drain-to-source rating.

Repeated voltage spikes may not destroy the transistor instantly. Instead, they can weaken the device until it eventually fails under normal operation.

Technical literature on automotive power MOSFET failures highlights voltage overshoot, avalanche stress, current overload, thermal stress, and operation outside the device’s safe operating area as major failure mechanisms. (STUDYLIB)

3. Load Dump and Battery Transients

The vehicle’s electrical system is not as steady as it may appear on a multimeter.

During cranking, jump-starting, alternator faults, battery disconnection, or wiring problems, the ECU may experience voltage dips and surges. A load-dump event can create a high-energy transient that reaches the ECU’s power input if the protection system is inadequate or damaged.

Reverse battery connection is another serious risk. A brief accidental reversal can destroy input protection components, power MOSFETs, voltage regulators, and communication circuits.

Automotive ECU power supplies commonly use reverse-polarity protection, transient suppression, filtering, and voltage regulation to protect sensitive electronics. (ANALOG)

4. Excessive Heat

MOSFETs produce heat when they carry current. The main contributors include:

• High drain current
• High on-resistance
• Inadequate PCB copper area
• Poor thermal transfer
• High ambient temperature
• Frequent switching
• Excessive switching losses
• Poor enclosure ventilation

The basic conduction-loss relationship is:

Power loss = current² × RDS(on)

This means a small increase in current can create a much larger increase in heat. If a MOSFET carries twice the current, its conduction loss can rise by roughly four times, assuming the resistance remains constant.

Engine-bay ECUs face vibration, heat cycling, moisture, and limited airflow. Over time, solder joints may weaken, thermal interfaces may degrade, and repeated heating and cooling can damage both the MOSFET package and the PCB.

5. Incorrect Gate Drive

A MOSFET must receive the correct gate voltage to switch properly. If the gate voltage is too low, the device may remain partially switched on instead of reaching a low-resistance state.

That creates higher conduction loss and heat.

Gate-drive problems can come from:

• A failed driver transistor
• Damaged gate resistor
• Weak pull-down resistor
• Faulty microcontroller output
• Excessive gate capacitance
• Poor grounding
• Electrical noise
• Incorrect replacement MOSFET
• Damaged gate oxide

A replacement MOSFET may appear electrically compatible but still perform poorly if its gate threshold, gate charge, switching speed, or voltage rating is unsuitable for the original circuit.

6. PCB Damage and Poor Soldering

A MOSFET can be perfectly good and still fail because of a damaged circuit board.

Common PCB-related problems include:

• Cracked solder joints
• Burned copper tracks
• Lifted pads
• Carbonized board material
• Corrosion near the device
• Broken ground connections
• Poor-quality previous repairs
• Insufficient heat dissipation

A burned PCB can become partially conductive. Simply fitting a new transistor over damaged material may create leakage or another short circuit.

The board should be cleaned carefully, inspected under magnification, and checked for continuity before the replacement component is installed.

Symptoms of a Failed ECU MOSFET

The symptoms depend on the circuit controlled by the failed device.

Possible signs include:

• No-start condition
• Engine misfire
• One dead cylinder
• Injector not operating
• Injector stuck on
• Ignition coil not receiving a trigger
• Fuel pump not running
• Fuel pump running continuously
• Cooling fan operating constantly
• Throttle actuator fault
• Transmission solenoid fault
• Repeated driver or actuator trouble codes
• ECU fuse blowing
• Battery drain
• Damaged ECU output with no visible burn mark

A MOSFET that has failed short may cause a component to remain powered. A MOSFET that has failed open may stop the output completely.

However, these symptoms do not automatically prove that the MOSFET is defective. A damaged driver circuit, broken wiring, faulty load, poor ground, or software-related shutdown can produce similar results.

That is why testing is more reliable than guessing.

How to Test for MOSFET Failure

Step 1: Identify the Controlled Circuit

Start with the vehicle wiring diagram. Find out which ECU pin controls the failed component and whether the circuit is high-side or low-side switched.

This matters because the test points and expected voltages are different.

Step 2: Test the External Load

Disconnect the load from the ECU and measure:

• Coil or winding resistance
• Resistance to ground
• Resistance to battery positive
• Insulation condition
• Connector condition
• Harness continuity

Inspect for water intrusion, crushed wiring, rubbed insulation, loose terminals, and aftermarket modifications.

Never install a replacement ECU or repaired ECU without checking the original load. Otherwise, the same fault may destroy the replacement immediately.

Step 3: Check the MOSFET With a Multimeter

With the ECU disconnected and fully discharged, use diode-test and resistance modes to check the device.

Depending on the MOSFET configuration, you may find:

• A near-zero drain-to-source reading in both directions
• A short between gate and source
• A short between gate and drain
• An open circuit where a body diode should be present
• Unusual readings compared with identical channels

In-circuit measurements can be misleading because other components may be connected in parallel. When the results are unclear, remove one leg or desolder the device for an isolated test.

Step 4: Inspect the Gate Circuit

Check the gate resistor, pull-down resistor, driver transistor, diode, and nearby traces.

A replacement MOSFET will not work correctly if the gate circuit is damaged. In some cases, the original MOSFET fails because the gate driver has already developed a fault.

Step 5: Use an Oscilloscope

A multimeter can show average voltage, but it may miss short spikes and switching problems.

An oscilloscope can reveal:

• Low gate-drive amplitude
• Slow turn-on or turn-off
• Ringing
• Voltage overshoot
• Excessive drain-source spikes
• Cross-conduction
• Irregular PWM operation
• Missing flyback control

For advanced ECU diagnostics, testing should be performed with a current-limited supply and a suitable load simulator whenever possible.

Step 6: Check Power and Ground Quality

Voltage drops across battery, ground, and ECU supply connections can create unusual MOSFET behavior.

Check the ECU’s:

• Main supply voltage
• Ignition supply
• Sensor supply
• Ground voltage drop
• Internal regulated rails
• Cranking voltage stability

A poor ground can increase stress on both the power stage and the microcontroller.

Choosing the Correct Replacement MOSFET

Do not select a replacement based only on its package size or maximum current rating.

Compare the original and replacement parts for:

• Drain-to-source voltage rating
• Continuous and pulsed current rating
• RDS(on) at the actual gate voltage
• Gate threshold voltage
• Total gate charge
• Switching speed
• Avalanche rating
• Maximum junction temperature
• Thermal resistance
• Automotive qualification
• Package and pin arrangement

A MOSFET with a higher current rating is not automatically a better choice. It may have higher gate charge or slower switching characteristics that place extra demand on the driver circuit.

The replacement should meet the original design requirements, not just look similar.

How to Prevent Repeat MOSFET Failure

A reliable repair involves more than changing one component.

Use this checklist:

1. Test the external load before powering the ECU.
2. Inspect the wiring harness for shorts and moisture.
3. Check the ECU’s power and ground circuits.
4. Replace damaged gate resistors and protection parts.
5. Inspect PCB tracks and thermal areas.
6. Confirm the replacement MOSFET’s specifications.
7. Power the ECU through a current-limited bench supply.
8. Test the output with a safe substitute load.
9. Check switching waveforms with
