Modern vehicles depend on dozens of electronic control units. The engine computer, transmission module, ABS system, airbag controller, body control module and power steering unit all rely on tiny processors called microcontrollers.

These components work quietly in the background, constantly reading sensors, controlling actuators and exchanging information across the vehicle network. When a microcontroller begins to fail, the symptoms can be confusing. The car may start normally one day and refuse to start the next. Warning lights may appear without a clear pattern. Communication with the diagnostic scanner may drop in and out.

A faulty microcontroller does not always mean the entire control module is beyond repair. In many cases, the real problem is related to power supply, overheating, damaged solder joints, corrupted software or electrical stress from the vehicle’s charging system.

This guide explains the most common causes of microcontroller failure in vehicle control modules, the symptoms to look for and the correct way to diagnose the problem.

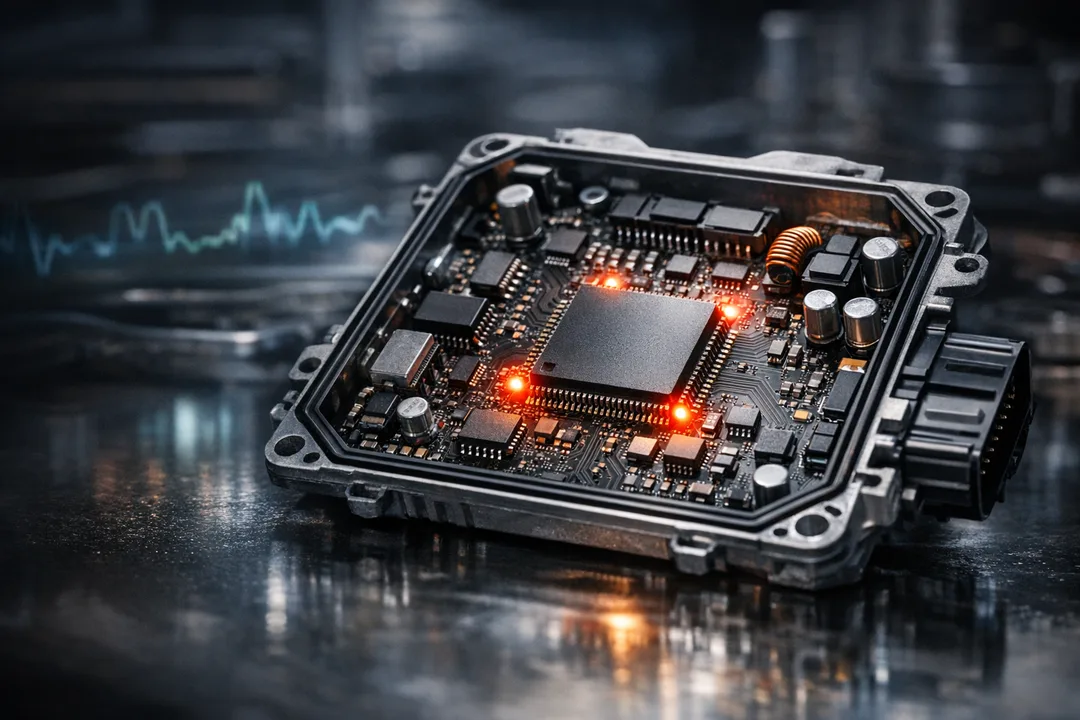

What Is a Microcontroller in a Vehicle Control Module?

A microcontroller is the main processing device inside an electronic control unit, often called an ECU or control module. It receives information from sensors, processes that information and sends commands to other vehicle components.

For example, an engine control module may use the microcontroller to:

• Calculate fuel injection timing
• Control ignition timing
• Monitor engine temperature
• Operate throttle control
• Manage variable valve timing
• Communicate with the transmission module
• Store diagnostic trouble codes
• Control emissions-related systems

The microcontroller also communicates through networks such as CAN, LIN and, in some vehicles, newer high-speed automotive communication systems.

Because it sits at the center of the module, a microcontroller fault can affect several functions at the same time. A single internal failure may create multiple unrelated-looking fault codes.

Automotive microcontrollers are designed for harsh conditions, but they are not indestructible. They must cope with heat, vibration, voltage fluctuations, electromagnetic interference and electrical transients. Automotive electronics are specifically designed to withstand these conditions, yet incorrect jump-starting, poor grounding or charging-system problems can still cause serious damage. (TI)

Common Symptoms of Microcontroller Failure

Microcontroller problems can appear gradually or happen suddenly. The symptoms depend on the control module involved and the type of internal damage.

1. No Communication With the Diagnostic Scanner

One of the clearest warning signs is a complete loss of communication with a specific module.

For example, a scan tool may communicate with the engine ECU but fail to connect to the ABS or transmission module. This can point to:

• A failed module power supply
• A blown fuse
• A damaged ground connection
• A CAN bus fault
• A failed CAN transceiver
• A microcontroller that is no longer running

No communication does not automatically prove that the microcontroller has failed. Power, ground and network wiring should always be checked first.

2. Intermittent No-Start Condition

A failing engine control module may cause a vehicle to crank but not start. In other cases, the engine may start normally after the vehicle cools down.

Possible symptoms include:

• Crankshaft or camshaft signals not being processed
• No injector pulse
• No ignition command
• Fuel pump control problems
• Immobilizer communication errors
• Lost communication between the ECU and body control module

Heat-related microcontroller faults can be especially difficult to find. The vehicle may operate normally during a cold start, then fail after the control module reaches operating temperature.

3. Repeated Module Resets

A control module that repeatedly resets may cause several warning lights to flash on the dashboard. Gauges can drop out, accessories may stop working and the engine may briefly hesitate.

Repeated resets may be caused by:

• Low battery voltage
• Excessive alternator output
• Internal voltage regulator failure
• A damaged circuit board
• Software corruption
• Watchdog timer activation
• A microcontroller that becomes unresponsive

A watchdog timer is designed to reset the processor when software stops responding. Automotive microcontrollers and system-basis chips use watchdog monitoring as an important protection feature. (NXP)

4. Multiple Unrelated Fault Codes

A failing module may store a large number of fault codes involving sensors and systems that are not directly connected.

For example, one defective ECU may report faults for:

• Throttle position
• Engine coolant temperature
• Accelerator pedal position
• Communication with the transmission
• Fuel pressure
• Oxygen sensors
• Internal memory
• Processor performance

When many unrelated sensors appear to fail at the same time, the module’s power supply, ground circuit or internal processor should be investigated before replacing every sensor.

5. Loss of Learned Data or Settings

Some modules may lose calibration values, security data or learned settings when internal memory becomes damaged.

This can lead to:

• Rough idle
• Incorrect throttle response
• Transmission shift problems
• Steering angle calibration faults
• Window or door functions that stop working
• Repeated programming requirements
• Immobilizer-related starting problems

In certain cases, the microcontroller itself is working, but its flash memory or EEPROM data has become corrupted.

Main Causes of Microcontroller Failure

Voltage Spikes and Jump-Start Mistakes

Voltage problems are among the most common causes of ECU damage. Reversed battery polarity, incorrect jump leads and unstable booster packs can send damaging voltage through the module.

A weak battery can also create repeated low-voltage events during starting. Although one low-voltage event may not destroy a microcontroller, repeated voltage drops can cause resets, corrupted memory and stress on the module’s power supply components.

The alternator should also be tested. An overcharging alternator can expose control modules to voltage well above the normal vehicle operating range.

Poor Grounds and Electrical Resistance

A control module may appear to have a processor failure when the real problem is a poor ground.

Rust, loose fasteners, damaged ground straps and contaminated connectors can create resistance in the circuit. This may result in:

• Unstable module voltage
• Communication errors
• Random resets
• False sensor readings
• Intermittent warning lights

A voltage-drop test under load is often more useful than simply checking continuity with a multimeter.

Excessive Heat

Heat is a major enemy of electronic components. Control modules mounted near the engine, exhaust system or turbocharger may experience extreme temperatures.

High heat can damage:

• The microcontroller package
• Internal memory
• Voltage regulators
• Solder joints
• Circuit-board materials
• Nearby capacitors and transistors

Thermal expansion and contraction can also create microscopic cracks in solder joints. This explains why some modules fail when hot but work again after cooling down.

Moisture and Corrosion

Water entering a control module can cause immediate failure or slow corrosion over time. Common sources include blocked drains, damaged seals, leaking windscreen areas and improperly installed aftermarket equipment.

Corrosion may affect:

• Connector pins
• Ground planes
• Power tracks
• Communication lines
• Microcontroller pins
• Internal circuit-board layers

A module that has been exposed to water should be inspected carefully before any programming or replacement work is attempted.

Electrical Overload

A shorted actuator or damaged wiring harness can overload the control module. In some situations, the protective driver circuit fails first. In more severe cases, the fault reaches the processor or its power supply.

Common sources include shorted:

• Fuel injectors
• Ignition coils
• Solenoids
• Cooling fans
• ABS valves
• Throttle motors
• Door-lock actuators

Finding the external short is essential. Installing a replacement module without correcting the original wiring or component fault may damage the replacement as well.

Software Corruption

Not every microcontroller problem is physical. Interrupted programming, incorrect calibration files, unstable battery voltage during flashing or incompatible software can corrupt the module’s memory.

A corrupted ECU may show:

• Programming failure
• Bootloader errors
• Internal memory codes
• No-start conditions after reprogramming
• Inability to complete a software update

A stable power supply and the correct manufacturer-approved programming procedure are critical during module updates.

How Technicians Diagnose Microcontroller Failure

A professional diagnosis should follow a clear sequence rather than jumping straight to module replacement.

Step 1: Check the Battery and Charging System

Measure battery voltage with the ignition off and during cranking. Then test alternator output with the engine running and electrical loads switched on.

A control module should not be condemned until the vehicle’s basic electrical supply has been confirmed.

Step 2: Inspect Fuses, Grounds and Connectors

Check all relevant fuses, ground points and module connectors. Look for:

• Green or white corrosion
• Bent pins
• Water marks
• Loose terminals
• Burned connector housings
• Damaged wiring
• Signs of previous repair work

Step 3: Confirm Module Power and Ground

Use a wiring diagram to identify the module’s constant power, ignition power and ground circuits. Test these circuits under load.

A circuit that shows correct voltage with no load may fail when the module is connected.

Step 4: Test the Communication Network

A CAN bus fault can look exactly like a failed microcontroller. Technicians should check network resistance, wiring integrity, short circuits and abnormal bus activity.

If the CAN transceiver has failed, the microcontroller may still be functioning internally. This is why network testing is an important part of ECU diagnosis.

Step 5: Check for Internal Reset or Memory Codes

Manufacturer-specific scan data may reveal processor resets, internal control module errors, watchdog events or memory failures.

These codes are useful clues, but they should be interpreted alongside power, ground and network test results.

Step 6: Perform Thermal Testing

If the fault is intermittent, controlled heating and cooling can help reproduce the problem. This should be done carefully by a qualified technician to avoid creating additional damage.

A module that loses communication only when hot may have a failing processor, cracked solder joint or heat-sensitive power component.

Can a Vehicle Control Module Be Repaired?

In some cases, yes. The repair depends on the exact failure.

Possible repair options include:

• Replacing damaged capacitors or voltage regulators
• Repairing corroded circuit-board tracks
• Replacing a failed CAN transceiver
• Resoldering cracked joints
• Reprogramming corrupted software
• Cloning data to a replacement module
• Replacing the microcontroller
• Replacing the complete ECU

Microcontroller replacement is a specialist repair. It may require surface-mount rework equipment, manufacturer-specific programming tools and access to immobilizer or calibration data.

For safety-critical modules such as ABS, airbag, electric power steering and advanced driver-assistance systems, repairs must be completed and tested according to the vehicle manufacturer’s procedures. Functional safety systems are designed around fault detection, safe-state operation and risk reduction, not simply restoring communication. (SAE)

When Replacement Is the Better Option

Module repair is not always the most practical choice. Replacement may be preferable when:

• The circuit board has severe water damage
• Multiple internal layers are burned
• The microcontroller is unavailable
• The module cannot be programmed reliably
• The repair cost approaches replacement cost
• The module controls a safety-critical system
• The vehicle requires a documented replacement procedure

A replacement module may still need coding, configuration, immobilizer matching or calibration. Installing it without completing these steps can create additional fault codes or prevent the vehicle from starting.

How to Prevent Microcontroller Failure

A few simple habits can reduce the risk of expensive ECU damage:

• Use the correct battery-jump procedure
• Avoid cheap or unstable booster equipment
• Repair alternator overcharging immediately
• Keep battery terminals clean and tight
• Inspect engine and chassis ground straps
• Fix water leaks quickly
• Avoid pressure-washing control modules and connectors
• Use a stable power supply during programming
• Protect modules from excessive heat
• Diagnose short circuits before replacing an ECU

Modern vehicle electronics are tough, but they still depend on clean power, reliable grounds and proper repair procedures.
