A small wiring harness can cause a serious brake problem when it is routed too close to a rotating brake disc.

For Mercedes-Benz Z177 vehicles produced before April 2019, the brake pad wear indicator wiring harness should be checked carefully during the pre-delivery inspection, also known as PDI. The main point of the inspection is simple: the harness must not touch or sit dangerously close to the brake disc.

This check is easy to overlook because the electrical connector may be plugged in correctly and the dashboard may show no warning. However, correct electrical connection is only one part of the job. The physical position and routing of the harness are just as important.

A loose, incorrectly routed, or poorly positioned brake wear sensor harness may move when the wheel turns, the suspension operates, or the vehicle travels over uneven roads. If the wiring contacts the brake disc, it can become damaged, cut, or pulled from its connector. In the worst case, the driver may lose the benefit of the brake pad wear warning system.

This guide explains the applicable vehicles, the inspection process, the difference between NOK and OK routing, and the correct recheck procedure.

Why the Brake Wear Sensor Harness Position Matters

The brake pad wear indicator system is designed to warn the driver when the brake pad material reaches a specified wear level. The system normally uses a wear sensor installed near the brake pad, together with a wiring harness and connector.

The sensor can work perfectly from an electrical point of view while the harness is still installed incorrectly. This is why a visual and physical inspection is necessary during PDI.

The brake disc rotates at high speed whenever the vehicle is moving. The wiring harness is routed close to the brake assembly, but it must remain safely clear of the disc, caliper, wheel, and other moving components.

If the harness is too close, several problems may occur:

• The insulation may rub against the brake disc.
• The harness may be cut or worn through.
• The connector may be pulled loose.
• The brake wear warning may appear incorrectly.
• The warning system may fail to operate when needed.
• Damaged wiring may create additional diagnostic faults.
• The harness may make noise while driving.
• A loose harness may become trapped near another moving part.

A few minutes spent checking the installation position can prevent unnecessary repairs and customer complaints after delivery.

Applicable Mercedes-Benz Z177 Vehicles

This inspection applies to Mercedes-Benz Z177 vehicles produced before April 2019.

The production date is important because technical improvements, wiring routes, clips, brackets, or component versions may change during the production life of a model. For this reason, the inspection should not be applied blindly to every Z177 vehicle without checking the exact production information.

Before starting the work, confirm:

1. The vehicle is a Mercedes-Benz Z177.
2. The vehicle was produced before April 2019.
3. The vehicle is at the PDI stage or is being inspected according to the same technical requirement.
4. The correct technical documentation is available for the vehicle.
5. The wiring harness and brake components match the expected configuration.

Vehicle equipment and production specifications can vary. When there is any doubt, the latest manufacturer repair information should take priority.

Step One: Inspect the Harness and Brake Disc Clearance

The first step is a careful visual inspection of the brake pad wear indicator harness.

Look at the complete routing of the harness rather than checking only the electrical plug. Follow the wiring from the brake pad sensor to the connector and observe how it is held in place.

Check the following areas:

• The section near the brake disc.
• The area around the brake caliper.
• Harness clips and retaining points.
• The transition from the brake pad sensor to the main wiring.
• Any section that appears loose, twisted, or stretched.
• Areas where the harness may move as the suspension operates.
• Any part of the wiring that has marks, scuffing, or heat damage.

The harness should follow the intended route and remain secured in its retaining points. It should not hang toward the rotating brake disc or form a loop that could move into the disc during operation.

A connector that is correctly installed does not automatically mean the harness routing is correct. The entire length of the cable must be inspected.

What Counts as an NOK Condition?

“NOK” means the installation is not acceptable.

The typical NOK condition is a brake pad wear indicator harness routed too close to the brake disc. In some cases, the harness may already be touching the disc. In other cases, it may look clear while the vehicle is stationary but have insufficient clearance during movement.

Common signs of an NOK installation include:

• The harness is visibly close to the brake disc.
• The wiring touches the disc or shows rubbing marks.
• The harness is not seated in its clip.
• The cable is routed outside the intended path.
• The wiring is loose near the brake caliper.
• The cable has excessive slack.
• The harness is stretched across a moving component.
• The connector is installed but the cable direction is incorrect.
• The harness changes position when lightly moved by hand.

A wiring harness can move because of road vibration, suspension travel, wheel rotation, braking force, and changes in temperature. Therefore, a route that looks acceptable at one moment may still be unsafe if it lacks proper retention.

Do not ignore a harness simply because there is no visible damage. The purpose of the PDI inspection is to identify and correct the problem before the vehicle reaches the customer.

Step Two: Compare the Routing With the OK and NOK Examples

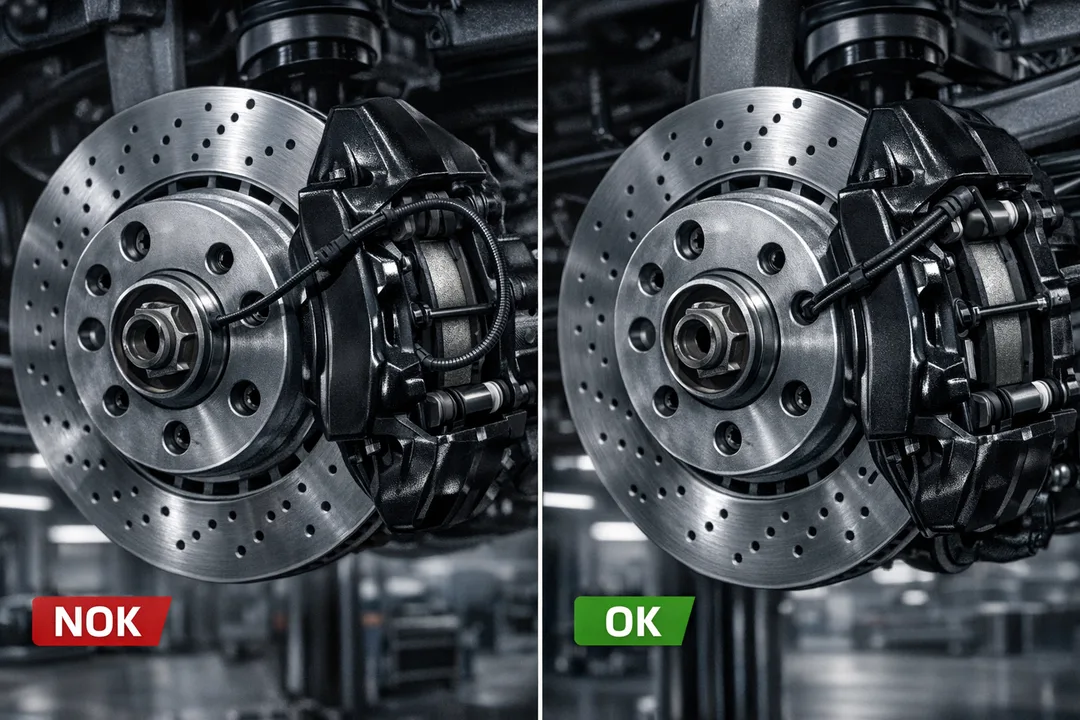

The original technical material includes two important reference conditions:

• An NOK example showing the harness positioned too close to the brake disc.
• An OK example showing the harness correctly repositioned away from the brake disc.

These examples should be used to compare the direction and position of the harness.

The inspection should focus on the route of the wire, not only its final connection point. Two harnesses may use the same connector but have different routing positions. One may be safe, while the other may be exposed to contact with the brake disc.

When comparing the vehicle with the reference images, pay attention to:

• The direction in which the harness leaves the brake pad.
• The position of the retaining clip.
• The distance between the cable and the disc.
• Whether the harness passes inside or outside the intended guide.
• The amount of free movement in the cable.
• The relationship between the harness and the brake caliper.
• The possibility of contact when the wheel and suspension move.

A good inspection is not rushed. Use a suitable inspection light and view the assembly from more than one angle. Some clearance problems are difficult to see from directly in front of the wheel.

Why Connector Inspection Alone Is Not Enough

A common mistake during PDI is to confirm that the brake pad wear sensor connector is plugged in and then consider the inspection complete.

That approach misses the main concern.

The connector may be fully seated while the harness is incorrectly routed. If the wire is too close to the disc, it can still be damaged even though the warning system initially operates normally.

The correct inspection has two parts:

1. Electrical connection: Confirm that the connector is properly connected and secured.
2. Physical routing: Confirm that the wiring is correctly positioned and cannot contact the brake disc or other moving parts.

Both checks are necessary for a complete inspection.

Step Three: Reposition the Harness When Necessary

If the harness is found in an NOK position, it must be repositioned before the vehicle is delivered.

The adjustment should be carried out carefully and in accordance with the applicable Mercedes-Benz repair information. Do not pull sharply on the wire, twist the connector, or force the harness into a position that creates tension.

A proper adjustment normally includes:

1. Identifying the intended harness route.
2. Releasing the wire from the incorrect position.
3. Placing the harness into the correct retaining clip or guide.
4. Ensuring the harness is not twisted or stretched.
5. Confirming that the connector remains fully seated.
6. Checking that the wiring is clear of the brake disc.
7. Confirming that the harness cannot easily move back into the NOK position.

If a clip is missing, broken, or unable to retain the harness, it should not be ignored. The retaining hardware should be repaired or replaced according to the relevant manufacturer procedure.

Do not use temporary solutions such as loose tape, improvised wire ties, or routing the cable around unrelated brake components unless the repair documentation specifically permits that method. The harness must be secured in a reliable and durable way.

Important Safety Points During Adjustment

Brake components may be hot, sharp, or contaminated with brake dust. Use appropriate workshop safety procedures.

Keep the following points in mind:

• Allow hot brake components to cool before inspection.
• Do not place fingers between moving parts.
• Avoid pulling on the sensor cable.
• Do not bend the wiring sharply.
• Keep grease and oil away from brake friction surfaces.
• Do not allow tools to damage the brake disc.
• Confirm that all clips and connectors are properly secured.
• Keep the work area clean before completing the final check.

The brake wear indicator harness is a small component, but it forms part of a safety-related system. Treat the inspection with the same care used for other brake repairs.

Step Four: Complete the Final Recheck

After adjusting the harness, complete a second inspection.

The recheck should confirm that the wiring remains safely away from the brake disc and other moving brake components. Look at the harness from different angles and verify that it is properly held in position.

The final recheck should include:

• Visual confirmation of the corrected route.
• Confirmation that the harness does not touch the brake disc.
• Confirmation that there is no excessive slack.
• Confirmation that the harness is not under tension.
• Confirmation that the connector is secure.
• Confirmation that clips and guides are correctly engaged.
• Confirmation that the wiring does not interfere with the brake caliper.
• Confirmation that the wiring remains clear during relevant wheel or suspension movement.

Where appropriate, rotate the wheel by hand and observe the harness. The wheel should turn without the wiring contacting the disc or any other component.

The exact test method depends on the vehicle condition, workshop equipment, and manufacturer instructions. Always follow the latest technical procedure for the specific vehicle.

PDI Checklist for Mercedes-Benz Z177

Use this short checklist when documenting the inspection:

Vehicle identification

• [] Vehicle model confirmed as Mercedes-Benz Z177.
• [] Production date confirmed as before April 2019.
• [] PDI inspection requirement confirmed.

Wiring inspection

• [] Brake pad wear indicator harness visually inspected.
• [] Harness route compared with the correct reference condition.
• [] Wiring checked near the brake disc.
• [] Connector checked for correct installation.
• [] Retaining clips and guides checked.
• [] No rubbing, cuts, or damage found.

Corrective action

• [] NOK routing corrected where necessary.
• [] Harness repositioned without tension or sharp bends.
• [] Retaining points secured.
• [] Damaged clips or wiring reported and repaired according to procedure.

Final verification

• [] Harness remains clear of the brake disc.
• [] Wheel and brake component movement checked.
• [] Final condition recorded in the PDI documentation.

Common Mistakes to Avoid

Checking only one side

The inspection should cover the required brake assemblies, not just the side that is easiest to see. Compare both sides where applicable and follow the vehicle-specific repair instructions.

Looking only at the connector

A connected plug does not prove that the cable route is correct. Follow the entire harness.

Assuming “no warning light” means everything is fine

The warning system may not detect physical damage until the cable has already been affected. A visual clearance inspection is still required.

Moving the harness without checking the retaining clip

If the clip is missing or damaged, the harness may return to the unsafe position. Always check how the wiring is retained.

Skipping the final movement check

A harness can look safe while stationary but move toward the disc under operating conditions. The final recheck is an essential part of the repair.

Technical Documentation and Reference Material

The original source material covers the Z177 brake pad wear indicator harness installation position check.

The reference pages include:

• The technical subject concerning the Z177 brake pad wear indicator harness.
• An NOK example showing the harness too close to the brake disc.
• An OK example showing the corrected harness position.
• The relevant production date range for vehicles built before April 2019.

This article reorganizes the information according to:

1. Applicable vehicle range.
2. PDI inspection sequence.
3. NOK and OK condition comparison.
4. Corrective adjustment.
5. Final recheck requirements.

The technical diagrams used for this article have been redrawn by 群辉宜修车 for clearer presentation. The original reference pages remain useful for comparison and should be reviewed alongside the latest manufacturer documentation.

Final Advice for Technicians

The main lesson is straightforward: during PDI, inspect the complete brake pad wear indicator harness route—not just the connector.

For Mercedes-Benz Z177 vehicles produced before April 2019, the wiring must remain safely away from the brake disc. If the harness is too close or incorrectly routed, reposition it, secure it properly, and complete a final movement and clearance check.

A careful inspection at the workshop can prevent wiring damage, warning-system faults, unnecessary customer visits, and potential brake-related concerns later.

Because vehicle specifications, production changes, and equipment levels may differ, always confirm the correct procedure using the latest manufacturer repair documentation, the vehicle identification number, diagnostic guidance, and actual measurements from the vehicle.

Safe wiring is part of safe braking—and this is one PDI check worth doing properly.
