The McLaren MP4-12C combines a 3.8-litre twin-turbo V8 with a highly advanced electronic control system. When warning lights appear, the problem may not always be a major mechanical failure. Low battery voltage, damaged wiring, sensor faults or outdated software can all create several diagnostic trouble codes at the same time.

For workshops, correctly reading the fault codes is only the beginning. The next step is checking live data, testing the wiring and confirming the original cause before replacing expensive components.

This guide looks at three DTCs commonly associated with MP4-12C diagnostic work: C114109, P274027 and C101B09.

C114109: Parking Brake or Chassis Control Fault

Code C114109 is commonly linked with the electronic parking brake or its control circuit. Drivers may notice a parking brake warning, stability-control message or difficulty applying and releasing the brake.

Possible causes include:

• Faulty electronic parking brake switch
• Damaged wiring or loose connectors
• Low system voltage
• Communication problems between control modules
• Software or calibration issues
• A fault inside the parking brake control system

Begin by checking the vehicle battery and charging voltage. McLaren electronic systems can produce multiple unrelated-looking codes when voltage drops too low. After that, inspect the parking brake wiring, connectors and actuator operation.

A workshop should also use a suitable McLaren-compatible diagnostic system to check stored, pending and history codes. Clearing the code without repairing the cause may only provide a temporary result.

P274027: Transmission Temperature Sensor Circuit

Code P274027 points toward a transmission fluid temperature signal problem. The transmission control system relies on accurate temperature information to manage clutch pressure, shift timing and protection strategies.

Possible causes include:

• Defective transmission temperature sensor
• Open or shorted wiring
• Corroded electrical connectors
• Incorrect sensor readings
• Transmission control module communication faults
• Low or contaminated transmission fluid

The first check should be the live temperature reading. If the scan tool shows an impossible value, such as an extremely low or high temperature while the vehicle is cold, the sensor circuit needs further testing.

Technicians should compare the sensor reading with actual transmission temperature and test the wiring according to the correct service procedure. A sensor replacement may solve the problem, but the wiring and control module must also be checked before the repair is completed.

C101B09: ABS Wheel Speed Sensor Fault

The C101B09 code is generally associated with an ABS wheel speed sensor or its electrical circuit. Wheel speed signals are essential for ABS operation, traction control, stability control and other chassis functions.

Common causes include:

• Damaged wheel speed sensor
• Broken or stretched wiring
• Dirty or damaged tone ring
• Loose connector
• Incorrect wheel bearing movement
• ABS control module fault

A proper diagnosis should include a road-test review of live wheel-speed data. All four wheels should display similar readings when the vehicle is travelling in a straight line. One wheel showing no signal or an unstable signal can help identify the faulty corner.

Inspect the sensor and wiring carefully, especially near the suspension and wheel hub. A sensor can look fine from the outside while still producing an incorrect signal under movement.

Why Multiple DTCs May Appear Together

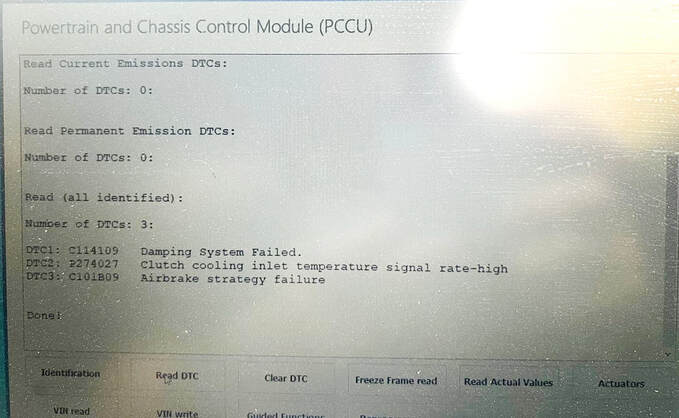

When several codes are stored in the PCCU or related modules, it is tempting to replace several parts immediately. That can become expensive very quickly.

In many cases, multiple faults may be connected by one underlying issue, such as:

• Weak battery voltage
• Poor ground connection
• Water or corrosion in a connector
• CAN communication interruption
• Previous incorrect programming
• A control module memory fault

McLaren diagnostic systems include dedicated functions for reading DTCs, viewing actual values, running actuator tests, coding and reprogramming. Official service information also identifies PCCU as a supported diagnostic system on the MP4-12 platform. (TECHINFOPORTAL)

For that reason, the correct process is simple: scan, test, repair, program if required, then recheck.

How ECU File Services Help Workshops

Some MP4-12C faults cannot be solved by replacing a sensor alone. A control module may require software correction, configuration, coding or a reliable file solution after repair.

Professional ECU file services can help workshops with:

• Module programming support
• Corrected software files
• Configuration and coding assistance
• DTC-related file solutions
• Technical repair guidance
• Faster turnaround on difficult electronic faults

The important point is that ECU files should only be used after the vehicle has been properly diagnosed. Software cannot repair a broken wire, failed sensor or damaged actuator.

At AutoCodeWorks, our ECU file portal is designed to support automotive workshops working with complex control systems, including McLaren powertrain and chassis electronics. The goal is to help technicians reduce diagnostic time and return vehicles to customers with a dependable repair.

Final Workshop Checklist

Before closing a repair order, confirm the following:

1. Battery voltage is stable.
2. All relevant DTCs have been recorded.
3. Wiring and connectors have been inspected.
4. Live sensor data has been checked.
5. The original fault has been repaired.
6. Required coding or programming has been completed.
7. Codes have been cleared with the correct diagnostic tool.
8. The vehicle has passed a final road test.

The McLaren MP4-12C deserves careful electronic diagnosis, not guesswork. Codes such as C114109, P274027 and C101B09 can often be resolved efficiently when the workshop follows a structured testing process and uses the correct technical resources.

For reliable ECU file support and professional workshop solutions, visit Electronic Repair Egypt. Help your technicians work faster, diagnose smarter and deliver better results for McLaren customers.

Note: DTC descriptions can vary by software version, vehicle configuration and diagnostic equipment. Always confirm the final meaning and repair procedure using the correct McLaren service information and a compatible diagnostic system.
