If you work on Mercedes-Benz commercial vehicles, heavy-duty trucks, or industrial diesel equipment, you have likely run into the dreaded engine control unit (ECU) failure on an OM457, OM501, or OM502 engine. In the Mercedes ecosystem, this unit is officially known as the PLD (Pumpe-Leitung-Düse) or MR control unit.

When a Mercedes PLD fails, it brings the entire vehicle to a halt. Truck drivers face expensive roadside downtime, fleet managers lose money by the hour, and mechanics are left hunting through erratic fault codes.

This comprehensive guide breaks down everything you need to know about MB PLD repair, from spotting early failure symptoms to bench testing techniques and hands-on repair methods that save thousands compared to buying brand-new units.

What is a Mercedes PLD Unit and How Does It Work?

The Mercedes-Benz PLD (Pumpe-Leitung-Düse, translated as Pump-Line-Nozzle) engine management system was engineered to control unit pump injection on heavy-duty diesel engines. Unlike modern single-rail common rail systems, the PLD setup uses individual unit pumps for each cylinder connected by short high-pressure lines to the injectors.

The PLD ECU is mounted directly on the engine block. It monitors sensor inputs—such as crankshaft position, camshaft position, boost pressure, coolant temperature, and fuel pressure—and calculates precise solenoid actuation timing for each unit pump.

Because it lives directly on the engine block, the PLD module endures an extreme physical environment:

• Severe thermal cycling: Rapid heating up to operating temperature and cooling down to sub-zero ambient conditions.
• Continuous engine vibration: Constant mechanical shaking directly from large-displacement diesel engines.
• Environmental contamination: Exposure to oil mist, diesel fuel, pressure washing, and road salt spray.

This aggressive environment is precisely why Mercedes PLD modules eventually fail.

Common Fault Codes and Failure Symptoms in MB PLD Units

Catching a failing PLD module early prevents costly engine damage or sudden breakdown on the highway. Here are the primary red flags to watch for:

1. Intermittent Engine Misfires or Missing Cylinders

The engine starts dropping one or two cylinders under load or when it reaches full operating temperature. Often, swapping injectors or unit pumps between cylinders yields no improvement because the driver circuit inside the PLD module is thermal-failing.

2. Complete Non-Start / No Communication

The engine cranks normally, but the vehicle dash displays no engine status or shows CAN communication errors (e.g., CODE / FR / INS communication failure). Diagnostic tools fail to establish a link with the MR/PLD control unit entirely.

3. Engine Cuts Out When Warm

The truck runs smoothly for 20 to 30 minutes. Once the engine compartment reaches heat saturation, the engine suddenly dies as internal solder joints expand and disconnect inside the unit.

4. Solenoid Valve Driver Circuit Fault Codes

When pulling diagnostic trouble codes (DTCs) with Mercedes Star Diagnosis (Xentry/DAS) or standard commercial scan tools, you may encounter specific unit pump fault codes:

• Fault Code 1 1215 / 1 1315: Solenoid valve bank 1 short circuit to ground or power.
• Fault Code 1 1415 / 1 1515: Solenoid valve bank 2 short circuit to ground or power.
• Fault Codes 1 0101 to 1 0601: Output stage short or open circuit on individual cylinder injectors (Cylinders 1 through 6/8).
• Fault Code 1 8009: Internal microcontroller RAM / Flash memory error inside the control unit.

Root Causes of MB PLD Failures

Understanding why these units breakdown is half the battle in delivering a permanent fix rather than a band-aid solution.

       [ExternalCauses]                 [InternalFailures]
+--------------------------------+   +------------------------------------+
| • Engine block heat & vibration|   | • Fractured BGA solder joints       |
| • Corroded harness wiring      |==>| • Blown high-side driver MOSFETs   |
| • Jump-starting voltage spikes |   | • Dried-out power capacitors       |
| • Moisture inside main connector|  | • Damaged CAN transceiver ICs      |
+--------------------------------+   +------------------------------------+

1. BGA and SMD Micro-Solder Joint Fractures: Continuous vibration causes delicate surface-mount solder connections beneath the main processing chip or driver ICs to develop hairline micro-cracks.
2. MOSFET & Power Transistor Thermal Breakdown: The solenoid driver circuits switch high current rapidly to energize unit pumps. Over time, internal heat dissipation degrades these power transistors until they short-circuit or burn open.
3. Internal Silicone Gel Degradation: To protect components from moisture and shock, Mercedes pots the circuit board in specialized protective gel. Over years of thermal stress, moisture can seep past aging rubber seals, causing internal trace oxidation.
4. Voltage Surges & Poor Grounding: Bad chassis grounds or high-voltage battery jump-starting can instantly blow out the internal CAN bus transceiver ICs or primary power regulation diodes.

Step-by-Step Bench Testing Procedure for Mercedes PLD

Before opening up a PLD casing, perform a structured diagnostic routine on the bench using an oscilloscope, bench power supply, and breakout box.

+------------------+     +------------------+     +------------------+
| 1. Visual & Pin  | --> | 2. Current Draw  | --> | 3. Scope Signal  |
|    Inspection    |     |    Check (Bench) |     |    & CAN Analysis|
+------------------+     +------------------+     +------------------+

Step 1: Physical and Pin Inspection

Inspect the main 55-pin heavy-duty connector. Look closely for:

• Bent, pushed-back, or corroded male pins.
• Signs of oil ingress coming down the wiring loom from leaky engine sensors.
• Damaged outer aluminum casing seals.

Step 2: Bench Power & Current Consumption Test

Connect the unit to a regulated 24V DC bench power supply with current limiting set to 3.0 Amps.

• Pin 1 & Pin 2: Ground (KL31)
• Pin 3 & Pin 4: Ignition / Battery Power (KL30 / KL15)

What to measure:

• Normal Idle Current: A healthy PLD unit typically draws between 0.18A and 0.35A on standby/ignition power without injector loads connected.
• Abnormal Current (<0.05A): Internal power supply rail is dead (blown input diode, bad internal regulator, or cracked ignition sense pin).
• High Current Draw (>1.0A or immediate current limit trigger): Shorted internal power MOSFET, shorted protection diode, or failed internal capacitor.

Step 3: CAN Bus Communication & Oscilloscope Verification

Connect a two-channel digital storage oscilloscope to the CAN-High and CAN-Low pins:

• Check for normal differential signaling (~2.5V baseline, splitting to 3.5V CAN-H and 1.5V CAN-L during frame transmissions).
• Distorted, flat, or biased waveform voltages indicate a blown CAN transceiver chip (e.g., PCA82C250 / SN65HVD230 series).

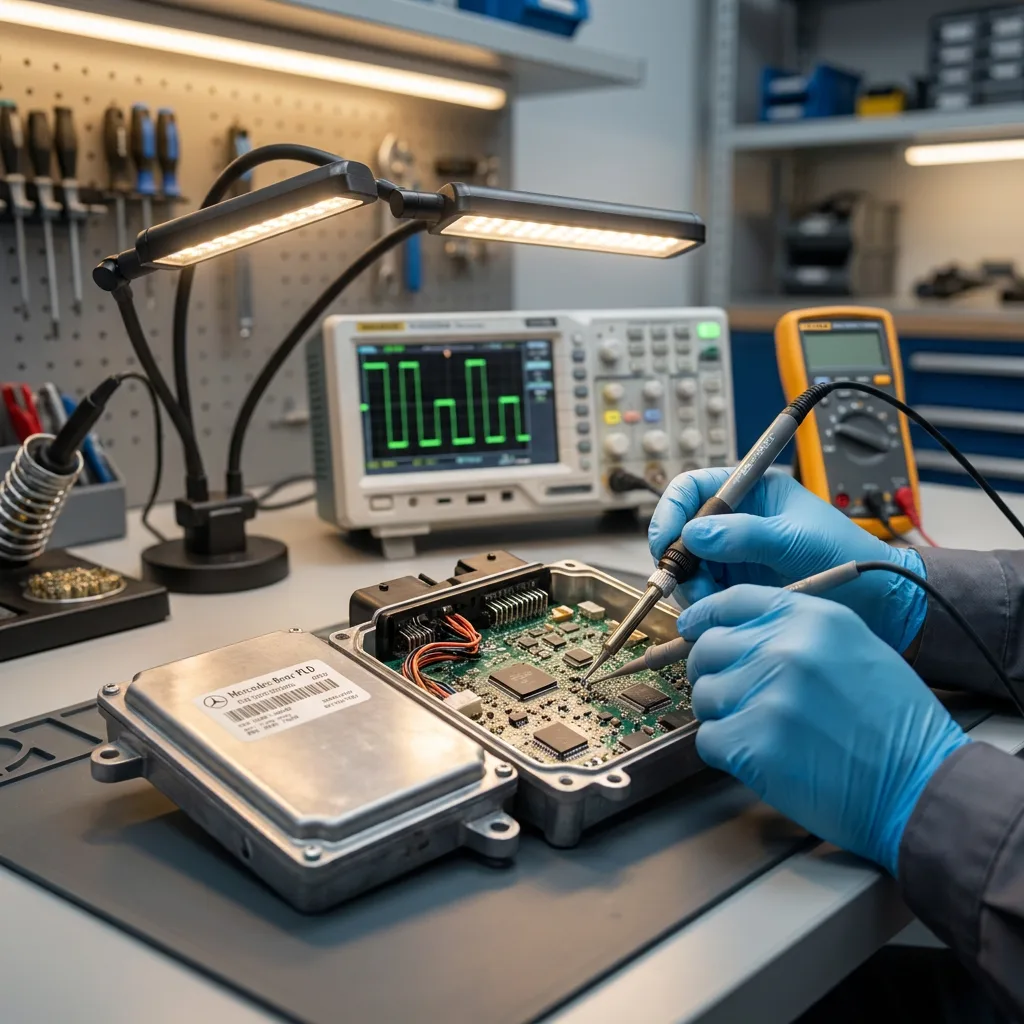

How to Repair a Mercedes PLD Module

Safety Warning: Working on automotive control units requires specialized ESD-safe micro-soldering gear, hot-air rework stations, and electronic safety protocols.

1. Opening and Cleaning the Casing

• Carefully remove the perimeter screws securing the top aluminum cover plate.
• Use a heat gun gently around the edge (around 80°C - 100°C) to soften the factory liquid gasket silicone seal.
• Carefully pry open the cover using plastic prying tools to avoid gouging the multi-layer printed circuit board (PCB).

2. Replacing Faulty Output Drivers

When specific cylinder misfire codes persist despite good harness wiring:

1. Locate the multi-channel solenoid driver MOSFET transistors near the output pins.
2. Use a hot-air rework station set between 350°C - 380°C with flux to desolder damaged power FETs.
3. Clean the copper pads with copper solder wick and isopropyl alcohol (IPA).
4. Solder new high-temperature, automotive-grade replacement MOSFETs, making sure thermal pads are fully bonded to the PCB ground plane for proper heat dissipation.

3. Re-Flowing and Micro-Soldering Cold Solder Joints

For units suffering heat-sensitive shut-offs:

1. Gently clear away protective gel around the main microcontroller, power management IC, and crystal oscillator using specialized gel remover or plastic picks.
2. Apply high-grade tacky flux across pin arrays.
3. Re-flow the main control ICs using a precision hot-air nozzle or precision micro-soldering iron tip.

4. Testing and Resealing

After replacing faulty components:

1. Re-hook the module to your bench testing rig and perform full diagnostic scans. Verify fault codes can be cleared and injector trigger signals fire correctly under simulated signal inputs.
2. Clean all original gasket material from the cover and casing perimeter.
3. Apply a high-temp neutral-cure silicone sealant (or specialized automotive ECU sealing compound) around the flange to ensure watertight performance.

EEPROM Cloning, Programming, and Immobilizer Matching

When an original PLD module is crushed, water-logged beyond repair, or burned internally, replacement is the only route. However, plug-and-play installation of a used donor unit is impossible without programming due to internal immobilizer (Drive Authorization System) pairing between the PLD (MR) and the Cabin/Drive Control unit (FR/CPC).

Option A: Full EEPROM / Flash Chip Transfer

If the original board’s microcontroller and flash memory chips are intact:

1. Desolder the EEPROM (typically 93C66 or 93C86 series) and Flash memory from the original board.
2. Solder them onto the donor PCB.
3. The replacement PLD now carries the original VIN, immobilizer data, parameter coding, and engine calibration maps without requiring dealer diagnostics software.

Option B: Bench EEPROM Cloning via Programmer

Using specialized ECU bench programming tools (like BDM frame programmers, K-Tag, or custom Mercedes diagnostic tools):

1. Read full 1:1 image dumps of the EEPROM and Flash memory over bench boot pins or BDM ports.
2. Write the original dataset directly into the donor unit.
3. Perform key learning or authorization synchronization using Mercedes-compatible diagnostic software.

Upgrade Your Automotive Electronics Skills

Professional MB PLD repair is a high-demand, high-margin specialized service in heavy truck maintenance and automotive diagnostics. Mastering ECU hardware repair, micro-soldering, bench testing setups, and EEPROM cloning allows you to solve problems that standard repair shops simply replace at high costs.

If you are looking for hands-on, step-by-step guidance on Mercedes-Benz module repairs, diagnostic protocols, and specialized training, explore expert resources and training courses over at AutoCodeWorks.

Frequently Asked Questions (FAQ)

Can I run a truck with a PLD module from a different engine horsepower rating?

No. Operating an OM457 or OM501 engine with a PLD mapped for a different engine output rating can cause severe engine knock, poor fuel economy, excessive black smoke, or turbocharger overboost damage. The software parameters and injection maps must match the engine specifications.

Why do unit pump codes appear even after replacing the fuel injector/pump?

The PLD uses high-side and low-side driver circuits to control each unit pump solenoid. When driver MOSFETs fail open or short inside the ECU, the diagnostic module reads an electrical circuit failure and logs an injector pump code, even if the physical pump under the valve cover is brand new.

Is it necessary to program a repaired original PLD unit?

If you repair the original PLD module belonging to the truck, no re-programming or key relearn is required. The vehicle’s VIN, immobilizer code, and parameter configurations remain stored in the entire and untouched inside the original memory chips.
