The Maserati GranTurismo 4.2 V8 delivers an unforgettable driving experience, but electrical and engine-management faults can quickly affect starting, throttle response and overall performance.

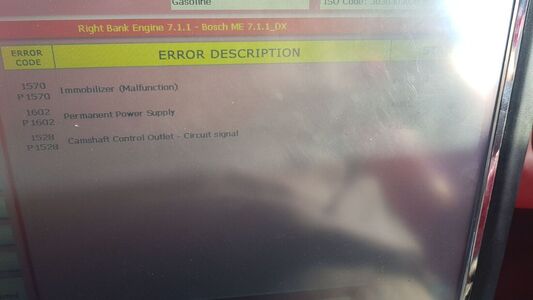

When the Bosch ME7.1.1 ECU stores P1570, P1602 or P1528, the best approach is to diagnose the problem carefully rather than simply clearing the codes. Maserati diagnostic systems may use manufacturer-specific descriptions, so the exact meaning should always be confirmed with suitable Maserati or Bosch-compatible equipment. The ME7.1.1 system is listed for Maserati engine control diagnosis in dedicated diagnostic documentation. (MYWEBSITES360)
P1570 – ECM Locked or Immobilizer Communication Fault
P1570 is commonly linked with an immobilizer or engine-control-module lock condition. The result may be:
- Engine cranks but does not start
- Intermittent starting problems
- Key or security warning messages
- Loss of communication between the immobilizer and ECU
Before replacing the ECU, check the vehicle battery, grounds, ECU connectors, key recognition system and immobilizer communication. A weak battery can create several misleading faults at once.
P1602 – ECU Power Supply Interruption
P1602 usually points toward an interruption in ECU power. It can appear after:
- A flat or disconnected battery
- Battery replacement
- Poor battery terminals
- Weak grounding points
- A faulty relay or power-supply connection
Start with a battery and charging-system test. Inspect the terminals and engine-to-body ground straps, then check ECU voltage during cranking. If voltage drops too far, the ECU may log a power interruption and cause difficult starting or rough running.
P1528 – Camshaft Control Circuit Signal
P1528 relates to the camshaft-control system. This fault may affect variable valve timing and lead to:
- Reduced engine power
- Uneven idle
- Poor throttle response
- Engine warning light
- Hesitation under acceleration
Possible causes include a faulty camshaft solenoid, damaged wiring, poor electrical connections, contaminated engine oil or a mechanical timing problem. Do not replace the solenoid before checking oil condition, connector voltage and wiring continuity.
Best Diagnostic Order
For the Maserati GranTurismo 4.2 V8, diagnose these codes in this order:
- Test the battery and alternator.
- Clean and tighten battery terminals and ground connections.
- Scan all modules, not only the engine ECU.
- Check immobilizer and ECU communication.
- Inspect camshaft-control wiring and solenoids.
- Clear the codes and carry out a proper road test.
If all three codes appear together, begin with the battery, grounds and ECU power supply. One voltage interruption can trigger several unrelated-looking faults.
Professional diagnosis is especially important before ECU replacement or software tuning. Correct testing saves money, protects the engine and gets the GranTurismo’s V8 back to its smooth, powerful best.
