A MAP sensor plays a major role in modern engine management. It measures pressure inside the intake manifold and sends that information to the ECU as a voltage signal. The ECU then uses the signal to calculate engine load, fuel delivery, and ignition timing.
When the MAP sensor is working correctly, the engine receives the right amount of fuel for the current operating conditions. When the sensor is faulty, incorrectly calibrated, or connected to the wrong ECU setting, the vehicle may develop problems that look like injector failure, ignition trouble, or even a mechanical engine fault.
Understanding the relationship between MAP sensor voltage and pressure makes diagnosis much easier, especially when tuning turbocharged and naturally aspirated engines.
What Does a MAP Sensor Do?
MAP stands for Manifold Absolute Pressure. Unlike a boost gauge, which usually displays pressure compared with atmospheric pressure, a MAP sensor measures absolute pressure inside the intake manifold.
The sensor reports this pressure to the ECU through a variable voltage signal. On many automotive systems, the signal ranges from approximately 0 to 5 volts.
The ECU interprets the voltage and converts it into a pressure value, usually shown in:
- kPa
- PSI
- bar
- Engine load percentage
The pressure value helps the ECU select the correct fuel and ignition tables. It may also be used for:
- Injector pulse width calculation
- Ignition timing control
- Boost control
- Overboost protection
- Deceleration fuel cut
- Idle control
- Barometric pressure compensation
- Engine protection strategies
- Closed-loop fuel corrections
In simple terms, the MAP sensor tells the ECU how hard the engine is working.
How MAP Sensor Voltage Represents Pressure
Most MAP sensors produce a higher voltage as manifold pressure increases. However, the exact voltage curve depends on the sensor design and the calibration entered into the ECU.
A common example looks like this:
- Low pressure produces a low voltage
- Atmospheric pressure produces a middle-to-high voltage
- Boost pressure produces a higher voltage
- The sensor reaches its maximum pressure near 5 volts
A 1-bar MAP sensor is normally designed for naturally aspirated applications. A 2-bar or 3-bar sensor is used when the engine operates above atmospheric pressure, such as on a turbocharged or supercharged vehicle.
The sensor type must match the ECU calibration. Installing a 3-bar MAP sensor while leaving the ECU configured for a 1-bar sensor will create incorrect load calculations and potentially dangerous fueling and ignition values.

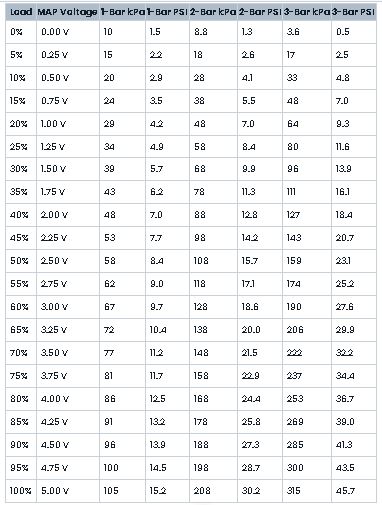

MAP Sensor Voltage vs. Pressure Table

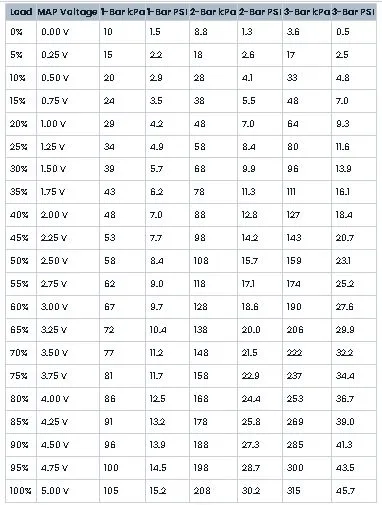

The table below provides a general reference for MAP sensor voltage compared with pressure. These values are useful for checking a sensor signal, reviewing a calibration table, or troubleshooting an engine management problem.
Actual readings may vary slightly depending on the manufacturer, sensor model, wiring, electrical supply, and ECU calibration.
This is a general reference table, not a universal specification for every MAP sensor. Always check the technical data for the exact sensor being used.
What Is a 1-Bar MAP Sensor?
A 1-bar MAP sensor is generally suitable for naturally aspirated engines. It can measure pressure around atmospheric pressure, which is approximately 100 kPa at sea level.
A typical 1-bar sensor may report pressure from a low vacuum value up to roughly 105 kPa. This gives the ECU enough information to manage an engine that does not operate under positive boost.
At idle, a naturally aspirated engine usually creates significant vacuum. Depending on the engine, idle pressure may be around 25–45 kPa. At wide-open throttle, manifold pressure rises closer to atmospheric pressure.
A 1-bar sensor is not suitable for serious boost applications because it cannot accurately measure higher intake pressure. Once the pressure exceeds the sensor’s operating range, the ECU may no longer know the true engine load.
What Is a 2-Bar MAP Sensor?
A 2-bar MAP sensor can measure pressure up to approximately 200 kPa absolute. That equals about 1 bar of boost above atmospheric pressure at sea level.
This type of sensor is commonly used on mild turbocharged or supercharged engines. It provides the ECU with enough range to measure:
- Engine vacuum
- Atmospheric pressure
- Moderate boost pressure
When installing a 2-bar sensor, the ECU must be calibrated for that specific sensor. The sensor scaling normally includes the minimum voltage, maximum voltage, and pressure range.
Using the wrong calibration can cause the ECU to underestimate or overestimate engine load. That can lead to a lean mixture, excessive ignition timing, poor throttle response, or boost control problems.
What Is a 3-Bar MAP Sensor?
A 3-bar MAP sensor measures up to approximately 300 kPa absolute, or around 2 bar of boost above atmospheric pressure.
It is a popular choice for higher-output turbocharged engines because it provides a wider pressure range than a 1-bar or 2-bar sensor.
A 3-bar sensor is often used for:
- Performance turbo engines
- Motorsport applications
- High-boost street cars
- Standalone ECU systems
- Engine swaps
- Custom fuel injection systems
The wider measurement range is useful, but it may provide slightly less resolution at low pressure compared with a lower-range sensor. For that reason, the sensor should be selected according to the engine’s actual boost requirements.
There is no advantage in using a sensor with far more range than the engine needs unless future upgrades or safety strategies justify it.
Why MAP Sensor Calibration Matters
MAP sensor calibration tells the ECU how to convert voltage into pressure. Without correct scaling, the ECU may receive a voltage signal but interpret it incorrectly.
For example, suppose an ECU is still calibrated for a 1-bar sensor while a 3-bar sensor is installed. At a given voltage, the 3-bar sensor may represent considerably more pressure than the ECU expects.
The ECU could then calculate the wrong engine load and apply an unsuitable fuel or ignition value.
Incorrect calibration may cause:
- Lean or rich fueling
- Hard starting
- Rough idle
- Poor acceleration
- Hesitation under boost
- Detonation
- Excessive fuel consumption
- Incorrect boost control
- Check engine warning lights
- Injector pulse width errors
On a turbocharged engine, incorrect MAP calibration can become an engine safety issue. Always confirm the sensor calibration before making fuel or ignition adjustments.
Diagnosing a MAP Sensor with a Multimeter
A digital multimeter can help identify basic MAP sensor problems. Most sensors use three primary circuits:
- 5-volt reference
- Sensor ground
- Signal output
Some systems may use additional wiring, so the vehicle wiring diagram should be checked before testing.
Basic testing steps
- Turn the ignition on without starting the engine.
- Check for a stable 5-volt reference.
- Verify that the sensor ground has low resistance and a proper connection.
- Back-probe the signal wire.
- Compare the voltage with the expected pressure.
- Start the engine and observe the voltage at idle.
- Apply throttle and check whether the signal changes smoothly.
A healthy MAP sensor should normally produce a stable signal at a steady operating condition. The voltage should increase or decrease smoothly as manifold pressure changes.
A signal that jumps, drops out, remains fixed, or moves slowly may indicate a sensor, wiring, connector, vacuum line, or ECU problem.
MAP Sensor Readings at Key Operating Conditions
The exact voltage depends on the sensor, but several operating conditions are useful for comparison.
Ignition on, engine off
With the engine off, the intake manifold should normally be close to atmospheric pressure. The MAP reading should approximately match the local barometric pressure.
If the scan tool shows a very low pressure reading with the engine off, the sensor calibration or wiring may be incorrect.
Warm engine at idle
At idle, a naturally aspirated engine usually produces intake vacuum. The MAP value should be significantly lower than atmospheric pressure.
A high idle MAP reading may point to:
- Vacuum leaks
- Incorrect valve timing
- Low engine vacuum
- Throttle position problems
- Exhaust restriction
- Poor engine condition
- Incorrect sensor calibration
Wide-open throttle
At wide-open throttle on a naturally aspirated engine, manifold pressure should move closer to atmospheric pressure.
On a boosted engine, the pressure should rise above atmospheric pressure when the turbocharger or supercharger creates boost.
If the voltage does not increase during acceleration, inspect the sensor signal, wiring, pressure source, and ECU configuration.
MAP Sensor Problems That Can Look Like Injector Failure
A faulty MAP sensor can create symptoms that resemble an injector problem. The ECU uses MAP information to calculate injector pulse width, so an incorrect pressure signal can affect the entire fuel strategy.
Common symptoms include:
- Misfire during acceleration
- Lean air-fuel ratio
- Rich exhaust smell
- Poor cold starting
- Unstable idle
- Engine stumble
- Flat throttle response
- Reduced power
- Higher fuel consumption
Before replacing injectors, compare the MAP sensor signal with actual manifold pressure. Also check fuel pressure, injector operation, ignition strength, and air leaks.
Replacing expensive injectors without confirming the MAP signal can quickly turn a simple electrical fault into an unnecessary repair bill.
MAP Sensor vs. Boost Pressure
MAP pressure and boost pressure are related, but they are not the same measurement.
MAP is absolute pressure. Boost pressure is normally pressure above atmospheric pressure.
For example:
- MAP: 200 kPa absolute
- Atmospheric pressure: 100 kPa
- Boost pressure: approximately 100 kPa, or about 14.5 PSI
The general formula is:
Boost pressure = MAP pressure − atmospheric pressure
Atmospheric pressure changes with altitude and weather, so the exact boost value may vary even when the MAP reading remains accurate.
This is one reason professional engine tuning should use reliable sensor data rather than relying only on a mechanical boost gauge.
Common MAP Sensor Mistakes
Several errors appear frequently during engine builds and ECU tuning.
Using the wrong sensor type
A 1-bar sensor cannot safely replace a 3-bar sensor on a high-boost engine. The sensor must cover the engine’s complete operating pressure range.
Forgetting ECU calibration
Installing the correct physical sensor is only half the job. The ECU must also be configured for its voltage and pressure curve.
Ignoring the 5-volt reference
A weak or unstable reference voltage can make the MAP signal appear incorrect even when the sensor itself is good.
Testing without checking atmospheric pressure
With the engine off, the MAP reading should be reasonably close to local barometric pressure. A large difference deserves further investigation.
Assuming every sensor uses the same curve
Different manufacturers use different signal characteristics. Never copy a calibration table without confirming the sensor part number.
MAP sensor voltage is one of the most important signals used by an engine control unit. It allows the ECU to understand manifold pressure and apply the correct fuel and ignition strategy.
The relationship between voltage, kPa, and PSI is not universal. It depends on the sensor type and its calibration. A 1-bar MAP sensor is usually suited to naturally aspirated engines, while 2-bar and 3-bar sensors provide additional range for boosted applications.
When diagnosing a drivability problem, do not look at the MAP sensor in isolation.
Compare its voltage with actual manifold pressure, atmospheric pressure, fuel pressure, injector operation, and ignition performance.
A stable sensor signal and accurate ECU calibration are essential for reliable tuning, safe boost control, smooth drivability, and consistent engine performance.
