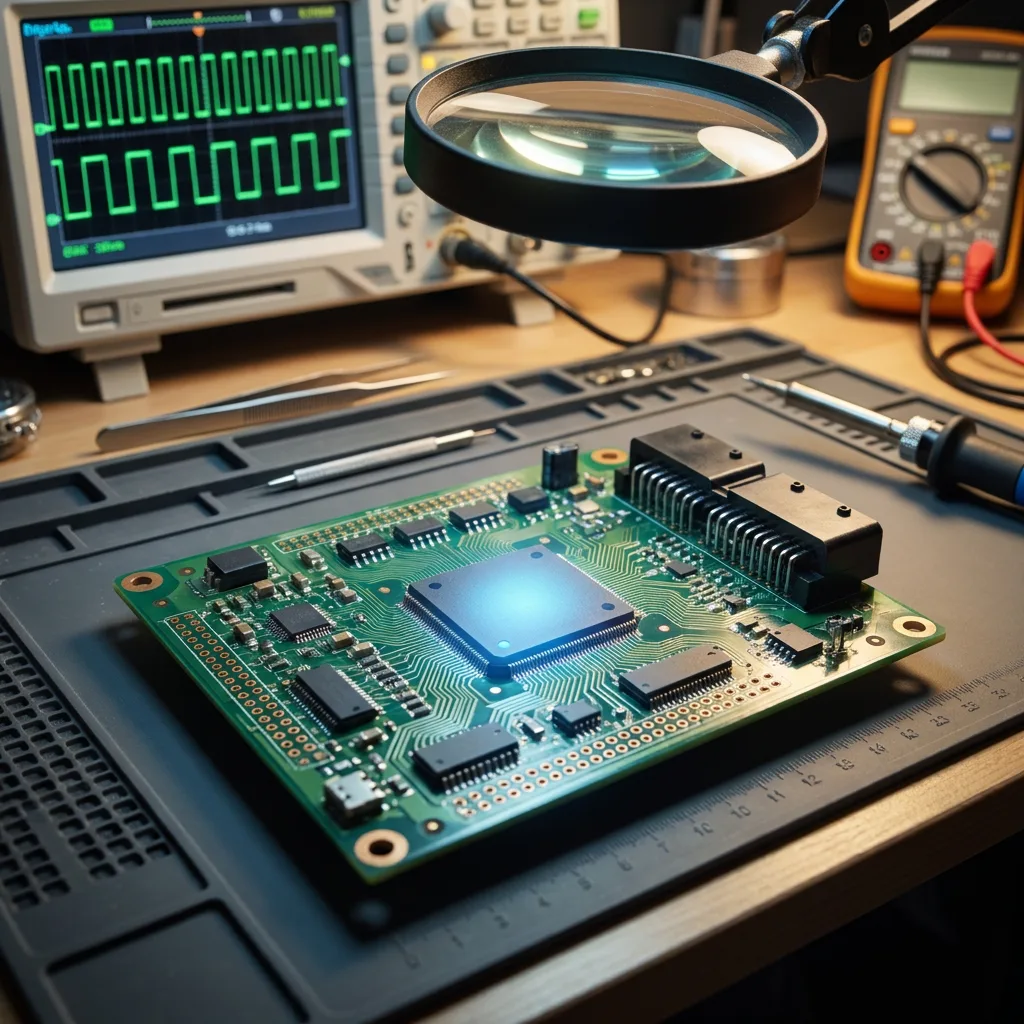

Every professional automotive tuner hits a brick wall eventually. You hook up your programming tool via the OBD2 port or standard Bench mode, hit read, and get a blank screen or a communication error. Perhaps a previous flashing attempt failed halfway through, corrupting the bootloader and leaving you with a completely “brick” ECU [image.png].

When standard diagnostic pathways fail, professional technicians turn to the ultimate hardware-level lifeline: JTAG (Joint Test Action Group) [image.png].

What Exactly is JTAG?

Originally designed for testing printed circuit boards, JTAG is a low-level communication protocol that allows direct, physical access to the internal architecture of a microprocessor (MCU) or microcontroller inside an ECU [image.png].

Unlike normal diagnostic methods that rely on software layers, JTAG bypasses the operating system entirely. It lets you read and write directly to the flash memory, EEPROM, and processor registers—making it the gold standard for recovering dead or heavily locked units [image.png].

Why Do Technicians Use JTAG?

In the automotive tuning and repair sector, JTAG offers capabilities that standard flashing methods simply cannot match:

• Complete Full Flash Backup: Read and clone 100% of the internal memory map [image.png].
• EEPROM Access: Extract critical security blocks, immobilizer data, and configuration parameters [image.png].
• Dead ECU Revival: Resuscitate control units that fail to communicate via standard protocols [image.png].
• Bootloader Restoration: Fix corrupted software states caused by interrupted flashes [image.png].
• Access Unsupported Units: Program rare, high-security, or older control units that lack OBD or standard Bench support [image.png].

Essential Equipment for JTAG Work

Before opening up an ECU for JTAG operations, ensure your workbench is equipped with the right gear:

• Bench Power Supply: For stable, clean voltage regulation [image.png].
• Multimeter & Microscope: For precise pinout tracing and visual inspection [image.png].
• JTAG Adapter / Programmer: Tools like Flex, KT200 II, or specialized debug interfaces [image.png].
• Correct Pinout Documentation: Crucial diagrams mapping out data lines [image.png].
• Hot Air Rework Station: For opening sealed casings safely [image.png].

Understanding JTAG Signals

A standard JTAG interface communicates through a specific set of hardware pins soldered or probed directly onto the circuit board. Key signals include:

• TCK (Test Clock): Synchronizes internal state operations.
• TMS (Test Mode Select): Controls state transitions.
• TDI (Test Data In): Serial data input channel.
• TDO (Test Data Out): Serial data output channel.
• TRST (Test Reset): Optional reset line.
• GND & VCC: Ground and power references [image.png].

Step-by-Step JTAG Workflow

Executing a successful JTAG operation requires methodical patience:

1. Open the ECU: Carefully remove the cover without damaging internal components [image.png].
2. Locate JTAG Pads: Identify the exact debug points on the circuit board using reliable pinout guides [image.png].
3. Connect the Adapter: Wire or probe the adapter lines (TCK, TMS, TDI, TDO, GND, VCC) securely [image.png].
4. Supply Bench Power: Power up the ECU through a regulated bench source [image.png].
5. Take a Full Backup: Always read and save original Flash and EEPROM data before making any changes [image.png].
6. Execute Modification: Write your tuned file or perform the necessary recovery sequence [image.png].
7. Verify & Close: Re-verify data integrity and test the unit on the bench before final assembly [image.png].

• Skipping the Backup: Never flash an ECU without saving a pristine original backup file first [image.png].
• Incorrect Pinout Mapping: Wiring a line incorrectly can permanently damage the processor [image.png].
• Unstable Power Supply: Voltage drops during a JTAG write operation will corrupt memory blocks [image.png].
• Moving Probes During Work: Bumping your position pins mid-transfer breaks data streams and causes communication errors [image.png].

Mastering JTAG is what separates ordinary part changers from elite automotive electronics technicians. Take your time, double-check your map points, and treat every circuit board with the precision it demands of the microchip with precision.
