I know. The screws are right there. The case is begging you.

But here’s the thing I’ve learned the hard way over about fifteen years of benches, coffee stains and dead modules: most units that get opened never needed to be opened. The fault was a chafed harness. A green, fuzzy ground point behind the wheel arch. A connector pin that backed out 2 mm. A relay that clicks but doesn’t pass current.

Opening the ECU should be the last diagnostic step, not the first. Once you break that seal, you’ve usually voided any remanufacturer warranty, you’ve broken the potting or gasket, and you’ve introduced your own moisture and dust into a sealed environment. If you then send it out for a professional rebuild, the first thing they’ll say is “who’s been in here?”

So before the torx bits come out, confirm you’ve cleared:

• Supply and ground integrity — voltage drop tested under load, not just a beep on a multimeter
• Connector condition — pin tension, green crust, spread terminals, backed-out pins
• Harness — chafe points, rodent damage, previous repairs wrapped in insulation tape by an optimist
• Sensors and actuators — a shorted injector or coil will take a driver out and make the module look guilty
• CAN network health — resistance across the bus, no other modules dropping off
• The obvious — is it actually getting a wake-up signal? Is the immobiliser happy?

Only when every external cause is genuinely eliminated do you earn the right to go inside.

Setting up before you open it

Five minutes of prep saves you a module.

Anti-static, seriously. Wrist strap, grounded mat. Modern automotive boards run microcontrollers and driver ICs that don’t survive a carpet-shuffle zap. You won’t feel the discharge that kills them. This is the single most common self-inflicted injury on a hobby bench.

Good light and magnification. A 10x loupe minimum, a stereo microscope if you have one. Cracked solder joints hide from the naked eye with impressive skill.

Photograph everything. Before you touch a single screw. Then after the lid comes off. Then the board removed. Future you will be extremely grateful when reassembling connectors and shields.

Note the smell. Yes, really. A sharp, acrid, fishy smell means something has cooked. Sweet or musty means moisture has been living in there. Your nose finds faults your eyes miss.

Open the case, don’t force it. Many housings are sealed with a bead of silicone or are ultrasonically welded. Warm the seam gently, work a thin blade around slowly, and never lever against the board itself. If it’s potted in resin, stop and think — potted units are a specialist job, and digging resin out with a screwdriver ends exactly one way.

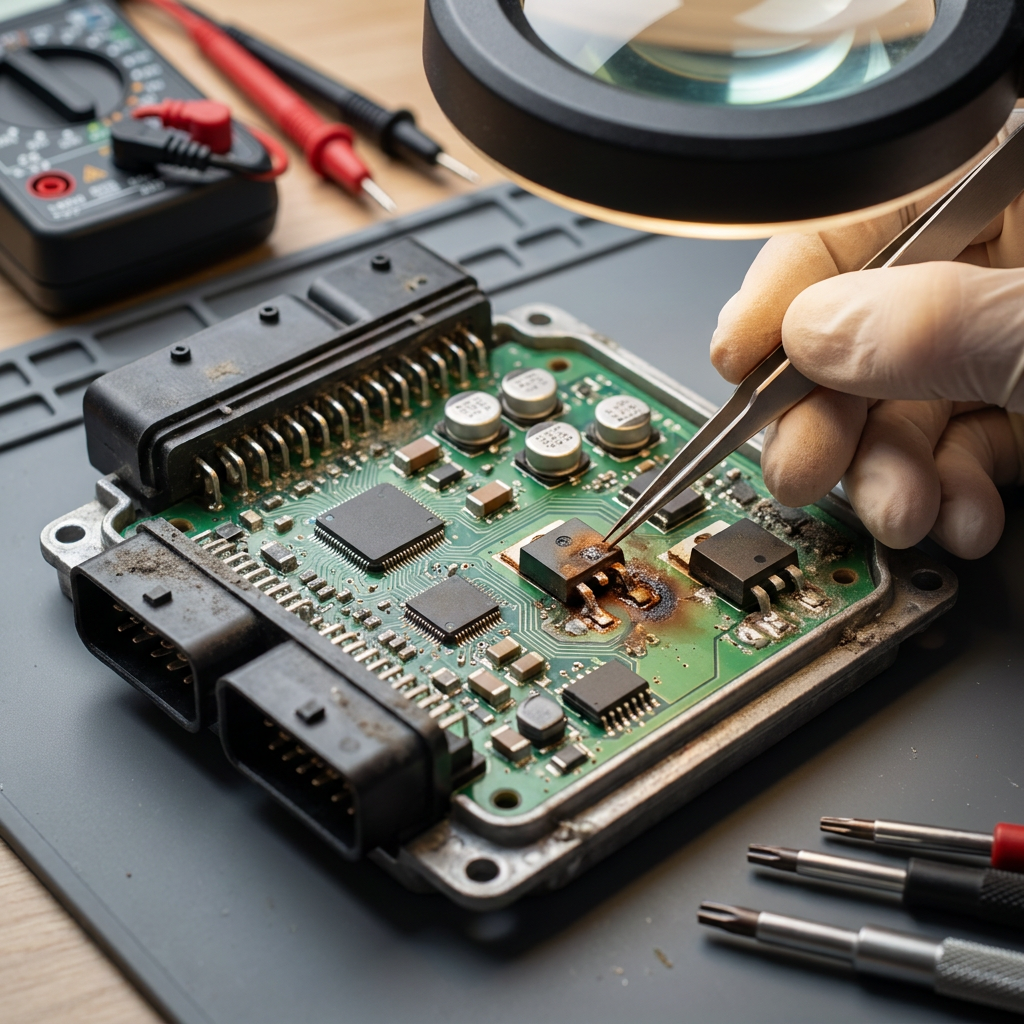

What you’re actually looking for

Now the good part. Work the board in a fixed pattern — I go top-left to bottom-right, then flip and repeat — so nothing gets skipped.

1. Corrosion

The number one killer. Look for:

• White or grey powdery crust around component legs
• Green or blue-green deposits (classic copper corrosion) on traces and vias
• Dull, matte, “furry” solder joints instead of shiny ones
• Corrosion creeping under component bodies and connector shells

Corrosion follows moisture, and moisture follows a failed seal or a leaking connector boot. Crucially, corrosion keeps eating after the water has gone — the residue is hygroscopic and pulls damp out of the air forever. Cleaning it off is not optional.

Where it appears tells you a story. Corrosion concentrated at the connector end means water tracked in through the harness — capillary action wicks moisture along the wire strands inside the insulation, sometimes from metres away. Corrosion across the whole board means the unit was submerged or sat in a wet footwell.

2. Burn marks

Discolouration is a confession. Look for:

• Brown or black scorching on the fibreglass substrate
• Blistered or bubbled conformal coating
• Components with a crater, a split case, or a missing top
• Charring around power devices — drivers, MOSFETs, voltage regulators
• A dark halo around a resistor that’s been running hot for years

Key point people miss: the burnt component is usually the victim, not the criminal. A cooked injector driver almost always means a shorted injector. A blown regulator often means a supply spike or a downstream short. Replace the burnt part without finding the cause and you’ll be doing it again next week, this time with a customer who doesn’t believe you anymore.

Also check the underside of the board directly beneath any hot spot. Heat travels through vias and you’ll often find the real damage on the reverse.

3. Cracked solder joints

These are the sneaky ones — the reason for intermittent faults that vanish the moment the vehicle reaches your workshop.

Symptoms of a crack you haven’t found yet: the fault appears when hot, or over rough roads, or after the engine’s been running twenty minutes. Thermal expansion opens the crack, the circuit drops out, everything cools down and it works again.

Under magnification, look for:

• A fine dark ring around the base of a component leg
• Joints that look “dry,” dull, or slightly concave
• Hairline fractures radiating from the pad edge
• Any joint on a heavy component — relays, large capacitors, connector pins, inductors, transformers

Connector pins are the prime suspects. Every plug and unplug over 15 years flexes those joints. Same for anything with mass that vibrates. If you find one cracked joint, reflow the whole family around it — where there’s one, there are five.

A gentle push with a plastic probe while the unit is powered and monitored can reveal a marginal joint, but be careful and be sensible about shorting risk.

4. Lifted pads

This is where things get serious. A lifted pad means the copper landing has separated from the fibreglass — usually from overheating, previous bad repair work, or corrosion undermining the adhesive.

Look for:

• A pad sitting slightly proud, with a shadow line under it
• Pads that move when nudged with a probe
• Pads missing entirely, with bare board where copper should be
• Discoloured, lighter-coloured board around the pad footprint

Lifted pads are repairable — you scrape back to sound copper, bond a jumper wire, and reinforce with epoxy — but it’s fine, patient work. Never try to solder to a lifted pad and hope. It will hold for a fortnight and fail on a motorway.

If a previous repairer has been in here and you find lifted pads, treat everything else they touched with suspicion.

5. Damaged traces

Traces are the veins. Damage shows as:

• A hairline break, often invisible until you flex or magnify
• Green corrosion running along a trace like a scar
• Traces eaten completely away, leaving a ghost outline
• Scratches or gouges from someone’s screwdriver
• Traces lifted alongside a lifted pad

Multi-layer boards make this genuinely difficult — a break on an inner layer is invisible and only continuity testing will find it. Buzz suspect sections point to point. If the break is on an internal layer, the honest answer is often that the board is beyond economical repair, and saying so early is a mark of professionalism, not defeat.

6. Failed components

Beyond the obviously burnt, look for:

• Electrolytic capacitors — bulged tops, split vents, crusty brown residue at the base, or the board discoloured beneath them. Leaking electrolyte is corrosive and spreads.
• Cracked ceramic capacitors — a fine diagonal crack, very hard to see, often caused by board flex during handling
• Bulging or cracked ICs — a swollen chip means thermal death
• Discoloured resistors — a resistor that’s changed colour has changed value too
• Cold or reworked-looking joints on anything, hinting at factory or previous repair issues

Test out of circuit where you can. In-circuit readings lie to you constantly because of parallel paths.

7. Contamination

Not everything is water. I’ve opened units containing:

• Oil and diesel, wicked up through the loom from a leaking seal
• Coolant — the worst, because glycol is conductive and aggressively corrosive
• Brake fluid, which happily eats coatings
• Dust, sand, and a truly memorable amount of dried mud
• Rodent nesting material, and the associated urine, which is chemically brutal on copper
• Ants. More than once. They love warm sealed boxes.

Contamination causes leakage paths between tracks — resistance where there should be none — and the fault behaviour is bizarre and inconsistent. Clean it properly: isopropyl alcohol at 99%, a soft brush, ultrasonic cleaning if the board and components allow it, then dry it thoroughly. Not “looks dry.” Properly dry, with warm airflow, for hours.

8. Water residue

Even after water has evaporated, it leaves a fingerprint. Look for:

• Tide marks — pale rings or lines showing the water level
• White salty deposits, especially on coastal or winter-road vehicles
• Rust on any steel component — shield cans, screws, relay bodies
• Stained or lifted conformal coating
• Discoloured fibreglass with a mottled, blotchy look

Salt residue is the villain here. Road salt and sea air create a conductive, water-attracting film that keeps causing faults long after the leak is fixed. If you find water residue and don’t fix the entry point — usually a plenum drain, a scuttle seal, a windscreen leak, or a duff connector gasket — the module will die again, and it’ll be your name on the invoice.

Putting it back together properly

Repair is only half the win. Reassembly is the other half.

• Neutralise and rinse all corrosion residue; don’t just brush it off
• Re-apply conformal coating over any area you’ve worked on
• Replace the case gasket or lay a fresh silicone bead — the original seal is done
• Clean and protect the external connector, and grease the seal
• Fix the water entry point on the vehicle. Every time.
• Test on the bench before it goes back in the car, and then road test properly, hot and cold

The honest bit: when to stop

Good technicians know when to walk away. Call it beyond repair when you find:

• Widespread corrosion across multiple areas of the board
• Damage to inner layers of a multi-layer board
• A burnt microcontroller or a security/immobiliser chip that can’t be cloned
• Multiple lifted pads in a dense fine-pitch area
• Coolant contamination that’s had time to settle in

Telling a customer “this one’s finished, here’s why, here are your options” builds far more trust than a repair that fails in a month. Trust is the whole business.

Quick reference checklist

CheckLook forUsual causeCorrosionWhite/green crust, dull jointsWater ingress, failed sealBurn marksScorching, blistered coatingShort circuit, overloadCracked jointsDark rings, dull jointsVibration, thermal cyclingLifted padsProud/loose padsOverheating, bad prior repairDamaged tracesHairline breaks, green scarsCorrosion, physical damageFailed partsBulged caps, cracked ICsAge, heat, voltage spikesContaminationOil, coolant, debrisLoom wicking, leaks, rodentsWater residueTide marks, salt, rustSubmersion, drain blockage
