Changing your car’s wheels, fitting wider tires, or installing wheel spacers can completely change the look of a vehicle. However, appearance is only one part of the job. The new setup must also work safely when the suspension is compressed, the steering is turned, and the car is driven over uneven roads.

This is where suspension articulation comes in.

Many drivers only check wheel clearance while the vehicle is parked on level ground. That is not enough. A tire may look perfectly safe when the car is standing still, yet rub against the fender liner, suspension strut, bumper, or inner wheel arch when one side of the vehicle rises and the opposite side drops.

A proper articulation test recreates this kind of movement in a controlled environment. It helps you find out whether your wheel and tire combination has enough clearance before you drive the car on public roads.

It is especially useful when fitting:

• New alloy wheels
• Wider tires
• Lowering springs
• Coilover suspension
• Wheel spacers
• Different wheel offsets
• Larger brake systems
• Adjustable suspension components

It is also similar to the type of clearance check sometimes carried out during a technical inspection or approval process.

What Does Suspension Articulation Mean?

Suspension articulation, often called “cross-loading” or “diagonal loading,” happens when the vehicle’s suspension is compressed unevenly. One wheel moves upward while another wheel on the opposite diagonal side is also raised or loaded.

For example:

• The front-left wheel and rear-right wheel are raised
• The front-right wheel and rear-left wheel remain lower

This twists the vehicle slightly and forces the suspension to work through a demanding range of movement.

You may think this is an unusual situation, but it can happen naturally on the road. Driving over a small kerb, a drainage channel, a raised manhole cover, a steep driveway, or an uneven patch of asphalt can create a similar effect.

Roads are rarely perfectly flat. Even small changes in the surface can move the wheels much farther into the wheel arches than many drivers expect.

Why a Normal Parking Check Is Not Enough

When a car is sitting on a flat surface, the suspension is usually close to its normal ride height. There may be plenty of visible space between the tire and the fender.

The situation changes when the suspension compresses.

During hard cornering, heavy braking, a deep dip in the road, or diagonal loading, the tire can move closer to:

• The outer fender lip
• The inner wheel arch
• The plastic wheel liner
• The suspension strut
• The spring platform
• The control arm
• The brake hose
• The bumper edge
• The chassis or inner bodywork

Steering clearance is just as important. The front wheels do not stay straight while driving. They move from one steering lock to the other, changing the position of the tire inside the wheel arch.

A setup that clears perfectly with the wheels pointing straight ahead may rub badly when the steering is turned fully left or right.

What You Need for the Test

The test should be carried out on a solid, level surface with suitable equipment. A proper vehicle lift is the most convenient option, but ramps or sturdy blocks can also be used when handled correctly.

Useful equipment includes:

• A suitable vehicle lift or four-post ramp
• Strong loading ramps or solid blocks
• Wheel chocks
• A tape measure
• A flashlight
• Chalk or masking tape
• A helper
• Work gloves
• The wheels and tires you intend to use

If using blocks or timber, they must be strong enough to support the vehicle’s weight. Ordinary loose bricks, weak wooden pieces, or unstable objects should never be used.

The safest option is to use professionally manufactured ramps or a certified workshop lift. Vehicle weight is serious business; a shortcut here is not worth the risk.

How to Articulate the Suspension Safely

First, park the vehicle on a firm and level surface. Engage the handbrake or parking brake and place the transmission in gear, or select “Park” if the car has an automatic gearbox.

Chock the wheels that will remain on the ground. This helps prevent the vehicle from moving during the test.

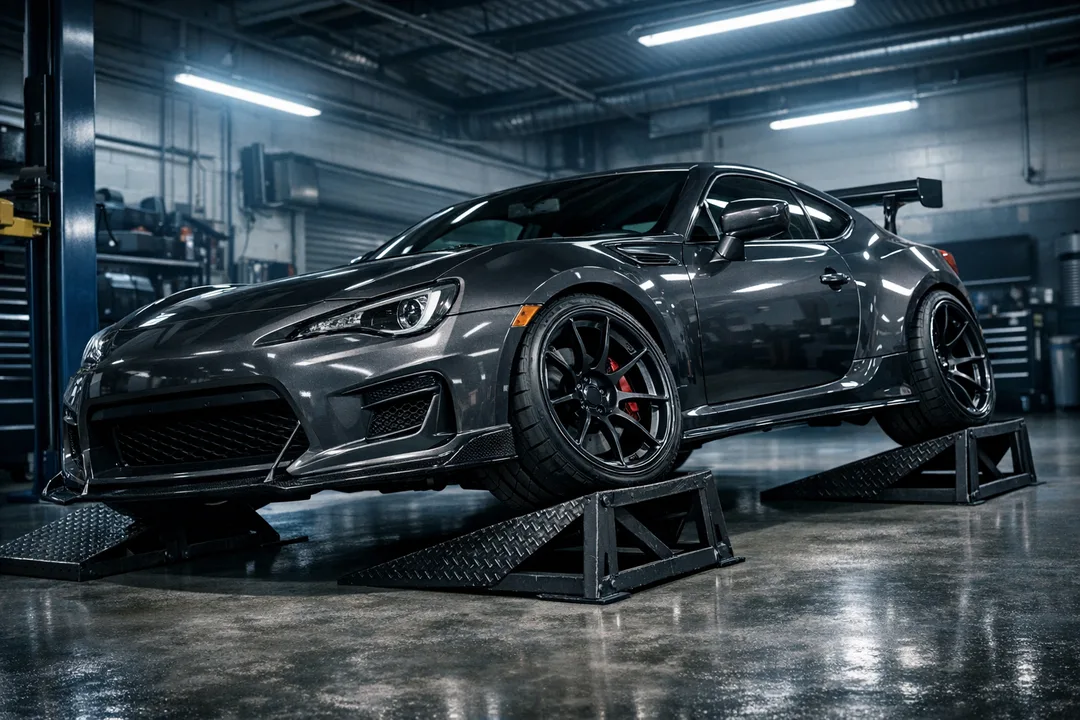

Next, position the ramps or solid loading platforms under two wheels placed diagonally from each other. For example, place one ramp beneath the front-left wheel and another beneath the rear-right wheel.

The platforms should be positioned so the vehicle can eventually rest on all four tires. The goal is not to suspend the car in the air. The goal is to raise two diagonal wheels and allow the vehicle to settle naturally onto the suspension.

If the vehicle is on a lift, lower it slowly and carefully until all four tires are supporting the car. Never inspect clearance while the vehicle is still hanging freely from the lift. That does not represent the way the suspension behaves under the car’s actual weight.

Once the vehicle has settled, check that:

• All four tires are touching their support surface
• The vehicle is stable
• The ramps or blocks have not moved
• No part of the body is resting on the equipment
• The suspension is loaded naturally

Do not climb underneath the vehicle during this test. Wheel clearance can be inspected from outside the car using a flashlight and a helper.

Inspecting Wheel and Tire Clearance

Start by checking the outside edge of each tire. Look closely at the gap between the tire shoulder and the fender lip.

Pay attention to the areas where rubbing commonly occurs:

• The upper rear section of the front wheel arch
• The front edge of the rear wheel arch
• The plastic liner behind the front tire
• The inner sidewall near the suspension
• The fender lip
• The lower bumper corner

Look for direct contact, very small gaps, or marks left by previous rubbing. Fresh scuff marks, shiny plastic, damaged paint, or worn rubber are clear warning signs.

A small gap at rest does not always mean the setup is unsafe. Tire movement, sidewall flex, suspension travel, and steering angle all affect the final result. However, there should be enough space for the tire to move without touching important components.

Never assume that a tire will only touch plastic. If it contacts a brake line, wiring, suspension part, or sharp metal edge, the problem needs to be corrected immediately.

Check the Front Wheels from Lock to Lock

The front wheels require extra attention because they steer.

With the suspension still articulated, slowly turn the steering wheel fully to the left. Inspect the clearance again. Then turn it fully to the right and repeat the inspection.

Check both front corners carefully.

The tire should not touch:

• The fender liner
• The front bumper
• The rear of the wheel arch
• The suspension strut
• The anti-roll bar
• The brake hose
• Any wiring or exposed bodywork

Ask a helper to turn the steering wheel while you watch the tire. This is safer and more accurate than trying to operate the steering and inspect the wheel at the same time.

If you hear a rubbing noise during the test, do not ignore it. Even light contact can become worse when the tire heats up, the sidewall flexes, or the car is carrying passengers and luggage.

Measuring Clearance for Wheel Spacers

Suspension articulation is also useful when selecting the correct wheel spacer thickness.

A spacer moves the wheel and tire outward. This can improve the appearance of the car, but it also reduces the distance between the tire and the fender.

Measure the available space between the tire and the nearest bodywork. Then consider how much additional outward movement the proposed spacer will create.

For example, if there is only a small amount of clearance and you install a thicker spacer, the tire may move directly into the fender lip during suspension compression.

Spacer fitment also depends on more than thickness. You must check:

• Hub-centric fitment
• Bolt or stud length
• Wheel bolt seating type
• Hub engagement
• Wheel offset
• Tire width
• Fender shape
• Suspension height

A spacer that fits the hub but does not provide sufficient hub engagement can create a serious safety problem. Always use quality components designed for the vehicle.

Wheel Offset and Tire Size Matter

Wheel clearance is influenced by the complete wheel and tire combination, not just one measurement.

Two wheels with the same diameter may sit differently if their widths or offsets are different. A lower offset generally moves the wheel farther outward, while a higher offset moves it closer to the suspension.

Tire brands can also vary slightly in their actual dimensions. Two tires marked with the same size may have different tread widths, sidewall shapes, and shoulder designs.

This is why online fitment charts are helpful but should not replace a physical inspection.

When checking clearance, consider:

• Wheel diameter
• Wheel width
• Wheel offset
• Tire width
• Tire profile
• Tire construction
• Suspension height
• Camber settings
• Spacer thickness

Even a small change can make a difference when the available space is limited.

What If the Tire Rubs?

If the tire touches the bodywork, do not simply hope the problem will disappear. Find out exactly where the contact occurs and correct the cause.

Possible solutions may include:

• Using a narrower tire
• Choosing a different wheel offset
• Fitting a thinner spacer
• Rolling the fender lip professionally
• Adjusting the ride height
• Repositioning or replacing the wheel liner
• Correcting excessive camber
• Selecting a different wheel design

Some changes can affect handling, tire wear, and legal compliance. Lowering the car further may improve appearance but can reduce suspension travel and make rubbing more likely.

Avoid cutting structural bodywork or removing important protective components without expert advice. The wheel arch liner often protects electrical wiring, sensors, and bodywork from water and debris.

Common Mistakes to Avoid

One of the most common mistakes is checking only the front wheels. Rear suspension movement can also create rubbing, especially on cars with wide rear tires or lowered suspension.

Another mistake is testing with the wrong tire pressure. Use the manufacturer’s recommended cold tire pressure unless a qualified specialist advises otherwise.

It is also easy to overlook the inside of the wheel. Many people focus on the fender but forget to check the distance between the inner tire sidewall and the suspension.

Do not test only with an empty car if the vehicle will regularly carry passengers or luggage. Additional weight compresses the suspension and can reduce clearance.

Finally, never rely only on what you can see. Run your hand carefully around accessible areas, use a flashlight, and inspect for marks after a short road test. Some rubbing only appears when the tire is moving.

Why This Test Matters

A wheel and tire setup should do more than look good while the car is parked. It must remain safe during braking, cornering, steering, suspension movement, and everyday driving.

A proper articulation test gives you a much clearer picture of real-world clearance. It can prevent damaged tires, scratched bodywork, broken liners, and unpleasant surprises after fitting new parts.

It is also a useful preparation step before a vehicle inspection. Some inspection stations may carry out their own clearance checks using similar suspension-loading methods.
