If you spend any real time troubleshooting modern automotive electronics, you already know the frustration: a vehicle limps into the shop with a mysterious no-start or misfire, and every sensor on the scan tool checks out fine. At that point, all fingers point directly to the engine control unit—the ECU.

Pulling a unit and declaring it dead without bench testing is a risky guessing game. Replacing or cloning an ECU gets expensive fast, and if the real culprit was a shorted harness or bad ground on the vehicle side, your shiny new module might fry the second you turn the key.

Bench testing gives you a controlled environment. You isolate the module, supply clean power, and verify whether the board wakes up, communicates, and processes signals properly.

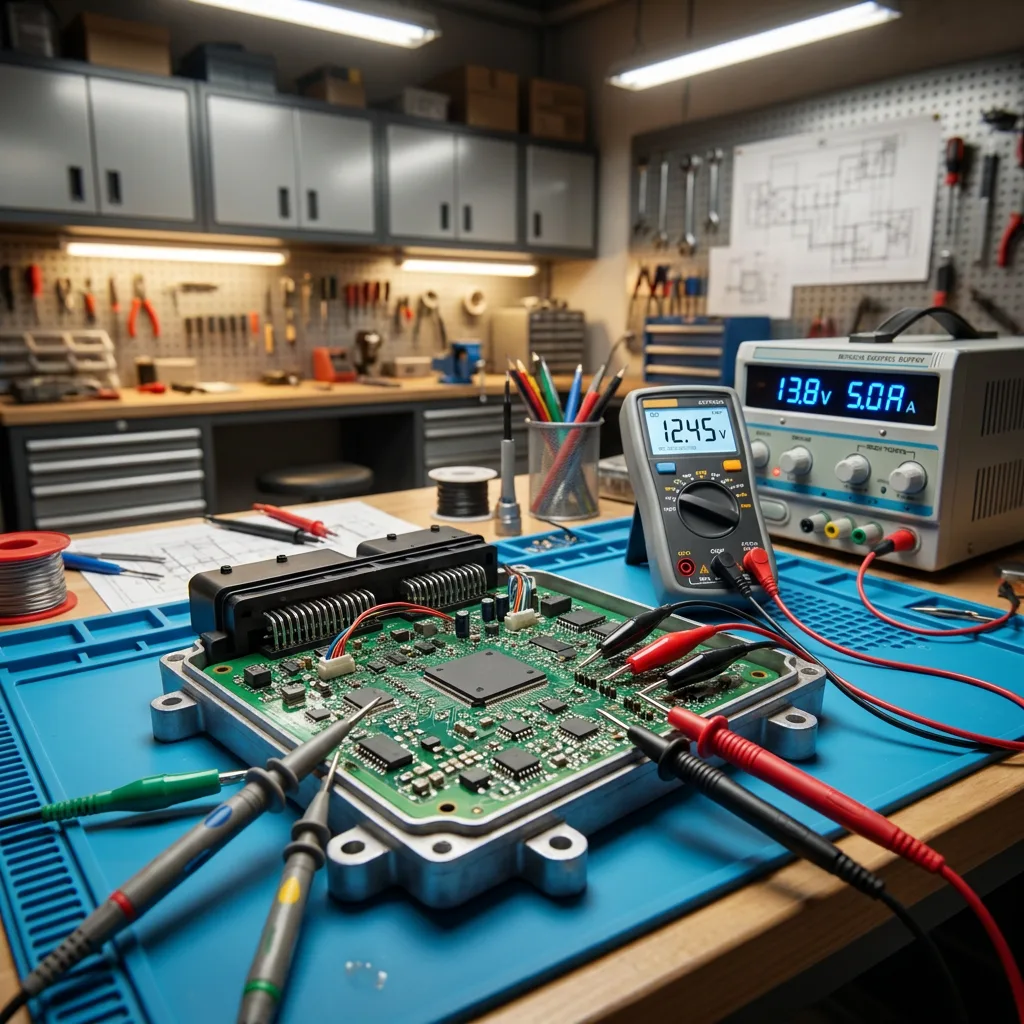

Here is a step-by-step breakdown of how to set up, power on, and diagnose an automotive ECU on your workbench safely.

Workshop Tools You Need Before Starting

Before bringing any board near power, line up the essential tools on your bench:

• Variable DC Power Supply: A regulated unit with adjustable current limiting (0–30V, 0–5A) is non-negotiable. Current limiting prevents a shorted board from turning into a smoke show.
• Factory Wiring Diagrams & Pinout Diagrams: Never guess power and ground locations. Double-check pin arrangements using verified service data.
• Digital Multimeter (DMM): For checking continuity, resistance, and voltage drops across board traces.
• Oscilloscope: Essential for viewing CAN bus communication waveforms, crank/cam position sensor signals, and driver outputs.
• CAN Interface or OBD Breakout Box: Allows you to hook up a diagnostic scan tool directly to the module on the bench.
• ESD (Electrostatic Discharge) Mat & Grounding Wrist Strap: Sensitive microcontrollers on modern automotive modules hate static electricity.

Step 1: Physical & Visual Inspection

Always inspect the physical board before connecting power. Opening the housing carefully gives you instant context:

1. Smell Check: Burnt copper traces or failed driver ICs leave a distinct odor.
2. Visual Clues: Look for swollen or leaking electrolytic capacitors, cracked solder joints around header pins, or corrosion from water ingress.
3. Short-to-Ground Check: Set your multimeter to continuity mode. Place one probe on the main ground pins and sweep the main power pins (Constant B+ and Switched Ignition). If you hear a continuous beep, stop immediately—you have a shorted component or capacitor on the main power rail that needs repair before power-up.

Step 2: Setting Up Bench Power Safely

Setting up power incorrectly is the fastest way to ruin a repairable module.

1. Set the Voltage: Adjust your bench power supply to 12.6V – 13.8V DC, mimicking standard automotive battery voltage.
2. Set the Current Limit: Dial the current limit down to roughly 300mA to 500mA (0.3A – 0.5A) for an initial boot check. An idle ECU rarely pulls more than 150–300mA on the bench without external loads attached.
3. Connect Grounds First: Secure your main ground wires to the correct header pins using high-quality pin jumpers or a dedicated bench harness.
4. Connect Constant Power (Terminal 30): Hook up main battery power pins.
5. Simulate Ignition Power (Terminal 15): Apply ignition power to trigger the internal wake-up circuit.

Watch your power supply display closely when applying ignition. If the unit hits your current limit instantly and drops voltage to near zero, turn off power right away—there is an active short circuit on the board.

Step 3: Verifying Internal Voltage Regulators

Once the power supply shows a steady, normal current draw (around 150mA–250mA), check internal voltage rails:

• 5V Reference Line: Most engine sensors run on a clean 5V reference supplied directly by the module. Probe the 5V reference output pins on the main connector. If you measure 0V or significantly less than 5V (e.g., 2.1V), the internal power management IC or a filtering capacitor on that line has failed.
• Microcontroller VDD (3.3V or 5V): Locate internal test pads near the main processing chip to ensure the processor itself receives regulated voltage.

Step 4: Establishing OBD Diagnostic Communication

If the power rails check out, verify whether the board’s processor actually boots up and runs firmware:

1. Connect CAN High and CAN Low pins from the module to your OBD breakout box or USB-to-CAN interface.
2. Terminate the CAN bus properly (verify ~60 ohms resistance across CAN-H and CAN-L lines if built-in termination resistors are present).
3. Plug in your diagnostic scan tool and attempt a auto-detect or manual connection to the module.

If the scan tool reads live data, pulls fault codes, and displays the VIN, the board’s primary processor, EEPROM/Flash memory, and transceiver circuits are working properly.

Step 5: Signal Simulation & Output Testing

For in-depth diagnostics, test how the board processes inputs and drives outputs:

• Crankshaft / Camshaft Sensor Simulation: Use a signal generator to send a square wave (Hall sensor) or sine wave (VR sensor) into the module’s position inputs.
• Injector & Ignition Drivers: Connect LED test lights or an oscilloscope to the injector or coil driver pins on the connector. As you inject simulated RPM signals, watch for the driver transistors pulling those outputs to ground in sequence.

Bench testing an automotive ECU saves hours of guesswork and prevents unnecessary module replacements. By isolating the hardware on your workbench, verifying basic power rails, and establishing clean communication, you can pinpoint component-level faults with total confidence.
