An engine control unit, commonly called an ECU, is one of the most important electronic modules in a modern vehicle. It controls fuel injection, ignition timing, throttle operation, emissions systems, turbocharger pressure, sensors, and many other engine functions.

When an ECU fails, the symptoms can be confusing. The vehicle may refuse to start, run poorly, lose communication with a scan tool, or show several unrelated fault codes at the same time. In some cases, the problem is caused by a damaged circuit board. In others, the ECU is working correctly and the real fault is a wiring issue, a failed sensor, a weak battery, or poor grounding.

That is why a careful ECU inspection matters.

Replacing an ECU without confirming the fault can be expensive, especially when the replacement unit requires coding, programming, immobilizer matching, or software configuration. A proper inspection helps you understand what failed, whether repair is practical, and what caused the damage in the first place.

This guide explains how to inspect a damaged ECU in a safe and methodical way.

What Is an ECU?

The ECU is a computer designed to manage the engine and related systems. Inside the housing is a printed circuit board containing electronic components such as:

• Microprocessors
• Voltage regulators
• Transistors
• Diodes
• Capacitors
• Resistors
• Communication drivers
• Injector and ignition drivers
• Memory chips
• Power supply circuits
• Protection components
• Connectors and terminals

The ECU receives information from sensors, processes that information, and sends commands to actuators. For example, it may use engine speed, coolant temperature, throttle position, air pressure, and oxygen sensor readings to calculate the correct fuel and ignition settings.

Because the ECU is connected to many electrical systems, a short circuit or incorrect voltage from outside the module can damage components inside it.

Common Symptoms of a Damaged ECU

Before opening an ECU, record the vehicle’s symptoms and scan tool results. This information can help connect the physical damage to the original fault.

Common signs of ECU failure include:

1. No communication with the diagnostic scanner

If a scan tool cannot communicate with the ECU, possible causes include:

• No power supply to the ECU
• A missing or weak ground
• Damaged CAN bus wiring
• A blown fuse
• A failed communication driver
• Internal ECU power supply failure
• Water or corrosion damage

No communication does not automatically prove that the ECU is defective. Always test the vehicle wiring and power supply first.

2. The engine will not start

A completely dead ECU may prevent fuel injection, ignition, throttle operation, or immobilizer communication. However, a no-start problem can also come from a failed crankshaft sensor, fuel pump, ignition system, battery, or wiring fault.

3. Multiple unrelated fault codes

A sudden group of fault codes across different systems may suggest an ECU power or communication problem. For example, several sensors may appear to fail at once because the ECU has lost a shared reference voltage.

4. Repeated fuse failure

If an ECU-related fuse blows immediately after installation or ignition is switched on, there may be a short circuit inside the ECU or in the vehicle harness.

5. Unstable engine operation

A damaged ECU may cause:

• Random stalling
• Poor throttle response
• Misfires
• Incorrect fuel mixture
• High or low idle speed
• Cooling fan operation at the wrong time
• Turbocharger control problems
• Intermittent starting

6. Visible signs of overheating or water entry

A burnt smell, melted casing, green corrosion, white residue, or moisture inside the housing should be treated seriously.

Tools Needed for ECU Inspection

A professional inspection does not always require expensive equipment, but the tools must be suitable for delicate electronics.

Recommended tools include:

• ESD-safe work mat
• ESD wrist strap
• Digital multimeter
• Adjustable bench power supply
• Current-limiting power supply
• Inspection lamp
• Digital microscope or magnifying glass
• Fine test probes
• Soldering station
• Hot-air rework station
• Flux and solder
• Isopropyl alcohol
• Soft anti-static brush
• Contact cleaner suitable for electronics
• Oscilloscope
• ECU breakout harness or test adapter
• Component datasheets
• Vehicle wiring diagrams

Avoid using ordinary screwdrivers, ungrounded soldering irons, or uncontrolled bench power. Modern ECU circuits can be damaged by static electricity or incorrect voltage in seconds.

Step 1: Confirm the ECU Is the Actual Problem

The first rule of ECU repair is simple: do not open the ECU until the vehicle-side checks are complete.

Before removing the module, check:

1. Battery voltage
2. Battery terminals
3. Main grounds
4. ECU fuses
5. ECU power relays
6. Connector condition
7. CAN high and CAN low wiring
8. Sensor reference voltage
9. Water entry around the ECU location
10. Any recent jump-start, battery replacement, welding, or wiring work

Use the vehicle wiring diagram to identify the ECU’s permanent battery supply, switched ignition supply, grounds, communication lines, and output circuits.

A multimeter can confirm whether power and ground reach the ECU connector. A voltage drop test is especially useful. A wire may show correct voltage with no load but fail when current is required.

If the ECU has no power, repairing the circuit board will not solve the problem.

Step 2: Record the ECU Details

Before removing the unit, take clear photographs of:

• ECU position
• Connector arrangement
• Mounting direction
• Part number
• Hardware number
• Software number
• Vehicle identification label
• Connector pins
• Any corrosion or water marks

ECUs that look similar may have different software, pin configurations, or immobilizer systems. The exact part number is important when sourcing a replacement or comparing repair information.

Keep all screws, brackets, seals, and covers together. Missing screws or a damaged seal can create a second problem after the repair.

Step 3: Inspect the ECU Housing

Once the ECU is removed, begin with the outside. Do not immediately open the casing.

Look for:

• Cracks
• Bent or damaged connectors
• Melted plastic
• Burn marks
• Missing cover screws
• Damaged seals
• Signs of impact
• Moisture around the connector area
• Oil contamination
• Mud or road salt
• Evidence of previous repair

Water often enters through the connector side or a damaged seal. Oil contamination may come from an engine wiring harness, particularly when oil travels through sensor wiring.

A damaged casing does not always mean the circuit board is beyond repair, but moisture and contamination should be investigated before power is applied.

Step 4: Open the ECU Carefully

ECU housings are sealed in different ways. Some use screws, while others are bonded, crimped, or sealed with resin.

Use the correct method for the casing. Avoid forcing a sharp tool deep into the housing because it can cut the circuit board, connector wiring, or internal components.

While opening the ECU:

• Work on an ESD-safe surface
• Avoid excessive heat
• Do not bend the circuit board
• Mark the original cover position
• Photograph the inside before cleaning
• Keep sealant debris away from the board

If the ECU is filled with hard resin or potting compound, aggressive removal can cause more damage than the original fault. Resin removal is a specialist task and should be approached slowly.

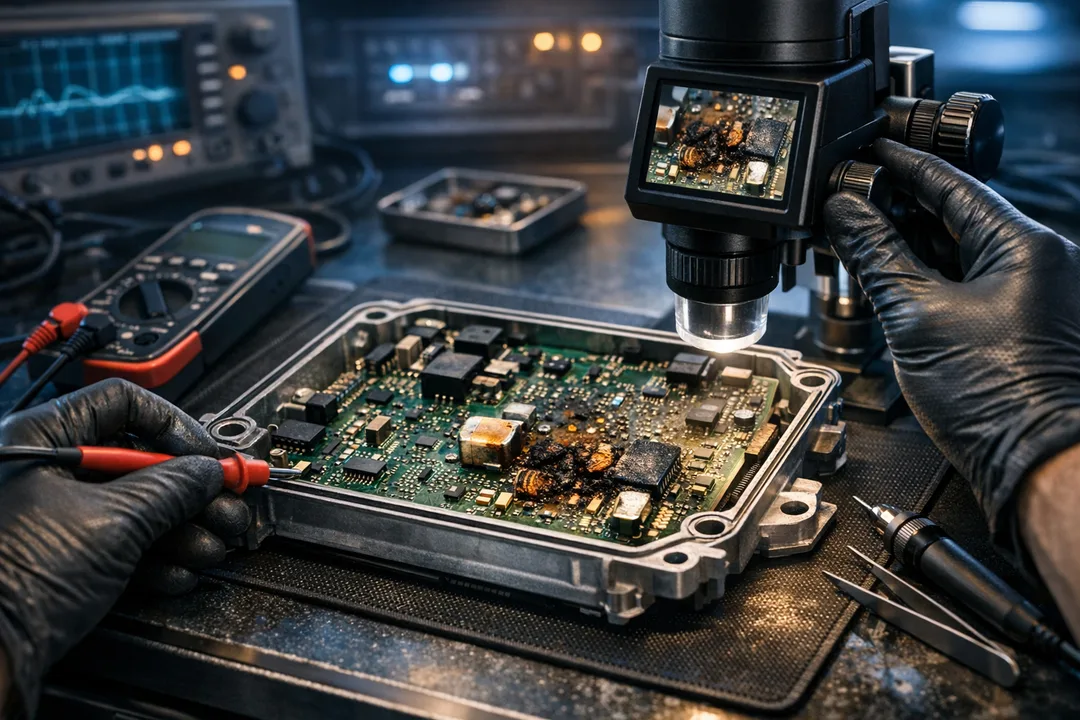

Step 5: Inspect the Circuit Board Under Magnification

A visual inspection under magnification is one of the most valuable parts of ECU diagnosis.

Check both sides of the board for:

Burnt components

Burnt resistors, transistors, diodes, or integrated circuits may indicate a shorted actuator, reverse polarity event, jump-start problem, or excessive voltage.

A black mark around a component is useful evidence, but replacing the visibly damaged part alone may not fix the ECU. The part could have failed because another circuit caused the damage.

Cracked solder joints

Cracked solder joints are common near:

• Large connectors
• Relays
• High-current pins
• Coils
• Heavy components
• Mounting points

Thermal cycling and vibration can create small cracks that cause intermittent faults.

Corrosion

Corrosion may appear as:

• Green or blue deposits
• White powder
• Darkened copper tracks
• Missing solder
• Swollen or damaged components
• Corroded connector pins

Surface corrosion can sometimes be cleaned. Deep corrosion may have eaten through copper tracks or damaged internal layers of the circuit board.

Damaged tracks and vias

A circuit track may be open, lifted, or partially burned. Small holes called vias connect different board layers. If a via is damaged, the visible surface may look normal while the electrical connection is broken.

Swollen or leaking capacitors

Electrolytic capacitors can age, leak, or swell. A leaking capacitor may damage nearby copper tracks and components.

Water stains and residue

Water damage often leaves marks around the edges of the board, near connectors, or below components. Even after the board appears dry, minerals and contaminants may remain conductive.

Step 6: Clean Contamination Before Testing

If the board has dirt, light corrosion, or moisture residue, cleaning may reveal the actual damage.

Use:

• Electronics-grade isopropyl alcohol
• A soft anti-static brush
• Low-pressure air
• Lint-free wipes

Do not scrape aggressively. Delicate copper tracks can lift from the board.

Avoid household cleaners, tap water, oily contact sprays, and excessive compressed air. Some products leave residue or force contamination deeper into connectors and components.

After cleaning, allow the ECU to dry fully before applying power. A board that looks dry may still hold moisture beneath components or inside connectors.

Step 7: Check for Short Circuits

Before powering the ECU, use a multimeter to check resistance between the main power supply and ground.

A very low resistance may indicate:

• Shorted protection diode
• Failed voltage regulator
• Shorted capacitor
• Damaged communication driver
• Burnt processor supply circuit
• Internal power transistor failure

However, resistance readings can be misleading. Some circuits naturally show low resistance, and capacitors may initially appear shorted while charging from the meter.

Take readings in both directions and compare them with a known-good ECU when possible. Never apply high voltage simply to “see what happens.” That approach can turn a repairable ECU into a permanently damaged one.

Step 8: Test the ECU With Current-Limited Power

A current-limited bench power supply provides better protection than connecting the ECU directly to a vehicle battery.

Use the correct voltage and pinout for the specific ECU. Confirm:

• Main battery supply pins
• Ignition supply pins
• Ground pins
• Wake-up or enable circuits
• CAN communication pins

Set a conservative current limit and monitor the current draw.

An ECU that immediately reaches the current limit may have a serious short. An ECU with no current draw may have an open power path, a failed input protection device, or an incorrect bench connection.

The current reading alone does not identify the failed component. It simply helps divide the problem into a power-related fault, communication fault, or logic-stage fault.

Step 9: Inspect the Power Supply Section

The ECU power supply section converts vehicle voltage into stable internal voltages. It commonly includes:

• Fuse or fusible link
• Reverse-polarity protection
• Transient voltage suppression diode
• Switching regulator
• Linear regulators
• Inductors
• Filter capacitors

This section is often damaged by:

• Reverse battery connection
• Incorrect jump-starting
• Voltage spikes
• Alternator failure
• Welding on the vehicle without proper precautions
• Shorted external wiring

Start by following the power path from the connector. Check for continuity through protective components and confirm whether regulated voltage reaches the processor and memory circuits.

Do not replace a protection component with a higher-rated part without understanding its purpose. The original component may be designed to sacrifice itself and protect more expensive electronics.

Step 10: Check Communication Circuits

Modern vehicles rely heavily on CAN bus communication. A failed CAN transceiver can prevent communication with the ECU or disturb the entire network.

Inspect the communication area for:

• Burnt transceiver chips
• Cracked solder joints
• Corrosion near the connector
• Damaged CAN protection components
• Shorted communication lines
• Broken tracks

Before blaming the ECU, check the vehicle network with the module disconnected. A shorted wiring harness, aftermarket device, alarm system, tracker, or damaged control module can pull down the CAN network.

An oscilloscope is helpful when checking CAN signals. Healthy communication normally shows symmetrical signal activity, while a flat line or distorted waveform may indicate a wiring or transceiver problem.

Step 11: Test Driver Circuits and External Loads

ECU output drivers control devices such as:

• Fuel injectors
• Ignition coils
• Throttle motors
• EGR valves
• Turbocharger solenoids
• Cooling fans
• Fuel pumps
• Variable valve timing solenoids

A shorted external component can damage the ECU driver. This is why the vehicle-side load must be tested before the repaired ECU is returned to the car.

Measure the resistance of the injector, coil, solenoid, or actuator. Check the harness for short circuits to ground, battery voltage, or other wires.

Replacing an ECU driver without fixing the shorted actuator may cause the replacement driver to fail immediately.

Water-Damaged ECU Inspection

Water damage requires extra care. Even a small amount of moisture can create long-term corrosion.

When inspecting a water-damaged ECU:

1. Photograph the board before cleaning.
2. Locate the highest area of contamination.
3. Check connector pins and nearby vias.
4. Remove visible residue carefully.
5. Inspect under chips and connectors.
6. Test power rails for shorts.
7. Check for damaged copper tracks.
8. Look for corrosion beneath protective coatings.

If corrosion has reached the processor, memory, or multilayer board, repair may not be economically sensible. In other cases, replacing a few components and rebuilding damaged tracks can restore the module.

When Is an ECU Repairable?

An ECU is often repairable when the fault involves:

• A failed power regulator
• A damaged protection diode
• A cracked solder joint
• A failed relay
• A damaged communication transceiver
• A burnt injector or ignition driver
• Minor corrosion
• Broken copper tracks
• A failed capacitor

Repair becomes more difficult when there is:

• Severe processor damage
• Extensive water corrosion
• Burned internal board layers
• Missing circuit board sections
• Damaged immobilizer data
• Destroyed memory
• Unknown previous modifications
• Severe resin damage from earlier repair attempts

A professional decision should consider both technical feasibility and cost. A successful repair also requires testing the original cause of failure.

Common ECU Inspection Mistakes

Avoid these common errors:

Applying power before checking for shorts

This can increase the damage and destroy components that were still usable.

Replacing only the burnt component

The visible failure may be a symptom rather than the original cause.

Ignoring the vehicle wiring

A repaired ECU can fail again if the harness, actuator, battery, or alternator is faulty.

Cleaning too aggressively

Scraping corrosion can remove copper tracks and solder pads.

Using the wrong replacement ECU

Part numbers, software versions, immobilizer systems, and pinouts must match.

Skipping final testing

An ECU should be tested on the bench and, where appropriate, in the vehicle after repair.

Final Testing After ECU Repair

After the damaged ECU has been repaired, test it in stages:

1. Confirm there are no power-to-ground shorts.
2. Apply power with a current-limited supply.
3. Check internal voltage rails.
4. Confirm diagnostic communication.
5. Read and clear fault codes.
6. Test communication with related modules.
7. Verify sensor reference voltage.
8. Check actuator outputs carefully.
9. Install the ECU in the vehicle.
10. Test starting, idle quality, throttle response, and road operation.

Monitor live data and confirm that the original symptoms have been resolved. A vehicle may start after repair but still have an unresolved communication, sensor, or actuator problem.

Learn Professional ECU Hardware Repair

Inspecting a damaged ECU is a practical skill that combines automotive diagnostics, electronics, soldering, circuit analysis, and careful testing.

For technicians who want to build stronger ECU repair skills, the ECU Hardware Repair Course Online can provide structured training in circuit-board inspection, component testing, power supply diagnosis, communication faults, and repair techniques.

JOIN ECU Hardware Repair COURSE ONLINE

AUTOCODEWORKS
