The hot-wire air mass meter, commonly called a MAF sensor, is one of the most important sensors in a modern diesel engine. It measures the amount of air entering the engine and sends this information to the engine control unit.
Although the sensor is small, its readings influence fuel delivery, exhaust gas recirculation and overall engine performance. When the air mass signal becomes inaccurate, the vehicle may lose power, produce black smoke or enter limp-home mode.
This guide explains how the hot-wire air mass meter works, where it is installed, how its electrical signals are used and what to check when a fault is suspected.
What Is a Hot-Wire Air Mass Meter?
A hot-wire air mass meter measures the actual mass of air entering the engine. Unlike a simple airflow sensor, it does not only measure air volume. It also considers the effect of air temperature and density.
This is important because the engine needs to know how much oxygen is entering the cylinders. The quantity of fuel must then be adjusted to match the available air.
A hot-wire air mass meter is different from a hot-film air mass meter. Both sensors use a heated element to measure airflow, but their internal construction and signal processing are different.
In many BMW diesel applications, including engines using DDE control systems, the hot-wire air mass meter is mounted in the clean-air pipe after the intake silencer and before the turbocharger.
The sensor normally performs two jobs:
- Measuring engine intake air mass
- Measuring intake air temperature
The air mass information is sent to the DDE control unit, where it is used to calculate fuel quantity and control exhaust gas recirculation.
Why the Air Mass Signal Matters
The engine control unit needs accurate airflow information to keep combustion clean and efficient.
The air mass signal is mainly used for:
- Calculating the maximum fuel quantity
- Controlling exhaust gas recirculation
- Monitoring turbocharger operation
- Checking engine load
- Managing smoke limitation
- Supporting emissions control
- Detecting air intake or boost system faults
When the sensor reports less air than is actually entering the engine, the control unit may reduce fuel delivery. This can result in poor acceleration and low power.
When the sensor reports more air than is available, the engine may receive too much fuel for the actual amount of oxygen. On a diesel engine, this can contribute to black smoke and poor combustion.
The sensor does not work alone. The DDE compares its signal with other information, including engine speed, boost pressure, intake temperature, throttle position and exhaust gas recirculation operation.
How a Hot-Wire Air Mass Meter Works
Inside the sensor is an electrically heated platinum wire. This wire extends into the airflow passing through the sensor housing.
The operating principle is straightforward:
- The platinum wire is heated electrically.
- The control circuit keeps the wire at a constant temperature.
- Air flowing across the wire removes heat.
- Higher airflow removes more heat.
- The circuit increases electrical energy to maintain the wire temperature.
- The required electrical energy is converted into an air mass signal.
The greater the airflow, the more energy is needed to keep the platinum wire hot.
This allows the sensor to measure air mass rather than simply measuring the speed of the airflow. As a result, the reading remains useful under different air pressure and temperature conditions.
A small internal labyrinth helps guide the airflow over the sensing element. It also reduces the effect of turbulence, pressure waves and pulsations inside the intake system.
Because of this design, the sensor can provide a stable reading even when airflow is not perfectly smooth.
Integrated Intake Air Temperature Sensor
The hot-wire air mass meter also contains an intake air temperature sensor.
This sensor measures the temperature of the incoming air before it reaches the exhaust gas turbocharger. The temperature reading helps the DDE calculate air density and interpret the air mass signal correctly.
Cold air is denser than hot air. This means the same physical volume of cold air contains more oxygen than the same volume of hot air.
Accurate temperature information is therefore important for:
- Fuel calculation
- Smoke control
- Turbocharger monitoring
- EGR regulation
- Fault diagnosis
- Air density correction
A fault in the temperature section can sometimes be mistaken for a fault in the air mass measurement section. This is why both signals should be checked during diagnosis.
Hot-Wire Air Mass Meter Location
On the relevant BMW diesel systems, the hot-wire air mass meter is installed in the clean-air intake pipe.
It is usually located:
- After the air filter
- After the intake silencer
- Before the turbocharger
- Near the air filter housing or intake duct
The installation position is important. The sensor must measure the air entering the engine before the turbocharger compresses it.
The airflow must also be clean. Dirt, oil vapour and water contamination can affect the sensing element and change the sensor’s characteristic curve.
An incorrectly fitted air filter, damaged intake hose or loose clamp can create turbulence near the sensor. This may produce an inaccurate reading even when the sensor itself is not electrically defective.
Pin Assignment and Electrical Connections
The exact connector layout can vary by engine and sensor version, so the vehicle wiring diagram should always be used before testing.

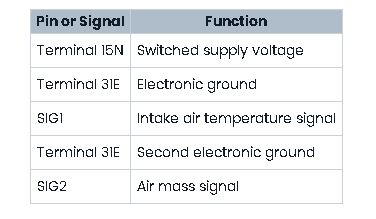

A typical hot-wire air mass meter uses the following connections:
On DDE7 applications used with N47 technical revisions and N57 engines, the sensor is supplied and monitored through the following circuits:
- Supply voltage is provided through terminal 87, also identified as U_HR, 15N or 87.
- The DDE control unit supplies the sensor ground through the M_HFM circuit.
- The air mass signal is returned to the DDE through the T_HFM circuit.
Before condemning the sensor, inspect the connector and wiring carefully. A poor terminal connection, damaged ground wire or water inside the plug can create symptoms that look exactly like a failed MAF sensor.
Understanding the PWM Air Mass Signal
The air mass meter returns its reading through a square-wave signal.
On the specified DDE system, the signal has:
- An amplitude of approximately 5 volts
- A frequency between about 1.2 and 14 kHz
- A period between approximately 0.8 and 0.07 milliseconds
The DDE control unit calculates the air mass from the frequency of this signal. The value is commonly processed in milligrams per stroke, written as mg/stroke.
The sensor does not simply send a fixed voltage that rises with airflow. Instead, the frequency of the signal changes according to the measured air mass.
This is an important point during testing. A digital multimeter may not display the signal correctly. An oscilloscope or suitable diagnostic equipment is normally required to observe the square-wave pattern and confirm whether the signal changes smoothly as engine speed and load increase.
A stable frequency that does not react to changing airflow may indicate a sensor, wiring or power supply problem.
General Technical Data

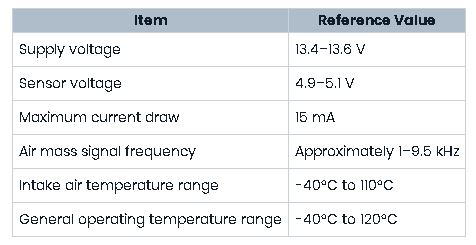

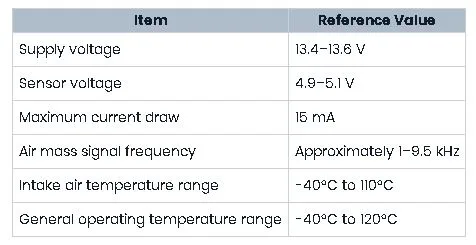

The following values are useful reference figures for the hot-wire air mass meter system:
These figures should be treated as technical reference values rather than universal pass-or-fail limits. The correct specification depends on the vehicle, engine, software version and sensor part number.
A sensor can show a reasonable electrical value while still producing an inaccurate airflow reading. For that reason, live-data analysis and comparison with engine operating conditions are often more useful than checking resistance alone.
Common Symptoms of a Faulty MAF Sensor
A contaminated, aged or damaged hot-wire air mass meter may cause one or more of the following symptoms:
- Reduced engine power
- Slow acceleration
- Poor throttle response
- Black smoke from the exhaust
- Increased fuel consumption
- Rough running
- Difficulty controlling the EGR system
- Turbocharger control problems
- Limp-home mode
- Engine warning light
- Stored air mass plausibility faults
- Poor performance under load
A low air mass reading can make the engine feel flat, especially during acceleration. The vehicle may still start and idle normally, but power may disappear when the turbocharger begins to build boost.
Black smoke is also a common clue. It may occur when the control unit believes more air is available than the engine is actually receiving.
However, these symptoms do not automatically prove that the MAF sensor is defective. A blocked air filter, split intake hose, boost leak, EGR problem or restricted exhaust system can create similar results.
What Causes Air Mass Meter Problems?
The sensor operates in a difficult environment. Over time, the sensing element may be affected by:
- Dust and dirt
- Oil vapour from the crankcase ventilation system
- Water contamination
- Incorrectly fitted air filters
- Intake leaks
- Excessive vibration
- Electrical corrosion
- Age-related drift
- Turbocharger oil contamination
- Poor-quality replacement parts
As contamination builds up, the sensor’s characteristic curve can move away from its original target value.
The sensor may still produce a signal, but the signal may no longer represent the true amount of air entering the engine. This is one reason why a MAF sensor can cause poor performance without showing an obvious open-circuit or short-circuit fault.
How to Diagnose a Hot-Wire Air Mass Meter
A proper diagnosis should begin with a visual inspection.
1. Check the intake system
Inspect the following areas:
- Air filter condition
- Air filter housing seal
- Intake pipe clamps
- Flexible rubber hoses
- Turbocharger inlet pipe
- Sensor housing
- Crankcase ventilation connections
Any air entering after the sensor will not be measured correctly. This can make the DDE believe that less air is entering the engine than is actually passing through the intake system.
2. Inspect the connector
Look for:
- Bent terminals
- Loose pins
- Corrosion
- Oil contamination
- Water ingress
- Broken locking tabs
- Damaged wiring insulation
Gently moving the harness while watching live data can sometimes reveal an intermittent connection.
3. Check power and ground
Use the correct wiring diagram and back-probe the circuit carefully. Confirm that the sensor receives the specified supply voltage and that the ground circuit has a reliable connection.
Do not rely only on a visual check. A ground wire may appear intact but develop excessive voltage drop under operating conditions.
4. Check live data
Compare the measured air mass with the expected value at:
- Idle
- Light acceleration
- Full-load acceleration
- Different engine speeds
- EGR operating conditions
A reading that remains fixed, reacts slowly or changes unpredictably deserves further investigation.
5. Check the signal waveform
An oscilloscope can display the square-wave output. The frequency should change smoothly as airflow changes.
A missing signal, distorted waveform or frequency that remains unchanged may indicate a sensor or circuit fault.
Air Mass Meter Adaptation After Replacement
The hot-wire air mass meter is affected by adaptation values stored in the DDE control unit.
During normal operation, the control unit may learn correction factors to compensate for small changes caused by sensor aging or contamination.
When a new sensor is installed, the stored correction factors may no longer match the new component. For this reason, the service function “Adaptation of air mass meter” should be carried out after replacement.
This procedure resets the stored correction factors to zero and allows the DDE to learn the characteristics of the replacement sensor.
Skipping adaptation may lead to:
- Incorrect air mass calculations
- Continued low-power symptoms
- Incorrect EGR control
- Unnecessary fault codes
- Confusing live-data readings
The adaptation procedure should be performed with suitable diagnostic equipment. The exact menu name can vary depending on the diagnostic platform and DDE software version.
Cleaning or Replacing the Sensor
Some technicians clean a contaminated MAF sensor with a dedicated air flow meter cleaner. If cleaning is attempted, use only a product designed for sensitive airflow sensors.
Avoid:
- Touching the platinum wire
- Using a brush
- Using compressed air directly on the sensing element
- Applying brake cleaner
- Spraying oil-based products
- Scraping deposits from the sensor
The sensing wire is delicate. Physical contact can permanently damage it.
Cleaning may help when contamination is light, but it is not a guaranteed repair. If the sensor has aged or its internal electronics are damaged, replacement is the correct solution.
Use a high-quality replacement part with the correct calibration for the engine. A sensor that physically fits the connector may still have an incorrect characteristic curve.
MAF Sensor and MAP Sensor: What Is the Difference?
The hot-wire air mass meter and the MAP sensor perform different jobs.
The MAF sensor measures the mass of air entering the engine before the turbocharger.
The MAP sensor measures pressure in the intake manifold or charge-air system. Depending on the vehicle, it may measure boost pressure and sometimes intake temperature as well.
The DDE uses both measurements to assess engine operation. If the MAF reading and MAP reading do not agree with expected engine conditions, the control unit may store a plausibility fault.

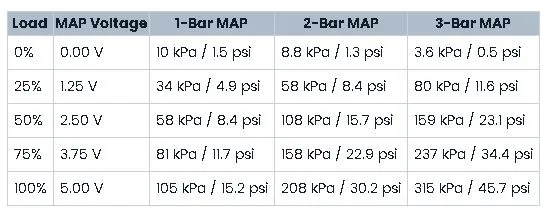

The reference table in image.png shows MAP voltage and pressure values for 1-bar, 2-bar and 3-bar MAP sensors. These values are useful when checking pressure sensor calibration, but they should not be confused with the hot-wire MAF signal.
For example, the MAP table uses voltage to represent pressure, while the MAF system described here sends air mass information through a frequency-based square-wave signal.
MAP Sensor Reference Values

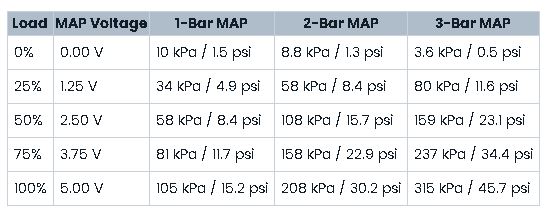

The supplied chart includes the following useful reference points:
These values are included as a reference for MAP sensor testing. Always confirm the sensor type and manufacturer data before using a table for diagnosis.
The hot-wire air mass meter is a key part of modern diesel engine management. It measures intake air mass, supports fuel calculation and helps the DDE control exhaust gas recirculation.
When it becomes contaminated or begins to age, the symptoms can be frustrating because the engine may still run while producing incorrect data. A careful diagnosis should include the air intake system, connector, power supply, ground, live data and signal waveform.
Replacing the sensor without checking for intake leaks or wiring problems can lead to unnecessary expense. After installing a replacement, the air mass meter adaptation procedure should also be completed.
Correct testing and calibration are the best ways to restore engine performance, reduce smoke and avoid repeated MAF-related faults.
