Modern vehicles depend on electronic control units for almost everything. Engine performance, automatic transmissions, air conditioning, airbags, ABS, lighting, fuel injection, and many other systems are controlled by computer modules. When one of these units develops a fault, finding the problem can take time, patience, and the right test equipment.

That is where a VI curve tester can make a real difference.

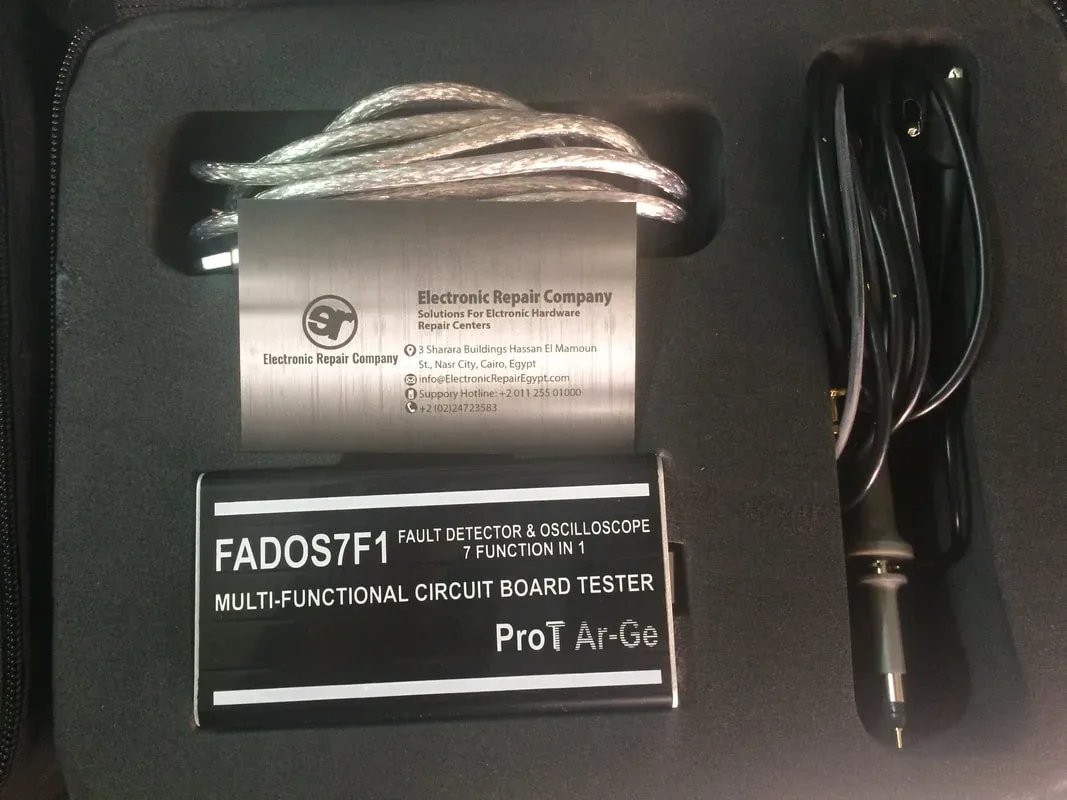

The FADOS7F1-18V VI Curve Tester is designed to help technicians test electronic boards and identify unusual component behavior without relying only on guesswork. It can be used for ECU testing, circuit-board diagnosis, component comparison, and recording results with photos. For automotive repair professionals, this makes it a useful addition to a well-equipped electronics workbench.

What Is a VI Curve Tester?

A VI curve tester checks the relationship between voltage and current inside an electronic circuit. The result is shown as a visual curve on the display or computer screen.

Every electronic component has a typical electrical response. A diode, resistor, capacitor, transistor, integrated circuit, or protection component creates a different curve. When a part is damaged, shorted, open, or electrically weak, the curve may look different from a known-good component.

This gives the technician a visual way to compare a faulty circuit board with a working board.

Instead of removing every component before testing it, the technician can often examine the circuit through its test points. This can save time and reduce the risk of damaging delicate ECU components during unnecessary desoldering.

Why VI Curve Testing Is Useful for ECU Repair

Automotive ECUs contain many small and sensitive components. Some are difficult to access, and several parts may be connected together in the same circuit. Traditional testing methods can sometimes produce confusing readings because the technician is measuring a component while it is still connected to other components.

A VI curve tester provides another layer of information.

By comparing the same points on a working ECU and a suspected faulty ECU, a technician can look for differences in the curve pattern. This can help narrow down the area where the problem may be located.

Common ECU faults may involve:

• Shorted capacitors
• Damaged diodes
• Failed voltage regulators
• Open circuit paths
• Faulty protection components
• Weak transistor stages
• Corroded connections
• Power supply problems
• Communication circuit faults
• Damage caused by incorrect voltage or reverse polarity

The tester does not replace technical knowledge or a wiring diagram. However, it can make the diagnostic process more organized and easier to follow.

Main Benefits of the FADOS7F1-18V

1. Multiple Testing Functions in One Tool

One of the main attractions of the FADOS7F1-18V is its multi-function design. Instead of using separate equipment for every stage of board diagnosis, technicians can use one platform for several electronic testing tasks.

That is especially helpful in busy automotive workshops where bench space, time, and equipment costs matter.

Having several functions in one tester can also make the work area cleaner. Fewer instruments mean fewer cables, fewer adapters, and less time switching between different test methods.

2. Faster Circuit-Board Comparison

A good ECU repair process often involves comparing a defective unit with a known-good unit. The technician can test matching points and observe whether the curve patterns are similar.

If one test point produces a noticeably different result, it may indicate a problem in that section of the board.

This approach is useful because it focuses attention on the circuit instead of requiring a complete visual inspection of every component. Visual inspection is still important, but not every electronic fault can be seen with the naked eye.

3. Helpful for Non-Destructive Testing

Removing components from an ECU board takes time and may create new problems. Pads can lift, solder joints can become damaged, and sensitive components may be affected by heat.

VI curve testing can help technicians perform more checks before deciding whether a component needs to be removed. This makes the process less invasive and may help protect valuable circuit boards.

For expensive or difficult-to-source automotive modules, reducing unnecessary desoldering is a major advantage.

4. Photo Recording for Better Documentation

The FADOS7F1-18V can record ECU test results with photos. This is valuable for professional documentation, training, quality control, and customer communication.

A repair technician can keep a visual record of:

• The original board condition
• The test location
• The curve pattern before repair
• The curve pattern after repair
• The replacement component
• The final test result

Clear records make it easier to review previous work. They can also help when a customer returns with a related issue or when several technicians work on the same repair.

For businesses, photographic records add a more professional touch. Instead of simply telling a customer that a circuit board has a fault, the technician may be able to show the affected test area and explain the repair more clearly.

How to Use a VI Curve Tester for ECU Diagnostics

Although the exact operating procedure depends on the tester and the circuit being tested, a careful ECU testing routine usually follows a logical order.

Step 1: Identify the ECU and Its Symptoms

Start by recording the vehicle details, ECU part number, fault codes, and customer complaint. A proper diagnosis should begin with the vehicle symptoms, not only the circuit board.

Examples may include:

• No communication with the diagnostic scanner
• Engine cranks but does not start
• Intermittent stalling
• Sensor-related fault codes
• Missing injector or ignition control
• Transmission shifting problems
• ABS or airbag warning lights
• Water or corrosion damage

Understanding the original symptom helps guide the board inspection.

Step 2: Inspect the Board Carefully

Before applying any test equipment, inspect the ECU for obvious signs of damage. Look for burnt components, cracked solder joints, moisture, corrosion, damaged connectors, and previous repair attempts.

A dirty or corroded board should be cleaned carefully before testing. Contamination can affect readings and create misleading results.

Step 3: Use a Known-Good Reference When Possible

The strongest comparison usually comes from testing the same point on a known-good ECU of the same type. Different ECU versions may use different circuits, so it is important not to assume that every board will produce identical patterns.

Mark the test points clearly and keep notes. Consistent testing makes the results easier to understand.

Step 4: Test Power and Ground Sections First

Power supply circuits are a sensible starting point because many ECU functions depend on stable voltage. If the main supply section is damaged, other parts of the board may also show abnormal behavior.

Check areas such as:

• Input protection
• Voltage regulation
• Ground paths
• Filtering capacitors
• Power transistors
• Microcontroller supply lines

A fault in the power section can sometimes explain several unrelated symptoms at once.

Step 5: Compare Abnormal Curves

A curve that differs from the reference does not automatically identify one specific failed component. It shows that the electrical behavior at that test point is different.

The technician should then combine the curve result with:

• The circuit diagram
• Component location
• ECU symptoms
• Resistance and continuity tests
• Diode-mode readings
• Power-supply measurements
• Inspection under magnification

This combination produces a much more reliable diagnosis than using any one test by itself.

Step 6: Record the Results

Take photos and write down the test location, board identification, and observed curve. Good records help avoid repeating the same tests later.

After repair, repeat the test and compare the new result with the original measurement. A restored curve does not prove that the ECU is fully repaired, but it provides useful evidence that the affected circuit has changed in the expected direction.

FADOS7F1-18V for Automotive Electronics Workshops

The tool can be useful in several types of repair environments.

ECU Repair Specialists

Businesses that repair engine, transmission, ABS, airbag, and body-control modules often need repeatable methods for finding board-level faults. A VI curve tester can support a structured testing process and reduce dependence on trial-and-error repairs.

Automotive Diagnostic Technicians

A vehicle diagnostic technician may not repair every ECU component personally, but board-level testing can help determine whether a module should be repaired, replaced, or sent to a specialist.

This can prevent unnecessary ECU replacement, which is often expensive and may require coding or programming.

Technical Schools and Training Centers

The visual nature of VI curves makes them useful for teaching electronics. Students can see how different components behave and learn how a damaged circuit differs from a healthy one.

Electronics Repair Businesses

The tester is not limited to automotive modules. It may also be useful for testing general electronic boards, depending on the application, circuit design, and available test functions.

Tips for More Reliable ECU Testing

A few simple habits can improve testing accuracy.

Always Protect the Board

Use proper anti-static precautions. Automotive ECUs contain sensitive semiconductor devices that can be damaged by electrostatic discharge.

Avoid Testing a Powered Circuit Unless the Procedure Allows It

Many curve-testing methods are designed for unpowered boards. Applying test signals to a powered circuit can create incorrect results or damage the test equipment and the ECU.

Follow the manufacturer’s instructions and confirm the correct test conditions before connecting the probes.

Keep Probe Placement Consistent

A small change in probe location or ground reference can affect the curve. Use the same points and orientation when comparing boards.

Do Not Rely on One Reading

An unusual curve is a clue, not a final verdict. Confirm the suspected fault using other methods before replacing a component.

Build a Reference Library

Over time, save photos and test results from known-good ECUs. A personal reference library can become one of the most useful resources in an electronics workshop.

Organize files by:

• ECU manufacturer
• Vehicle model
• Part number
• Circuit section
• Test-point location
• Board revision

This can make future diagnosis much faster.

Is the FADOS7F1-18V Worth Adding to Your Workshop?

For technicians who regularly work with ECU circuit boards, a VI curve tester can be a practical investment. Its value comes from helping identify differences quickly, supporting non-destructive testing, and making repair results easier to document.

It is particularly useful when:

• The ECU has no obvious visual damage
• The vehicle fault points toward an electronic module
• Communication with the ECU has failed
• A replacement module is expensive
• Component-level repair is part of your service
• You need photos and records for every repair
• You want a more consistent diagnostic process

The tester should be viewed as part of a wider diagnostic setup. A professional ECU bench may also include a regulated power supply, multimeter, oscilloscope, microscope, soldering and rework equipment, wiring diagrams, breakout leads, and suitable programming tools.

No single device can diagnose every electronic fault. The best results come from combining accurate test equipment with sound electronics knowledge and careful documentation.
