Modern diesel engines rely on several sensors to control fuel delivery, turbocharger operation, exhaust gas recirculation, and emissions. One of the less familiar—but very important—components is the exhaust pressure sensor before the turbocharger.
This sensor measures exhaust pressure in the exhaust manifold before the gases reach the turbocharger. Its information helps the engine control unit understand what is happening inside the exhaust system and adjust the exhaust gas recirculation rate with greater accuracy.
When the sensor works correctly, the engine can maintain better combustion, cleaner emissions, smooth turbocharger response, and stable performance. When it fails or becomes restricted by carbon, the results may include poor acceleration, warning lights, excessive smoke, rough running, or reduced engine power.
This guide explains where the sensor is located, how it works, what its voltage readings mean, and how technicians can test it safely.
What Is an Exhaust Pressure Sensor Before the Turbocharger?
The exhaust pressure sensor before the turbocharger is a pressure-measuring device fitted to the engine or to a heat-protected bracket near the engine. It is connected to the exhaust manifold through a small metal pipe and heat-resistant hose.
Its job is to measure the pressure of exhaust gases before they enter the turbocharger turbine. The measured pressure is sent to the digital diesel electronics, also known as the engine control unit or ECU.
The ECU uses this signal together with information from other sensors, including:
- Exhaust gas temperature sensor
- Intake air pressure sensor
- Mass air flow sensor
- Engine speed sensor
- Throttle position sensor
- EGR position sensor
- Turbocharger boost pressure sensor
By comparing these signals, the ECU can calculate whether the exhaust gas recirculation system is operating as expected.
Unlike a simple pressure switch, this is a continuous pressure sensor. It does not merely report “high” or “low” pressure. Instead, it produces a changing voltage signal that represents the pressure measured in the exhaust manifold.

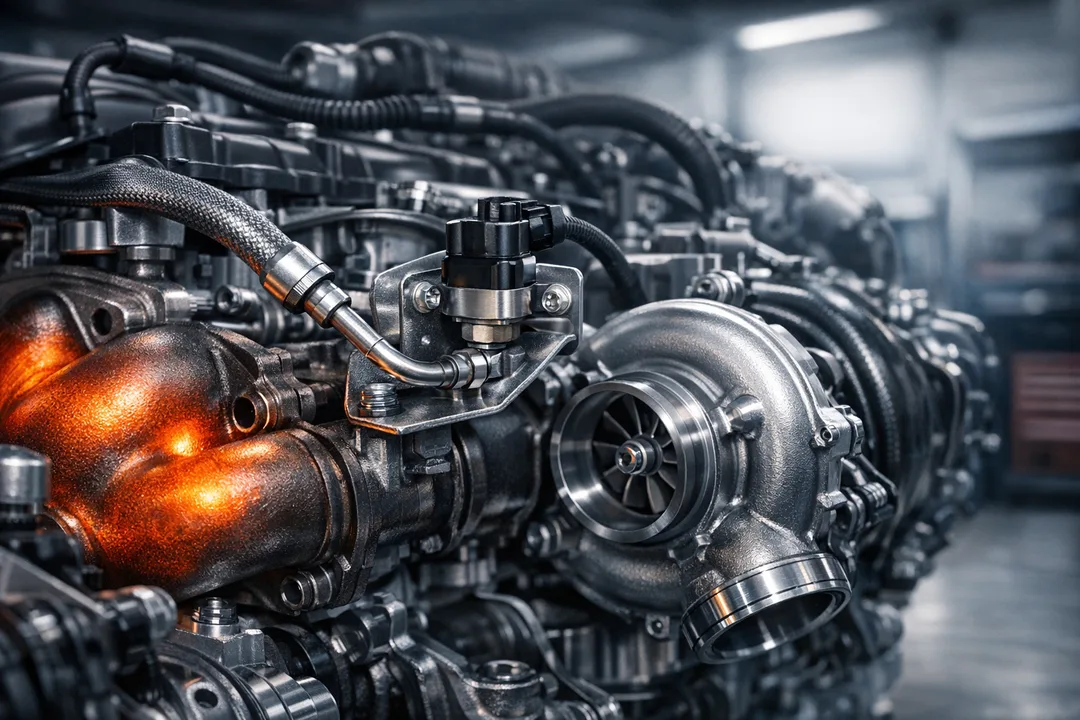

Where Is the Sensor Located?
The sensor is normally mounted away from the hottest part of the exhaust system. The exhaust manifold and turbocharger can reach extremely high temperatures, so the sensor itself is usually protected by a bracket.
A small connection pipe runs from the exhaust manifold to the sensor. Depending on the engine design, this connection may include:
- A metal pressure pipe connected to the exhaust manifold
- A heat-resistant hose section
- A sensor mounted on a bracket
- An electrical connector with three terminals
The sensor is positioned before the turbocharger because this location gives the ECU a useful measurement of exhaust back pressure and manifold pressure before the gases drive the turbine.
The exact position varies from one engine to another. It may be found near the rear of the engine, close to the turbocharger, or below the exhaust manifold. Access can sometimes be difficult because of heat shields, intake components, wiring, and exhaust plumbing.
Why Is Exhaust Pressure Measured Before the Turbocharger?
The exhaust pressure before the turbocharger provides valuable information about the engine’s gas-flow condition.
When exhaust pressure rises, it can indicate that the exhaust gases are meeting increased resistance. This may happen because of:
- A restricted exhaust system
- A blocked diesel particulate filter
- A sticking EGR valve
- A damaged turbocharger
- Carbon buildup in the pressure pipe
- Incorrect turbocharger control
- Heavy engine load
- Poor combustion
The ECU does not view the exhaust pressure signal by itself. It compares it with other engine measurements to determine whether the pressure is normal for the current operating conditions.
For example, exhaust pressure may naturally increase during acceleration or under heavy load. That does not automatically mean the sensor or exhaust system is faulty. A proper diagnosis must consider engine speed, boost pressure, air flow, temperature, and load.
How the Exhaust Pressure Sensor Works
Inside the sensor is a flexible metal diaphragm. Exhaust pressure acts on this diaphragm and causes it to move slightly.
That movement is detected by four pressure-sensitive resistors. Together, these resistors form a measuring circuit that changes according to the pressure applied to the diaphragm.
The sensor then converts the pressure reading into an electrical voltage signal. The ECU receives this signal and interprets it as exhaust pressure.
The typical operating characteristics are:
- Supply voltage: 4.9 to 5.1 volts
- Normal operating pressure: 1.0 to 5.0 bar absolute
- Optional pressure range: 0.6 to 6.5 bar absolute
- Signal output: Approximately 1.0 to 4.5 volts
- Response time: Less than 5 milliseconds
- Maximum output current: 15 mA
- Temperature range: -30°C to 120°C
The sensor output is usually close to 1 volt at the lower end of its measuring range and rises toward 4.5 volts as pressure increases.
It is important to remember that the sensor measures absolute pressure, not only pressure above atmospheric pressure. This distinction matters when comparing scan-tool readings with gauge measurements.
Exhaust Pressure Sensor Voltage Range
A three-wire exhaust pressure sensor normally uses the following electrical connections:
TerminalFunctionSIGExhaust pressure signal5V5-volt supply voltageTerminal 31EElectronic ground
The 5-volt supply is provided by the ECU. The ground completes the circuit, while the signal wire carries the changing pressure voltage back to the ECU.
A healthy sensor will usually produce a stable signal that changes smoothly as exhaust pressure changes. A voltage that remains fixed, jumps suddenly, or falls outside the expected range may indicate an electrical or mechanical problem.
Typical problems include:
- Missing 5-volt reference
- Poor sensor ground
- Open or shorted signal wire
- Damaged connector
- Water or oil inside the connector
- Carbon-blocked pressure pipe
- Internal sensor failure
Before replacing the sensor, always verify the wiring and pressure connection. A blocked pipe can make a good sensor appear faulty.
Common Symptoms of a Faulty Exhaust Pressure Sensor
A defective exhaust pressure sensor can cause several different symptoms. The exact behavior depends on the engine management system and the type of failure.
1. Check Engine Light
The ECU may detect a signal that is too high, too low, implausible, or inconsistent with other engine data. This can trigger the engine warning light.
2. Reduced Engine Power
If the ECU cannot trust the exhaust pressure reading, it may activate a protection strategy. The engine may enter limp mode, especially when turbocharger control or EGR operation is affected.
3. Poor Acceleration
Incorrect exhaust pressure information can interfere with turbocharger and EGR calculations. The engine may feel slow when pulling away or accelerating uphill.
4. Rough Idle
An incorrect pressure signal may cause the EGR system to operate at the wrong time or at the wrong rate. This can lead to unstable idle quality.
5. Excessive Smoke
Poor EGR control and incorrect air-fuel management can contribute to black smoke, particularly during acceleration.
6. Increased Fuel Consumption
When exhaust pressure data is inaccurate, the engine may not operate at its most efficient combustion settings.
7. Turbocharger Control Problems
The sensor does not directly measure turbocharger boost pressure, but its reading helps the ECU evaluate the relationship between exhaust flow and turbocharger operation. A false reading can therefore contribute to boost-related faults.
8. EGR-Related Fault Codes
Because the signal is used to control and monitor exhaust gas recirculation, a failed sensor may produce EGR performance or plausibility fault codes.
What Causes Exhaust Pressure Sensor Problems?
Several faults can affect this system. The sensor itself is only one possible cause.
Carbon Buildup in the Pressure Pipe
Soot and carbon can build up inside the small pipe connected to the exhaust manifold. As the opening becomes restricted, pressure reaches the sensor slowly or inaccurately.
This is one of the most common causes of incorrect readings.
Heat Damage
Although the sensor is mounted away from the exhaust manifold, excessive heat can damage the pressure hose, wiring insulation, or sensor housing.
Cracked or Leaking Hose
A small crack can allow exhaust pressure to escape. The sensor may then report a lower pressure than the engine is actually producing.
Damaged Metal Pipe
The metal pipe can become blocked, cracked, corroded, or damaged during other engine repairs.
Electrical Connector Corrosion
Oil, moisture, road salt, and engine-bay contamination can affect the connector terminals. Even a small increase in resistance may distort the voltage signal.
Wiring Damage
Wires may rub against brackets, heat shields, or other engine components. A short circuit to ground or to the 5-volt supply can create an implausible reading.
Internal Sensor Failure
The diaphragm or internal pressure-sensitive circuit may fail because of age, contamination, vibration, or heat exposure.
Exhaust System Restriction
A blocked diesel particulate filter, catalytic converter, or exhaust component can create unusually high pressure before the turbocharger. In this case, replacing the sensor will not solve the real problem.
How to Test the Exhaust Pressure Sensor
A professional diagnosis should include both an electrical test and a mechanical inspection.
Step 1: Read the Fault Codes
Connect a suitable diagnostic scanner and record all stored and pending fault codes. Do not focus on one code without checking the related EGR, turbocharger, air-flow, and exhaust-temperature data.
Freeze-frame information can show the engine speed, load, temperature, and pressure conditions present when the fault occurred.
Step 2: Inspect the Pressure Pipe
Remove and inspect the pipe or hose between the exhaust manifold and the sensor.
Look for:
- Carbon deposits
- Blockages
- Cracks
- Loose fittings
- Heat damage
- Corrosion
- Signs of exhaust leakage
If the pipe is blocked, clean or replace it according to the manufacturer’s service procedure.
Step 3: Check the 5-Volt Supply
With the ignition switched on, measure the supply voltage between the 5-volt terminal and sensor ground.
The expected supply is generally between 4.9 and 5.1 volts.
If the supply is missing, do not replace the sensor immediately. Investigate the ECU supply circuit, wiring, and any other sensors sharing the same 5-volt reference.
Step 4: Check the Ground
Measure the ground circuit for excessive resistance or voltage drop. A weak ground can cause a sensor signal that appears too high or too low.
The ground connection should be clean, secure, and electrically stable.
Step 5: Measure the Signal Voltage
Check the signal wire with the sensor connected. The output should generally remain within the approximate 1.0 to 4.5-volt range, depending on actual pressure.
The voltage should change smoothly as engine conditions change. Sudden spikes, an unmoving reading, or a signal outside the expected range may indicate a fault.
Step 6: Compare Scan Data
Use live data to compare:
- Exhaust pressure
- Intake manifold pressure
- Turbocharger boost pressure
- Engine speed
- Air mass
- EGR position
- Exhaust gas temperature
A reading that does not match the engine’s operating condition should be investigated further.
Step 7: Test Under Load
A pressure reading at idle may not reveal a problem. Some faults appear only during acceleration, climbing, towing, or high engine load.
A road test with live data can help identify whether pressure rises normally or becomes excessive.
Is the Exhaust Pressure Sensor the Same as a Boost Pressure Sensor?
No. These sensors perform different jobs and measure pressure at different locations.
The exhaust pressure sensor before the turbocharger measures pressure in the exhaust manifold before the turbocharger turbine.
The boost pressure sensor measures pressure in the intake system, usually after the turbocharger and intercooler.
A diesel engine can have both sensors, and the ECU uses their signals together to control turbocharger performance and engine airflow.
Replacing the wrong sensor is an easy mistake, particularly when several pressure sensors are located near the turbocharger. Always confirm the sensor location, connector, wiring, and manufacturer part number before ordering a replacement.
Can You Drive With a Faulty Exhaust Pressure Sensor?
The vehicle may continue to run with a faulty sensor, but driving for an extended period is not recommended.
The ECU may use a backup value, reduce turbocharger performance, limit EGR operation, or activate limp mode. Continued driving can also hide a separate problem such as an exhaust restriction or turbocharger fault.
If the vehicle has severe power loss, heavy smoke, unusual turbocharger noise, or a high-temperature warning, it should be inspected promptly.
A sensor fault is sometimes a minor electrical issue. In other cases, it is an early warning of a blocked exhaust system or a larger engine-management problem.
Practical Diagnostic Tips
A few simple habits can prevent unnecessary parts replacement:
- Do not replace the sensor before checking the pressure pipe.
- Check the 5-volt reference before condemning the sensor.
- Inspect the connector for corrosion and loose terminals.
- Compare live data with engine load and temperature.
- Check for exhaust leaks around the manifold and pressure take-off point.
- Consider DPF restriction if pressure remains unusually high.
- Use the correct sensor for the exact engine and vehicle application.
- Clear the fault code only after the cause has been repaired.
- Carry out a road test and confirm that the signal behaves normally.
The most useful diagnosis combines scan-tool data, electrical measurements, and a physical inspection. Looking at only one of these areas can easily lead to the wrong conclusion.
Final Thoughts
The exhaust pressure sensor before the turbocharger may be a small component, but it plays an important role in modern diesel engine management.
By measuring exhaust manifold pressure, it helps the ECU control the EGR system more accurately and evaluate engine operating conditions. Its signal is also useful when managing turbocharger response, emissions, and combustion efficiency.
The sensor typically uses a 5-volt supply, an electronic ground, and a pressure signal that ranges from approximately 1.0 to 4.5 volts. However, a faulty reading does not always mean the sensor itself has failed. Carbon buildup, damaged hoses, exhaust restrictions, wiring faults, and connector problems can create the same symptoms.
A careful inspection of the complete system is the best way to find the real cause. In many cases, cleaning a blocked pressure pipe or repairing damaged wiring can restore normal operation without replacing expensive parts.
