Modern vehicles rely on electronic control units for almost everything. The engine, transmission, airbag system, ABS, body electronics, climate control, and security systems all depend on computer modules working correctly.

When one of these modules develops a fault, replacing it is not always the best solution. In many cases, the problem can be diagnosed, repaired, programmed, or coded by a skilled technician using the right ECU repair equipment.

ECU repair is not simply a matter of connecting a scan tool and clearing a fault code. Professional repair work often involves electronic testing, circuit-board inspection, software programming, soldering, memory reading, communication testing, and vehicle-specific coding.

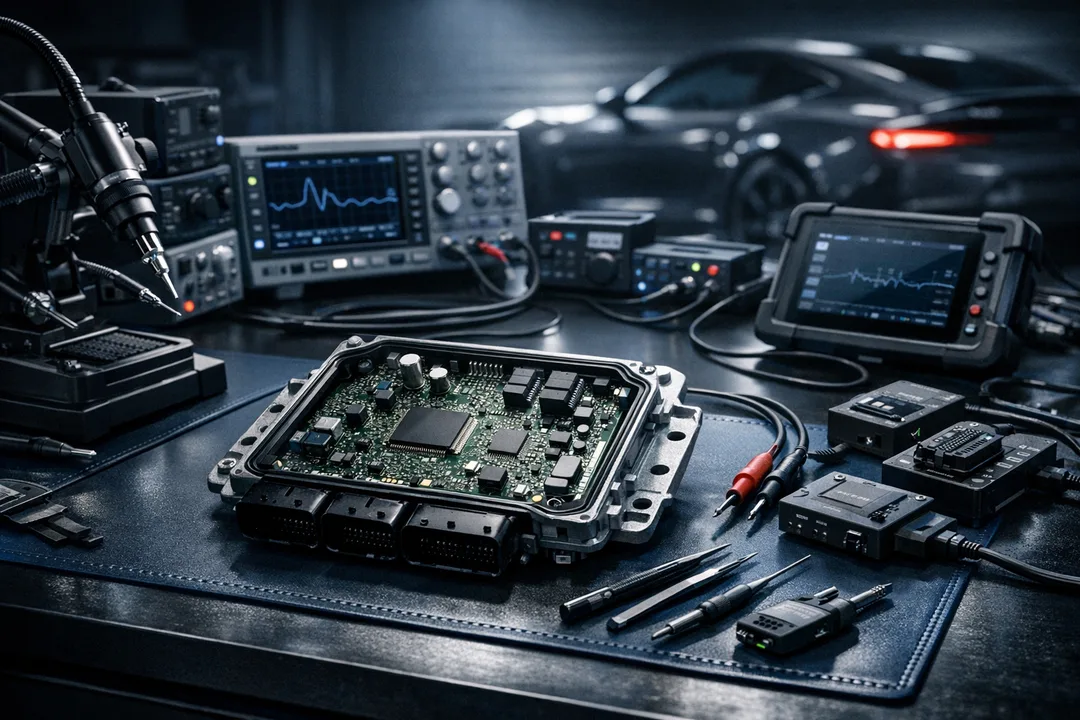

That is why a properly equipped ECU repair bench is essential for anyone working in automotive diagnostics, module repair, or vehicle tuning.

What Is an ECU?

An ECU, or Electronic Control Unit, is a computer that manages a specific vehicle function. The most familiar example is the engine control unit, which controls fuel injection, ignition timing, turbocharger operation, emissions systems, and many sensor inputs.

Depending on the vehicle manufacturer, you may also hear terms such as:

• ECM — Engine Control Module
• DME — Digital Motor Electronics
• DDE — Digital Diesel Electronics
• TCM — Transmission Control Module
• BCM — Body Control Module
• ABS module
• Airbag or SRS module
• Gateway module

Although these units perform different jobs, the repair process often requires similar equipment. A technician must first identify the fault, confirm the diagnosis, test the module, and then decide whether repair, programming, coding, or replacement is required.

1. Professional Diagnostic Scanner

A quality diagnostic scanner is one of the most important tools in ECU repair.

Basic code readers can display generic fault codes, but professional diagnostic equipment provides much more information. A high-level scanner can communicate with multiple vehicle modules, show live data, perform actuator tests, access manufacturer-specific codes, and support advanced functions.

Useful scanner features include:

• Full-system diagnostics
• Live sensor data
• Bi-directional controls
• ECU coding
• Module programming
• Adaptation and reset functions
• Security access
• Freeze-frame data
• Network communication testing
• Guided diagnostic procedures

A diagnostic scanner helps determine whether the fault is inside the ECU or caused by an external issue such as a damaged wire, weak battery, poor ground, faulty sensor, or communication problem.

This step matters because replacing a good ECU will not fix a wiring or power-supply fault.

2. Stable Bench Power Supply

A stable power supply is essential when testing or programming an ECU outside the vehicle.

ECUs are sensitive to voltage changes. During programming, a sudden voltage drop can interrupt communication and potentially corrupt the module software. Professional technicians use regulated bench power supplies and battery support units to provide clean and consistent voltage.

A good power supply should offer:

• Adjustable output voltage
• Current monitoring
• Over-voltage protection
• Short-circuit protection
• Stable output under load
• Clear voltage and amperage readings

For vehicle programming, a dedicated battery support unit is often used to maintain the correct voltage while the vehicle remains connected to a diagnostic interface.

This is one of the simplest ways to reduce programming failures and protect expensive control modules.

3. ECU Bench Harness and Breakout Box

An ECU bench harness allows technicians to power and communicate with a module away from the vehicle.

Instead of repeatedly installing the ECU into a car, the technician can connect it to a controlled test setup. This saves time and reduces the risk of damaging vehicle wiring or connectors.

A professional bench setup may include:

• Manufacturer-specific ECU connectors
• Power and ground leads
• CAN High and CAN Low connections
• K-Line communication wiring
• Ignition-switch simulation
• Breakout terminals
• Fuse protection
• Test points for voltage measurements

A breakout box makes electrical testing easier because it provides access to individual circuits without damaging wires or connectors.

4. Multimeter

The multimeter remains one of the most useful tools in automotive electronics.

A professional digital multimeter can measure voltage, resistance, continuity, current, diode function, and sometimes frequency. It is used to check power supplies, grounds, sensor circuits, relay outputs, and communication wiring.

Common ECU repair tests include:

• Checking constant battery voltage
• Confirming ignition power
• Testing ground resistance
• Measuring sensor reference voltage
• Checking continuity between pins
• Testing for short circuits
• Measuring diode and component behavior

However, a multimeter does not show the complete picture. A wire may show continuity but still fail under load. That is why experienced technicians combine multimeter testing with load testing and oscilloscope measurements.

5. Automotive Oscilloscope

An oscilloscope shows electrical signals as waveforms. This makes it possible to see problems that a scan tool or multimeter may miss.

Oscilloscopes are especially useful for testing:

• Crankshaft position sensors
• Camshaft position sensors
• Injector signals
• Ignition coils
• Throttle position sensors
• PWM signals
• CAN bus communication
• LIN bus signals
• Solenoid controls
• Power and ground stability

For example, a crankshaft sensor may produce a signal that appears normal at low speed but becomes unstable during cranking. An oscilloscope can reveal missing pulses, interference, voltage distortion, or timing problems.

When diagnosing network communication, the oscilloscope can also show whether CAN High and CAN Low signals have the correct pattern. This helps identify wiring faults, short circuits, missing termination resistance, or a defective module.

6. Soldering and Micro-Repair Equipment

Many ECU faults are caused by damaged circuit-board components, cracked solder joints, corrosion, overheated drivers, or failed capacitors.

Professional ECU repair requires more than a basic soldering iron. A suitable electronics repair station may include:

• Temperature-controlled soldering iron
• Hot-air rework station
• Microscope
• Flux and soldering materials
• Desoldering equipment
• PCB preheater
• Fine-tip tweezers
• ESD-safe tools
• Component storage system

A microscope is particularly important when working on modern ECUs. Circuit boards contain small surface-mount components, fine-pitch processors, memory chips, and delicate tracks.

Good temperature control is also critical. Excessive heat can lift PCB pads, damage integrated circuits, or create additional faults.

7. ECU Programmer and Memory Tools

ECU programming equipment is used to read, write, clone, recover, or transfer software and data from control modules.

Depending on the ECU design, programming may be performed through:

• OBD port
• Bench connection
• Boot mode
• BDM connection
• JTAG interface
• Direct microcontroller connection

Common operations include:

• Reading original software
• Writing updated software
• Cloning a module
• Recovering failed programming
• Transferring immobilizer data
• Backing up EEPROM contents
• Restoring corrupted memory
• Preparing replacement modules

A reliable programmer should support the specific ECU families being repaired. No single device works perfectly with every vehicle, so professional technicians often use more than one programming platform.

Before writing any data, always save the original file and confirm that the battery voltage, wiring, and communication connections are stable.

8. EEPROM and Flash Memory Equipment

Many ECUs store important vehicle data in EEPROM or flash memory. This may include immobilizer information, coding data, vehicle identification numbers, adaptations, and configuration settings.

Dedicated EEPROM tools are used to read and write memory chips when normal diagnostic programming is not possible.

This type of work requires careful handling because a small mistake can corrupt data or make the ECU unusable. Technicians must identify the correct chip, use the appropriate pinout, and create a secure backup before making changes.

A microscope, chip reader, test clip, and reliable memory software are often used together for this work.

9. CAN Bus and Network Testing Tools

Modern vehicles contain several communication networks. ECUs exchange information through systems such as CAN, LIN, FlexRay, and automotive Ethernet.

A communication fault can make a healthy ECU appear defective. Network testing tools help determine whether modules are communicating correctly.

Useful equipment may include:

• CAN bus analyzer
• Network breakout box
• Digital oscilloscope
• Resistance testing tools
• Gateway diagnostic equipment
• Automotive Ethernet tester

CAN bus testing commonly includes checking network resistance, signal voltage, waveform quality, and communication activity.

The technician may also need to isolate modules one at a time to find which unit is pulling the network down.

10. ESD Protection and Safe Work Equipment

Electrostatic discharge can damage sensitive ECU components without leaving visible marks. A professional repair bench should include proper electrostatic protection.

Recommended safety equipment includes:

• Anti-static work mat
• Grounded wrist strap
• ESD-safe tools
• Static-safe storage bags
• Fume extraction
• Eye protection
• Proper ventilation
• Clean, organized work surfaces

A clean bench is not just about appearance. It helps prevent contamination, misplaced components, accidental shorts, and avoidable repair mistakes.

Why Training Matters in ECU Repair

Having expensive equipment does not automatically make someone an ECU repair specialist. The technician must understand wiring diagrams, communication protocols, electronic components, software data, diagnostic strategy, and safe repair techniques.

Training helps technicians learn how to:

1. Confirm the fault before opening a module
2. Read wiring diagrams correctly
3. Test power, ground, and communication circuits
4. Identify common ECU component failures
5. Use a microscope and soldering equipment safely
6. Read and write memory data correctly
7. Perform module coding and programming
8. Avoid damaging the vehicle or control unit
9. Document the repair process
10. Verify the vehicle after repair

Hands-on experience is particularly valuable. Real modules, test harnesses, damaged circuit boards, and practical diagnostic exercises help build confidence much faster than theory alone.

Auto Code Works provides online training focused on ECU, DME, DDE, and ECM repair, along with BMW coding, programming, and retrofit work. The courses are designed for technicians and automotive professionals who want to develop practical skills in modern vehicle electronics.

Frequently Asked Questions

What is the most important tool for ECU repair?

A professional diagnostic scanner is usually the first essential tool because it helps identify fault codes, live data, communication issues, and module information. However, ECU repair normally requires several tools working together.

Can an ECU be repaired without programming equipment?

Some hardware repairs can be completed without programming equipment, but many modern ECU repairs require coding, cloning, software recovery, or memory transfer before the vehicle will operate correctly.

Is an oscilloscope necessary for ECU diagnostics?

An oscilloscope is not required for every repair, but it is extremely useful for testing sensor signals, injector controls, ignition signals, and CAN bus communication.

What safety equipment is needed for ECU circuit-board repair?

Technicians should use ESD protection, proper ventilation, eye protection, temperature-controlled tools, and a clean repair bench. Static electricity and excessive heat can damage sensitive components.

Where can technicians learn ECU repair and automotive programming?

Professional online training can help technicians learn ECU, DME, DDE, ECM repair, vehicle coding, programming, and retrofit procedures through structured lessons and practical examples.
