The fault that makes grown mechanics swear

You know the one. Car runs fine for two weeks, then stalls at a roundabout. Scan tool shows a driver circuit fault. You swap the injector, the wiring, the relay — and the fault comes back three days later, always after a cold morning or a rough road.

Nine times out of ten on an older ECU, that’s a solder joint. Not a dead chip. Not a “corrupt tune.” Just a tiny ring of fatigued metal that has cracked from ten years of heat cycling and engine bay vibration.

The good news: it’s fixable, and often for a fraction of a replacement ECU plus programming. The bad news: automotive PCBs are multilayer, dense, and unforgiving. Get greedy with the iron and you’ll lift a pad in under two seconds.

Here’s how it’s done properly.

Why ECU solder joints fail in the first place

Understanding the why changes how you repair it.

• Thermal cycling. The ECU heats and cools every drive cycle. Solder, copper, and FR4 laminate all expand at different rates. Over thousands of cycles, the joint work-hardens and micro-cracks form.
• Vibration. Engine-bay mounted units take constant abuse. Heavy components — relays, coils, large capacitors, connector pins — act like levers on their joints.
• High-current paths. Injector drivers, ignition coil drivers, fuel pump control, and ground returns carry serious current. Higher current means higher local temperature, and a marginal joint slowly cooks itself.
• Moisture and corrosion. A cracked case seal, a leaking bulkhead grommet, or a car parked under a leaky windscreen. Water gets in, sits on the board, and eats the joint from the outside in.
• Original manufacturing defects. Cold joints and insufficient wetting do escape the factory. They just take years to show up.

The classic tell: the fault is temperature or vibration dependent. Tap the ECU, warm it with a heat gun, or spray it with freeze spray, and the fault appears or disappears. That’s a mechanical connection issue, not a firmware one.

Required equipment for ECU solder joint repair

The exact repair depends on the PCB design and the condition of the joint, but a properly equipped bench includes:

• Temperature-controlled soldering station — non-negotiable. A fixed-wattage iron will destroy pads.
• Fine and larger soldering tips — fine for SMD legs, chisel tips for ground planes and high-thermal-mass pads.
• Hot-air rework station — for BGA-adjacent work, shielding cans, and removing multi-leg parts.
• Magnification or a stereo microscope — you cannot judge a joint with the naked eye. Full stop.
• ESD-safe work surface, wrist strap, and grounded tools.
• Flux suitable for electronics repair — no-clean or rosin. Never plumbing flux.
• Leaded or lead-free compatible solder — match or intentionally alloy with the existing joint.
• Solder wick in a couple of widths.
• Isopropyl alcohol (99%) and a PCB-safe brush.
• Fine tweezers, both straight and curved.
• Multimeter with good probes and a continuity buzzer that actually responds fast.
• Current-limited bench power supply — so a short doesn’t turn a repairable board into scrap.
• Board preheater, when appropriate, to reduce thermal shock on big ground planes.
• Thermal camera or controlled temperature equipment — brilliant for spotting the component that’s running hot before you close the case.

An oscilloscope earns its place too, especially for verifying driver output after the repair.

The ECU solder joint repair procedure, step by step

1. Document the board

Before you touch anything with heat:

• Photograph the PCB — both sides, plus close-ups of the target area
• Record the ECU hardware number and software ID
• Mark connector orientation
• Note damaged areas
• Record component positions, especially anything you plan to remove

This step feels like a delay. It isn’t. It’s the thing that prevents an installation error two hours later when you’re tired and the shielding can went back on the wrong way.

2. Clean the area

Remove contamination, corrosion residue, and old flux using suitable PCB-cleaning materials and a soft brush.

Do not scrape aggressively. Copper pads and traces lift far more easily than people expect, and once a pad is gone, a five-minute job becomes a forty-minute jumper-wire job.

3. Inspect the pad and trace

Now, under magnification, decide what you’re actually dealing with. Is the problem limited to the solder joint, or does the damage include:

• A lifted pad
• A broken trace
• Burned or charred laminate
• A corroded via
• A damaged component lead

A simple reflow is not sufficient when the copper connection itself is damaged. This is the single most common mistake in amateur ECU repair — reflowing a joint whose pad has already separated from the board. The joint looks beautiful and conducts nothing.

4. Remove defective solder

Use controlled heat and solder wick where appropriate. Add fresh solder first if the old joint is dry — it helps heat transfer and wicks out far more cleanly.

Avoid prolonged heating. Multilayer automotive PCBs delaminate or shed pads when you park an iron on them. Work in short bursts, let the area cool, come back.

5. Apply suitable flux

A small amount of electronics-grade flux, right on the joint.

Excess flux makes cleaning harder and, depending on the product, can leave conductive or corrosive residue behind. On a board that lives in an engine bay for another decade, that matters.

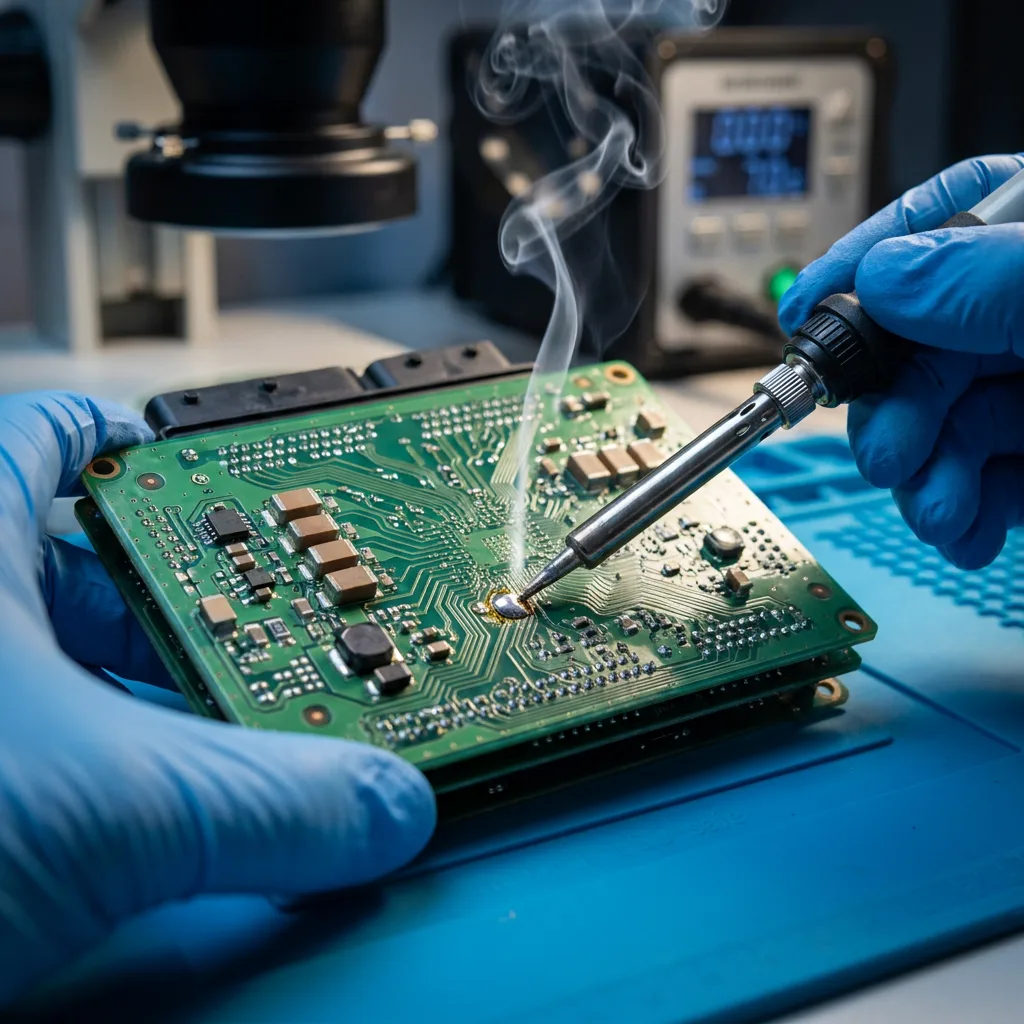

6. Re-solder the connection

Apply enough heat to form a smooth, properly wetted joint. The solder must bond to both:

• The component lead or terminal
• The copper pad or trace

A good joint is shiny (or uniformly matte with lead-free), concave, and feathers out onto the pad. A bad joint is a ball sitting on top of the pad like a water droplet on a waxed bonnet.

Avoid large solder blobs. Excess solder bridges adjacent pins and, worse, hides an incomplete connection underneath.

7. Repair damaged pads or traces

If a pad or trace is lifted, the technician may need to:

• Expose intact copper upstream of the damage
• Install a jumper wire (enamelled magnet wire or fine PTFE-insulated wire)
• Secure the repaired wire so vibration can’t work it loose
• Rebuild the pad, using pad repair kits or epoxy where needed
• Reinforce the component mechanically with adhesive or a suitable potting compound

The repair must restore both electrical continuity and mechanical reliability. A jumper that works on the bench but flexes freely inside a vibrating ECU is a warranty return waiting to happen.

8. Clean the PCB

Remove all flux residue with isopropyl alcohol and a brush, then inspect the area again under magnification. Clean boards let you see cracks. Dirty boards hide them.

Let it dry fully before power-up.

9. Inspect nearby components

This is where good techs separate themselves. A failed solder joint is often a symptom, not the root cause. Look for:

• A shorted actuator pulling excess current through the driver
• An overheated driver transistor or IC
• A corroded connector adding resistance
• Excessive current draw somewhere in the circuit
• Water damage spreading beyond the visible area

Repairing only the solder connection, when the underlying cause is a shorted injector or a failing coil, will get you a repeat failure and an unhappy customer.

Testing before the case goes back on

1. Continuity and resistance checks on the repaired path.
2. Insulation check — make sure you haven’t bridged to a neighbouring pin or ground plane.
3. Powered bench test with a current-limited supply. Watch the current draw. If it spikes, kill it.
4. Thermal check — a thermal camera at idle current will show you anything running hotter than it should.
5. In-vehicle verification — live data, actuator tests, and a proper road test including a cold start.
6. Clear stored codes and re-scan after the drive cycle.

When repair isn’t the right call

Honest advice matters more than a sale. Walk away from the repair when you see:

• Widespread corrosion across multiple layers
• Charred, carbonised laminate — carbon conducts
• Damage to the copper on inner layers of a multilayer board
• Repeated failure of the same driver with no identifiable external cause
• A unit where a replacement plus coding costs less than the labour hours involved

Knowing where the line is is the expertise.
