An ECU can fail without showing obvious damage.

The vehicle may start normally one morning, refuse to start the next, or develop an electrical fault that disappears after the engine warms up. A diagnostic scanner may show different fault codes each time, while the wiring, battery, and sensors appear to be working correctly.

In many cases, the cause is a failed ECU solder joint.

A solder joint connects an electronic component to the circuit board. It carries electrical current and, in many cases, helps hold the component securely in place. Over time, heat, vibration, moisture, electrical loading, and repeated temperature changes can weaken that connection.

The result may be an intermittent fault that is difficult to reproduce and even harder to diagnose.

This guide explains the symptoms of ECU solder joint failure, the common causes, how the fault is tested, and what a proper repair should include.

What Is an ECU Solder Joint?

A solder joint is the connection between a component terminal and a copper pad or plated hole on a printed circuit board.

Inside an automotive ECU, solder joints may connect:

• Microprocessors
• Power transistors
• Voltage regulators
• Relays
• Capacitors
• Resistors
• Diodes
• Communication drivers
• Connector pins
• Sensors and amplifiers
• Protection components

Some ECUs use traditional through-hole components, while most modern modules also contain surface-mount devices. Surface-mount solder joints are often extremely small, making inspection difficult without magnification.

A good solder joint should provide a stable electrical and mechanical connection. A damaged joint may look dull, cracked, separated, burned, or completely normal to the naked eye.

That last one causes plenty of headaches.

Common Symptoms of ECU Solder Joint Failure

A failed solder joint does not always create one clear fault code. The symptoms often depend on which circuit is affected.

1. Intermittent No-Start Condition

The engine may crank but fail to start occasionally. After waiting, tapping the ECU housing, or allowing the vehicle to cool down, the engine may start again.

This can happen when a cracked joint affects:

• ECU power supply
• Main relay control
• Injector drivers
• Crankshaft or camshaft signal processing
• Immobiliser communication
• Fuel pump control

An intermittent no-start fault should not automatically be blamed on the ECU. Battery voltage, grounds, relays, wiring, and sensor signals must be tested first.

2. Engine Stalling

A vehicle may stall while driving and restart after a few minutes. Heat-related expansion can temporarily open or close a damaged connection.

Stalling is especially concerning when the affected joint supplies power to the processor or controls ignition and fuel systems. The vehicle may appear to lose power suddenly, with little warning.

3. Warning Lights That Come and Go

A check-engine light, ABS warning, airbag light, transmission warning, or traction-control light may appear intermittently.

If the warning light disappears after cycling the ignition, that does not mean the fault has gone away. The ECU may have recorded a communication or supply-voltage event in its memory.

4. Multiple Unrelated Fault Codes

Several unrelated systems may report faults at the same time.

For example, one failing power or communication connection might create codes relating to:

• Throttle control
• Engine speed
• Fuel injection
• CAN communication
• Immobiliser
• Transmission data
• Sensor reference voltage

When many systems fail together, check shared power, ground, communication lines, and ECU connections before replacing individual sensors.

5. Loss of Communication With a Diagnostic Scanner

A scan tool may fail to connect to the ECU, connect only sometimes, or lose communication during testing.

Possible causes include:

• Faulty CAN transceiver solder joint
• Damaged ECU power supply
• Cracked connector solder joints
• Failed voltage regulator connection
• Poor ground connection
• Internal PCB corrosion

A communication failure should be tested at the vehicle connector before the ECU is opened.

6. Faults That Change With Temperature

Temperature-related behaviour is one of the strongest clues.

The ECU may work when cold but fail when hot. In other cases, it may refuse to operate in cold weather and recover after warming up.

Thermal cycling causes materials inside the ECU to expand and contract at different rates. Over time, this movement can fatigue solder connections. Thermal cycling is recognised as a major cause of solder fatigue in electronic packaging. (NASA)

7. Faults Triggered by Vibration

A vehicle produces constant vibration from the engine, suspension, road surface, and drivetrain.

A weak solder joint may lose contact when the ECU vibrates or when the wiring harness moves. The fault may appear after hitting a pothole, closing the bonnet, or moving the ECU connector.

This does not mean striking the module is a repair method. It is only a clue that the fault may be mechanical or connection-related.

8. Unexpected Sensor Readings

A damaged solder connection in a sensor input circuit can cause readings that are:

• Stuck high
• Stuck low
• Erratic
• Intermittent
• Impossible for the operating conditions

Before condemning the ECU, compare the sensor output at the sensor connector and again at the ECU pin. This helps separate a sensor or wiring problem from an internal board fault.

What Causes ECU Solder Joint Failure?

Thermal Cycling

ECUs regularly move between cold ambient temperatures and high operating temperatures. Engine-bay modules can experience especially harsh temperature changes.

Repeated expansion and contraction places stress on solder joints, component leads, copper pads, and the PCB itself.

Engine and Road Vibration

Vibration can fatigue larger components, relays, transformers, connectors, and heavier power devices. Components with greater mass create more mechanical stress on their solder connections.

Poor Original Soldering

Some failures begin during manufacturing. Possible issues include:

• Insufficient solder
• Poor wetting
• Voids
• Contamination
• Excessive solder
• Cold solder joints
• Misalignment
• Weak pad bonding

A poor joint may work for years before vibration and temperature finally expose the weakness.

Moisture and Corrosion

Water entering through a damaged case, connector seal, or vent can corrode solder joints and copper tracks.

Corrosion may appear as:

• Green deposits
• White powder
• Darkened metal
• Dull or rough solder
• Missing component leads
• Discoloured PCB material

Simply resoldering a corroded connection is not enough. The surrounding area must be cleaned, inspected, and electrically tested.

Excessive Electrical Load

Power components, injector drivers, ignition drivers, and voltage regulators can generate considerable heat. If a component operates beyond its normal load, the solder joint and nearby PCB area may become stressed.

The underlying overload must be identified before completing the repair.

Previous Repair Damage

An earlier repair may have:

• Lifted a copper pad
• Damaged a plated hole
• Overheated the laminate
• Left flux residue
• Used the wrong solder
• Created a solder bridge
• Damaged a nearby component

A second repair should begin with a careful inspection, not just more heat.

How Technicians Diagnose a Failed ECU Solder Joint

Confirm the Vehicle-Side Basics

Before opening the ECU, test:

• Battery voltage
• ECU fuses
• Main relay operation
• Power supply under load
• Ground voltage drop
• Connector pins
• CAN or communication wiring
• Relevant sensor signals
• Water ingress around the module

Many “ECU failures” are caused by a poor ground, damaged harness, low battery voltage, or corroded connector.

Read and Record Fault Codes

Record all stored and pending diagnostic codes before clearing anything. Freeze-frame information can show the conditions present when the fault occurred.

Look for patterns rather than focusing on one code in isolation.

Test the ECU on the Bench

A specialist may use a bench harness to supply the ECU with controlled power and communication connections. This can help determine whether the fault is inside the module or in the vehicle.

Bench testing may include:

• Current draw
• Power rail voltage
• Ground integrity
• Communication stability
• Input and output behaviour
• Heat-related fault reproduction

Visual Inspection

The board should be inspected under magnification. Look around:

• Large connector pins
• Relays
• Voltage regulators
• Power transistors
• High-current components
• Heat sinks
• Crystals and oscillators
• Areas near mounting points
• Previous repair locations

A cracked joint may appear as a fine circular line around a component lead. It may also look like a pad has separated slightly from the solder fillet.

Electrical and Mechanical Testing

Technicians may use:

• Continuity testing
• Resistance measurement
• Voltage-drop testing
• Oscilloscope checks
• Thermal testing
• Controlled vibration testing
• Microscopic inspection
• X-ray inspection for hidden joints

Thermal testing can be useful when a fault appears only after the ECU warms up. However, heating or cooling must be controlled. Extreme temperature changes can damage the board.

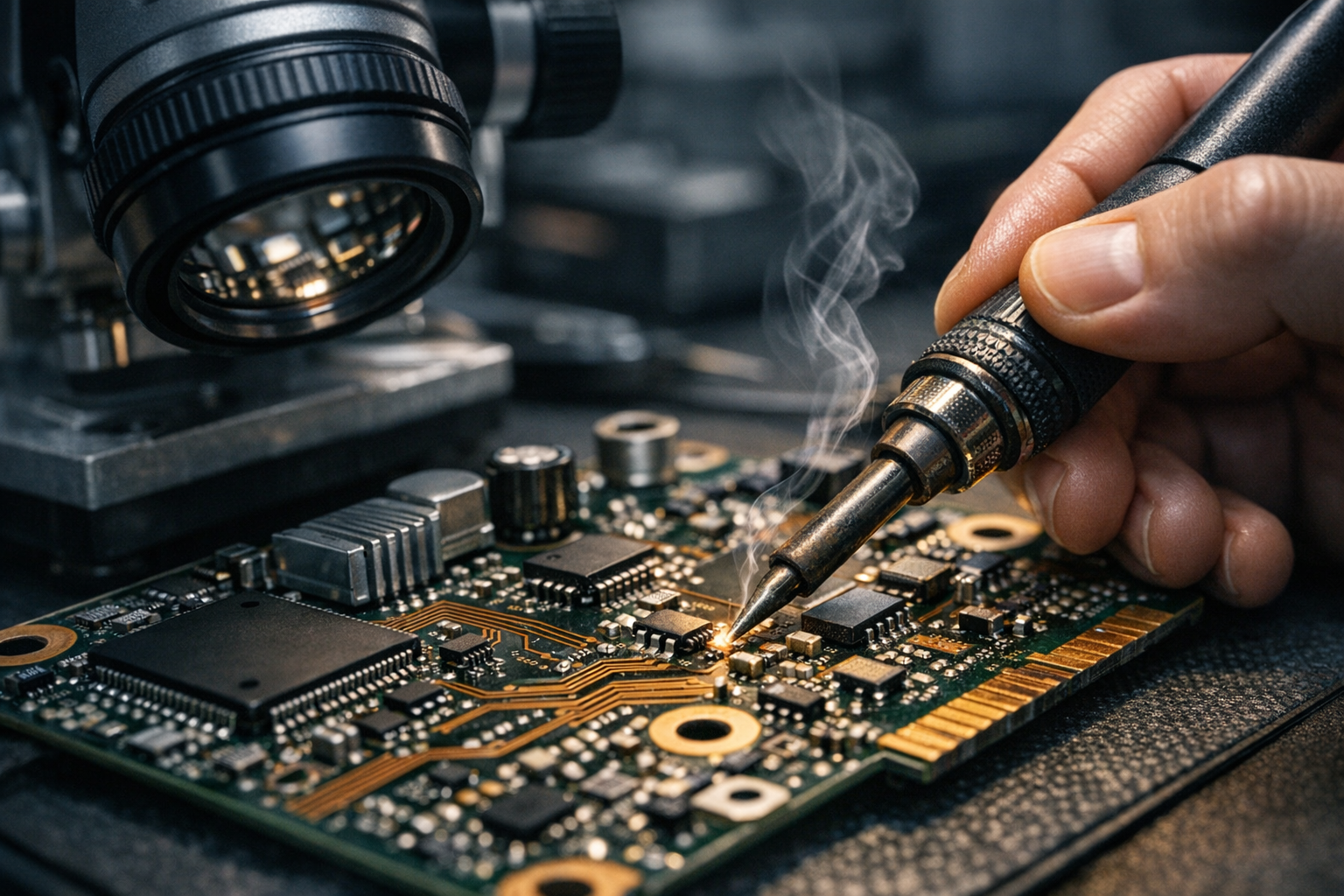

ECU Solder Joint Repair Process

A professional repair normally follows a controlled sequence.

1. Protect the Board

Use ESD protection and secure the ECU PCB properly. Remove or protect the conformal coating around the repair area where necessary.

2. Clean the Joint

Remove contamination, old flux, and loose coating. The joint must be visible and accessible.

3. Reflow or Replace

A suitable soldering method is selected based on the component and board design. Some joints may only require reflow. Others require component removal, pad repair, or replacement.

A failed component should not simply be resoldered and returned to service.

4. Inspect the Pad and Track

Check that the copper pad is still bonded to the board. If a pad or track has lifted, a jumper wire or specialist PCB repair may be needed.

5. Remove Excess Flux

Clean the repaired area using an appropriate electronics cleaning process. Do not leave residue beneath a new protective coating.

6. Test the Repair

Test continuity, resistance, power, communication, and ECU operation. For vehicle modules, complete a diagnostic scan and confirm that the original symptoms have been resolved.

7. Restore Protection

Reapply compatible conformal coating where it was removed. The repaired area should not be left exposed to moisture and contamination.

IPC-7711/7721 provides industry procedures for electronic assembly rework, component replacement, conductor repair, and PCB restoration. IPC also notes that these processes are intended for technicians with appropriate experience rather than beginners learning basic hand soldering. (IPC)

Why a Quick “Resolder Everything” Repair Can Fail

Flooding an ECU with solder or reheating every joint is not a reliable repair strategy.

It can:

• Create solder bridges
• Overheat components
• Lift PCB pads
• Damage multilayer connections
• Hide the original fault
• Trap flux and contamination
• Cause new intermittent failures
• Make future diagnosis more difficult

A good ECU repair is targeted. The technician should identify the affected circuit, understand why the joint failed, repair the connection properly, and verify the result.

More solder is not the same as better solder. Electronics occasionally prefers manners over enthusiasm.

Can an ECU Solder Joint Be Repaired at Home?

Simple through-hole soldering may be manageable for an experienced electronics hobbyist with the right tools. Modern automotive ECUs are more demanding.

Professional repair is strongly recommended when the module contains:

• BGA processors
• Fine-pitch components
• Safety-related circuits
• High-current driver stages
• Multilayer PCB tracks
• Heavy corrosion
• Hybrid or EV power electronics
• Immobiliser data
• Airbag or ABS control functions

The cost of a proper repair is often lower than replacing and programming an entire ECU. However, the repair should be completed by someone who can test the module—not just someone who owns a soldering iron.

How to Prevent Repeat ECU Solder Joint Failure

A repaired ECU can fail again if the original cause is ignored.

Check for:

• Water leaks
• Loose ECU mounting
• Damaged connector seals
• Harness strain
• Excessive engine vibration
• Poor grounds
• Charging-system problems
• Overloaded outputs
• Incorrect battery jump-starting
• Heat damage
• Corrosion in the vehicle harness

Make sure the ECU case is sealed correctly and the wiring harness is supported. A board repair fixes the internal connection, but it cannot correct a leaking scuttle panel or a damaged engine ground strap.
