Let me tell you about the car that made me stop trusting scan tools.

A 2014 hatchback came in with a no-start that only happened on cold mornings. Sometimes. The owner had already been to two shops. One replaced the crank sensor. The other replaced the ignition switch. Neither fixed it. By the time it landed on my bench, the customer was ready to sell the car for parts.

The ECU came out, the lid came off, and there it was — a hairline crack around one pin of the main connector. You could barely see it under a 10x loupe. Ten seconds with a soldering iron and the car has been starting every morning for the last three years.

That’s the thing about solder joint failures. They don’t throw a nice, tidy code that says “hey, joint 47 is cracked.” They throw symptoms. Weird ones. And they cost people thousands in replaced parts that were never broken in the first place.

So here’s what I’ve learned from opening up a lot of these boxes: the eight places where ECU solder joints actually fail, why they fail there, and what to look for.

Why ECU Solder Joints Crack in the First Place

Before we get into locations, it helps to understand the “why,” because that’s what tells you where to look on a board you’ve never seen before.

An engine control unit lives a rough life. It’s bolted somewhere that vibrates constantly. It goes from freezing overnight to seriously hot within minutes of a cold start. Copper, solder, fiberglass PCB, and component bodies all expand and contract at different rates. Do that a few hundred thousand times and something eventually gives.

Add in:

• Vibration from the engine and road
• Thermal cycling — the biggest one, honestly
• Mechanical load from heavy parts sitting on thin solder pads
• Current heating on high-load traces
• Moisture and corrosion if a seal ever failed
• Old lead-free solder that’s just plain more brittle than the old tin-lead stuff

Put it all together and you get a crack. Sometimes a full ring around a pin, sometimes just a shadow of a line you’d miss if you blinked.

The classic symptom set: intermittent faults, communication dropouts, random resets, no-starts that fix themselves, and codes that make no logical sense together. If a customer describes their car as “possessed,” check the solder before you check anything else.

The 8 Typical ECU Solder Joint Failure Locations

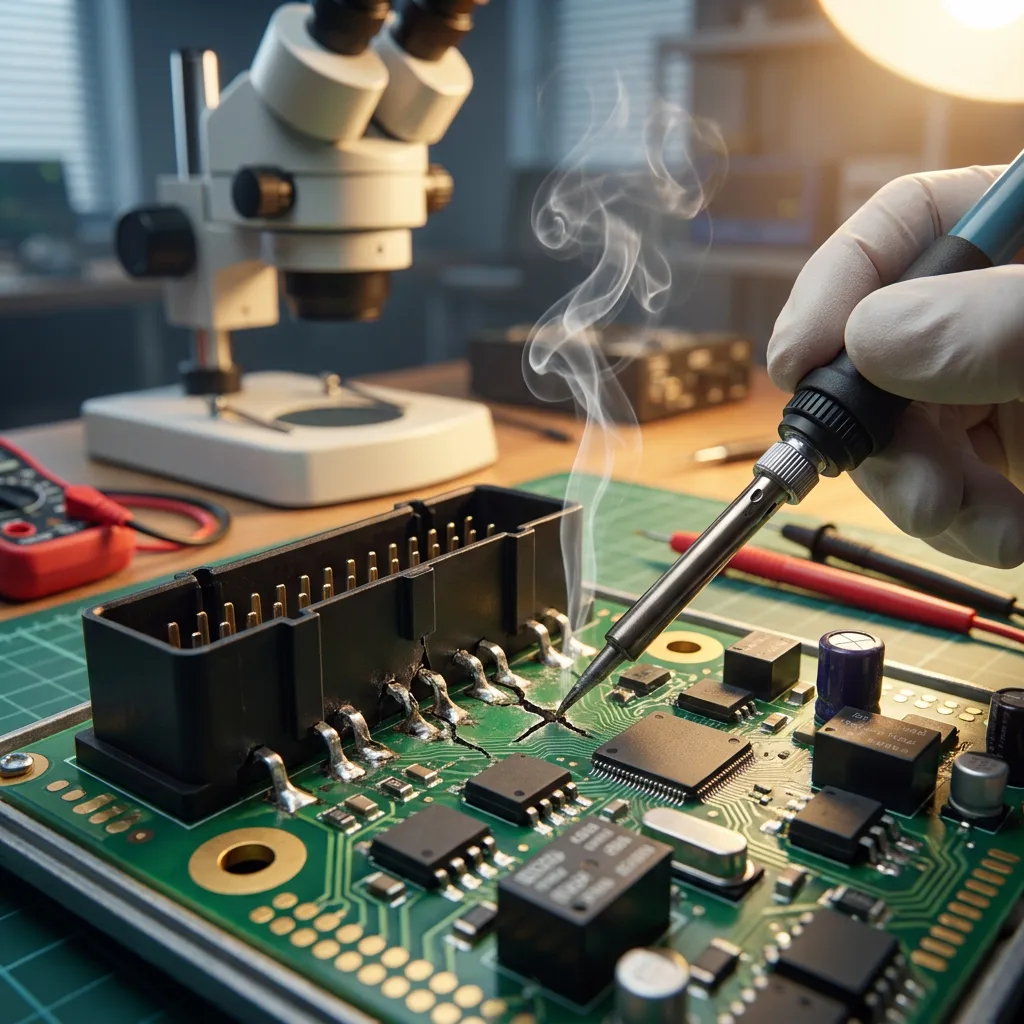

1. ECU Connector Pins

This is number one for a reason. If I could only inspect one area, it’d be here.

Those big multi-pin connectors — 40, 60, sometimes 120+ pins — are a mechanical nightmare from an engineering standpoint. Every time someone unplugs the harness, every bump in the road, every tug on a wire loom transfers stress straight down into the solder joints holding that connector to the board.

What causes failure here:

• Mechanical stress from plugging and unplugging
• Vibration transmitted through the harness
• Harness movement — especially if the loom isn’t properly secured
• High current through power and injector pins
• Previous connector damage — a bent pin someone forced back into place leaves stress behind

How to inspect it properly: Look at the solder side and the connector housing. Don’t just glance at the pads. A joint can look perfectly shiny from the bottom while the pin has actually lifted slightly inside the housing. Check for hairline rings around pins, discoloration, and any pin that sits at a slightly different height than its neighbors. Gently flex the board while watching under magnification — a cracked joint will often reveal itself as the crack opens and closes.

Pro tip from experience: reflow the whole connector row if you find one bad joint. Where there’s one, there’s usually three more about to go.

2. Power and Ground Terminals

High-current connections carry a lot of heat, and heat means expansion, and expansion means stress.

The main battery feed, ignition switched power, and the primary ground pins all pass serious current. Over years, the repeated heating and cooling cycle works the joint loose. A cracked power joint is nasty because it can cause a complete module shutdown or — far more annoying — an intermittent one. The ECU drops out for 200 milliseconds, resets, and comes back. The car stumbles, throws a handful of unrelated codes, and by the time you scan it, everything looks fine.

Look for darkened solder, a dull grey appearance instead of a clean shine, and any sign of the pad lifting from the board. On high-current joints, you often need more solder than a standard reflow — these want a proper fillet, not a token touch-up.

3. Relays

Relays are heavy. That’s the whole problem.

A relay body sitting on a board is basically a small weight bouncing up and down every time the car goes over a pothole, held on by a few millimeters of solder. Their pins are also switching real current — fuel pump, main power, fan circuits — so you get the mechanical stress and the thermal stress in the same spot.

Signs to look for: cracked rings around the relay pins, brown or blackened board material under the relay, and a slight wobble if you nudge the relay body. Also give it the smell test — a cooked relay has a distinct burnt-plastic note you learn to recognize.

4. Voltage Regulators

The voltage regulator is the ECU’s heart. If it doesn’t deliver clean, stable power to the microcontroller, nothing else works properly.

A damaged or poorly soldered voltage regulator connection creates a very recognizable pattern:

• Low internal supply voltage — the processor browns out
• Resetting — the module reboots repeatedly, sometimes several times a second
• Communication failure — no CAN response, “ECU not responding” on the scan tool
• Intermittent operation — works fine until it warms up, then quits

Regulators run hot by design, which is exactly why their joints fail. Check the regulator’s tab or heatsink connection carefully — that’s usually a large thermal pad, and large thermal pads are where cracks love to hide because they need a lot of heat to reflow properly and often didn’t get enough at the factory.

Measure the regulated output while gently pressing on the regulator body. If the voltage jumps around, you’ve found your problem.

5. MOSFETs and Driver Components

These are the output-stage components — the workhorses that actually switch your injectors, ignition coils, solenoids, cooling fans, and motors.

They handle high current and inductive loads, which means they’re constantly dealing with voltage spikes and heat. After an electrical overload — a shorted injector, a failing coil, a solenoid with a collapsed winding — the driver often takes damage. Sometimes it’s the component itself. Sometimes it’s the solder joint or the pad underneath it that’s been cooked.

Watch for: lifted pads, browned board material around the component, solder that looks like it’s been re-melted and re-frozen into a dull blob, and vias near the component that have discolored.

Important: if a driver failed because of an external short, fixing the joint alone won’t save you. Find and fix the load that killed it, or you’ll be back on the bench in a week. That’s the difference between a repair and a bandage.

6. Large Capacitors

Big electrolytic capacitors are another “heavy thing on thin legs” problem. They can move slightly under vibration, and all that movement gets transferred into two small solder joints at the base.

Two things to check here:

1. The joints themselves — cracks around the leads, especially on caps that aren’t glued down
2. The capacitor’s condition — bulging tops, crusty residue at the base, or any sign of leaked electrolyte

Leaked electrolyte is particularly evil because it creeps across the board and corrodes nearby traces and joints. If you find a leaker, clean the area thoroughly with isopropyl alcohol and inspect everything within a centimeter of it.

7. Crystals and Oscillators

Small part, huge consequences.

The crystal oscillator sets the clock for the microcontroller. If its connection is damaged, the processor either doesn’t run at all or runs unstably. Symptoms include complete communication failure, random processor lockups, and CAN bus errors that make the ECU look completely dead.

Here’s the trap: an ECU with a bad crystal joint looks exactly like an ECU with a dead processor. Plenty of perfectly good modules have been thrown away because of two tiny cracked joints. Always check the crystal before you declare a microcontroller dead — it takes thirty seconds and it’s saved me more than once.

Crystals are also physically fragile. Handle them gently, don’t overheat them, and never pry on the can.

8. Ground Points and Thermal Connections

Saving the hardest for last.

Many ECU designs use large PCB ground planes or heat-transfer connections — big copper areas that soak up heat and provide a low-resistance ground path. These are genuinely difficult to inspect and even harder to repair correctly.

Why? Because that big copper area acts like a heatsink. It pulls heat away from your iron faster than you can put it in. A standard 40W pencil iron will just sit there and make the joint look worse without ever reflowing it. You need proper thermal mass — a decent station, a chisel tip, preheat if you can, and patience.

Signs of a failing ground plane connection: erratic sensor readings across multiple unrelated circuits, ground offset voltages, and faults that change when you touch the board. Measure resistance from the ground pin to several points on the plane — anything above a fraction of an ohm deserves a closer look.

How to Actually Find a Cracked Joint

Knowing the locations is half the battle. Here’s the method:

Start with magnification. A microscope beats a loupe, and a loupe beats your eyes. Good lighting from multiple angles matters more than most people think — cracks show up as shadows, and shadows need the right light.

Do the flex test. With the board powered (carefully, on a bench supply) gently flex sections while watching for the fault to appear. When it does, you’ve narrowed the search zone dramatically.

Try freeze spray and heat. Thermal cycling reproduces the failure. If the fault appears when you chill one area or warm another, that’s your neighborhood.

Check the obvious stress points first. Anything heavy, anything hot, anything that connects to the outside world.

When you reflow, do it properly. Add fresh solder with flux. Don’t just melt the old joint — old solder that’s been thermally cycled to death is already compromised. Remove it, clean the pad, and build a new joint.
