Welcome back! If you’ve ever had an engine crank endlessly, throw random coil packs out to pasture, or go completely dark on your OBD2 scanner, you know the sickening feeling of a fried Engine Control Unit (ECU).

Replacing a modern engine computer can easily set you back $1,200 to $3,500 at the dealership. Worse yet, if you plug a brand-new or used replacement ECU directly into a vehicle with an existing wiring short, you’ll smoke the new one in half a second.

In this guide, we are going to roll up our sleeves, crack open the aluminum casing, and trace down ECU short circuits using real, hands-on bench techniques used by automotive electronic specialists every day.

What Actually Causes an ECU Short Circuit?

Before grab your soldering iron, you need to understand why these boards short out in the first place. An ECU doesn’t usually commit suicide; something outside the box almost always pushes it over the edge.

Here are the most common real-world triggers:

1. Reversed Battery Cables: Jump-starting a car in the dark and swapping positive and negative leads dumps raw voltage in reverse, immediately blowing protective TVS (Transient Voltage Suppressor) diodes inside the ECU.
2. Shorted Solenoid / Actuator: High-current devices like variable valve timing solenoids, purge valves, or fuel injectors can short internally. When their internal resistance drops to zero ohms, they pull excessive current directly through the ECU driver transistors.
3. Rubbed Wire Harnesses: Engine vibration wears down insulation against the intake manifold or frame. A 12V supply wire touching chassis ground will cause direct feedback spikes.
4. Moisture and Corrosion: Water leaking through the windshield cowl or sunroof drain into the footwell creates conductive salt bridges across tiny SMD (Surface Mount Device) pads.

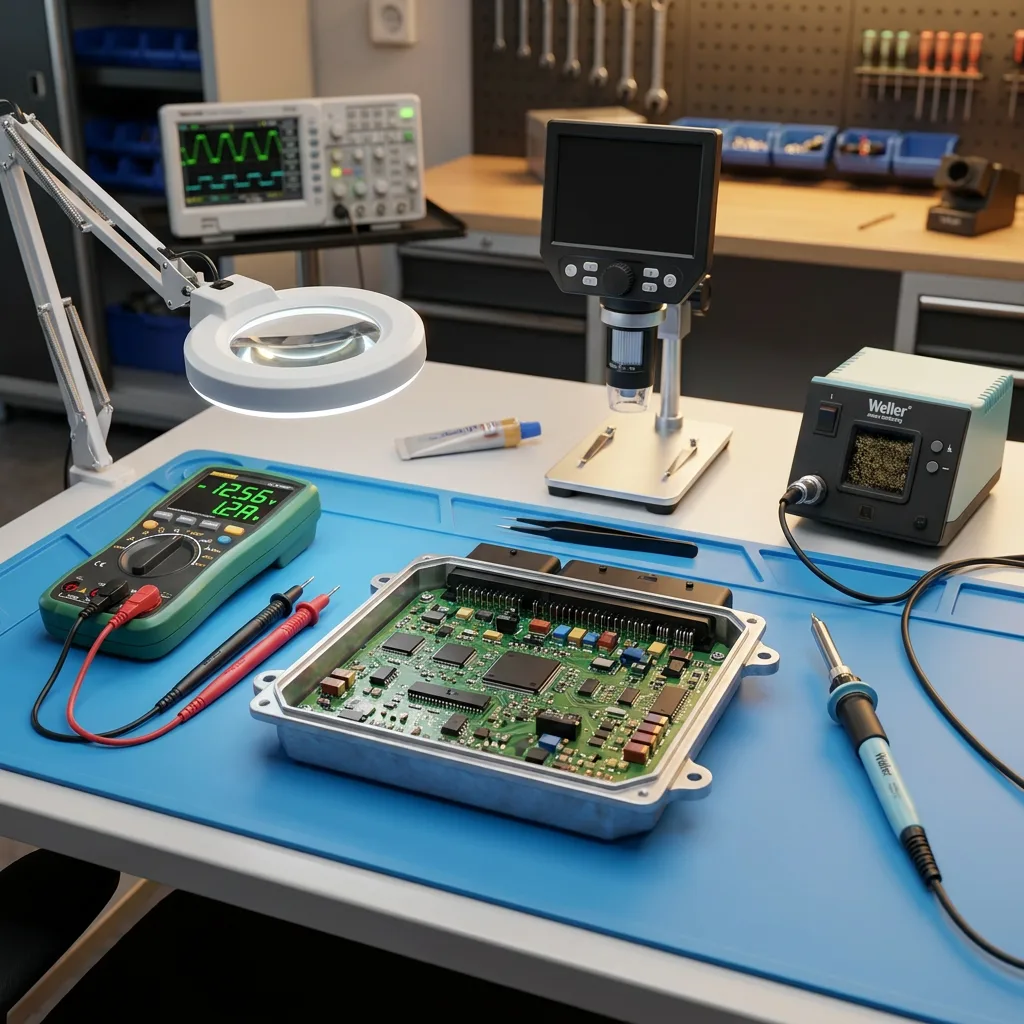

Tools You Need on Your Workbench

You don’t need a million-dollar lab setup to repair engine computers, but a few basic tools are mandatory:

• Digital Multimeter (DMM): Needs high-accuracy continuity testing and diode testing functions.
• Bench Power Supply: Variable 0–30V, 0–5A power supply with current limiting functionality (crucial for safe testing!).
• Rosin / Isopropyl Alcohol (IPA): Used for low-cost thermal detection.
• Micro-Soldering Station & Flux: A fine chisel tip iron, flux paste, desoldering braid, and copper jumper wire (30 AWG).
• Magnifying Lamp or Digital Microscope: Essential for examining surface-mount pins and tiny circuit micro-cracks.

Step-By-Step Diagnostic & Repair Process

Step 1: Pinout Verification and Bench Connections

Never test blind. Search for the exact harness pinout of your specific module (e.g., Bosch ME7, Continental SIMOS, or Denso series). Identify:

• Main Constant 12V Pins (BATT+)
• Switched Ignition 12V Pins (IGN+)
• Chassis / Signal Ground Pins (GND)
• 5V Sensor Reference Outputs (VREF)

Step 2: The Cold Resistance Check (Power OFF)

Set your multimeter to Resistance ($\Omega$) mode. Before connecting any power supply:

1. Touch one probe to an ECU ground pin.
2. Touch the other probe to the 5V Sensor Reference output pins.
3. The Result: If you read under 100 Ohms (or hear a continuous beep in continuity mode), you have a hard short on the 5V rail. A healthy 5V rail usually sits above several kilo-ohms ($k\Omega$).

Step 3: Finding the Burning Component (Thermal Method)

If you have a hard short on a power rail, hook up your bench power supply. Set the voltage to 3.3V or 5V and limit the current to around 0.5 Amps.

• The Alcohol Trick: Spray a thin layer of 99% Isopropyl Alcohol across the circuit board components.
• Watch for Evaporation: The shorted component pulling all the excess current will heat up rapidly. The alcohol over that specific chip, diode, or capacitor will instantly flash off and dry up while the rest of the board stays wet.

Step 4: Component Replacement and Trace Repair

Once you isolate the shorted component:

1. Apply plenty of rosin flux to the pads.
2. Use hot air (around 350°C–380°C) to lift the damaged chip or surface-mount capacitor off the board.
3. Clean the bare copper pads with solder wick.
4. Solder in a fresh OEM-spec replacement component.
5. If the copper trace on the PCB melted away like a fuse, scrape back the green solder mask on both ends of the broken track and solder a thin enamelled copper jump wire to restore continuity.

How to Prevent Firing the ECU Again

Once your bench tests show normal resistance across all power rails, do not plug it back into the car right away!

Always use your multimeter on the vehicle’s harness connector to check resistance to ground on all actuator lines (injectors, ignition coils, solenoids). Fix the shorted wiring or faulty sensor in the engine bay first; otherwise, you will immediately blow the repaired ECU driver the moment you turn the key.
