When an electronic control unit completely ghosts your diagnostic scanner, refuses to communicate, or leaves the dashboard dead, most technicians immediately check fuses or wiring harness plugs. But veteran bench repairers know that the true heartbeat of any car computer lies within its Power Supply Circuit [image.png].
If the primary power management section fails, the entire ECU shuts down completely—meaning no processor boot, no memory access, and zero communication across the CAN network [image.png].
What Exactly is an ECU Power Supply Circuit?
The power supply circuit is the very first system that springs into life the moment you turn on the vehicle ignition [image.png]. Its primary job is taking the raw, unstable 12V or 24V battery voltage from the vehicle and safely stepping it down into ultra-stable, clean low-voltage rails—typically 5V, 3.3V, 1.8V, or 1.2V [image.png].
Without these precise reference voltages, the delicate microcontroller (MCU), flash memory chips, EEPROMs, and communication transceivers cannot function [image.png]. If this circuit goes down, the computer is essentially braindead.
Core Components of an ECU Power Supply
A typical automotive power management layout incorporates several heavy-duty protection and conversion components [image.png]:
- Fuses: Protect the internal ECU architecture from total overcurrent spikes [image.png].
- Protection Diodes: Guard against reverse battery polarity mistakes [image.png].
- MOSFETs: Act as electronic solid-state switches to control power flow and provide board-level protection [image.png].
- Voltage Regulators: Step down 12V to steady 5V or 3.3V outputs under heavy load variations [image.png].
- Capacitors: Smooth out electrical noise and stabilize voltage rails [image.png].
- Inductors (Buck Converters): Switch high-efficiency power transformations to reduce heat generation [image.png].
Famous Voltage Regulators to Know
On the bench, you will encounter specific integrated voltage regulators across various Bosch, Siemens, Continental, and Delphi ECUs. Common industry standards include:
- TLE4278 & TLE4471 [image.png]
- L4949 [image.png]
- MC33275 & LM2940 [image.png]
- TPS7xxx Series [image.png]
Common Power Supply Failure Symptoms
When a power regulation circuit suffers damage, it exhibits clear diagnostic patterns [image.png]:
- The ECU fails to power up or communicate with diagnostic scanners at all [image.png].
- Total absence of the critical 5V reference voltage going out to engine sensors [image.png].
- The control unit constantly reboots or cycles power endlessly [image.png].
- Abnormal overheating localized around the voltage regulator chip [image.png].
- Blown input fuses or burned circuit traces near the main power connector [image.png].
Step-by-Step Power Circuit Testing Workflow
Before desoldering parts randomly, use a structured testing approach on your workbench:
- Verify 12V Input: Confirm that main battery and ignition feeds are successfully reaching the board [image.png].
- Check Ground Continuity: Ensure ground pins and internal ground planes have zero resistance [image.png].
- Measure Regulator Output: Check the output pins of your voltage regulators for stable 5V or 3.3V rails [image.png].
- Inspect for Short Circuits: Test main power lines for dead shorts to ground using a multimeter continuity setting [image.png].
- Monitor Current Draw: Use a current clamp or adjustable bench supply to track milliamp draw and catch hidden short circuits safely [image.png].
Can Power Supply Circuits Be Reprogrammed?
Just like hardware driver stages, the power management section is purely physical electronic hardware [image.png]. It is responsible for distributing and regulating electrical energy, meaning it contains no flash memory, software maps, or EEPROM calibration data [image.png]. When a regulator or MOSFET burns out, it requires physical replacement via a hot-air rework station.

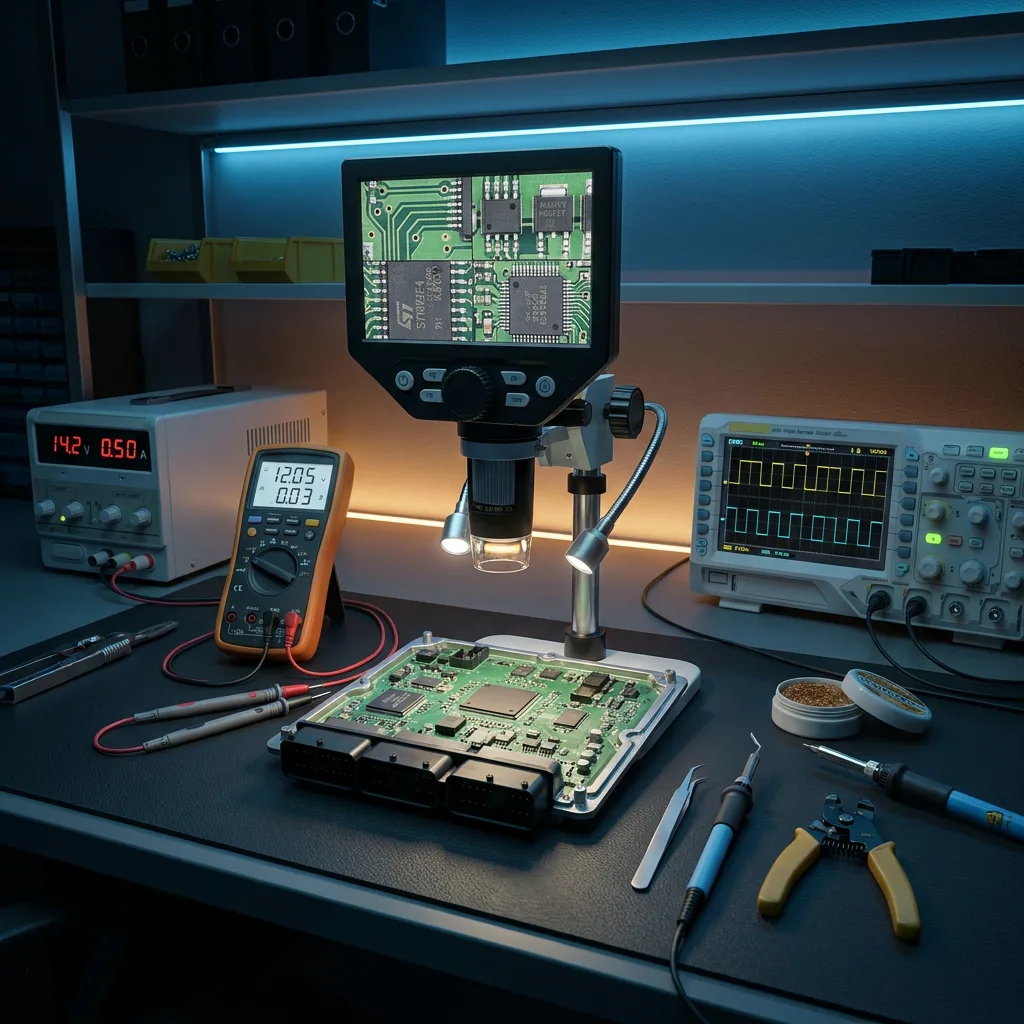

Essential Bench Equipment for Power Work
- Digital Multimeter [image.png]
- Storage Oscilloscope [image.png]
- Regulated Bench Power Supply [image.png]
- Hot Air Rework Station & Fine Soldering Iron [image.png]
- Thermal Imaging Camera (Optional, but brilliant for spotting hidden shorts) [image.png]
Crucial Mistakes to Avoid
- Never plug in a repaired ECU without checking for shorts first. Powering an unverified short circuit will instantly fry your replacement voltage regulator [image.png].
- Avoid using unmonitored high-current power sources. Always use a current-limited bench supply to prevent catastrophic board damage during initial testing [image.png].
- Never ignore ground paths. A corroded or broken ground trace will force current through alternate signal paths, destroying delicate microchips [image.png].
Mastering power supply architecture gives you the power to resurrect seemingly hopeless “dead” control units, saving hours of diagnostic frustration and building supreme technical authority on the bench.
