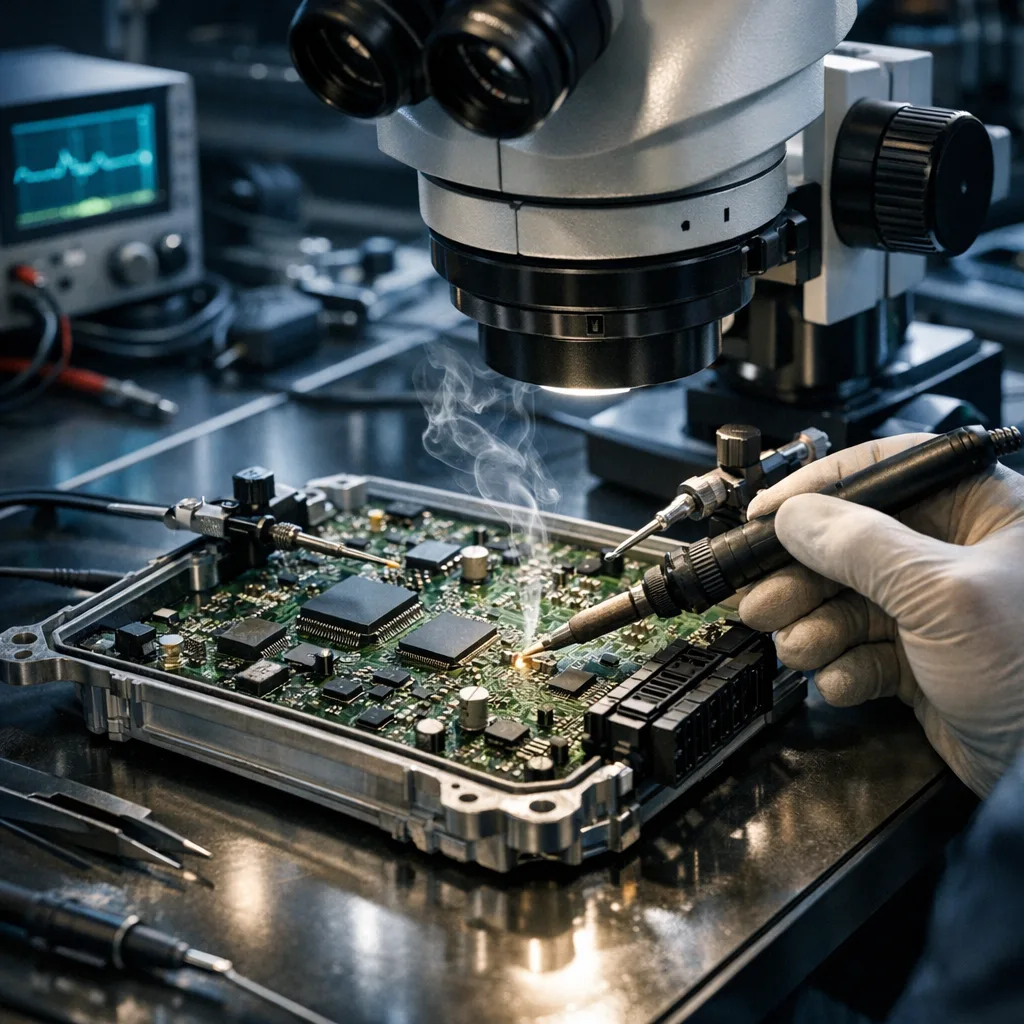

If you work around performance cars, tuning, or advanced diagnostics, ECU hardware repair is one of those skills that quickly separates the basics from the real work. A lot of people can swap parts. Fewer people can open up an ECU, find the fault, and actually repair the board properly.

That is where real value sits.

ECUs fail for many reasons: heat, moisture, vibration, bad power, failed components, poor previous repairs, or damaged solder joints. When that happens, replacing the whole unit is not always the smartest move. In many cases, a proper ECU hardware repair can bring it back to life and save time, money, and frustration.

This guide keeps things simple and useful. No fluff. Just the kind of information that helps you understand what ECU hardware repair involves, what usually goes wrong, and why board-level diagnostics matter so much in the automotive tuning world.

What Is ECU Hardware Repair?

ECU hardware repair is the process of fixing the physical electronic parts inside an engine control unit. That can include:

• damaged circuit traces
• broken solder joints
• failed capacitors or resistors
• burnt components
• corroded pins
• water damage
• internal power supply faults
• connector or terminal issues

Unlike software tuning or coding, hardware repair deals with the actual board. This is where electronics knowledge matters. You are not just reading fault codes. You are tracing the problem down to the component level.

That is why ECU hardware repair is such a valuable skill in modern automotive work.

Why ECU Hardware Repair Matters in Automotive Tuning

In the tuning world, the ECU is the brain of the vehicle. If it does not communicate properly, manage sensors correctly, or power up the way it should, the whole setup can fall apart.

A hardware fault can show up as:

• no-start condition
• intermittent misfires
• communication failure
• random warning lights
• poor throttle response
• fuel or ignition issues
• tuning problems that do not make sense

A lot of people blame the map first. In reality, the ECU board may be the real issue.

That is why professional tuners and auto electricians pay attention to hardware. If the electronics are weak, no tune in the world will fully solve the problem.

Common ECU Hardware Problems

Here are the faults seen most often in ECU repair work.

1. Heat Damage

ECUs live in tough environments. Over time, heat can stress solder joints and electronic components. Small cracks may form and cause intermittent issues that are hard to catch.

2. Water Ingress

Moisture is one of the biggest enemies of electronics. Even a small amount of water can lead to corrosion, oxidized pins, or short circuits on the board.

3. Failed Power Supply Components

Inside many ECUs, power regulation is handled by small electronic parts that can fail without warning. When they do, the ECU may not boot up at all.

4. Cracked Solder Joints

Vibration from the road can slowly weaken solder points. This often creates faults that come and go, which makes diagnosis tricky.

5. Damaged Connectors

If the ECU connector or pin area is damaged, the unit may lose communication, power, or signal integrity.

6. Burnt Components

A surge, reverse polarity, or internal short can burn parts on the board. In these cases, a visual inspection often reveals the damage fast.

How ECU Hardware Diagnostics Work

Good ECU repair starts with diagnosis. Guessing is expensive. Careful checking saves time.

A proper diagnostic process usually includes:

Visual Inspection

Look closely at the board for:

• corrosion
• discoloration
• cracks
• bulging parts
• broken pins
• burnt spots

Power and Ground Checks

Before anything else, confirm the ECU is getting proper power and ground. Many apparent ECU failures are actually supply issues.

Continuity Testing

This helps check whether signals and traces are intact. A broken path on the board can stop the ECU from working correctly.

Component Testing

Capacitors, resistors, regulators, and other parts can be tested with the right equipment. A bad component can cause a chain reaction of faults.

Bench Testing

Bench testing is useful when the ECU is removed from the car. It lets you check whether the unit powers up and responds as expected.

Signal Trace Analysis

For advanced work, tracing signals through the board helps find where communication or power flow stops.

This is where skill matters. ECU hardware repair is not only about tools. It is about patience, structure, and a solid understanding of electronics.

Tools Used in ECU Hardware Repair

A serious repair setup usually includes:

• soldering iron
• hot air station
• multimeter
• oscilloscope
• microscope
• PCB cleaner
• flux
• ESD-safe tools
• bench power supply
• component testing equipment

Each tool has its job. A microscope helps spot fine cracks or corrosion. A multimeter confirms basic electrical behavior. A hot air station helps remove and replace small parts. A bench supply lets you test the ECU safely outside the vehicle.

Good tools make the work cleaner, faster, and more reliable.

Soldering Skills Matter More Than People Think

A huge part of ECU hardware repair comes down to soldering quality. Small mistakes can create bigger problems than the one you started with.

Strong soldering skills help you:

• remove damaged components safely
• install replacements cleanly
• avoid lifted pads
• protect delicate traces
• create reliable long-term repairs

If the solder job is weak, the ECU may fail again later. That is why board-level work should never feel rushed.

When ECU Repair Is Better Than Replacement

In many cases, repair is the smarter option.

Repair makes sense when:

• the board has one clear fault
• replacement units are expensive
• the ECU is rare or hard to source
• vehicle coding or matching is complex
• the fault is physical and repairable

Replacement may be needed if the board is severely damaged, but many ECUs can be saved with the right approach.

That is one of the reasons ECU hardware repair is so valuable in the automotive industry. It gives workshop owners and tuners more options.

The Value of Training in ECU Hardware Repair

You do not become good at ECU repair by watching a single video and hoping for the best. Real skill comes from structured training, hands-on practice, and learning how boards behave.

A solid training path should cover:

• electronics basics
• ECU architecture
• board inspection
• fault finding
• soldering and rework
• component replacement
• safety and ESD handling
• testing and verification

This kind of training builds confidence. It also reduces costly mistakes. When you understand the board, you stop working blind.

That is especially important in tuning shops, where time matters and reputation matters even more.

ECU Hardware Repair and Real Workshop Results

In a busy workshop, ECU faults often show up as confusing driveability problems. Customers may arrive with:

• no-start complaints
• stalling
• rough idle
• power loss
• communication issues
• unexplained fault codes

A repair-focused approach helps you solve those problems properly instead of just replacing parts and hoping.

That is what customers really want: a fix that lasts.

And from a business point of view, ECU hardware repair can add a strong service line to a tuning or diagnostic workshop. It creates more value from the same vehicle, the same customer, and the same problem.

What Makes a Good ECU Repair Technician?

A good ECU repair technician usually has a few things in common:

• attention to detail
• patience
• steady hands
• understanding of electronics
• clean work habits
• proper testing discipline
• respect for the board and the vehicle system

The best technicians do not rush to conclusions. They test, confirm, repair, and retest. That simple habit saves a lot of pain.
