Inside the ECU: What Are Drivers and Why Do They Matter?

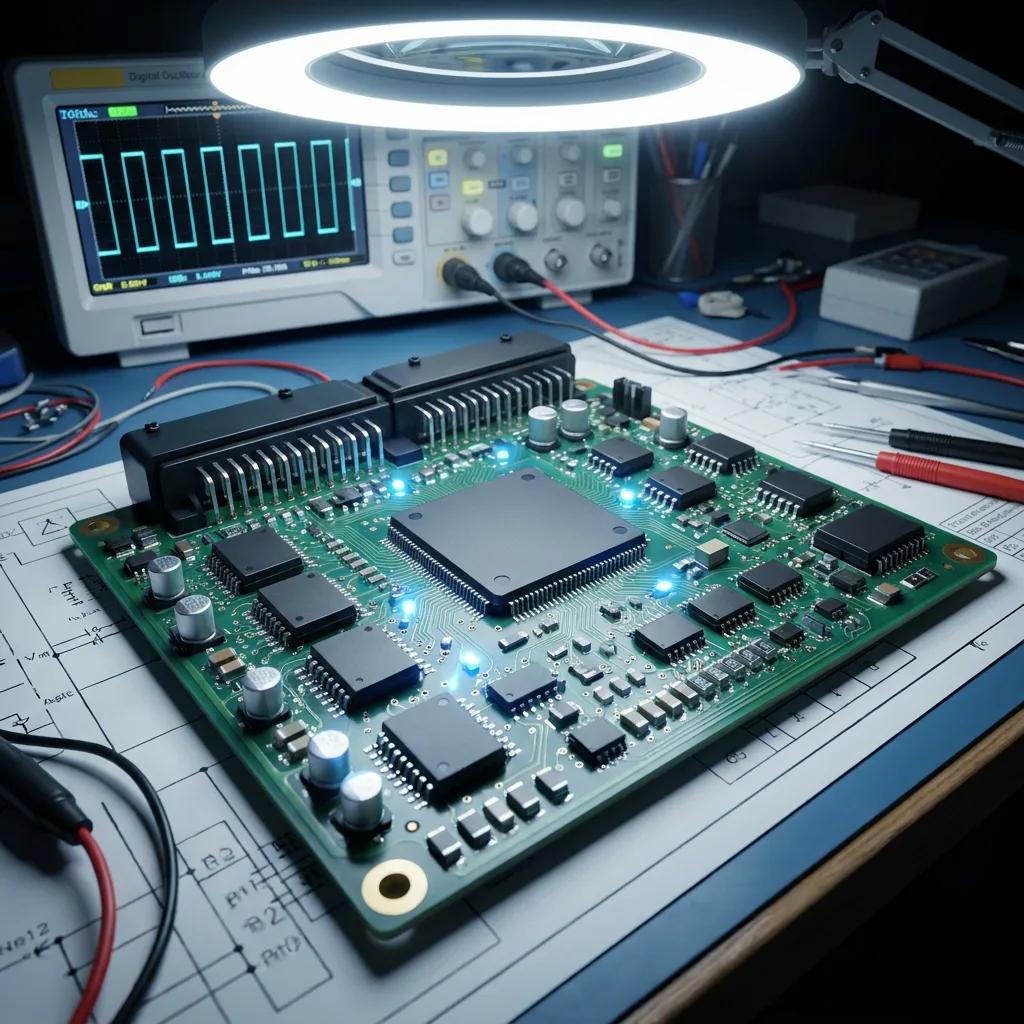

If you have ever wondered what happens beneath the casing of a modern vehicle’s engine control unit ([ECU]), the secret lies in the microscopic communication between the processing brain and the heavy-duty hardware. Inside [image.png], we break down the vital role of [Drivers]—the electronic intermediary components that sit squarely between the [MCU] (Microcontroller Unit) and vehicle actuators like fuel injectors, ignition coils, and electronic throttles.
An [MCU] processes data at low voltages, making it brilliant at decision-making but incapable of handling high electrical loads directly. That is where [Drivers] step in. They take low-power logic commands from the processor and safely amplify them to drive heavy components like cooling fans, EVAP purge valves, and fuel pumps.
Types of ECU Driver Circuits
When troubleshooting electrical failures, understanding the exact driver topology is half the battle:
- Low Side Driver: Switches the load to the ground (Negative). This is the most common layout found in automotive systems.
- High Side Driver: Connects the load to the positive terminal ($+12\text{V}$). Widely used in modern integrated power distribution networks.
- H-Bridge Driver: Reversible output configuration used for controlling electric motor directions, such as electronic throttle bodies, power windows, and automated seat adjusters.
Pro Diagnostic Steps for Faulty Drivers
When an actuator stops responding even though the [MCU] and software programming are healthy, the issue often tracks back to a burned driver chip (such as popular industry components like the TLE6240, TLE6220, or VNQ660). Follow this field-tested workflow for accurate diagnosis:
- Verify Power Delivery: Ensure positive supply voltage reaches the driver pin.
- Check Control Signals: Confirm that logical command signals are successfully arriving from the [MCU].
- Measure Driver Output: Test the live output behavior using a reliable oscilloscope to track waveform switching.
- Inspect for Short Circuits: Always check external wiring harnesses for shorts before dropping in a replacement chip to prevent immediate burnout of your new component.
Frequently Asked Questions
- Can ECU Driver chips be reprogrammed? No. [Drivers] are pure hardware electronic switching circuits, not memory or processing units. They cannot be flashed or programmed; they must be physically replaced if damaged.
- What are the common signs of a failing driver? Symptoms include non-working fuel injectors, missing spark ignition pulses, unresponsive cooling fans, or persistent diagnostic trouble codes pointing directly to hardware output failures
