Modern vehicles rely on electronic control units for almost everything from engine management and automatic transmissions to ABS, airbags, fuel injection, body systems, and hybrid or electric powertrains.

Inside many of these modules is a printed circuit board protected by a thin layer of conformal coating. It may look like clear varnish, rubber, wax, or a slightly coloured film, but it has an important job. The coating helps protect the ECU circuit board from moisture, dust, chemicals, salt, corrosion, vibration, and electrical contamination.

The problem begins when an ECU needs to be repaired.

Before a technician can replace a damaged component, repair a broken trace, test a solder joint, or inspect corrosion, the coating around the repair area usually has to be removed. After the repair, that exposed section must be cleaned, inspected, and coated again.

It sounds simple. It is not.

A careless removal process can lift PCB pads, damage fine tracks, crack components, contaminate connectors, or create a new failure that was not present before the repair. A poor reapplication can leave bubbles, pinholes, thin spots, trapped flux, or unprotected areas.

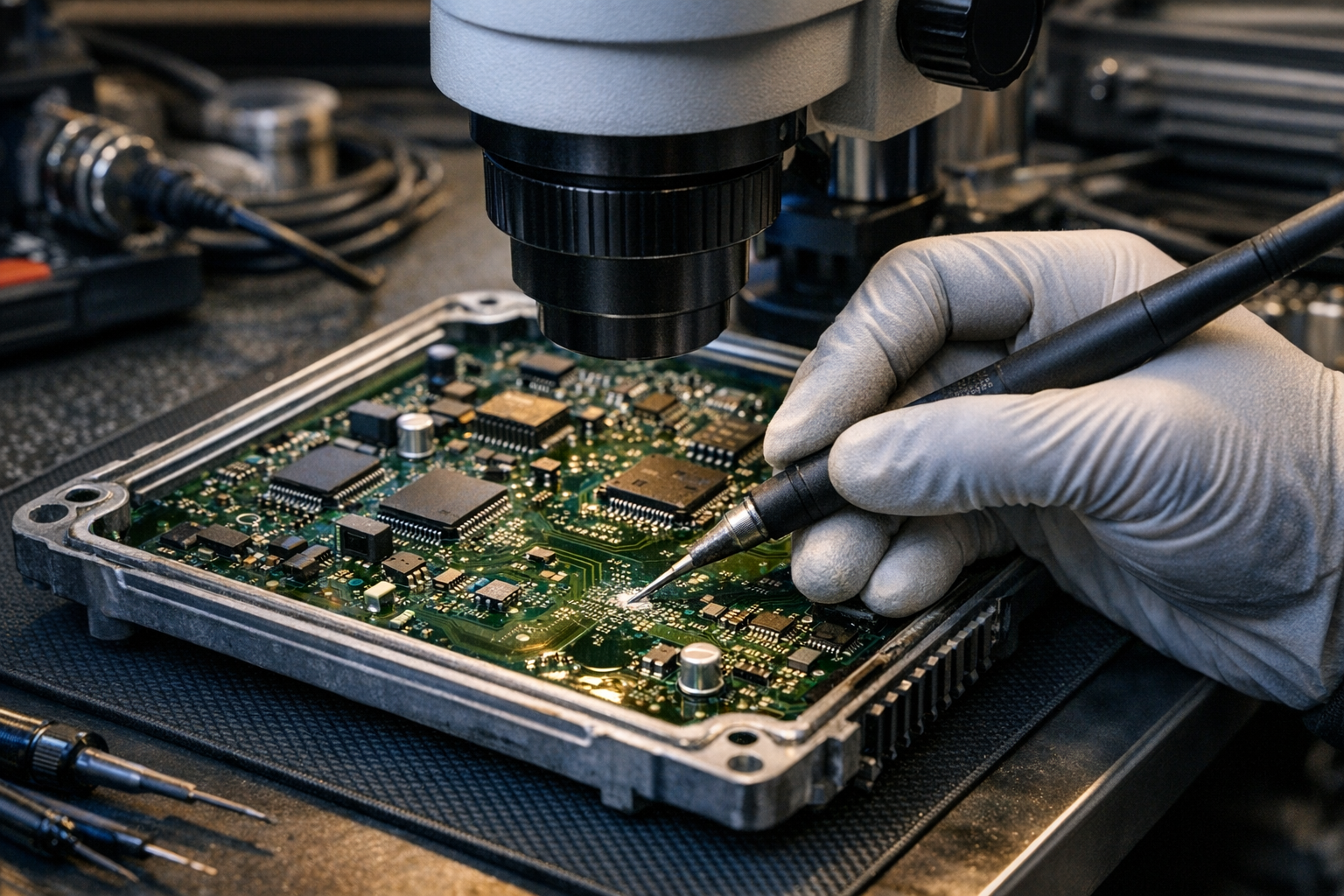

This guide explains the ECU conformal coating repair process in a clear, practical way.

Important: ECU repair should be carried out by a trained electronics technician using appropriate ESD protection, ventilation, tools, and material safety procedures. The correct process depends on the coating type, board design, component sensitivity, and vehicle application.

What Is ECU Conformal Coating?

Conformal coating is a thin protective film applied over an electronic assembly. Unlike potting compound or full encapsulation, it follows the shape of the PCB and components without completely filling the enclosure.

The coating is designed to protect the board while allowing manufacturers and repair technicians to access selected areas when necessary.

Common conformal coating types found in automotive electronics include:

• Acrylic coating
• Silicone coating
• Polyurethane coating
• Epoxy coating
• Parylene coating
• UV-curable coatings

Each material behaves differently during removal and reapplication. Some soften with heat, some respond to solvents, some can be carefully scraped, and others require specialist processes such as micro-abrasion, laser ablation, or plasma treatment.

That is why guessing the coating type is risky.

IPC guidance treats coating removal as a controlled rework activity rather than a casual cleaning task. The IPC-7711/7721 rework standard includes procedures, tools, and methods for removing and replacing conformal coatings on electronic assemblies. (IPC)

Why Do Automotive ECUs Need Conformal Coating?

An ECU operates in a demanding environment. Depending on its location, it may experience:

• Engine-bay heat
• Rapid temperature changes
• Condensation
• Road salt
• Oil and fuel vapour
• Dust and dirt
• Electrical interference
• Mechanical vibration
• Connector contamination
• Water splash or humidity

Conformal coating helps reduce the risk of moisture-related leakage, corrosion, contamination, and electrical tracking. IPC guidance identifies protection against humidity, contamination, corrosion, arcing, and vibration as some of the main reasons conformal coatings are used on electronic assemblies. (IPC)

However, conformal coating is not a magic waterproofing solution. It does not repair a cracked enclosure, failing connector seal, damaged breather membrane, or water-damaged PCB. If moisture entered the ECU, the original cause must be found before the module is returned to service.

When Should ECU Conformal Coating Be Removed?

The coating should normally be removed only from the area that requires access.

Typical reasons include:

• Replacing a failed capacitor, resistor, diode, or transistor
• Repairing a damaged solder joint
• Reworking a BGA or fine-pitch component
• Repairing a lifted pad or broken PCB track
• Inspecting corrosion beneath the coating
• Testing a suspected short circuit
• Removing contamination trapped under the coating
• Replacing a damaged connector pin
• Repairing a cracked solder joint caused by vibration

The goal is not to strip the entire board unless the coating itself is defective or a complete restoration process requires it.

Localised removal is usually safer, faster, and easier to control.

Removing more coating than necessary increases the chance of damaging components and leaves a larger area that must be protected again.

Step 1: Prepare the ECU and Work Area

Before touching the coating, document the ECU.

Take clear photographs of:

• The board before repair
• The coating condition
• The affected component
• Any corrosion or contamination
• Connector orientation
• Markings and component positions

Use an ESD-safe workbench, grounded wrist strap, suitable lighting, magnification, and clean tools. Automotive control modules often contain static-sensitive semiconductors, and a repair can fail even when the visible workmanship looks perfect.

The board should be securely supported without putting pressure on fragile components or connectors.

Also check the safety data sheet for every solvent, coating remover, cleaning product, and replacement coating. Good ventilation and suitable personal protective equipment are essential.

Step 2: Identify the Coating Type

The removal method depends heavily on the material.

Useful clues include:

• Colour and transparency
• Surface gloss
• Flexibility
• Hardness
• Response to gentle heat
• Response to a compatible solvent
• Whether it fluoresces under UV light
• How it behaves when lightly scored in a non-critical area

Acrylic coatings are often easier to soften or dissolve than polyurethane, epoxy, or parylene. Silicone coatings are flexible and may peel or smear depending on the formulation. Parylene is highly resistant to many chemicals and commonly requires mechanical or specialist removal methods. (ADVANCEDCOATING)

If the coating type is unknown, test the selected process on a non-critical area or an identical scrap board first. Never begin with an aggressive solvent or high heat directly over an important processor, memory device, sensor circuit, or fine-pitch connector.

Step 3: Select the Removal Method

There is no universal ECU conformal coating remover. The right method is the least aggressive process that gives enough access for the repair.

Mechanical Removal

Mechanical removal may involve:

• A sharp precision blade
• Fibreglass pen
• Plastic scraper
• Fine pick
• Controlled abrasion
• Micro-blasting equipment

This method gives good control around small repair areas, but excessive pressure can cut copper tracks or damage solder-mask edges.

Use shallow, controlled movements. Do not drag a blade across the board as though removing paint from metal. The PCB laminate and copper traces are much more delicate than they look.

Solvent Removal

Some coatings can be softened with a compatible electronics-grade solvent. Solvent selection should be based on the coating manufacturer’s technical data, not guesswork.

Avoid household products such as nail-polish remover, brake cleaner, aggressive degreasers, or unknown acetone blends. These may attack plastics, labels, seals, solder mask, adhesives, or connector materials.

Apply the smallest practical amount using a swab or precision applicator. Keep solvent away from connectors, switches, acoustic sensors, pressure vents, and components with internal seals.

Controlled Heat

Certain coatings soften when warmed. Controlled heat may help lift or soften the film, but excessive temperature can damage:

• Plastic connectors
• Electrolytic capacitors
• Crystal oscillators
• MEMS sensors
• Adhesives
• Solder joints
• Nearby components

Use temperature-controlled equipment and monitor the board closely. If the coating becomes gummy, smokes, discolours, or spreads across the board, stop and reassess the method.

Specialist Removal

Parylene, thick epoxy, and difficult multi-layer coatings may require:

• Micro-abrasion
• Laser ablation
• Plasma treatment
• Specialist chemical systems
• Controlled thermal tools

These methods are normally better suited to professional electronics repair laboratories than home workshops. Parylene, for example, generally cannot be removed with ordinary chemical methods and may require mechanical abrasion, heat, laser, or plasma processes. (ADVANCEDCOATING)

Step 4: Remove Only the Necessary Area

Mark the repair zone before removing the coating.

A good removal area should expose:

• The component leads or solder joints that require work
• Enough surrounding copper for inspection
• Any nearby corrosion or contamination
• A clean edge where new coating can overlap the old film

Avoid removing coating from unrelated components. When working near fine-pitch ICs, use magnification throughout the process.

A practical technique is to score the coating around the repair area first, then work inward with a suitable tool. This helps prevent uncontrolled lifting and reduces the risk of peeling coating from nearby components.

The coating should be removed gradually. Stop regularly to inspect the board rather than trying to complete the job in one aggressive pass.

Step 5: Inspect the Exposed PCB

Once the repair area is accessible, inspect it carefully.

Look for:

• Green or white corrosion
• Darkened solder joints
• Cracked solder fillets
• Lifted pads
• Broken tracks
• Missing components
• Burn marks
• Flux residue
• Moisture staining
• Damaged solder mask
• Tin whiskers or metal debris
• Evidence of previous repair work

Use a microscope or high-quality inspection camera when working on modern automotive ECUs. Many faults are too small to identify reliably with the naked eye.

UV inspection can also help identify remaining coating or confirm whether an area has been exposed, especially when the coating includes a fluorescent tracer. IPC-related guidance describes visual examination and UV light as useful methods for checking coating removal. (STUDYLIB)

Inspection should not stop at the obvious failed component. If water or corrosion caused the problem, the surrounding circuit may also be affected.

Step 6: Complete the Electrical Repair

Carry out the repair only after the area is clean and fully visible.

Depending on the fault, this may involve:

• Component replacement
• Solder joint rework
• Jumper wire installation
• Track repair
• Pad reconstruction
• Corrosion removal
• Connector pin repair
• Replacement of damaged protection components

Use the correct soldering temperature, flux, tip size, and handling technique for the board and components involved.

Do not coat over an untested repair. The board should be electrically checked before reapplication. Depending on the ECU, testing may include:

• Continuity checks
• Resistance-to-ground measurements
• Power rail testing
• Short-circuit testing
• CAN or LIN communication checks
• Bench functional testing
• Diagnostic scan verification
• Vehicle-level testing

A coating can hide a problem. Testing first saves the frustration of removing the coating again later.

Step 7: Clean the Rework Area

Cleaning is one of the most important stages of ECU conformal coating rework.

Remove:

• Flux residue
• Coating dust
• Solvent residue
• Finger oils
• Loose fibres
• Solder balls
• Corrosion particles
• Metal debris

Use an electronics-approved cleaning method that is compatible with the board and components. Do not flood the ECU. Liquid can become trapped beneath components, inside connectors, under shields, or in pressure-sensitive devices.

Allow the area to dry completely. A board that appears dry on the surface may still contain solvent beneath a component or inside a small gap.

The rework area must be clean before coating is applied. Industry guidance highlights cleanliness, contamination control, and inspection as important parts of electronic assembly workmanship. (IPC)

Step 8: Select a Compatible Replacement Coating

The replacement coating should match the original system as closely as practical.

Consider:

• Coating chemistry
• Operating temperature
• Flexibility
• Chemical resistance
• Dielectric properties
• Moisture resistance
• Cure time
• Repairability
• Compatibility with the existing coating
• Application method
• Manufacturer approval requirements

Acrylic is often selected for repairable assemblies because it can be easier to rework later. Silicone may be useful where flexibility and temperature performance are important. Polyurethane can offer strong chemical resistance but may be more difficult to remove in the future.

Do not assume that any clear PCB coating is suitable for automotive ECU use. Check the technical data sheet and application requirements.

The selected product should also be suitable for the board’s voltage, temperature, vibration, and environmental conditions.

Step 9: Mask Areas That Must Stay Uncoated

Before applying new coating, protect areas that must remain free of material.

Mask or avoid:

• Connector contacts
• Test points
• Grounding surfaces
• Switches
• Relays
• Pressure vents
• Heat-transfer surfaces
• Threaded mounting points
• Trimmer adjustments
• Optical or sensor openings
• Flexible cable contacts

Poor masking can create new problems, especially when coating enters a connector or covers a test point needed for future diagnosis.

For a small ECU repair, a precision brush or controlled dispenser is often better than spraying the entire board. The application should be neat, localised, and free of overspray.

Step 10: Reapply the Conformal Coating

Apply the coating in a thin, even layer.

Avoid:

• Heavy pooling
• Bubbles
• Pinholes
• Runs
• Bare copper
• Exposed repaired tracks
• Coating on connector contacts
• Excess material around component leads
• Trapped dust or fibres

A thin layer is not automatically a bad layer. The correct thickness depends on the product and application specification. IPC handbooks emphasise that coating performance depends on material properties, application conditions, assembly design, and verification requirements. (IPC)

For localised touch-up, overlap the original coating slightly so there is no open edge around the repair. The transition should be smooth and well bonded.

Do not apply coating over wet solvent, uncured flux, moisture, or contamination. That simply hides the problem and can reduce long-term reliability.

Step 11: Cure and Inspect the New Coating

Follow the coating manufacturer’s cure instructions exactly.

Depending on the product, curing may involve:

• Air drying
• Heat curing
• Moisture curing
• UV exposure
• A combination of methods

Do not reinstall the ECU before the coating has reached the required cure state. A surface that feels dry may still be soft beneath the surface.

After curing, inspect the repaired area under magnification. Check for:

• Complete coverage
• Uniform appearance
• Good overlap with the original coating
• No bubbles or voids
• No trapped debris
• No exposed repaired conductors
• No coating on connector contacts
• No damage to surrounding components

Conformal coating inspection commonly includes visual checks for thickness, uniformity, bubbles, voids, delamination, debris, and other workmanship defects. (IPC)

Common ECU Conformal Coating Mistakes

Using the wrong solvent

A solvent that removes coating may also damage plastics, labels, adhesives, or solder mask.

Applying too much heat

Heat can create more faults than it solves, particularly around connectors and heat-sensitive components.

Scraping too deeply

A blade can remove copper tracks and pads along with the coating.

Recoating before testing

This may hide an unsuccessful repair and force the coating to be removed again.

Coating over contamination

Flux, moisture, and corrosion trapped under a new coating can continue causing electrical problems.

Ignoring the original water leak

A repaired ECU may fail again if the enclosure, connector seal, or vehicle installation still allows moisture inside.

Coating connector contacts

This can cause poor electrical contact, intermittent communication, or complete module failure.

Removing the entire coating unnecessarily

Large-scale removal increases handling time and the risk of accidental damage.

ECU Conformal Coating Repair Checklist

Before returning the ECU to the vehicle, confirm that:

• The original fault has been identified
• The coating type was considered
• The removal method was tested or selected appropriately
• Only the required area was exposed
• The board was inspected under magnification
• Corrosion and contamination were removed
• The electrical repair was completed correctly
• The repair was electrically tested
• The area was cleaned and fully dried
• The replacement coating is compatible
• Connector contacts and test points were protected
• The coating was applied evenly
• The coating was fully cured
• The repaired ECU passed bench or vehicle testing

A repair record with photographs, measurements, materials, and test results adds valuable traceability—especially for workshops handling customer vehicles, fleet electronics, motorsport ECUs, or safety-related modules.
