An engine control unit, or ECU, is one of the most important electronic modules in a modern vehicle. It manages fuel injection, ignition timing, throttle control, boost pressure, emissions systems, sensors, actuators, and many other functions. When an ECU develops a fault, the symptoms can be confusing. The vehicle may fail to start, communicate poorly with a diagnostic scanner, trigger several warning lights, or behave as if multiple components have failed at once.

This is where ECU bench testing becomes valuable.

Bench testing means checking an ECU outside the vehicle using a controlled electrical setup. Instead of relying only on the car to identify a problem, a technician powers the module on a workbench and connects it to the correct communication lines, simulated inputs, and suitable test equipment.

A proper bench test is much more than applying power and waiting for a light or relay to activate. The ECU should be examined in a controlled environment to determine whether it responds correctly, communicates properly, processes inputs, and controls its outputs as expected.

For repair shops, tuning specialists, remanufacturers, and vehicle owners, bench testing can save time and prevent unnecessary parts replacement.

What Is ECU Bench Testing?

ECU bench testing is the process of inspecting and testing an electronic control module away from the vehicle. The ECU is connected to a purpose-built harness or breakout board that reproduces the electrical conditions it normally sees inside the car.

Depending on the ECU and vehicle, the setup may include:

A regulated power supply
Ignition-switched power simulation
Ground connections
CAN bus communication
K-line communication
Sensor signal simulation
Actuator loads
Diagnostic equipment
Oscilloscope testing
Current measurement equipment
Temperature monitoring

The exact setup depends on the module. An engine ECU from a modern vehicle may require CAN communication and multiple simulated sensor signals. An older control unit may use K-line diagnostics, separate relay inputs, or a different wake-up sequence.

Because each ECU has its own pinout and operating requirements, the technician must use accurate wiring information. Connecting power to the wrong terminal can damage the module, the test equipment, or both.

A reliable bench test begins with identifying the ECU correctly, confirming its part number, checking the pinout, and creating a safe test plan.

Why ECU Bench Testing Matters

Many ECU problems are difficult to diagnose when the module is still installed in the vehicle. A car contains hundreds of electrical connections, sensors, actuators, relays, fuses, grounds, and networked modules. A fault in one part of the system can make another component appear defective.

For example, a no-start condition could be caused by:

A failed ECU power supply
A damaged ECU ground
A broken CAN network
A faulty crankshaft sensor
A failed fuel pump driver
Immobilizer communication problems
Internal ECU damage
Water intrusion
Corrosion in a connector
A wiring fault elsewhere in the vehicle

Removing the ECU from the vehicle and testing it separately helps reduce the number of variables.

A controlled bench setup can answer important questions:

Does the ECU power up correctly?
Does it draw a normal amount of current?
Can diagnostic equipment communicate with it?
Does it respond correctly on the CAN network?
Does it wake up and shut down properly?
Are its internal voltage rails stable?
Do the output drivers operate correctly?
Does it react to simulated input signals?
Does it generate appropriate fault codes?
Does it remain stable as temperature changes?

These answers help a technician decide whether the problem is inside the ECU or somewhere else in the vehicle.

A Bench Test Should Be More Than a Power-On Check

One of the most common misunderstandings about ECU testing is that a module is considered good simply because it powers up.

A technician may connect the ECU to a bench harness, see current flowing, and confirm that a diagnostic tool detects the module. That is useful, but it is only the beginning.

An ECU can power up while still having serious internal faults. For example:

A communication driver may be damaged
One internal voltage regulator may be unstable
An injector driver may be shorted
A sensor supply circuit may be missing
A processor may operate intermittently
The ECU may fail to enter sleep mode
A CAN transceiver may transmit but not receive
A memory fault may appear only under certain conditions
A circuit may fail once the module becomes warm

This is why a proper ECU bench test should use suitable simulation equipment and vehicle-specific procedures.

The ECU should be tested under realistic operating conditions rather than only being checked for basic power.

What a Professional ECU Bench Test May Verify

1. Power Consumption

Current draw is one of the first important measurements during a bench test.

When an ECU is powered on, it should normally draw a current level that matches its design and operating state. An unusually high current draw may point to:

A short circuit
A damaged voltage regulator
A failed communication transceiver
An overloaded output driver
Water or corrosion damage
A component breaking down internally

Very low current draw can also be significant. It may indicate that the module is not starting correctly, that the processor is not running, or that one of the power circuits is open.

Power consumption should be monitored during several conditions, including:

Initial startup
Diagnostic communication
Simulated engine cranking
Output activation
Network activity
Shutdown
Sleep mode

The current reading should not be viewed in isolation. A good technician compares it with known-good data, technical documentation, or a matching reference ECU.

2. Communication Response

A healthy ECU should communicate with the correct diagnostic equipment when the necessary power, grounds, and network connections are present.

Modern vehicles commonly use CAN communication, while older systems may use K-line or other diagnostic protocols. Some ECUs also depend on gateway modules, immobilizer systems, or wake-up messages before they become fully accessible.

A bench test may check whether the ECU can:

Respond to identification requests
Report software and hardware numbers
Display diagnostic trouble codes
Accept coding or configuration commands
Communicate over CAN high and CAN low
Respond through K-line
Remain connected during extended testing
Enter and exit diagnostic sessions correctly

Communication faults can be subtle. An ECU may respond to an identification request but fail when a more demanding function is selected. It may communicate intermittently or stop responding when the internal temperature rises.

For this reason, communication should be tested more than once and under different operating conditions.

3. Internal Voltage Rails

ECUs contain several internal voltage circuits. The main battery supply may be converted into lower voltages used by the processor, memory, sensors, communication circuits, and output stages.

Common internal voltage rails may include circuits around:

5 volts for sensors
3.3 volts for processors and digital electronics
Lower reference voltages for memory or control circuits
Regulated supplies for communication transceivers
Separate driver-stage voltages

If one of these rails is missing, unstable, or excessively noisy, the ECU may produce strange symptoms. It could lose communication, reset unexpectedly, report unrelated fault codes, or fail to operate specific functions.

Testing internal voltage rails may involve:

A multimeter
An oscilloscope
Voltage-drop testing
Ripple measurement
Load testing
Thermal observation

A voltage that looks correct on a multimeter may still have excessive ripple or brief dropouts. An oscilloscope can reveal problems that a simple voltage reading may miss.

4. CAN Bus and K-Line Response

Communication networks are essential in modern vehicles. The ECU does not work alone. It exchanges information with transmission modules, body controllers, instrument clusters, immobilizers, gateway modules, and many other systems.

CAN Bus Testing

A CAN bench test may examine:

CAN high and CAN low voltage
Signal quality
Termination resistance
Dominant and recessive states
Message transmission
Message reception
Error frames
Bus-off behavior
Response to simulated network traffic

A damaged CAN transceiver can prevent communication across an entire vehicle network. In some cases, the ECU may transmit messages but fail to receive them. In other cases, it may hold the bus in an incorrect state.

The technician should use the correct network configuration and termination. A test performed with incorrect resistance or missing network messages may produce misleading results.

K-Line Testing

K-line systems are found on many older vehicles and control modules. Testing may include checking:

Idle voltage
Pull-up behavior
Wake-up response
Diagnostic request and reply timing
Data integrity
Communication under different power states

A K-line fault may come from the ECU, wiring, diagnostic interface, or another module connected to the same line. Bench testing helps isolate the ECU from the rest of the vehicle network.

5. Input Signal Testing

An ECU makes decisions based on the signals it receives. These inputs may come from sensors, switches, network messages, or external control systems.

A suitable bench setup can simulate selected inputs, such as:

Crankshaft position
Camshaft position
Throttle position
Coolant temperature
Intake air temperature
Airflow or pressure
Accelerator pedal position
Vehicle speed
Brake or clutch switch status
Battery voltage
Engine load

The purpose is not always to recreate every vehicle function. Instead, the technician selects the inputs needed to test the ECU’s response to a particular fault.

For example, a simulated crankshaft signal may be used to determine whether the ECU recognizes engine speed and activates the expected outputs. A sensor reference voltage can be monitored to check whether the ECU supplies a stable signal to external sensors.

Input testing can expose problems that remain hidden during a basic communication check.

6. Output Driver Testing

The ECU controls many outputs. These may include injectors, ignition coils, solenoids, relays, motors, valves, and communication circuits.

A professional bench test may use suitable loads or test devices to verify output drivers safely.

Possible checks include:

Injector control
Ignition coil control
Fuel pump relay control
Boost control solenoid operation
Throttle motor control
EGR or air-control valve output
Cooling fan request
Purge valve control
Warning lamp outputs
High-side and low-side switching

The ECU should not always be connected directly to real vehicle components on a workbench. Some outputs require specific resistance, inductance, or electrical loading. Using the wrong test load can damage the ECU or create a false result.

A test load designed for the particular driver circuit provides a safer and more accurate method.

7. Fault-Code Behavior

Diagnostic trouble codes are useful, but they must be interpreted carefully.

An ECU may store fault codes when it detects:

Missing sensor signals
Short circuits
Open circuits
Incorrect voltage levels
Network communication failures
Internal memory errors
Processor or watchdog faults
Overtemperature conditions

During a bench test, technicians may deliberately simulate certain faults to confirm that the ECU detects them correctly.

For example, a sensor circuit can be opened or pulled to a known voltage. The ECU should recognize the condition and record the appropriate fault. The technician can then restore the circuit and check whether the code clears or changes status.

This confirms that the ECU is not only communicating, but also processing electrical conditions as expected.

A fault code alone does not automatically prove that the ECU is bad. Codes must be compared with the measured signals, wiring condition, and test setup.

8. Thermal Stability

Some ECU faults only appear when the module becomes warm.

A circuit may work correctly when cold but fail after several minutes of operation. Internal solder joints, voltage regulators, memory devices, processors, or communication components can behave differently as temperature changes.

Thermal testing may involve:

Monitoring the ECU while powered for an extended period
Using controlled heat or cooling
Watching current consumption
Checking communication stability
Measuring internal voltage rails
Repeating input and output tests

The goal is to identify intermittent faults without exposing the module to unsafe temperatures.

Thermal stability is especially important for vehicles that experience symptoms after long drives, in hot engine bays, or during repeated starting attempts.

9. Sleep-Mode Current

Modern vehicles remain electronically active for a short period after the ignition is switched off. Modules communicate, save data, shut down systems, and eventually enter a low-power sleep mode.

An ECU that fails to sleep can cause:

Battery drain
Network activity when the vehicle is parked
Repeated warning messages
Module communication faults
Difficulty starting after the vehicle sits overnight

A bench test can monitor how the ECU behaves during shutdown. The technician can check whether it:

Receives the correct shutdown command
Stops unnecessary communication
Reduces current draw
Enters sleep mode within the expected time
Wakes correctly when power or network activity returns

Sleep-mode testing is often overlooked, but it can be critical when diagnosing unexplained battery discharge.

ECU Bench Testing and Vehicle-Specific Simulation

The best bench test reflects the ECU’s actual role in the vehicle.

A generic power-and-communication test may confirm that the module is alive, but it may not prove that the ECU can perform its complete function. Some modules require specific messages from other controllers before they activate certain outputs. Others need immobilizer authorization, engine-speed signals, or sensor conditions.

Vehicle-specific simulation may include:

Correct ignition and relay behavior
CAN messages from related modules
Immobilizer or security authorization
Simulated engine-speed signals
Sensor loads
Actuator loads
Network termination
Correct wake-up and shutdown sequences

This does not mean every bench test must recreate the entire vehicle. The test should be designed around the fault being investigated.

For example, if the complaint is “no communication,” the test may focus on power, grounds, CAN lines, and the communication transceiver. If the complaint is “injector control missing,” the setup should include a suitable engine-speed signal and a safe injector-driver load.

Good testing is focused, repeatable, and based on evidence.

Common Mistakes During ECU Bench Testing

Several mistakes can make a bench test unreliable.

Using the Wrong Pinout

A similar-looking ECU may have a different connector layout or power arrangement. Always confirm the exact hardware number and wiring diagram.

Applying Unregulated Voltage

A poor-quality power supply can introduce voltage spikes or excessive ripple. Use a stable, current-limited supply suitable for automotive electronics.

Testing Without Proper Grounds

A weak or incorrectly placed ground can create communication and output faults that do not actually originate inside the ECU.

Connecting Outputs to the Wrong Loads

Some drivers need carefully matched loads. Directly connecting an unsuitable component can damage the output stage.

Ignoring Network Termination

CAN systems require the correct electrical conditions. Incorrect termination resistance can cause communication failures during testing.

Relying Only on Scan-Tool Communication

Communication proves that some part of the ECU is operating. It does not prove that every internal circuit and output driver is healthy.

Skipping Long-Duration Testing

Intermittent faults may not appear during a five-minute check. Some modules need to be monitored while warm or during repeated operating cycles.

Treating Every Fault Code as Proof of ECU Failure

A fault code is a clue, not a final diagnosis. Wiring, sensors, power supply, grounds, and network problems can all produce ECU-related codes.

When Should an ECU Be Bench Tested?

Bench testing is particularly useful when:

The vehicle has a no-start condition
The ECU will not communicate with diagnostic equipment
Several unrelated systems fail at once
The ECU has been exposed to water
A replacement ECU needs checking
A tuned or remapped module is being investigated
The vehicle has unexplained battery drain
An intermittent fault appears after warming up
An output driver is suspected to be damaged
A used ECU is being considered for installation
The vehicle has suffered a jump-start or voltage spike
A repair has been completed and needs verification

Testing before installation can prevent wasted labor. It can also reduce the risk of fitting a damaged replacement ECU and then chasing the same problem through the vehicle.

What a Good ECU Bench Test Report Should Include

A professional test report should explain what was checked and what was found.

Useful information may include:

ECU make, model, and hardware number
Vehicle application
Software identification
Test date
Power supply voltage
Current consumption
Communication protocol used
Fault codes present
Input signals applied
Outputs tested
Temperature conditions
Sleep-mode results
Intermittent behavior
Final test conclusion

A clear report is more useful than a simple statement such as “ECU tested OK.”

The report should also identify the limits of the test. If only communication and power were checked, it should not claim that every output and internal circuit has been verified.

Honest documentation builds confidence and helps the next technician continue the diagnosis without starting from scratch.

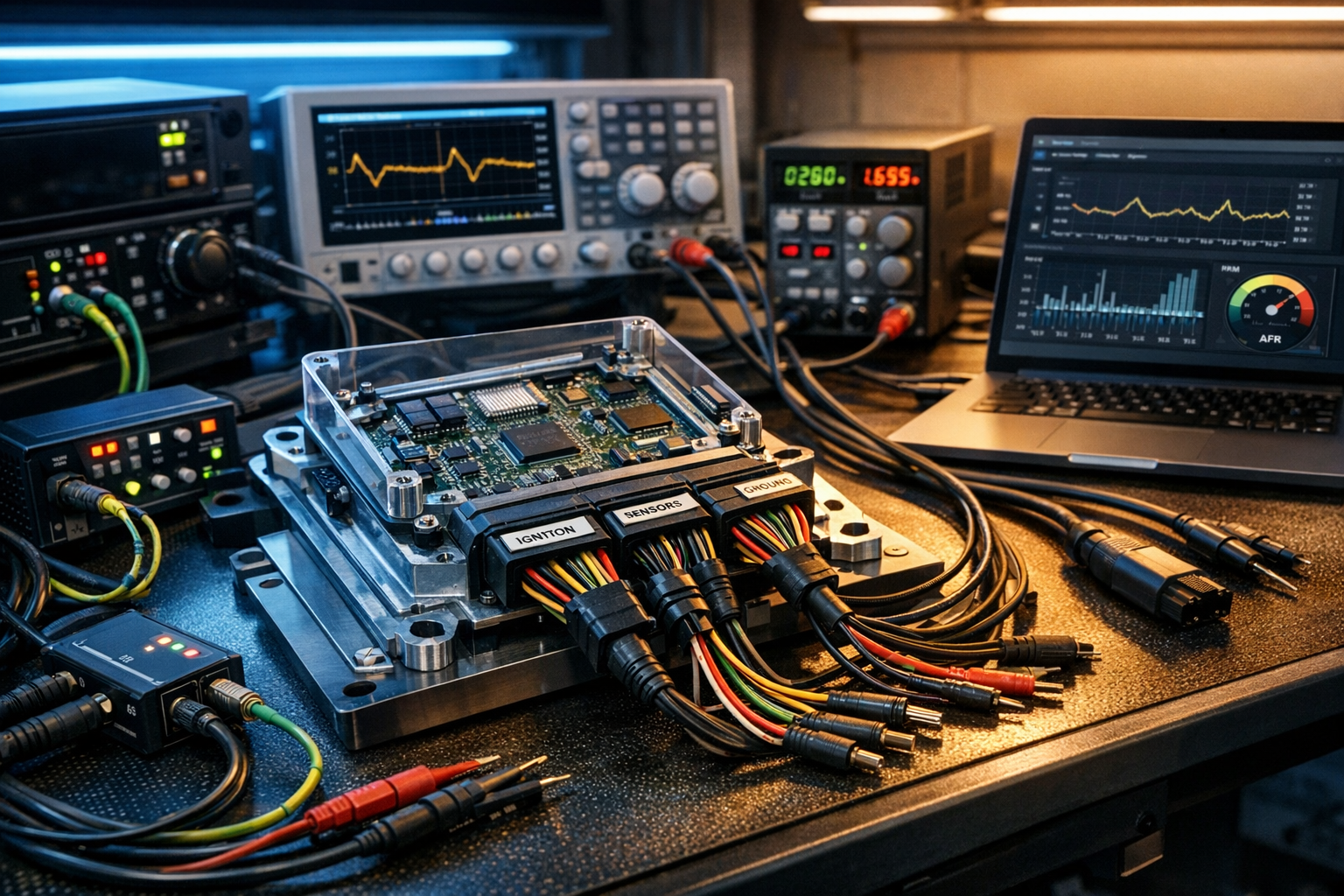

ECU Bench Testing: What It Is, Why It Matters, and What a Proper Test Should Check
