A customer rolls in with a car that won’t start. The ECU gets blamed. Somebody sends it off, it comes back “tested OK,” gets fitted, and… the car still doesn’t start. Two weeks gone, a few hundred quid lighter, and everyone’s frustrated.
Nine times out of ten, that “tested OK” meant somebody put 12 volts across two pins, saw a power LED wake up, and called it a day.
That’s not a bench test. That’s a pulse check.
Real ECU bench testing is a controlled, repeatable process where a control module is removed from the vehicle and exercised on a workbench under conditions that mimic the car it came from. Sensors get simulated. Loads get connected. Communication gets challenged. And the module has to behave properly across every one of those checks — not just one.
If you’re in the tuning world, this matters even more. You cannot reliably remap, unlock, or clone a unit that’s already electrically compromised. Garbage in, garbage out.
What “bench testing” actually means
Take the module out of the car. Put it on a bench. Feed it the exact power, ground, ignition and communication lines it expects. Then feed it simulated inputs — crank signal, cam signal, coolant temp, throttle position — and watch what it does with them.
The whole point is isolation. In the car, an ECU is tangled up with wiring faults, corroded grounds, dying sensors, low battery voltage, other modules on the bus, and immobiliser handshakes. On the bench, all that noise disappears. You’re testing one thing at a time.
Two questions get answered:
- Is this module electrically healthy?
- Does it do its job when given correct inputs?
Both matter. A unit can pass the first and fail the second badly.
Why bench testing matters more than ever
Modern cars aren’t running one brain anymore. A mid-range hatchback can carry 30 to 70 modules chatting over CAN, LIN, FlexRay and Ethernet. Coding, security gateways, component protection, rolling immobiliser codes — the whole system’s tighter than it was fifteen years ago.
Three practical reasons this process earns its keep:
It kills parts-cannon diagnosis. Replacing an ECU on a hunch is one of the most expensive guesses in the trade, especially once programming and immobiliser matching are added.
It protects the rest of the car. A module with a shorted output driver can take out a fresh injector, coil or solenoid within seconds of being refitted. Catching that on the bench costs nothing. Catching it after refitting costs a lot.
It makes tuning safe. Before any remap, ECU cloning, DPF or EGR work, the base unit needs a clean bill of health. Bench-mode reads and writes need stable rails and reliable communication. Flashing a unit with a marginal power supply is how bricked ECUs happen.

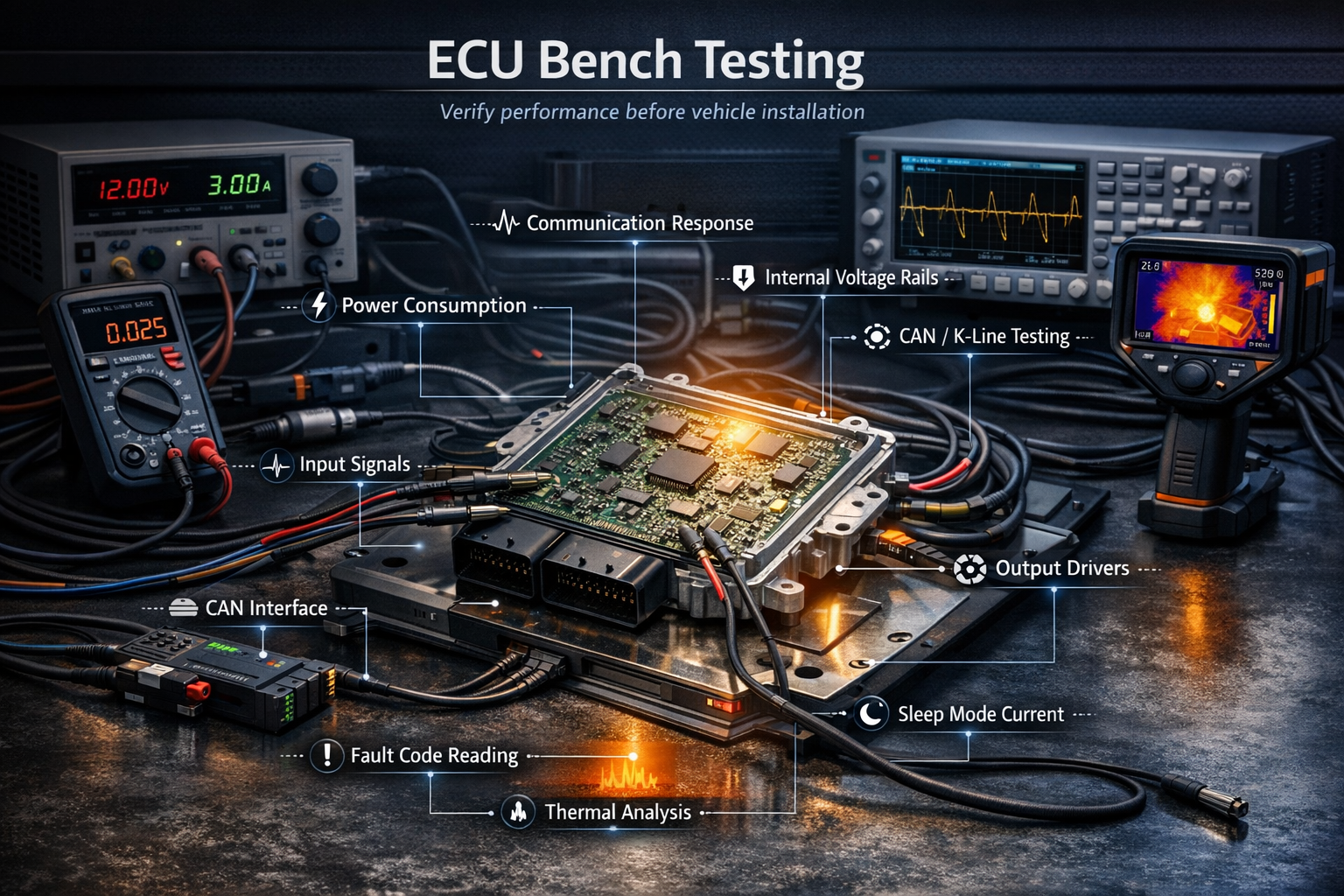

The nine checks that make up a proper bench test
Here’s the actual sequence — the same checks a competent electronics-level repair shop works through.
1. Power consumption
First thing on. Current draw tells you the story before anything else does.
A healthy module pulls a predictable, stable current at a given voltage. Way above spec usually means a shorted internal component — a blown driver, a failed regulator, a cooked capacitor. Way below spec often means the unit isn’t fully waking up, hinting at a dead rail or a stalled processor.
Watch the current behaviour too, not just the number. A slow climb as the board warms up points at leakage. Erratic jumps point at something intermittent, which is the hardest kind of fault to pin down later.
2. Communication response
Can you talk to it, and can it talk back consistently?
The module should answer diagnostic requests reliably, return its part number and software version, and hold that conversation without dropping out. One successful handshake isn’t enough — a unit that answers, then goes silent after ninety seconds, is a unit that’ll strand a driver on the motorway.
3. Internal voltage rails
This is where the electronics-level work begins, and where most “testing” stops short.
Inside every ECU sits a set of regulated supplies — commonly 5V for the processor and reference sensors, 3.3V for logic, 1.8V or lower for the core, plus regulated 5V references pushed out to external sensors.
Every one gets measured with a meter and looked at on a scope. The meter proves the level; the scope proves it’s clean. A rail sitting at a perfect 5.00V but carrying 300mV of ripple will cause sensor readings to wander, random fault codes to log, and a car that drives fine on Tuesday and terribly on Wednesday. Failing sensor reference supplies are a classic cause of multiple unrelated codes appearing at once.
4. CAN or K-line response
The physical layer gets checked properly here. On a scope, CAN High should swing up from roughly 2.5V toward 3.5V, CAN Low should drop toward 1.5V, and the two should mirror each other cleanly. Rounded edges, unequal amplitudes, or one line sitting flat point at a damaged transceiver — a very common casualty when someone’s connected a battery backwards or a jump start went wrong.
Older K-line units get the same scrutiny at their own pace: proper pull-up, clean transitions, correct init sequence.
Termination resistance gets verified too. On the bench you’re supplying the network yourself, so getting the resistance right is your job — and it’s a step people skip constantly.
5. Input signals
Now the module gets fed a fake car.
A signal generator or dedicated simulator produces crank and cam patterns with the correct tooth count and phase relationship. Potentiometers stand in for throttle position and pedal sensors. Resistance boxes emulate coolant and intake temperature sensors. Pressure sensors get simulated with variable voltage.
Then live data gets read back. Does the coolant temperature the ECU reports match the resistance you dialled in? Does throttle position track smoothly from 0 to 100 percent without dead spots? Does the unit recognise the crank signal and try to run the engine?
This is what separates “it powers up” from “it works.”
6. Output drivers
Every output gets loaded and verified: injector drivers, ignition coil outputs, relay drivers, throttle body H-bridge, EGR and turbo actuator control, fuel pump control, fan outputs.
Real loads or accurate load equivalents get connected — never left open-circuit, and never shorted to test them. The scope then confirms the pulse width, frequency and edge quality are correct.
Injector driver failure is one of the most common ECU faults in the field, and it’s usually caused by a shorted injector taking the driver with it. Bench testing catches it before a customer’s brand-new injector goes the same way.
7. Fault-code behaviour
The module should be honest about its own condition.
Codes get read, cleared, and re-triggered deliberately. Disconnect a simulated sensor and the ECU should log the right code within a sensible timeframe. Reconnect it, clear it, and the code should stay gone.
A unit that won’t clear codes, logs phantom faults with everything connected properly, or stays silent when a sensor is unplugged has a problem in its diagnostic logic or its memory. Freeze-frame data and readiness monitors get checked too.
8. Thermal stability
Temperature exposes everything a cold bench hides.
Plenty of ECU faults are heat-related. Cracked solder joints open up as the board expands. Marginal capacitors lose capacitance as their electrolyte warms. Power devices go unstable near their thermal limit.
So the unit runs long enough to reach realistic operating temperature — and under an engine bay’s worth of heat where relevant. A thermal camera highlights hotspots that shouldn’t exist. Then comes cold spray on suspect components: if the fault vanishes the instant a specific part is chilled, you’ve found it.
A five-minute room-temperature test finds almost none of these. This step is precisely why proper bench testing takes hours rather than minutes.
9. Sleep-mode current
Last, and the one customers feel most: parasitic drain.
After the ignition input is removed, a modern module should complete its shutdown routine and settle into sleep, typically drawing just a few milliamps. If it stays awake, or wakes itself repeatedly, that’s a flat battery every few days — and it’s an absolute nightmare to trace in the car with 40 other modules on the bus.
On the bench, in isolation, it’s a straightforward measurement. Watch the current settle over several minutes and confirm it reaches spec and stays there.
What a bench test is not
Let’s be blunt about the shortcuts.
Power and an LED. An LED proves a regulator produced some voltage. It says nothing about the processor, the drivers, the bus or the memory.
Reading a part number and stopping. Communication is one of nine checks, not the whole test.
Testing with a bench supply that can’t deliver. Injector and coil drivers pull real current in bursts. An underpowered supply will sag, and you’ll chase a fault that only exists on your own bench.
No simulation at all. Without crank and cam signals, the ECU never leaves its idle state. Most of its functionality is never touched.
A generic setup for every vehicle. Pinouts, immobiliser handshakes and gateway requirements vary hugely between manufacturers. Vehicle-specific wiring and correct simulation aren’t optional — many units won’t even wake into a testable state without the right components present.
That last one is the crux of it. The module has to be tested against a suitable simulation or a vehicle-specific setup. Anything less is a partial test being sold as a full one.
How to tell if a shop is doing it properly
Ask a few direct questions before you hand over your ECU:
- Do you test with vehicle-specific simulation, or a generic bench rig?
- Will I get a written report with measured values, not just “pass” or “fail”?
- Do you scope the internal rails and the CAN lines?
- How long is the unit run under thermal load?
- Is sleep-mode current measured?
A shop that answers these easily is doing the work. A shop that gets vague is winging it. And a proper report should include actual numbers — current draw, rail voltages, waveform captures, temperatures — because measured values are what let you compare, verify and trust the result.
