Seeing a transmission fault code on a Range Rover Sport L320 can be worrying, especially when the vehicle starts shifting differently or refuses to respond to the manual gear selector.

The good news is that DTC P816-33 does not automatically mean the transmission needs to be removed or rebuilt.

In most cases, this code relates to the downshift switch circuit inside the automatic gear selector. This is the part of the shifter assembly that tells the Transmission Control Module, or TCM, that the driver wants to manually select a lower gear.

When you move the selector using the “–” function, the switch sends an electrical signal to the TCM. If that signal is missing, out of range, shorted, or stuck, the control module records the P816-33 fault.

The Range Rover L320 was commonly fitted with ZF automatic transmissions such as the 6HP26 and, on some applications, the 6HP28. The exact transmission and calibration can vary by model year and engine, so proper identification is important before testing or ordering parts.

What Does the Downshift Switch Do?

The downshift switch is part of the gear selector assembly. Its job is simple: it detects the driver’s manual downshift request and sends that information to the vehicle’s electronic control system.

A typical sequence looks like this:

1. The driver moves the gear selector to request a lower gear.
2. The selector switch changes its electrical state.
3. The signal travels through the wiring and connectors.
4. The TCM receives the request.
5. The transmission selects the appropriate lower gear, provided conditions are safe.

If the TCM receives an incorrect signal, it may ignore the request or place the transmission into a protective operating mode.

That is why a fault in a small switch or connector can feel like a much larger gearbox problem.

Common Symptoms of P816-33

The symptoms can differ depending on whether the circuit has an open connection, a short circuit, poor voltage, or an intermittent connection.

Common signs include:

• Manual downshifting does not work
• No response from the “–” selector movement
• Delayed gear changes
• Harsh or unexpected shifts
• Transmission warning message on the dashboard
• Gearbox warning light
• Limp-home mode
• Transmission staying in one gear
• Manual or Tiptronic mode working inconsistently
• Fault returning after clearing the code

Some drivers notice the problem only when using the manual function. Others may experience more noticeable shift issues because the vehicle has entered a limited strategy to protect the transmission.

An intermittent fault can be especially frustrating. The gear selector might work normally one day and fail the next, depending on vibration, temperature, moisture, or movement around the center console.

Most Common Causes of the P816-33 Code

1. Faulty Downshift Switch

The switch inside the selector assembly can wear over time. Internal contacts may become dirty, weak, or damaged.

This is more likely on a vehicle that has seen years of regular use. Repeated movement of the gear selector gradually wears the small electrical components inside it.

A failed switch may produce:

• No downshift signal
• An intermittent signal
• A signal that remains stuck
• Incorrect resistance values

If the wiring and power supply test correctly, the selector assembly becomes a strong suspect.

2. Damaged Wiring

The wiring beneath or around the center console can become damaged. Common problems include:

• Pinched wires
• Broken conductors
• Chafing against brackets
• Previous repair damage
• Loose wiring after interior work
• Corrosion inside the harness

A wire can appear fine from the outside but still be broken internally. This is why gently moving the harness during testing can sometimes reveal an intermittent problem.

Do not rely only on a visual inspection. Electrical testing is essential.

3. Corroded or Loose Connectors

Moisture is a common enemy of electrical systems. Spilled drinks, damp carpets, blocked drains, or previous water ingress can affect connectors around the gear selector.

Look for:

• Green or white corrosion
• Discolored terminals
• Loose pins
• Bent contacts
• Water marks
• Evidence of previous cleaning or repair

A connector that looks connected may still have poor terminal tension. The pin may not grip tightly enough to maintain a reliable signal while the vehicle is moving.

4. Fuse, Ground, or Power Supply Problems

Before replacing the selector, check the basics.

A weak ground, blown fuse, or poor power supply can create unusual transmission faults. A simple electrical supply problem may affect more than one system, so check whether other warning lights or control functions are present.

Technicians should confirm:

• Relevant fuse condition
• Battery voltage
• Charging voltage
• Ground continuity
• Power supply at the selector
• Signal voltage at the switch

A basic power and ground check can prevent an unnecessary parts bill.

5. TCM Communication or Software Issues

A TCM problem is possible, although it is not the first thing to assume.

In some cases, the issue may involve:

• Incorrect signal interpretation
• Software corruption
• Communication problems
• Internal module failure
• Low system voltage
• Network wiring faults

The TCM should only be blamed after the selector, wiring, connectors, power supply, and grounds have been tested properly.

Replacing an expensive control module without completing those checks is a costly gamble.

How to Diagnose P816-33 Properly

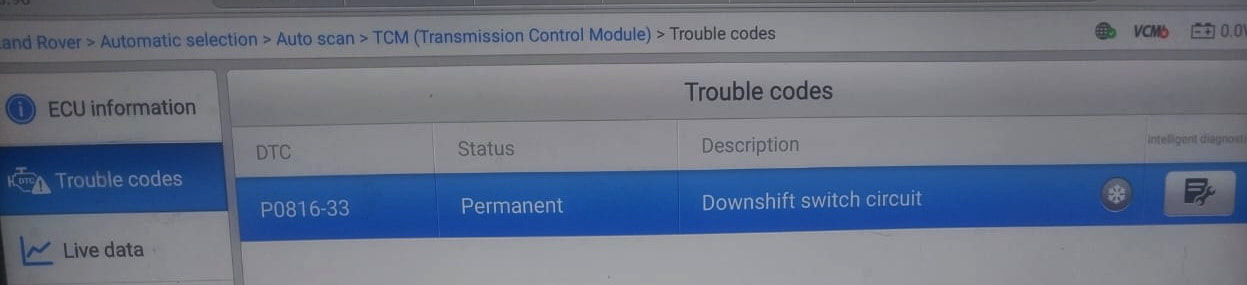

Step 1: Use a Land Rover-Compatible Diagnostic Tool

A basic generic OBD2 scanner may display the code but provide very little useful information.

Use a professional scan tool that can access:

• Transmission control data
• Live selector inputs
• Manufacturer-specific fault codes
• Gear position information
• TCM communication status
• Freeze-frame data

Record all related codes before clearing anything. P816-33 may appear alongside other faults that help identify the real cause.

If the vehicle has low battery voltage or several communication codes, resolve those issues first.

Step 2: Check the Battery and Charging System

Modern Land Rover electrical systems are sensitive to low voltage.

Test the battery and charging system before carrying out deeper diagnosis. A weak battery can produce confusing warning messages and communication faults.

Check:

• Battery voltage with the engine off
• Voltage during cranking
• Alternator output with the engine running
• Ground connections
• Battery terminals

If the voltage is unstable, repair that problem before trusting every other fault code.

Step 3: Inspect the Gear Selector Area

Remove the necessary center-console trim carefully and inspect the selector wiring.

Check for:

• Broken or frayed wires
• Loose connectors
• Bent terminals
• Signs of water or drink spills
• Damaged insulation
• Aftermarket accessories
• Previous interior repairs

Pay attention to areas where the harness may be trapped beneath trim panels or mounting brackets.

Do not pull aggressively on the wires. A partially broken wire can become a completely broken wire very quickly.

Step 4: Test the Downshift Switch

A multimeter can help determine whether the switch changes state correctly.

Depending on the selector design, you may need to check:

• Continuity across the switch terminals
• Resistance values
• Voltage supply
• Voltage change when the selector is moved
• Whether the signal returns to its normal state after releasing the selector

The correct values should be confirmed using a reliable wiring diagram or manufacturer-level technical information. Do not guess terminal positions, as incorrect probing can damage sensitive circuits.

The switch should produce a clean, repeatable change when the downshift function is activated. If the reading is inconsistent, remains fixed, or shows an open circuit when it should not, the selector may be faulty.

Step 5: Check the Signal at the TCM

If the switch works at the selector but the TCM does not see the signal, test the circuit between the two points.

This may require:

• Continuity testing
• Short-to-ground testing
• Short-to-power testing
• Voltage-drop testing
• Oscilloscope testing
• Live-data comparison with the scan tool

A continuity test alone is not always enough. A wire may show continuity with no load but fail when current flows through it.

For difficult intermittent faults, a scope or advanced scan tool can show whether the signal is clean or unstable.

Repair Options for P816-33

The correct repair depends on the test results.

Replace the Downshift Switch or Selector Assembly

If the switch has failed internally, the repair may involve replacing the switch or the complete gear selector assembly.

On some versions, the switch may not be available separately. In that situation, replacing the selector module may be the practical solution.

Before installing a replacement part, confirm:

• Correct vehicle application
• Correct transmission type
• Connector compatibility
• Selector design
• Required programming or calibration

Repair Damaged Wiring

A damaged wire should be repaired using proper automotive methods.

A good repair includes:

• Removing damaged sections
• Using suitable automotive-grade wire
• Making secure crimped or soldered connections
• Protecting the repair with heat-shrink
• Securing the harness away from sharp edges
• Preventing future movement or chafing

Twisting wires together and covering them with ordinary electrical tape is not a dependable long-term repair.

Clean or Replace Corroded Connectors

Light surface contamination may be treated with suitable electrical contact cleaner. Severely corroded terminals may need replacement.

Avoid flooding connectors with unsuitable chemicals or forcing terminals into place. Dielectric grease can help protect certain connections, but it should not be used as a substitute for repairing poor terminal contact.

Update or Reprogram the TCM

If all physical tests pass and the fault continues, software or module diagnosis may be necessary.

TCM programming should be carried out by a Land Rover dealer or a specialist workshop with the correct equipment. Stable battery support is essential during programming.

Can You Drive With P816-33?

The answer depends on how the vehicle is behaving.

If the vehicle shifts normally in automatic mode and only the manual downshift function has stopped working, you may be able to drive carefully to a repair shop.

However, avoid continued driving if you notice:

• Severe harsh shifting
• Transmission slipping
• A burning smell
• A flashing transmission warning
• The vehicle stuck in one gear
• No reverse gear
• Delayed engagement
• Limp mode in busy traffic

A transmission that is operating abnormally should not be ignored. Continuing to drive may turn a small electrical repair into a much more expensive mechanical problem.

Is P816-33 a Serious Transmission Failure?

Usually, P816-33 is more closely linked to the selector input circuit than to internal transmission damage.

That does not mean the code should be dismissed. A faulty signal can affect how the transmission chooses gears, and driving for a long time with warning messages or harsh shifts is not wise.

The important point is to diagnose the code before assuming the worst. A switch, connector, fuse, ground, or damaged wire may be responsible.

Practical Tips for Technicians and DIY Owners

• Scan all vehicle modules, not only the engine computer.
• Save the original fault codes before clearing them.
• Check battery voltage before testing communication faults.
• Inspect for water damage around the center console.
• Use a wiring diagram rather than guessing terminal positions.
• Test the circuit under movement if the fault is intermittent.
• Do not replace the TCM before checking the selector and harness.
• Confirm the transmission type before ordering parts.
• Clear the code only after completing the repair.
• Carry out a road test and rescan the vehicle afterward.

A careful diagnosis is usually cheaper than replacing parts one by one.
