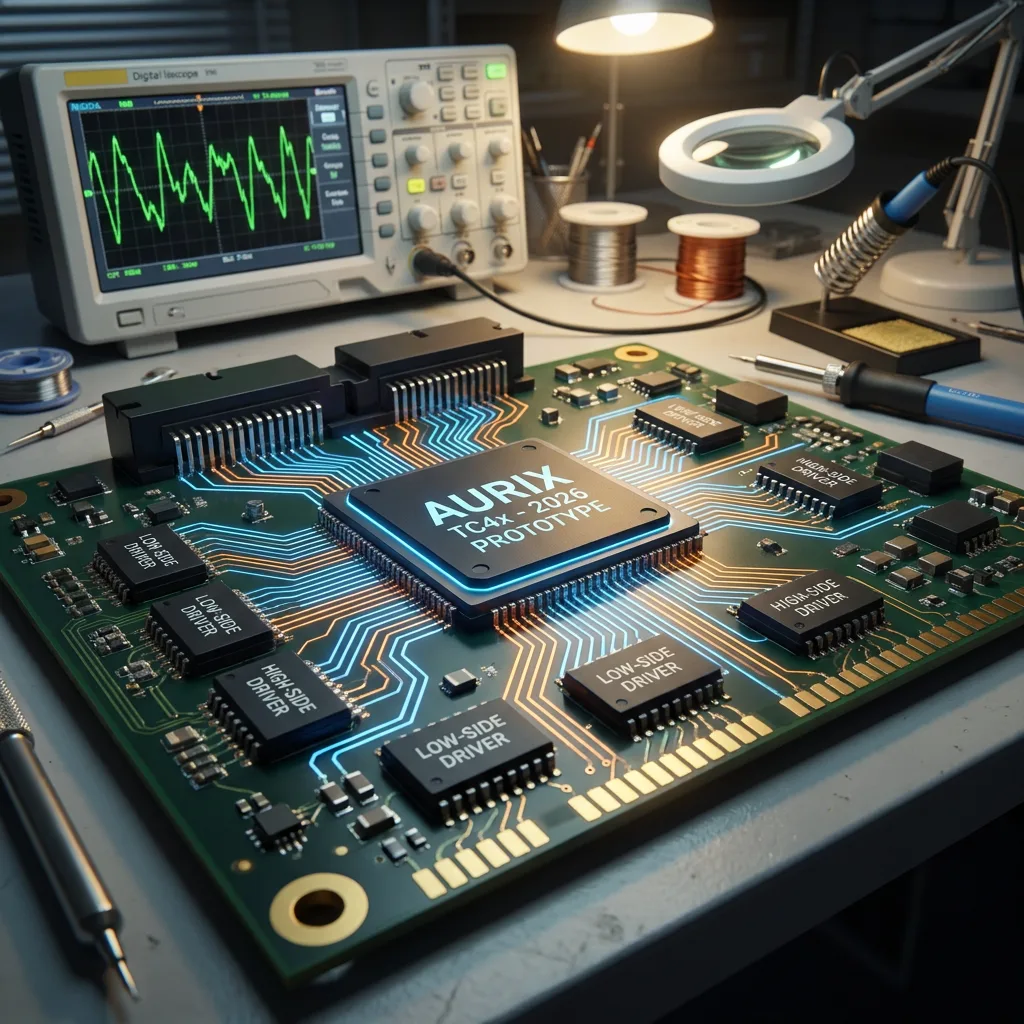

When a car refuses to start, an injector stops clicking, or a cooling fan stays dead despite a healthy engine control unit (ECU), most backyard mechanics instantly point a finger at the main computer or the software map. But seasoned automotive tuners and diagnostic technicians know a deeper truth: the silent workhorses doing the heavy lifting are actually the ECU Drivers [image.png].

In modern vehicle architecture, microcontrollers (MCUs) are the brains, but they are fragile little chips operating on low voltages (typically 5versible 3.3V or 5V logic). They cannot directly drive high-current components like fuel injectors, ignition coils, or electronic throttles [image.png]. That is where driver integrated circuits step in as the ultimate power interface.

What Exactly is an ECU Driver?

Think of an ECU driver as the muscle behind the brain [image.png]. When the MCU decides that fuel needs to be sprayed into a cylinder, it sends a tiny logic signal. The Driver chip intercepts this command, amplifies the current, and safely switches the high power required to activate the physical component [image.png].

Without these specialized electronic switches, modern engine management would be impossible. They protect the delicate microprocessor from dangerous voltage spikes, inductive kickbacks, and thermal overloads.

What Components Do ECU Drivers Actually Control?

If you are tracking down an electrical glitch in the shop, knowing which peripherals rely directly on driver chips saves hours of guesswork. Key components managed by drivers include:

• Fuel Injectors: Delivering precise fuel metering under high electrical loads.
• Ignition Coils: Triggering primary circuits to generate high-voltage spark [image.png].
• Electronic Throttle Bodies (ETV): Regulating precise motor angles for acceleration.
• EGR & EVAP Valves: Controlling emissions management systems [image.png].
• Cooling Fans & A/C Relays: Managing thermal thresholds and auxiliary comfort systems.
• Glow Plugs: Assisting diesel cold starts under heavy electrical draw [image.png].

The Core Categories of Drivers

Depending on the circuit design and the layout of the ECU board (as referenced in advanced training guides like Morgalis Autoworld), drivers generally fall into three architectural categories:

1. Low Side Drivers: These control the ground path [image.png]. The load is permanently connected to positive voltage (+12V), and the driver switches the ground connection on and off. This is the most common configuration found in automotive ECUs.
2. High Side Drivers: These switch the positive power feed (+12V) directly to the load [image.png]. They are heavily utilized in modern safety and body control modules.
3. H-Bridge Drivers: Essential for reversing the direction of electric DC motors—such as electronic throttles, EGR mechanisms, or power windows and seat adjusters [image.png].

Common ECU Driver Failure Symptoms

When a driver chip fails, it usually takes down a specific subsystem while leaving the rest of the computer completely functional [image.png]. Watch out for these red flags during diagnostics:

• An individual fuel injector or ignition coil completely stops firing, even though wiring and power feeds check out [image.png].
• Cooling fans run continuously or refuse to turn on at all [image.png].
• Diagnostic scanners throw persistent actuator fault codes that return immediately after clearing [image.png].
• Physical hotspots or localized burning smells on the ECU circuit board [image.png].

Step-by-Step Diagnostic Workflow for Technicians

Don’t rush straight to replacing components. Follow a logical sequence to verify whether a driver is truly dead:

1. Power Verification: Confirm that permanent and switched ignition feeds are reaching the ECU [image.png].
2. MCU Signal Check: Use an oscilloscope to verify if the microcontroller is successfully outputting a switching command to the driver input pin [image.png].
3. Driver Output Check: Measure the output pin of the driver under load [image.png].
4. Short-Circuit Inspection: Check the external wiring harness and actuator for shorts to ground or power [image.png].
5. Resistance Check: Measure the internal resistance of the actuator itself [image.png].
6. Signal Monitoring: Observe live signals using an oscilloscope for clean square waves [image.png].

Can ECU Drivers Be Reprogrammed?

A common misconception among beginners is that driver chips need flash programming or software coding [image.png]. Drivers are purely hardware electronic switches—they do not contain memory or firmware [image.png].

When a driver chip shorts out internally due to a shorted injector or wiring fault, it cannot be reset via software. It must be physically desoldered using professional hot-air station equipment and replaced with a matching OEM component [image.png].

Essential Bench Equipment for ECU Work

Working successfully on modern ECU hardware requires a proper bench setup. Avoid cheap tools that can introduce static or thermal damage. Essential gear includes:

• Precision Multimeter [image.png]
• Digital Storage Oscilloscope [image.png]
• Adjustable DC Power Supply [image.png]
• Test Lamp & Logic Probe [image.png]
• Hot Air Rework Station & Fine Soldering Iron [image.png]
• Stereo Zoom Microscope [image.png]

Pro Tips & Common Mistakes to Avoid

• Never replace a driver without testing the actuator first. If an injector has an internal short, it will instantly fry your newly soldered replacement driver [image.png].
• Always check for shorts to ground across wiring harnesses before buttoning up an ECU repair [image.png].
• Pay attention to thermal dissipation pads under the chip; poor heat sinking leads to premature thermal failure.

Mastering ECU driver diagnostics elevates your tuning and repair business from a simple part-swapper to a true electronics specialist. Keep your workspace clean, respect the delicate balance between the MCU and its drivers, and approach every circuit with methodological precision.
