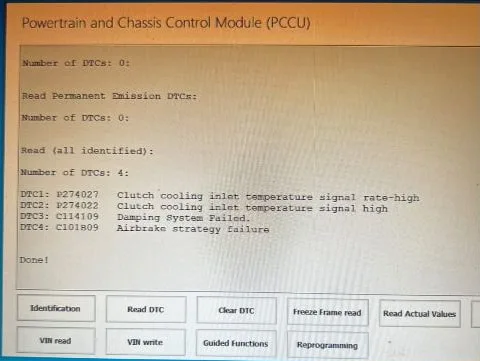

The McLaren MP4-12C is a remarkable supercar, but even advanced vehicles can develop electronic and transmission faults. When codes such as P274027, P274022, C114109 or C101809 appear, the first step is not replacing parts at random. A careful diagnosis is the key to finding the real problem.

The MP4-12C uses a twin-turbocharged 3.8-litre V8 and a seven-speed dual-clutch transmission, supported by several control modules that constantly exchange data.  Because of this, one fault can sometimes create several related diagnostic trouble codes.

What Do These McLaren DTCs Mean?

Diagnostic trouble codes, commonly called DTCs, are messages stored by the vehicle’s electronic control units. They help technicians identify faults in systems such as:

• Transmission control
• Gear position and speed sensors
• Chassis control systems
• CAN communication networks
• ECU power and ground circuits
• Sensor calibration and signal quality

Codes beginning with P are normally linked to powertrain systems, while codes beginning with C are usually associated with chassis or vehicle control systems. However, the final meaning of a manufacturer-specific code depends on the scan tool, control module and software version being used.

That is why a basic generic OBD scanner may not provide enough information for a McLaren MP4-12C. A complete scan should be performed using equipment capable of communicating with McLaren-specific modules.

P274027 and P274022: Transmission-Related Faults

The codes P274027 and P274022 may be connected with transmission speed, pressure or clutch-control information. Possible causes can include:

• Incorrect sensor readings
• Wiring or connector damage
• Low or contaminated transmission fluid
• Clutch adaptation values outside the expected range
• Voltage instability during module operation
• Software or calibration problems inside the transmission control system

Before replacing a transmission component, inspect the wiring harness and connectors carefully. Heat, vibration and moisture can create intermittent faults that look like a failed control unit.

A professional technician should also check live data while the vehicle is stationary and during a controlled road test. Comparing commanded values with actual clutch and shaft-speed readings can help identify whether the issue is mechanical, electrical or software-related.

In some cases, the transmission may require a relearn or adaptation procedure after repairs. Skipping this step can leave the original warning active or cause poor shift quality even after the defective part has been repaired.

C114109 and C101809: Chassis and Communication Concerns

The codes C114109 and C101809 may point toward chassis-control, sensor or communication issues. These faults should not be ignored because they can affect vehicle stability systems and driver warnings.

Common inspection points include:

1. Battery voltage and charging performance
2. Main grounds and module power supplies
3. Wheel-speed and position sensor signals
4. CAN-bus wiring and termination resistance
5. Water or corrosion inside connectors
6. Previous ECU programming or module replacement

Low system voltage is often overlooked. A weak battery or poor ground connection can cause several control modules to report faults at the same time. Always test the battery under load and confirm that charging voltage remains stable.

If communication faults are present, technicians should scan every module and compare the fault timestamps. A module that stops communicating first may be the source of the problem, while the other codes may only be secondary effects.

A Safe Diagnostic Process

A reliable McLaren DTC repair should follow a clear process:

1. Record every stored code

Do not erase the codes before saving the scan report. Note whether each fault is current, intermittent or stored in history.

2. Check the vehicle voltage

Test the battery, alternator and main grounds. Stable voltage is essential before carrying out programming or adaptation procedures.

3. Inspect connectors and wiring

Look for damaged insulation, loose pins, corrosion, oil contamination and signs of previous repairs.

4. Review live data

Use the scan tool to compare sensor readings, clutch values, gear position and communication status.

5. Complete the required calibration

After a repair, carry out the correct transmission, sensor or chassis calibration procedure. A successful repair may still require module initialization.

6. Clear and retest

Clear the codes only after the root cause has been addressed. Then perform a complete system scan and road test to confirm that the fault does not return.

Why ECU File and Module Support Matters

Some McLaren faults cannot be solved with mechanical work alone. A damaged calibration file, corrupted memory or internal ECU fault may require specialist testing and electronic repair.

Professional ECU support can help workshops with:

• Module fault analysis
• Original software file comparison
• ECU data repair
• Transmission control troubleshooting
• Calibration and adaptation guidance
• Bench testing before installation
• Technical support for difficult DTC cases

The goal is not simply to erase the warning light. The real goal is to restore reliable communication and correct operation across the vehicle’s control systems.

Final Advice for Workshops

When working on a McLaren MP4-12C, avoid guessing based on one code. These cars use complex electronic networks, and a single power, ground or communication fault can create multiple DTCs.

Start with the basics: battery voltage, grounds, connectors and wiring. Then move to live-data testing, module communication checks and calibration procedures. If the fault remains, ECU inspection or specialist file support may be the next practical step.

With the right diagnostic equipment and a methodical approach, codes such as P274027, P274022, C114109 and C101809 can be investigated without unnecessary parts replacement.

For workshops handling specialist McLaren repairs, an experienced ECU file service can save time, reduce repeat visits and help return the MP4-12C to the road with its performance fully restored.

Important: DTC descriptions can vary by control module, scan-tool database and software version. Always confirm the exact code definition and repair procedure with manufacturer-level diagnostic information before replacing parts or programming an ECU.
