The coolant temperature sensor is a small component with a big job. It tells the engine control unit how warm or cold the engine coolant is, allowing the vehicle to adjust fuel delivery, turbocharger control, cooling fan operation, glow plug timing, air conditioning, and several other systems.
When the sensor begins to fail, the engine may still start and run. That is why the problem is sometimes overlooked. However, incorrect temperature information can quickly lead to poor fuel economy, hard starting, rough idling, increased emissions, reduced performance, and warning lights on the dashboard.
This guide explains how the coolant temperature sensor works, what systems depend on it, which symptoms to look for, how to test it with a multimeter, and what the common fault codes mean.
What Is a Coolant Temperature Sensor?
The coolant temperature sensor, often called an engine coolant temperature sensor or ECT sensor, measures the temperature of the engine coolant.
It is commonly installed in the cylinder head, thermostat housing, or coolant passage near the engine block. The exact location depends on the vehicle and engine design.
Inside the sensor is a temperature-sensitive resistor known as an NTC thermistor.
NTC means Negative Temperature Coefficient. In simple terms, the electrical resistance inside the sensor decreases as the coolant temperature increases.
For example:
- When the engine is cold, the sensor has higher resistance.
- As the engine warms up, resistance falls.
- At normal operating temperature, the resistance is much lower than during a cold start.
The engine control unit reads this changing resistance and converts it into a temperature value. It then uses that information to make decisions about engine operation.
A sensor that reports the wrong temperature can make the vehicle behave as if the engine is permanently cold or overheated, even when the actual coolant temperature is normal.
Why the Coolant Temperature Sensor Matters
Modern engines rely on accurate temperature data. The coolant temperature signal is not used for just one function. It can influence many systems at the same time.
Depending on the vehicle, the coolant temperature sensor may be used for:
- Exhaust gas recirculation control
- Fuel injection quantity calculation
- Air conditioning activation
- Radiator shutter or grille shutter control
- Electric auxiliary heater operation
- Turbocharger boost pressure control
- Glow plug timing
- Electric cooling fan activation
- Swirl flap control
- Idle speed regulation
- Common rail pressure regulation
- Cold-start enrichment
- Emissions control
- Automatic transmission shift strategy
- Dashboard temperature display
This explains why one small sensor can cause several unrelated-looking symptoms.
For example, a faulty coolant temperature sensor may cause poor starting, high fuel consumption, and cooling fan problems at the same time. These issues may seem separate, but they can all come from incorrect engine temperature information.
How the Sensor Works During a Cold Start
When an engine is cold, it needs a different fuel and air strategy than it does at operating temperature.
A cold engine may require:
- Additional fuel
- Longer glow plug operation on diesel engines
- Higher idle speed
- Different injection timing
- Reduced exhaust gas recirculation
- Modified turbocharger control
- Delayed air conditioning operation
The coolant temperature sensor gives the engine control unit the information needed to make these adjustments.
If the sensor falsely reports that the engine is already warm, the control unit may reduce cold-start assistance. This can result in hard starting, rough running, excessive smoke, or stalling shortly after startup.
If the sensor falsely reports an extremely cold engine, the control unit may add too much fuel or keep the glow plugs active for too long. The result may be poor fuel economy, dark exhaust smoke, and unstable engine operation.
Common Symptoms of a Faulty Coolant Temperature Sensor
A defective coolant temperature sensor can produce different symptoms depending on whether it is stuck at a high-resistance or low-resistance value.
The most common signs include the following.
1. Difficult Cold Starting
If the sensor sends an incorrect temperature signal, the engine control unit may calculate the wrong injection quantity during startup.
A diesel engine may be especially difficult to start if the control unit believes the engine is warm when it is actually cold. The vehicle may need several attempts before the engine starts.
2. Rough Idle
Incorrect temperature data can affect injection timing, fuel quantity, idle speed, and exhaust gas recirculation. This may cause the engine to idle unevenly or shake more than usual.
3. Poor Fuel Economy
If the control unit believes the engine is colder than it really is, it may continue to use a richer fuel strategy. This can increase fuel consumption, particularly during short journeys.
4. Excessive Exhaust Smoke
Incorrect fuel delivery may cause black, grey, or white smoke depending on the engine and the fault condition.
Too much fuel combined with poor combustion can create visible smoke and increased emissions.
5. Cooling Fan Runs Constantly
Some vehicles activate the electric cooling fan as a protective measure when the temperature signal is missing or implausible.
A fan that runs continuously, even when the engine is cold, may indicate a sensor, connector, wiring, or control-unit problem.
6. Engine Overheating
The sensor itself may not directly cause the engine to overheat, but a faulty signal can prevent the cooling system from operating correctly.
If the control unit does not receive an accurate temperature reading, it may activate the electric fan too late or fail to control other temperature-related functions properly.
Always treat overheating as a serious issue. Stop the vehicle safely and inspect the cooling system before continuing to drive.
7. Temperature Gauge Shows an Incorrect Reading
On some vehicles, the sensor signal is also used for the dashboard temperature gauge. The gauge may remain cold, move suddenly, or show a reading that does not match the actual engine temperature.
However, some vehicles use separate sensors for the engine control unit and dashboard gauge, so a normal gauge does not always rule out an ECT sensor problem.
8. Air Conditioning Does Not Operate Correctly
The coolant temperature signal can be used as an activation condition for the air conditioning system.
If the engine control unit receives an implausible temperature value, it may limit or disable air conditioning operation to protect the engine.
9. Reduced Engine Performance
Temperature information can affect turbocharger boost control, EGR operation, injection timing, and rail pressure regulation.
As a result, a faulty sensor may contribute to hesitation, reduced power, delayed throttle response, or limp mode.
Common Coolant Temperature Sensor Fault Codes
When a problem is detected, the vehicle may store diagnostic trouble codes related to the coolant temperature sensor.
Possible codes include:
- 3EE0 – Coolant temperature sensor
- 3EE1 – Coolant temperature sensor
- 3EE2 – Coolant temperature sensor
- 3EE3 – Coolant temperature sensor
- 3EF3 – Coolant temperature sensor
The exact meaning can vary according to the engine control unit, vehicle manufacturer, and diagnostic system.
A fault code does not automatically prove that the sensor itself is defective. The problem may also be caused by:
- Damaged wiring
- Corroded terminals
- A loose connector
- Short circuit to positive
- Short circuit to ground
- Open circuit
- Poor sensor ground
- Coolant contamination around the connector
- A defective engine control unit
- Incorrect reference voltage
The code should be used as a starting point for diagnosis, not as permission to replace parts without testing.
Important Warning: Short Circuit to Positive
The coolant temperature sensor can be damaged by a short circuit to positive voltage.
This type of electrical fault may expose the sensor to an incorrect voltage and cause internal damage. If the wiring harness has rubbed against the engine, melted near a hot component, or been repaired incorrectly, the sensor may fail again after replacement.
Before installing a new coolant temperature sensor, inspect the wiring carefully. A replacement sensor will not solve the problem if the original electrical fault remains in the circuit.
Coolant Temperature Sensor Resistance Values
Because the sensor uses an NTC thermistor, its resistance changes with temperature.
Typical reference values are:
Coolant TemperatureSensor Resistance20°C2.5–3.0 kΩ50°C0.7–0.9 kΩ100°C0.12–0.17 kΩ
These figures are useful for a basic resistance test.
The resistance should generally decrease smoothly as the sensor temperature rises. If the resistance remains unchanged, jumps suddenly, shows an open circuit, or is far outside the expected range, the sensor may be defective.
Always compare the readings with the correct technical data for the specific engine. Sensor values can vary between manufacturers and engine families.

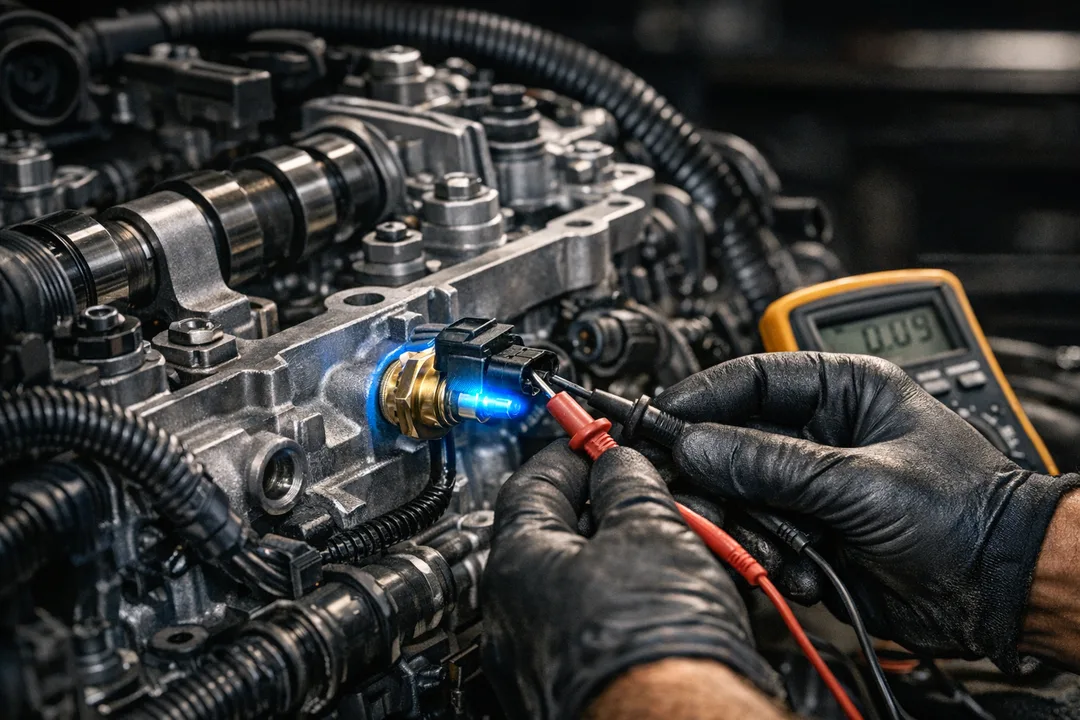

How to Test a Coolant Temperature Sensor
A digital multimeter can be used to carry out a basic resistance test.
Step 1: Allow the Engine to Cool
Never remove a coolant sensor from a hot, pressurised cooling system. Hot coolant can cause serious burns.
Park the vehicle safely and allow the engine to cool completely.
Step 2: Disconnect the Sensor
Locate the sensor and carefully disconnect the electrical plug.
Check the connector for:
- Green corrosion
- Bent pins
- Moisture
- Broken locking tabs
- Loose terminals
- Oil or coolant contamination
Step 3: Measure Resistance
Set the multimeter to the resistance setting.
Touch one probe to each sensor terminal. Compare the reading with the expected value for the current coolant temperature.
At approximately 20°C, a typical reading may be between 2.5 and 3.0 kΩ.
Step 4: Warm the Sensor Carefully
A more advanced test involves warming the sensor gradually, either while installed and monitored through live data or after removal using controlled warm water.
The resistance should reduce smoothly as the temperature increases.
Typical values may be:
- Around 0.7–0.9 kΩ at 50°C
- Around 0.12–0.17 kΩ at 100°C
Do not apply an open flame directly to the sensor. Excessive heat can damage the component and create an inaccurate test result.
Step 5: Inspect the Wiring
If the sensor readings are correct, test the wiring between the sensor connector and the engine control unit.
Look for:
- Broken wires
- Chafing
- Heat damage
- Short circuits
- Poor grounds
- Loose connector pins
A wiring fault can create the same symptoms as a failed sensor.
Checking Coolant Temperature Through Live Data
A diagnostic scan tool can often display the coolant temperature value reported by the sensor.
This is one of the quickest ways to identify an implausible signal.
With the engine completely cold, the coolant temperature reading should usually be close to the surrounding air temperature. For example, if the vehicle has been parked overnight in a 15°C workshop, a reading of 80°C before starting would be suspicious.
As the engine warms, the temperature value should rise gradually rather than jumping randomly.
Signs of a possible sensor or wiring problem include:
- A reading of -40°C
- A reading above 130°C on a cold engine
- A temperature that never changes
- Sudden jumps between values
- A temperature that drops sharply without a reason
- A reading that does not match the actual engine condition
A scan tool can save time, but live data should still be confirmed with electrical testing when necessary.
Coolant Temperature Sensor Replacement
Replacing the sensor is usually straightforward, but preparation matters.
Before removing the old sensor:
- Allow the engine to cool.
- Disconnect the battery if required by the manufacturer.
- Remove the electrical connector.
- Prepare a suitable replacement seal or O-ring.
- Place a container beneath the sensor area.
- Remove the sensor carefully.
- Install the new sensor with the correct seal.
- Reconnect the wiring.
- Refill and bleed the cooling system if coolant was lost.
- Clear stored fault codes.
- Check live data and confirm normal operation.
Do not overtighten the sensor. Excessive force can damage the sensor, threads, cylinder head, thermostat housing, or coolant passage.
Use the correct part for the engine. Two sensors may look similar but have different resistance curves, connector designs, or temperature characteristics.
Other Problems That Can Look Like a Bad Sensor
A coolant temperature sensor should not be blamed too quickly. Several other faults can produce similar symptoms.
Possible alternatives include:
- Stuck-open thermostat
- Low coolant level
- Air trapped in the cooling system
- Faulty radiator fan control
- Glow plug failure
- Injector problems
- Weak battery
- Faulty fuel pressure regulator
- EGR valve malfunction
- Damaged engine wiring
- Poor electrical ground
- Defective engine control unit
For example, a stuck-open thermostat may prevent the engine from reaching normal operating temperature. The sensor may be working correctly, but the coolant itself is remaining too cold.
That is why a proper diagnosis combines fault-code reading, live-data inspection, resistance testing, and a physical cooling-system check.
Can You Drive With a Bad Coolant Temperature Sensor?
The vehicle may continue to drive with a faulty sensor, but doing so is not recommended for an extended period.
Driving with incorrect temperature information can lead to:
- Higher fuel consumption
- Increased exhaust emissions
- Poor engine performance
- Hard starting
- Cooling fan problems
- DPF regeneration issues on some diesel vehicles
- Turbocharger control problems
- Potential overheating
- Additional diagnostic faults
If the engine temperature warning light appears, the coolant level is low, steam is visible, or the temperature gauge enters the red zone, stop driving and investigate the problem immediately.
A sensor fault is often inexpensive to repair, but ignoring it can allow a small electrical problem to become a larger engine or emissions issue.
The coolant temperature sensor plays a central role in modern engine management. Although it is small and relatively inexpensive, its signal can affect fuel injection, EGR, glow plug operation, turbocharger control, rail pressure, cooling fans, air conditioning, idle speed, and emissions performance.
The most reliable diagnosis begins with the basics:
- Read the stored fault codes.
- Check the coolant temperature in live data.
- Compare the reading with the actual engine temperature.
- Measure sensor resistance.
- Inspect the connector and wiring.
- Confirm the repair after installation.
Typical reference values of 2.5–3.0 kΩ at 20°C, 0.7–0.9 kΩ at 50°C, and 0.12–0.17 kΩ at 100°C can help identify a faulty sensor, but always confirm the correct specifications for the specific vehicle.
