The engine control unit, usually called the ECU, is one of the most important electronic parts in a modern vehicle. It controls fuel injection, ignition timing, throttle operation, boost pressure, emissions systems, sensors, and communication with other vehicle modules.

When an ECU develops a fault, the symptoms can be confusing. The engine may crank but refuse to start. Several warning lights may appear at once. Communication with a diagnostic scanner may fail. The vehicle may run roughly, cut out without warning, or suffer from repeated resets.

In many cases, the problem is not a completely “dead” ECU. A small failed component, damaged solder joint, broken PCB trace, or corroded connector can bring down an entire control system.

Professional ECU repair involves much more than replacing a few visible parts. The technician must identify the original cause, inspect the circuit board, test the affected systems, and confirm that the repaired module can safely return to the vehicle.

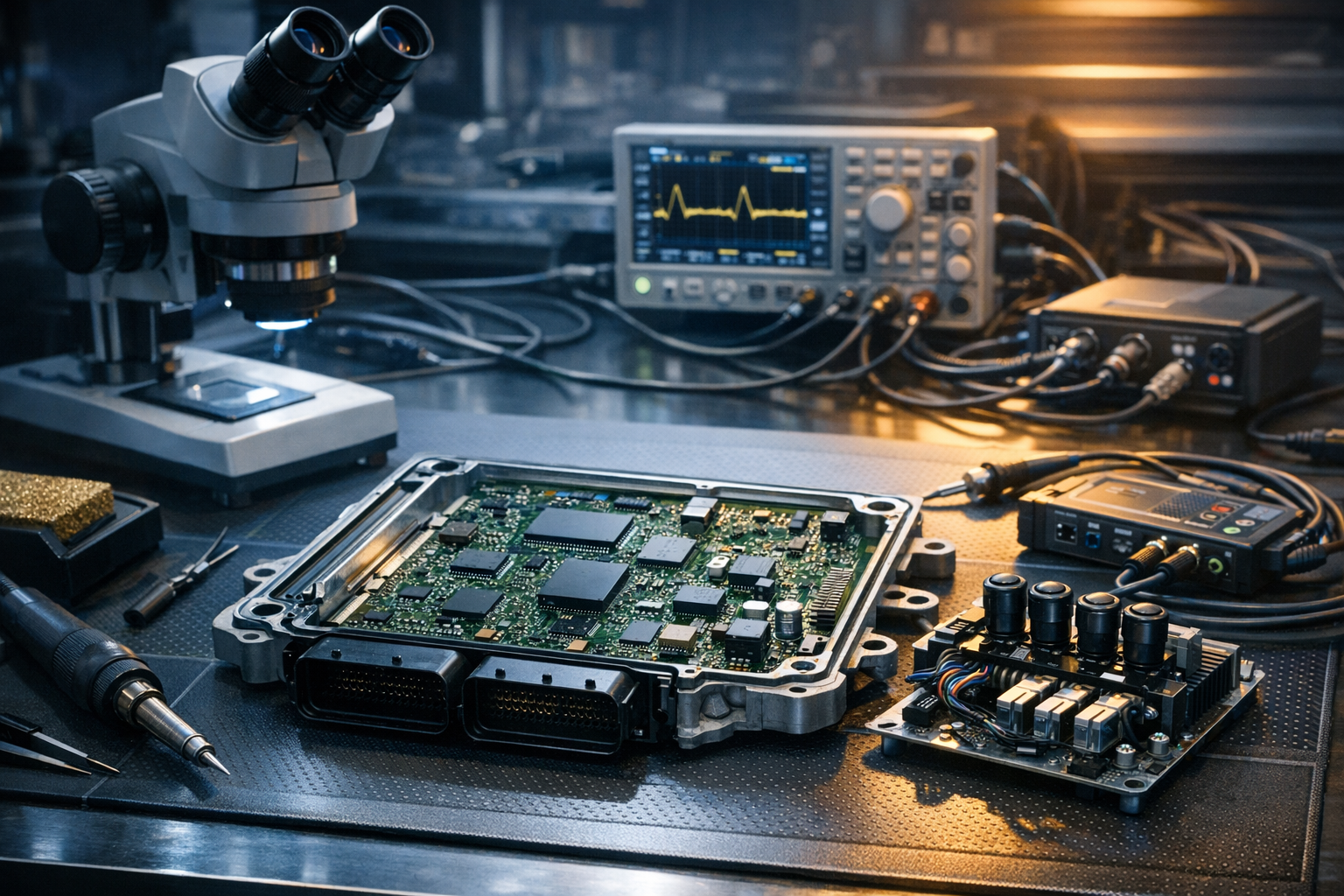

Below are some of the most common ECU repairs found in automotive electronics.

ECU Solder-Joint Repair

Solder joints connect electronic components to the printed circuit board, also known as the PCB. Over time, these joints can weaken because of vibration, heat cycles, moisture, and repeated movement inside the vehicle.

A cracked solder joint may look harmless to the eye, but it can interrupt power, ground, sensor signals, or communication lines. The fault may appear only when the vehicle is hot, cold, or being driven over rough roads.

Common symptoms of a damaged solder joint

Typical signs include:

• Intermittent engine stalling
• No-start conditions that come and go
• Loss of communication with the ECU
• Random warning lights
• Unstable idle or sudden limp mode
• Fault codes that disappear after restarting
• A vehicle that works when the ECU is tapped or moved

These symptoms are not proof of a solder fault, but they can give a technician a useful direction.

Inspection and testing

A proper inspection starts with the ECU housing, connectors, and circuit board. The technician checks for cracked joints, dull or fractured solder, heat damage, loose components, and signs of previous repair work.

Magnification is often needed because many solder cracks are extremely small. Electrical testing is also important. A visible joint can appear acceptable while still having high resistance or an intermittent connection.

The technician may test continuity, voltage drops, ground paths, and signal stability while gently flexing the board or applying controlled heat and cooling. These methods help reproduce faults that do not appear during a simple visual inspection.

Reflow versus rework

Reflow means heating an existing solder joint so the solder melts and reconnects with the component and PCB. This can be suitable when the joint is intact but has developed a minor crack.

Rework is more involved. It may require removing old solder, cleaning the area, inspecting the component lead or pad, and applying fresh solder correctly. Rework is usually the better option when contamination, oxidation, mechanical damage, or poor previous repairs are present.

Simply heating every solder joint is not a professional repair method. The correct technique depends on the component, board design, solder type, and condition of the surrounding area.

The danger of excessive heat

Too much heat can create more damage than it solves. Excessive temperature may:

• Lift copper pads from the PCB
• Delaminate the circuit board
• Damage nearby integrated circuits
• Melt plastic connectors
• Break internal board layers
• Change the value of sensitive components
• Create new solder bridges or short circuits

Automotive ECUs often use multi-layer circuit boards with tightly packed components. Controlled temperature, suitable tools, and careful timing are essential.

A good solder-joint repair should restore the original electrical and mechanical strength without leaving visible heat damage or unnecessary rework marks.

PCB Trace Repair

A PCB trace is a thin copper pathway that carries power or electrical signals across the circuit board. These tracks can be damaged by corrosion, impact, overheating, incorrect probing, previous repair attempts, or component failure.

A broken trace can stop communication between the processor and a sensor. It can interrupt power to an injector driver or prevent a ground connection from reaching a critical circuit.

Broken tracks and lifted pads

Some trace damage is easy to see. Other faults are hidden beneath corrosion, conformal coating, or damaged components.

A lifted pad occurs when the copper connection around a component lead separates from the circuit board. This can happen when a component is overheated or removed with excessive force.

A lifted pad is more difficult to repair because the replacement solder joint may no longer have a strong connection to the board. The technician may need to expose a safe section of copper trace or connect directly to an alternative circuit point.

Jumper wires

A jumper wire can restore an interrupted electrical path. When correctly installed, it can be a reliable solution for a broken PCB trace.

However, jumper wires must be selected and installed carefully. The wire must be suitable for the current and signal involved. A power circuit may require a thicker conductor, while a low-current communication signal may need a short, carefully routed connection.

The wire should be:

• Properly soldered
• Kept away from sharp edges
• Routed to avoid moving components
• Clear of heat-producing parts
• Secured against vibration
• Protected from future corrosion

A jumper wire that is electrically correct but mechanically loose may fail again once exposed to vehicle vibration.

Mechanical protection matters

Automotive electronics operate in a demanding environment. Vibration, temperature changes, moisture, and electrical noise can all affect a repair.

After a PCB trace repair, the technician may use suitable protective material to hold the wire in place and prevent movement. The chosen protection must be compatible with the board, insulation, temperature range, and repair location.

The repair should also preserve the ECU’s original sealing system. If moisture can enter through a damaged case or seal, even a perfect trace repair may not last.

Water-Damage Repair

Water damage is one of the most serious ECU problems because corrosion can continue long after the board appears dry.

Moisture may enter through a damaged housing seal, engine-bay contamination, flooding, incorrect washing, a blocked drain, or a connector that has not been fully sealed.

Why cleaning alone is not enough

Cleaning the board can remove dirt and surface residue, but it does not automatically repair damage caused by corrosion.

Water and contamination may affect:

• Small resistors and capacitors
• Integrated circuits
• Connector pins
• Vias between PCB layers
• Ground planes
• Power tracks
• Component legs
• Hidden areas beneath packages
• Internal layers of a multi-layer circuit board

A board may look clean on the surface while corrosion remains under a component or inside a plated-through via.

Corroded components and vias

A via is a small plated connection that links different layers of a circuit board. If corrosion damages a via, the electrical connection between layers may be lost.

This can create difficult faults that are not obvious during a basic continuity test. A circuit may work on the bench and fail after the vehicle warms up or vibrates.

Corroded components may need to be removed and replaced. In some cases, the copper around the component must also be rebuilt. The technician must determine whether the corrosion is limited to one area or has spread through the board.

Connector inspection

ECU connectors deserve careful attention. Green or white deposits on a terminal can increase resistance, interrupt communication, or create voltage drops.

The vehicle-side connector must also be checked. Installing a repaired ECU into a corroded harness can quickly damage the replacement or repaired module.

The repair process should include inspection of:

• ECU connector pins
• Harness terminals
• Ground points
• Fuse and relay circuits
• Water entry points
• Nearby wiring
• Vehicle control-module connections

Water damage should always be treated as a system problem, not only a circuit-board problem.

Voltage-Regulator Repair

A voltage regulator controls the internal supply voltage used by the ECU’s processor, memory, sensors, and communication circuits.

The vehicle battery and charging system do not provide a perfectly stable voltage. The ECU uses regulators and power-management circuits to create the clean, controlled supply rails needed by delicate electronics.

Symptoms of a failed internal supply rail

A faulty regulator can cause:

• A completely dead ECU
• No communication with a diagnostic scanner
• Repeated ECU resets
• Engine stalling
• Random fault codes
• Failure to power sensors
• A crank-no-start condition
• Multiple modules reporting communication errors

Sometimes the ECU appears to work for a few minutes before shutting down. This may happen when a regulator becomes unstable as it heats up.

Finding the real power fault

Replacing the regulator without testing the rest of the circuit can lead to another failure. A shorted capacitor, damaged processor supply, or external wiring fault may be pulling the rail down.

A technician should measure the input voltage, output rails, current draw, and resistance to ground. The ECU may also need to be tested with a controlled power supply and current limit.

The vehicle’s battery, alternator, grounds, fuses, and wiring should be checked as well. A charging-system fault can expose the ECU to voltage spikes or excessive electrical stress.

A successful voltage-regulator repair restores stable power and confirms that the ECU remains reliable under load and temperature changes.

CAN-Transceiver Repair

Modern vehicles use communication networks so that different control modules can exchange information. One of the most common systems is CAN bus, short for Controller Area Network.

The ECU may use CAN communication to exchange data with the transmission module, body controller, ABS system, instrument cluster, gateway, and diagnostic equipment.

A failed CAN transceiver can create a major network problem.

How a failed CAN transceiver affects the vehicle

A damaged transceiver may:

• Prevent the ECU from communicating
• Pull the CAN network voltage out of range
• Stop several modules from responding
• Cause multiple warning lights
• Create U-codes in different control units
• Prevent the vehicle from starting
• Cause intermittent communication dropouts

In some cases, one failed transceiver can effectively hold down the entire vehicle network.

Testing the CAN circuit

A professional diagnosis includes testing the vehicle wiring, termination resistance, power supply, grounds, and network activity. It is important to confirm that the ECU is actually causing the problem before opening the module.

A shorted wiring harness, damaged gateway, aftermarket accessory, or faulty second module can produce similar symptoms.

Once the ECU is identified as the cause, the transceiver and its surrounding components can be inspected. Heat damage, cracked solder joints, contamination, and short circuits must all be considered.

After repair, the ECU should be tested on the bench and in the vehicle. Communication should be verified with a diagnostic scan, and the network should be checked for normal resistance and signal behavior.

Injector and Ignition-Driver Repair

The ECU does not power injectors and ignition coils directly through its main processor. Instead, it uses output-driver circuits designed to control high-current or high-voltage loads.

These drivers can fail when an injector, ignition coil, wiring harness, or connector develops a short circuit.

What happens when an output driver fails?

A failed injector driver may cause:

• One cylinder not to operate
• A misfire
• An injector that stays open
• A no-start condition
• Fuel flooding
• An injector circuit fault code

A damaged ignition driver may cause:

• No spark on one cylinder
• An intermittent misfire
• Coil control fault codes
• Engine hesitation
• A cylinder that cuts out under load

The damage may be visible as a burned component, but not every driver failure leaves a clear mark.

Test the actuator before installing the ECU

This step is critical. If a shorted injector or coil caused the original ECU damage, installing the repaired ECU without testing the actuator can destroy the repaired output stage again.

The technician should check:

• Injector resistance
• Ignition-coil resistance and insulation
• Harness continuity
• Short circuits to power or ground
• Connector condition
• Driver control signals
• Fuse and relay operation

The wiring should also be checked for rubbing against the engine, oil contamination, water entry, and previous modifications.

A repaired ECU should never be treated as the only suspect. The external load that damaged it must be identified and corrected first.

Why Professional ECU Testing Matters

An ECU repair is not complete when a component has been replaced. The module must be tested under conditions that reflect real vehicle operation.

A proper repair service may include:

1. Fault verification
2. ECU case and connector inspection
3. Circuit-board cleaning
4. Component-level diagnosis
5. Damaged-track and solder repair
6. Power-supply testing
7. Communication testing
8. Output-stage testing
9. Heat and load testing
10. Vehicle installation and final scan

The testing method depends on the ECU and the fault. Some modules can be tested on a bench using a breakout harness. Others need simulated sensors, controlled loads, or vehicle-based testing.

A good technician also records the original fault, the work completed, and any recommendations for preventing the problem from returning.

Can Every ECU Be Repaired?

Many ECUs can be repaired, but not every module is economically or technically recoverable.

Repair becomes more difficult when:

• The processor is internally damaged
• Multiple PCB layers are badly corroded
• The ECU has severe fire damage
• Security data is unreadable
• The circuit board is physically broken
• Replacement parts are unavailable
• The housing has allowed repeated water entry

Even when repair is possible, the final result depends on the original damage and the quality of the previous work.

A replacement ECU may also require programming, immobilizer matching, coding, calibration, or transfer of vehicle-specific data. Replacing the module without completing these steps may leave the vehicle unable to start or communicate correctly.
