If your car suddenly acts like it’s possessed — cranks but won’t fire, throws random check-engine lights, or just goes completely dead — don’t panic and don’t hand over $1500 for a new ECU yet. Nine times out of ten it’s one of those little black chips on the board that gave up.
I’ve been wrenching on engine computers for more than 15 years. From old Bosch boxes to the newer stuff you see in 2020s cars. I’ve fixed hundreds of these on the bench. Today I’m going to show you the exact IC failures that keep showing up, how to spot them fast, and how to swap the bad chip so the car runs right again. Simple language, real shop talk, no fancy words.
Why These Tiny Chips Fail So Often
Your ECU sits in a hot, vibrating, sometimes damp place. Those ICs (the little square or rectangular black things with metal legs) handle power, drive the injectors and coils, store the tune, and talk to the rest of the car. Heat cycles crack the solder. Water sneaks in. A bad jump-start or cheap battery charger sends a spike right through them. Heavy tunes push the driver chips harder than the factory ever planned.
After a few years some of them just wear out. That’s normal. The good news is most of the time only one or two chips are bad. The rest of the board is fine.

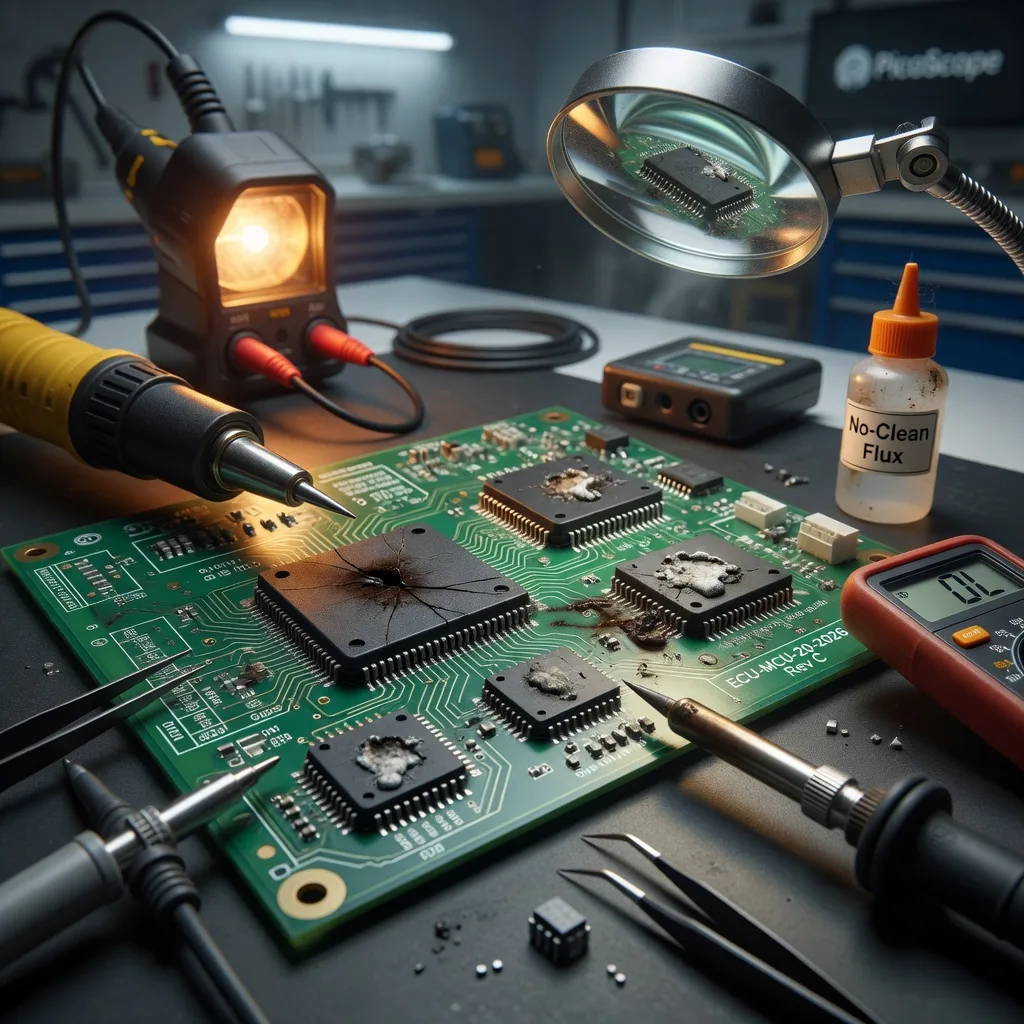

The 5 Most Common ECU IC Failures I See Every Single Week
1. Power Supply / Voltage Regulator ICs
These turn the car’s 12-14 volts into clean 5V and 3.3V for the brain. When they die the whole ECU goes silent.
What you feel:
- Cranks but no start
- No communication with scan tool
- Random total power loss while driving
- Sensors reading crazy voltages
These are the #1 killer on a ton of Bosch, Delphi, and Siemens units.
2. Injector and Ignition Driver ICs
These little power chips switch the high current to the injectors and coils. Heat kills them, especially on diesels and tuned petrol engines.
Symptoms:
- Misfire on one or two cylinders that comes back after new coils/plugs
- Injector codes that won’t stay gone
- Rough idle when warm, smooth when cold
- Fuel smell or black smoke on one bank
3. EEPROM / Flash Memory Chips
This is where the immobilizer data and your tune live. Low battery voltage or a bad flash session corrupts them.
Watch for:
- Car starts then dies after 2 seconds
- Immobilizer light flashing with the correct key
- ECU won’t accept a new tune
- “Incorrect coding” or “dataset error”
4. CAN / Communication Transceiver Chips
These let the ECU talk to the ABS, dash, and other modules.
Clues:
- Scan tool won’t connect
- Multiple modules missing on the network
- ABS or airbag lights that clear then return
- No RPM signal on the dash sometimes
5. Clock Crystal or Oscillator
Less common but total death when it happens. The processor loses its heartbeat.
Result: Completely dead ECU that draws almost zero current. Looks like a brick.
These five cover the big majority of boards that land on my bench.
How to Diagnose Without Guessing
- Disconnect the battery.
- Pull the ECU (usually under the wiper cowl, glove box, or passenger footwell — check your model).
- Open the case carefully. Look for water marks, green corrosion, or burnt spots.
- Take clear photos of both sides before you touch anything.
- With a multimeter, check the 5V and 3.3V rails (you’ll need the pinout for your ECU — easy to find online). Missing voltage = regulator IC.
- Look at the driver chips under a bright light or magnifier. Burnt, cracked, or discolored packages are guilty.
- If you have a cheap USB microscope, use it. It’s a game-changer for seeing cracked solder.
Don’t skip the photos. You’ll need them later.
Tools That Actually Work (No Cheap Junk)
- Temperature-controlled soldering iron (Hakko style, 60-80W)
- Hot-air rework station with small nozzles
- Good flux (rosin or no-clean)
- Solder wick + desoldering pump
- Fine tweezers and a magnifier
- 99% isopropyl alcohol and soft brush
- ESD wrist strap (static kills chips quietly)
- New ICs from a known good supplier (match the exact part number)
Practice on a scrap board first. Seriously. One lifted pad on a customer ECU ruins your day.
Step-by-Step: Replacing the Bad IC
Step 1
Board out, photos taken, bad chip identified. Write down the part number.
Step 2
Add flux. Heat with hot air (around 320-350°C) while gently lifting with tweezers. For bigger chips, add a little extra solder first so it all melts evenly. Never force it.
Step 3
Clean the pads with wick until they are flat and shiny. Check under magnification for damage. If a pad lifted, you can run a tiny jumper wire — totally doable.
Step 4
Place the new chip. Match the dot or notch exactly. Tack two opposite corners with the iron so it stays put.
Step 5
Solder the rest. For fine-pitch chips use the drag method with plenty of flux, then clean any bridges with wick.
Step 6
Clean all flux off with alcohol. Inspect every pin. Add a tiny bit of thermal paste if the original chip had a heat path to the case.
Step 7
Reassemble, reconnect battery, and test. Check communication, clear codes, and take it for a proper drive. Watch live data.
Step 8
If everything looks good, seal the case properly. A thin bead of electronics silicone around the edge helps keep moisture out next time.
That’s the whole process. Most of these jobs take 45-90 minutes once you’ve done a few.
Mistakes That Cost People Money (Don’t Do These)
- Using the wrong temperature and lifting pads
- Buying super-cheap no-name chips that are fake or wrong pinout
- Forgetting to fix the real cause (bad alternator, water leak, weak battery) so the new chip dies again
- Skipping the battery disconnect and spiking the fresh IC
- Not transferring data on memory chips when needed
Fix the root problem or you’ll be doing the job twice.
When You Should Just Get a Reman ECU
If the main processor is dead, the board has heavy internal damage, or it’s a newer car with heavy immobilizer pairing, a good remanufactured unit can be smarter and faster. But knowing how to change ICs still saves you when the shop wants to sell you a full new computer.
