A check engine light after a tune, wiring repair or hot-weather drive can be frustrating. The good news is that a diagnostic trouble code is not always a sign of major engine damage. In many cases, it simply tells you that the ECU has detected a sensor reading, cooling fan problem or calibration value outside its expected range.

The important part is not to replace parts blindly.

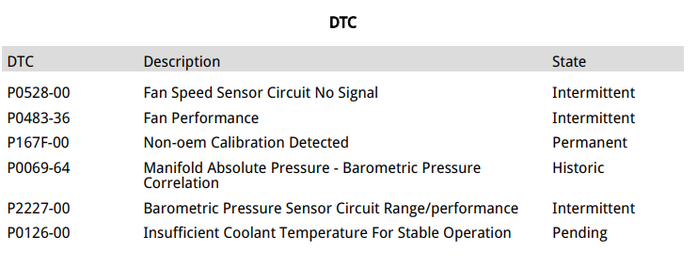

Codes such as P0528-00, P0483-36, P167F-00, P0069-64, P2227-00 and P0126-00 can be connected to cooling fans, pressure sensors, ECU software or engine warm-up. Some may appear after performance tuning, while others are caused by damaged wiring, loose connectors, weak grounds or a failing component.

This guide explains what each code usually means and what to check first.

Important: DTC descriptions and code suffixes can vary between vehicle manufacturers. Always confirm the exact meaning using the vehicle’s factory service information and scan-tool data.

Why Fault Codes Appear After ECU Tuning

Modern engines rely on several sensors to control fuel, ignition, boost, temperature and emissions. The ECU constantly compares the information it receives with expected values.

When the readings do not match, the ECU stores a fault code.

This can happen after:

• ECU remapping or flashing
• Installation of an aftermarket turbocharger
• Cooling fan upgrades
• Damaged sensor wiring
• Battery or alternator problems
• Poor grounding
• Water entering electrical connectors
• Incorrect software calibration
• Replacing a sensor with the wrong part
• Using a second-hand ECU without proper programming

A fault code does not automatically identify the failed part. It identifies the system or signal that needs testing.

That difference can save you a lot of money.

P0528-00: Fan Speed Sensor Circuit No Signal

The code P0528-00 generally relates to the engine cooling fan speed sensor circuit. The ECU expects to see a fan-speed signal but receives no usable signal or an intermittent one.

Depending on the vehicle, the signal may come from:

• An electronic cooling fan
• A fan control module
• A fan clutch speed sensor
• A Hall-effect speed sensor
• A PWM-controlled fan assembly
• A dedicated fan feedback wire

Common symptoms

You may notice:

• Cooling fan running at full speed
• Fan not operating when the engine is hot
• Engine temperature rising in traffic
• Air conditioning becoming weak at low speed
• Loud fan noise
• Check engine light
• Intermittent overheating

The vehicle may still drive normally at highway speed because airflow through the radiator helps cool the engine. Problems often become more obvious in traffic, during idling or in hot weather.

What to check

Start with a visual inspection of the fan connector and wiring. Look for melted insulation, corrosion, loose terminals or wires rubbing against brackets and pulleys.

Then check:

1. Cooling fan fuse and relay
2. Battery voltage at the fan assembly
3. Ground connection
4. Fan command from the scan tool
5. Fan feedback signal
6. Fan motor operation
7. Fan control module

Do not assume the fan motor is faulty simply because the code mentions fan speed. A broken signal wire can create the same fault.

A cooling fan fault should be treated seriously because overheating can damage head gaskets, turbochargers and internal engine components. Manufacturer service information has documented cases where fan-related codes were linked with intermittent fan operation and poor air-conditioning performance. (NHTSA)

P0483-36: Cooling Fan Performance Intermittent

The P0483-36 code usually indicates a cooling fan performance problem. The ECU has commanded the fan to operate, but the actual fan response does not match what it expects.

The problem may be mechanical, electrical or software-related.

Possible causes

• Failing fan motor
• Damaged fan control module
• Blown fuse
• Weak ground
• Poor connector contact
• Broken wiring
• Fan blade obstruction
• Incorrect replacement fan
• ECU calibration problem

A fan can still spin and have a problem. For example, it may operate at low speed but fail when high-speed cooling is requested. It may also work when cold and stop after the motor becomes hot.

Practical testing

Use a professional scan tool to command the fan at different speeds. Watch whether the fan starts smoothly and responds consistently.

Also compare:

• Commanded fan speed
• Actual fan speed
• Engine coolant temperature
• Vehicle speed
• A/C pressure
• Battery voltage

If the ECU requests 80% fan speed but the fan feedback remains low or disappears, the issue may be inside the fan assembly or its control circuit.

Do not ignore this code just because the temperature gauge looks normal. The gauge may remain in the middle of its scale while the ECU is already detecting a cooling problem.

P167F-00: Non-OEM Calibration Detected

The P167F-00 code is commonly associated with non-original ECU calibration. In simple terms, the vehicle may detect that the software inside the ECU is different from the factory calibration.

This can happen after:

• Performance tuning
• ECU remapping
• Dealer software updates
• ECU replacement
• Module cloning
• Incorrect programming
• A failed flash process
• Installation of an aftermarket calibration

This code does not automatically mean the tune is bad. Some well-developed performance calibrations may trigger a non-OEM or calibration-related code because the software no longer matches the factory file.

When it becomes a concern

The code deserves more attention when it appears with other faults, such as:

• Boost control problems
• Incorrect fuel trims
• Poor cold starts
• Cooling fan faults
• Limp mode
• Reduced engine power
• Incorrect throttle response
• Unstable idle
• Excessive knock correction

If the car runs well and the code is stored as permanent, the calibration may simply need to be verified or legally documented for inspection purposes.

Correct repair approach

The proper solution is not always “flash the ECU back to stock.” First, confirm:

1. What calibration is currently installed
2. Whether the tune matches the vehicle hardware
3. Whether the software was flashed successfully
4. Whether the ECU is locked or modified
5. Whether the vehicle has matching module software
6. Whether the tune provider supplied a verified file

If the calibration is poor or incomplete, the ECU may need to be restored with the correct original software or professionally recalibrated.

Avoid random files from online forums. A bad calibration can affect fueling, ignition timing, boost pressure, fan control and engine protection strategies.

P0069-64: MAP and Barometric Pressure Correlation

The code P0069-64 points to a disagreement between the manifold absolute pressure sensor, known as the MAP sensor, and the barometric pressure reading.

The ECU uses these values to understand the engine’s air pressure and load. On a turbocharged vehicle, this information is especially important for boost control and fuel calculation.

Common causes

• Faulty MAP sensor
• Faulty barometric pressure sensor
• Vacuum leak
• Boost leak
• Blocked sensor port
• Damaged wiring
• Poor electrical ground
• Incorrect sensor scaling in the tune
• Wrong sensor installed
• Atmospheric pressure calculation error

A modified engine may trigger this fault when a larger MAP sensor is installed but the ECU calibration is not configured for its voltage range and pressure scale.

Symptoms may include

• Reduced engine power
• Poor throttle response
• Boost control problems
• Limp mode
• Hard starting
• Rich or lean running
• Unstable idle
• Incorrect fuel trims
• Check engine light

Before replacing the sensor, compare the MAP and barometric readings with the engine switched off. With the engine not running, both readings should usually be reasonably close because the intake manifold is exposed to atmospheric pressure.

If the readings are far apart, inspect the sensor, wiring and calibration.

The exact acceptable values depend on altitude, temperature, sensor type and vehicle software. Factory diagnostic procedures should be used for final confirmation. MAP and barometric pressure correlation faults are also listed in manufacturer diagnostic documentation as part of the engine air-management system. (NHTSA)

P2227-00: Barometric Pressure Sensor Range or Performance

The P2227-00 code relates to the barometric pressure sensor circuit or the pressure value reported to the ECU.

The barometric pressure sensor helps the ECU adjust engine operation according to outside air pressure. A vehicle at sea level and a vehicle at high altitude will not have the same atmospheric pressure reading.

Possible reasons for the code

• Sensor failure
• Water or oil contamination
• Connector corrosion
• Damaged wiring
• Poor ECU ground
• Incorrect sensor signal
• Sensor blocked by debris
• Wrong calibration
• Pressure reading that does not match operating conditions

This fault can sometimes appear alongside P0069 because both codes involve pressure information. However, they are not always caused by the same component.

Recommended checks

Inspect the sensor and connector first. If the sensor is mounted near the intake or engine bay, check for oil contamination, moisture and heat damage.

Then verify:

• Reference voltage
• Ground voltage drop
• Signal voltage
• Atmospheric pressure reading
• Freeze-frame data
• Intake pressure with the engine off
• Sensor response during acceleration

A sensor that reports a fixed value, jumps suddenly or disagrees with known atmospheric pressure may be defective. On a tuned vehicle, incorrect sensor scaling should also be considered before fitting another part.

P0126-00: Coolant Temperature Too Low for Stable Operation

The P0126-00 code usually means the engine is not reaching or maintaining its expected operating temperature quickly enough.

The most common cause is a thermostat that is stuck open. When the thermostat remains open, coolant flows through the radiator too early, preventing the engine from warming up properly.

Manufacturer service documents describe similar low-temperature faults where the engine takes longer than expected to reach the programmed temperature curve. Thermostat problems and ECU software updates may both be involved, depending on the vehicle. (NHTSA)

Common symptoms

• Engine takes a long time to warm up
• Cabin heater is not hot enough
• Fuel economy drops
• Engine remains in warm-up mode
• Check engine light
• Temperature gauge stays lower than normal
• Rich fuel mixture
• Increased emissions

Possible causes

• Thermostat stuck open
• Incorrect thermostat
• Coolant temperature sensor fault
• Low coolant level
• Air trapped in the cooling system
• Cooling fan running constantly
• Wiring problem
• Incorrect ECU calibration

On a modified vehicle, an ECU map that uses the wrong temperature model may create a false code. However, the mechanical cooling system should be tested before blaming the tune.

Check the actual coolant temperature using live data rather than relying only on the dashboard gauge. Many modern temperature gauges are heavily damped and may not show small changes.

A Better Way to Diagnose These Codes

The safest diagnostic process is simple:

1. Read all stored and pending codes

Do not focus on one code while ignoring related faults. A fan code combined with a coolant temperature code tells a different story from a single isolated sensor code.

2. Save the freeze-frame data

Freeze-frame information records engine speed, coolant temperature, vehicle speed, throttle position and other details from the moment the fault occurred.

3. Inspect the basics

Check:

• Battery condition
• Charging voltage
• Engine grounds
• Fuses
• Relays
• Wiring
• Connectors
• Coolant level
• Vacuum and boost hoses

Electrical problems often create multiple sensor codes at the same time.

4. Use live data

Compare sensor readings with real-world conditions. A pressure sensor reading should make sense for the current altitude and engine state. A coolant sensor reading should rise steadily during warm-up.

5. Test before replacing parts

A multimeter, test light, pressure gauge and scan tool can often identify the real problem faster than replacing expensive components.

6. Verify the ECU calibration

If the vehicle has been tuned, confirm that the calibration matches the installed sensors, injectors, turbocharger and cooling system.

7. Clear the code and retest

After repairs, clear the code and complete the correct drive cycle. A fault that does not return after a proper test drive may have been caused by an intermittent connection
