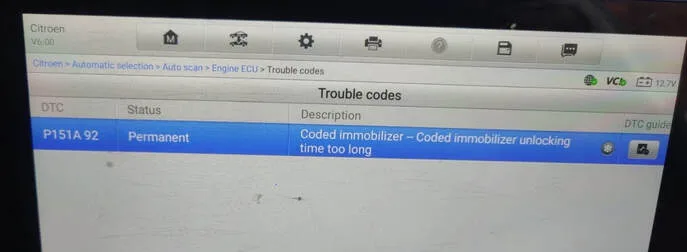

Seeing DTC P151A 92 on a Citroën diagnostic scan can be worrying, especially when the engine refuses to start. The good news is that this code does not always mean the engine ECU is damaged. In many cases, the problem is caused by a weak battery, a faulty key transponder, poor wiring or a communication issue between the immobilizer, BSI and ECU.

On Citroën vehicles, the immobilizer system checks whether the correct key is being used before allowing the engine to start. If the security authorisation takes too long or is not completed correctly, the ECU may store the code P151A 92.

Diagnostic references commonly describe P151A as “starting monitoring – immobilizer unlocking time too long.” (SCANDOC)

In simple terms, the vehicle is waiting for the correct security message, but the message is delayed, missing or rejected.

What Does Citroën P151A 92 Mean?

The exact wording can vary between diagnostic tools and engine control systems. Depending on the Citroën model, P151A 92 may be displayed as:

• Coded immobilizer operation incorrect
• Immobilizer unlocking time too long
• Missing immobilizer authorisation
• Engine ECU did not receive the correct security code
• Immobilizer communication fault

The immobilizer system normally involves several components:

1. The ignition key or smart key
2. The key transponder chip
3. The immobilizer antenna or reader coil
4. The BSI, also known as the Built-in Systems Interface
5. The engine ECU
6. Wiring and CAN network communication

The key transponder is identified by the vehicle when the key is inserted or brought close to the start system. The reader coil detects the chip and passes the information into the vehicle’s security system. The BSI and ECU then exchange authorisation data before fuel injection and engine starting are enabled.

A Citroën immobilizer uses a coded transponder in the key, while the reader ring around the ignition switch supplies the signal needed to read it. (PEUGEOTBOOK)

Common Symptoms of P151A 92

The symptoms can appear suddenly or develop gradually. Some vehicles start normally most of the time but fail after the car has been parked overnight. Others may refuse to start completely.

Typical symptoms include:

• Engine cranks but does not start
• Engine starts only after several attempts
• Immobilizer or key warning light appears
• “Key not recognised” message
• “Anti-theft system fault” message
• Longer-than-normal cranking
• Intermittent starting problems
• Engine ECU warning light
• Multiple communication codes stored in different modules

On some diesel Citroën models, the immobilizer fault may appear alongside fuel-pressure or starting-monitoring codes. This can make diagnosis confusing because a failed start may create secondary fault codes. A professional diagnostic scan should therefore consider all stored codes together rather than treating P151A 92 in isolation.

Main Causes of Citroën P151A 92

1. Damaged or Unprogrammed Key

The most obvious cause is a problem with the key itself. The small transponder chip inside the key can become damaged, especially if the key has been dropped, exposed to water or fitted into a damaged replacement casing.

A replacement key may also have the correct metal blade but the wrong electronic chip. In that situation, the key may unlock the door but still fail to authorise the engine.

If the vehicle has a spare key, test it before replacing expensive parts. If the spare key starts the vehicle normally, the original key is the first component to investigate.

2. Weak Key Fob Battery

A weak key-fob battery can cause remote locking and unlocking problems. On some Citroën models, the immobilizer transponder itself is passive and does not rely entirely on the remote-control battery. This means changing the battery will not fix every P151A 92 fault.

However, a new battery is still a sensible first check if:

• The remote buttons work intermittently
• The vehicle shows a key battery warning
• The key has recently stopped locking the car
• The car uses a hands-free or proximity key system

Use the correct battery type and install it with the correct polarity.

3. Faulty Immobilizer Antenna Ring

The antenna ring, also called the reader coil, is positioned around the ignition barrel on many Citroën models. Its job is to read the key’s transponder.

A failed antenna ring may cause:

• No key recognition
• Intermittent starting
• Starting failure when the key is moved slightly
• Immobilizer warning messages
• P151A 92 returning immediately after being cleared

The reader coil can fail electrically, suffer from damaged wiring or develop a poor connection at its plug. It should be tested with the correct wiring diagram and diagnostic equipment rather than replaced simply because the code is present.

4. Low Vehicle Battery Voltage

Low system voltage is an often-overlooked cause of strange immobilizer and BSI faults. If the vehicle battery is weak, the BSI and ECU may not communicate correctly during the starting sequence.

Check the battery before condemning a module. A battery that appears acceptable with no load may still drop too far during cranking.

Pay close attention to:

• Battery voltage before starting
• Voltage drop while cranking
• Battery terminals
• Main earth connections
• Engine and body ground straps
• Alternator charging voltage

A poor ground connection can create symptoms that look like a failed ECU.

5. Corroded or Loose Wiring

The immobilizer system depends on reliable power, ground and communication circuits. Water ingress, corrosion or previous repairs can interrupt the signal between the antenna, BSI and ECU.

Inspect wiring around:

• The ignition switch
• The antenna ring
• The steering column
• The BSI
• The engine ECU
• Battery and fuse-box areas
• Engine-bay connectors

Look for green corrosion, bent pins, damaged insulation, loose terminals and signs of water entry. Do not rely only on a visual inspection. A wire can look fine from the outside while having high resistance internally.

6. BSI Communication Problems

The BSI controls many body and security functions on Citroën vehicles. If it is not waking up correctly, has suffered low voltage or has a communication fault, the engine ECU may not receive the immobilizer authorisation in time.

Possible BSI-related causes include:

• Low battery voltage
• Incorrect battery disconnection
• Water damage
• Internal BSI failure
• Network communication faults
• Software problems
• Lost key synchronisation

A BSI reset may help in some situations, but it should be performed carefully using the correct Citroën procedure. Disconnecting the battery randomly while modules are active can create additional problems.

7. Aftermarket Alarm or Immobilizer

Non-original alarms, remote starters, tracking systems and immobilizer bypass devices can interfere with the factory security system.

If P151A 92 appeared after an alarm installation, remote-start repair or electrical modification, inspect that equipment first. Poorly installed aftermarket wiring is a common source of intermittent starting faults.

8. ECU or Software Fault

An engine ECU problem is possible, but it should not be the first assumption. ECU replacement is expensive and normally requires coding, configuration and immobilizer matching.

Before replacing the ECU, confirm:

• The ECU has correct power and ground
• Communication with the diagnostic tool is stable
• The BSI is operating normally
• The key is recognised
• The antenna ring works
• Wiring continuity is correct
• No additional network faults are present

Some Citroën diagnostic systems list P151A specifically as an immobilizer unlocking delay, while other tools may display a broader coded-immobilizer fault. (CITROENS-CLUB)

How to Diagnose P151A 92 Correctly

Step 1: Scan Every Control Module

Use a Citroën-capable diagnostic tool, such as professional PSA diagnostic equipment, rather than relying only on a basic generic OBD scanner.

Scan:

• Engine ECU
• BSI
• Immobilizer system
• Instrument panel
• Body-control modules
• Steering-lock module, where fitted

Write down all codes before clearing anything. A U-code, low-voltage code or BSI fault may be more important than P151A 92 itself.

Step 2: Check Battery Voltage

Test the battery with the ignition switched off and again during cranking. Inspect the terminals and ground straps at the same time.

If voltage drops sharply during starting, charge or replace the battery before continuing. It is difficult to diagnose an immobilizer system accurately with unstable voltage.

Step 3: Try the Spare Key

The spare key is one of the quickest diagnostic tools available. If it starts the car, the main key may need repair, replacement or programming.

If neither key works, the problem is more likely to involve the antenna ring, BSI, ECU, wiring or power supply.

Step 4: Check Key Recognition Data

A Citroën-specific scan tool may show whether the BSI detects a valid key. This is more useful than simply seeing that P151A 92 is stored.

The scan tool may identify:

• Key present or absent
• Key recognised or rejected
• Number of keys programmed
• Immobilizer status
• ECU authorisation status
• BSI and ECU pairing status

Step 5: Inspect the Antenna Ring

Check the antenna ring connector and wiring. The coil should be tested according to the manufacturer’s specifications.

Do not assume a new reader coil will solve the problem. If the original coil has power and the wiring is sound, the fault may be further along the security communication chain.

Step 6: Inspect BSI and ECU Connections

Check for moisture, corrosion and loose terminals. Pay particular attention to areas near the battery, fuse box and windscreen drains.

If a module has been replaced previously, confirm that it has been correctly coded to the vehicle. A second-hand BSI or ECU usually cannot simply be plugged in and expected to work.

Best Fixes for Citroën P151A 92

The correct repair depends on the test results. Common solutions include:

Replace the Key Battery

This is inexpensive and worthwhile when remote-control operation is weak. Remember that a new remote battery may not repair a damaged transponder chip.

Repair or Replace the Key

If one key fails and the spare works, have the faulty key tested by a qualified automotive locksmith or Citroën specialist. The key may need a new transponder, casing or programming.

Replace the Immobilizer Antenna Ring

A failed reader coil should be replaced with the correct part for the vehicle. After replacement, clear the code and confirm key recognition.

Repair Wiring and Grounds

Clean corroded terminals, repair damaged wires and tighten ground points. Electrical repairs should be completed before replacing expensive control modules.

Correct Low-Voltage Problems

Replace a weak battery, repair poor connections and check the charging system. Many security faults disappear once the vehicle has stable electrical power.

Reprogram the Key or Match the Modules

If the key has lost programming or an ECU/BSI has been replaced, the system may require key coding and module synchronisation. This normally requires the vehicle’s security PIN and professional equipment.

Key programming procedures use a security code and are generally carried out through the immobilizer or BSI diagnostic menu. (MANUALS)

Repair or Reprogram the ECU

ECU work should be considered only after power, grounds, wiring, key recognition and BSI operation have been verified. Depending on the vehicle, the ECU may need repair, virginising, coding or matching to the BSI and keys.

Can You Drive With P151A 92?

If the vehicle starts and the code is stored as intermittent, it may continue to run normally for a while. However, the fault can become permanent without warning.

A car with an immobilizer communication problem may start successfully today and leave you stranded tomorrow. Avoid relying on repeated attempts, battery resets or hitting the key. Arrange a proper diagnosis before the vehicle stops starting completely.
